I N S T A L L A T I O N G U I D E

for the

SB-T-TACDC12/10TW3

SKU# 94557

2012 & Up Toyota Tacoma Double Cab

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.

With proper installation, your new vehicle-specific enclosed subwoofer system

will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your authorized

JL Audio dealer. The installation professionals employed by your dealer have the necessary tools

and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your

own installation, please read this installation guide completely before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox ® be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

Continued on Next Page

SB-T-TACDC12/10TW3 INSTR_SKU# 011350

INSTALLATION

D I F F I C U LT Y :

OUT

ESTIMATED TIME:

2 HOURS

S P E C I F I C A T I O N S

Enclosure Type: Sealed

Driver Type: 10TW3-D4

Nominal Impedance: 2 ohms

Continuous Power Handling: 400 watts (RMS method)

I N C L U D E D H A R D W A R E

(2) Brackets

(4) 1/4 - 20 x 1” Hex Bolt

(4) 1/4” Lock Washer

(4) 1/4” Flat Washer

(2) 1/4 - 20 U-Nut

SB-T-TACDC12/10TW3 INSTR_SKU# 011350

P O W E R R E C O M M E N D A T I O N

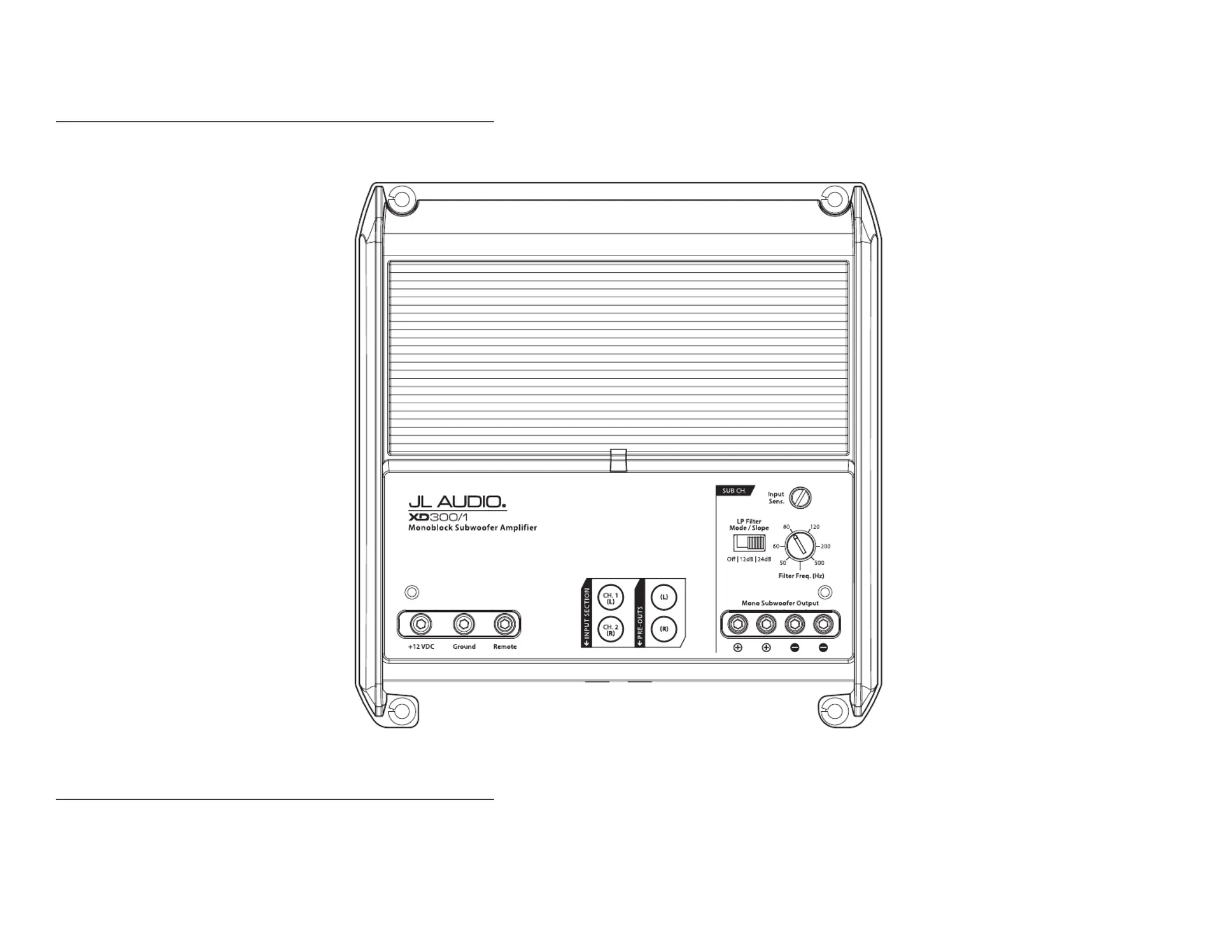

JL Audio recommends high quality ampliers such as the JL Audio XD300/1. The diagram below shows the recommended crossover settings for the XD300/1. For a detailed description of the amplier settings, consult the

owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.

C O N N E C T I O N S

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplier. Other kits

are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplier. JL Audio

reccomends using 12AWG speaker wire for subwoofers.

Continued on Next Page Page 2 • JL Audio, Inc., 2013

Continued on Next Page

SB-T-TACDC12/10TW3 INSTR_SKU# 011350

Page 3 • JL Audio, Inc., 2013

S T E P 4

On the backside of the rear panel, locate the two recessed

areas, then measure and mark 1” down the center from the

edge as shown. Drill a 1/8” pilot hole on the mark.

S T E P 8

Slide a 1/4 - 20 U-Nut through each of the 3/4” holes and

align them with the 7/16” holes as shown.

S T E P 3

Empty out the storage pocket. Remove the clips that hold in

the rear panel and remove the panel.

S T E P 7

Drill 3/4” holes on the marks made in the previous step. Use

caution so as not to drill through the back of the cab.

S T E P 2

Carefully unclip the seat bolt covers at the corners of the rear

seat backs. Unbolt and remove the seat backs.

S T E P 6

Measure and mark 1” to the right of each pilot hole. Enlarge

the 1/8” pilot holes in both the metal and the plastic to 7/16”.

Use caution so as not to drill through the back of the cab.

S T E P 1

Empty out the back seat of the vehicle and fold the seats

down.

S T E P 5

Reinstall the panel. Drill through the pilot holes made in the

previous step to create pilot holes in the metal. Use caution

so as not to drill through the back of the cab. Remove the

panel again.

Before drilling, always make sure that you are not

going to be drilling into any gas lines, brake lines,

tires, transmission lines, electrical wiring, exhaust

systems or anything else that might cause a reduction

in your weekly pay.

Always wear eye protection when drilling!
