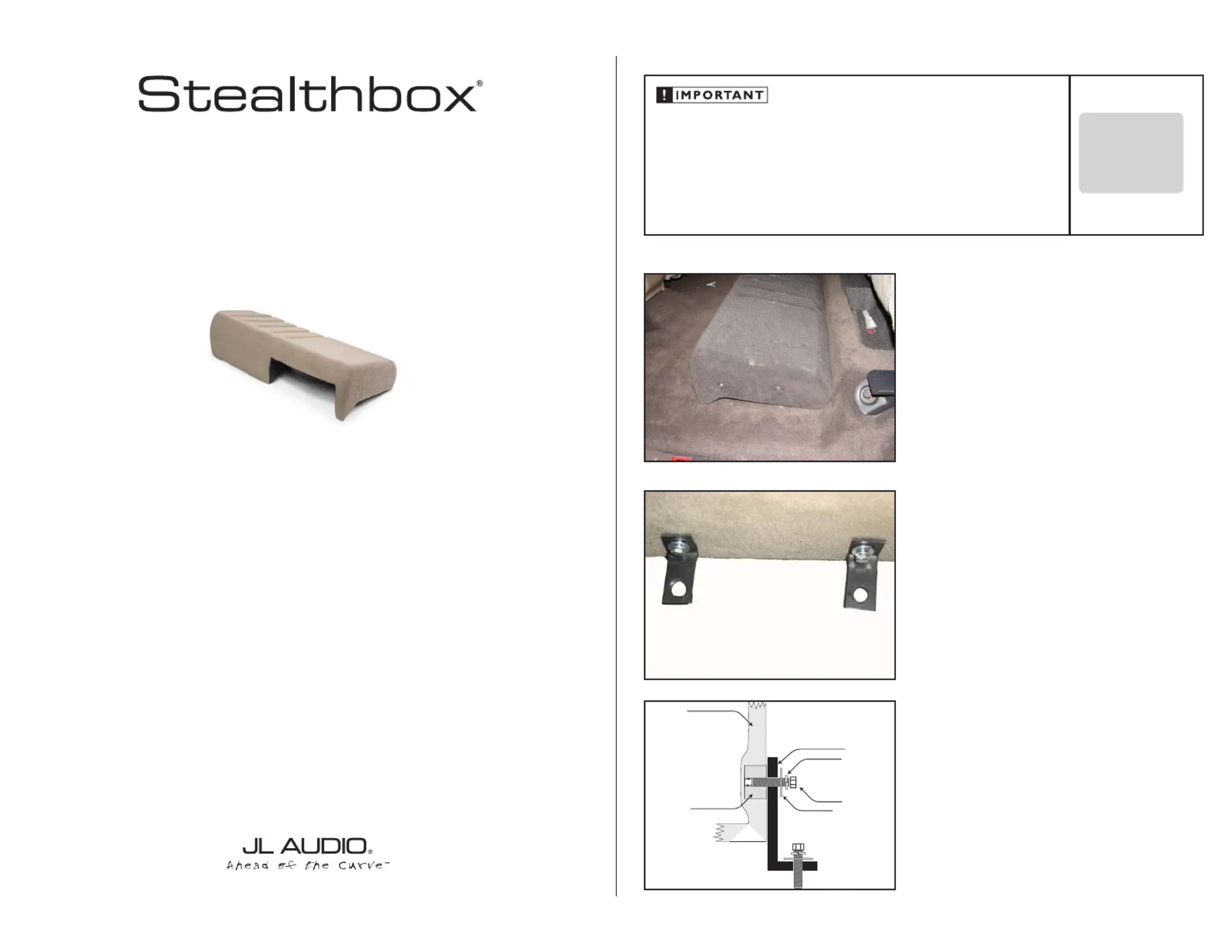

I n s t a l l a t I o n G u I d e
for the
SB-F-F150SCR/13TW5
sKu#94460,94461,94462
2008+
Thank you for choosing a JL Audio Stealthbox
® for your automotive sound system. With proper
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
® installed by your authorized JL Audio
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
s t e P 1
Remove any contents in the backseat area and flip the seat
up. Place the Stealthbox® on the floor under the drivers side
backseat as shown.
Continued on Next Page
s t e P 2
There are four brackets that need to be installed on the
enclosure, two on each end.
Shown is the end of the enclosure that would be mounted
near the middle of the cab of the truck, at the other end of
the enclosure the brackets are mounted so that the bottom
tabs go under the enclosure.
The long end of the bracket attaches to the enclosure using
the supplied hardware (see detaIl below). Do not tighten
hardware down at this point, just get it in place.
d e t a I l
SB-F-F150SCR/13TW5 INSTR_SKU# 011297
InstallatIon
d I F F I C u lt Y :
25
out
oF
estImated tIme:
1 HouR
THREADED INSERT
MOUNTING BRACKET
LOCK WASHER
FLAT WASHER
HEX BOLT
STEALTHBOX WALL

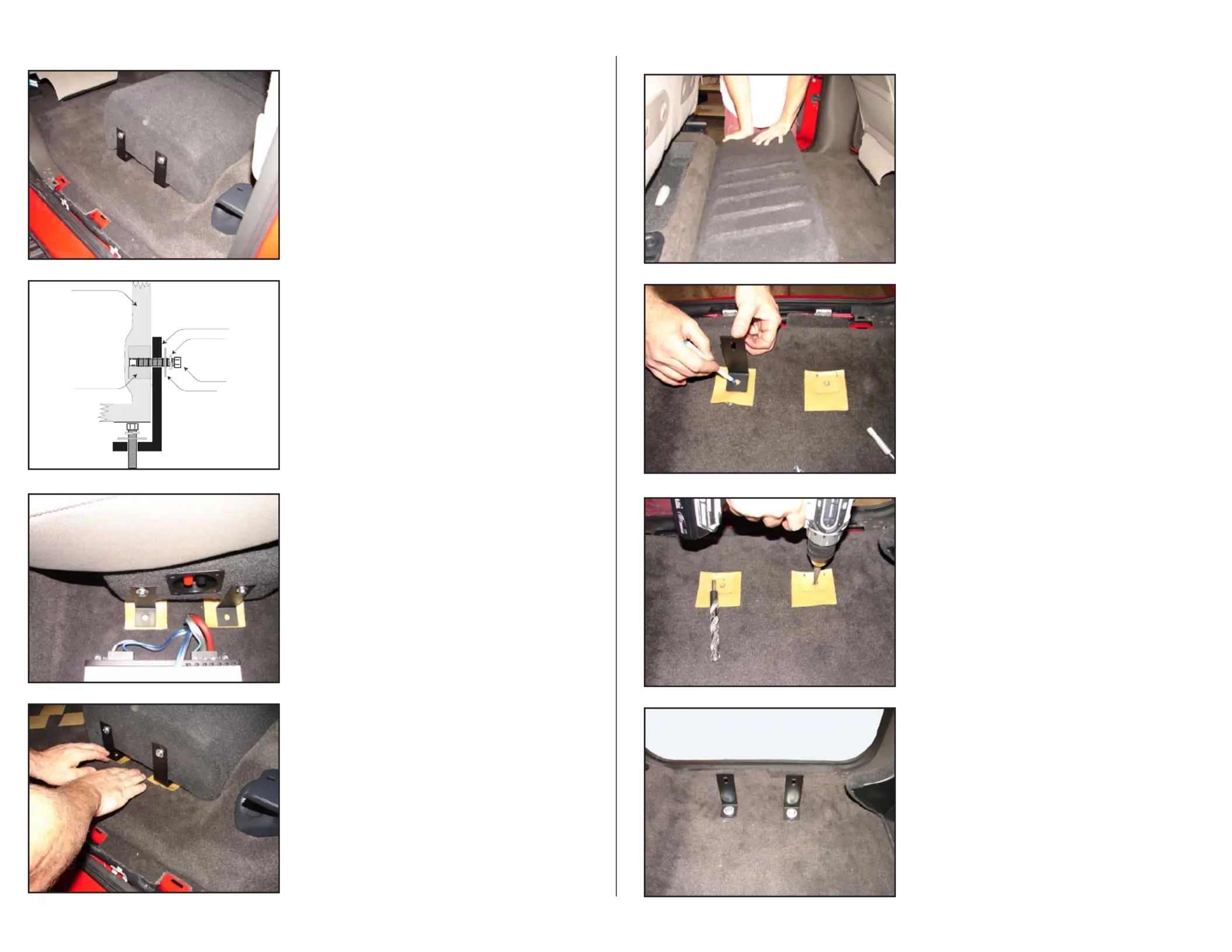

S T E P 5
Insert two 3” x 3” Wax Squares under the outisde feet as
well, make sure not to move the enclosure from the correct
position while inserting the 3” x 3” Wax Squares.
S T E P 4
Align the enclosure so that the inside edge is directly below
the inside seam of the seats as shown and insert the 3” x 3”
Wax Squares under the feet as show.
D E T A I L
S T E P 3
Mount the two outside brackets to the enclosure as shown
in the picture at left and, the DETAIL below. DO NOT
TIGHTEN AT THIS TIME!
Page 2 • JL Audio, Inc 2008
THREADED INSERT
MOUNTING BRACKET
LOCK WASHER
FLAT WASHER
HEX BOLT
STEALTHBOX WALL
S T E P 9
Install the two outside Mount Brackets to the floor first, using
the hardware included as shown.
S T E P 8
Drill the four 1/2” holes required to mount the brackets to
the floor.
***CAUTION***
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a reduction
in your weekly pay. Always wear eye protection when
drilling.
S T E P 7
Remove the Mount Brackets from the enclosure and position
them accordingly (if needed) and mark the holes to be
drilled.
S T E P 6
Making sure that you don’t re-postion the enclosure, press
down on each corner as Bill is shown doing here, creating
depressions in each of the 3” x 3” Wax Squares to identify
where you will drill the four holes through the floor to secure
the enclosure.
SB-F-F150SCR/13TW5 INSTR_SKU#
Continued on Next Page
SB-F-F150SCR/13TW5 INSTR_SKU# 011297
D E T A I L

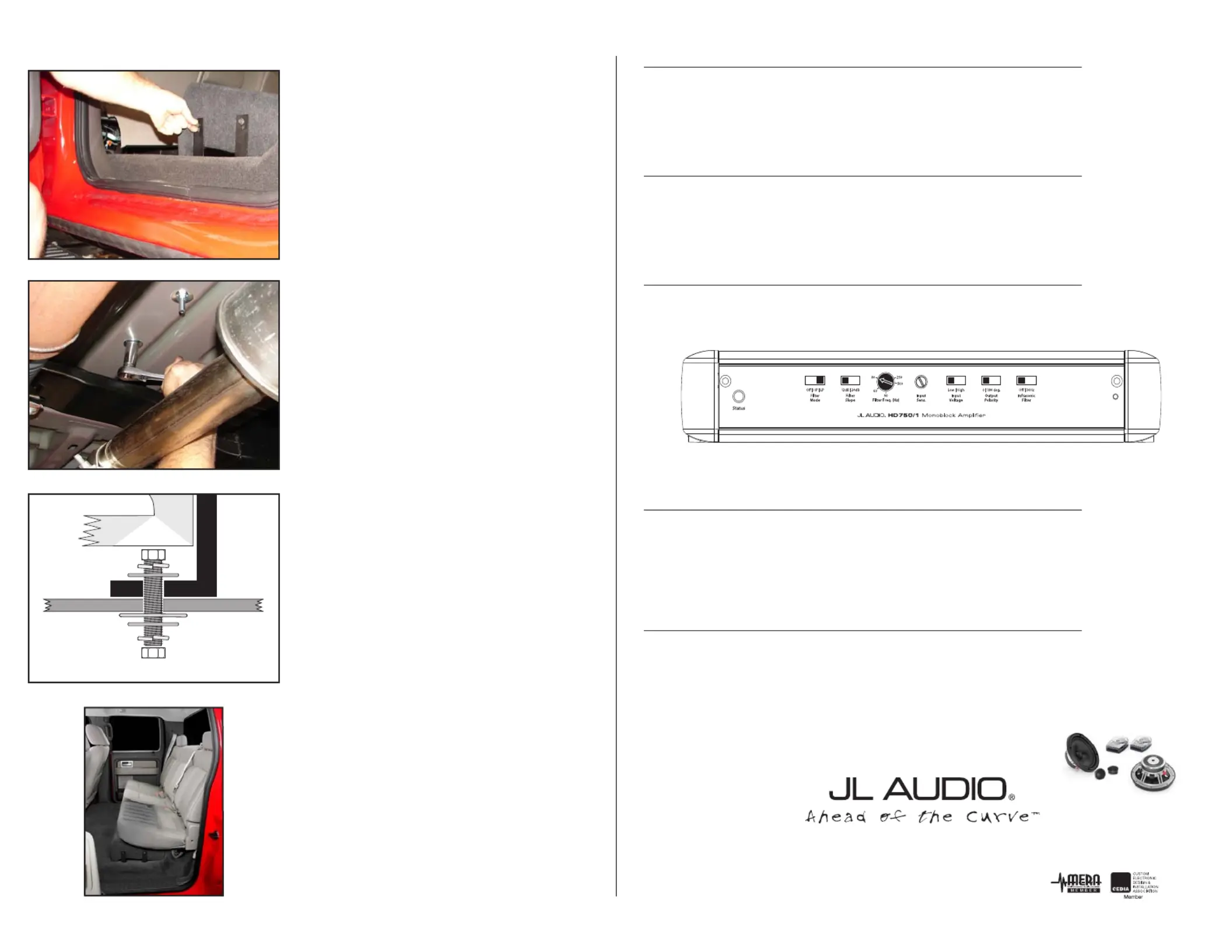

S T E P 1 1
It will be easier to go under the vehicle to tighten the four
bolts that come through the floor. Make sure to install the
Fender Washers, Split Lock Washers and, Hex Head Nuts as
shown in the DETAIL below.
S T E P 1 0
Set the enclosure in place and secure the Stealthbox® to the
previously installed Mount Brackets. Once all hardware is in
location and started, go back through all fasteners and
tighten.
Page 2 • JL Audio, Inc 2008
I N C L U D E D H A R D W A R E
4) Custom Mount Bracket 4) 1/4” Flat Washer 4) 1/4” Split Lock Washer
4) 1/4-20 x 1” Hex Head Bolt 4) 3/8” Flat Washer 4) 3/8” Split Lock Washer
4) 3/8-16 x 1 3/4” Hex Head Bolt 4) 3/8” x 1-1/4” Fender Washer 4) 3/8-16 Hex Nut
4) 3” x 3” Wax Square
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 13TW5
Nominal Impedance: 3Ohms
Continuous Power Handling: 600Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends high quality amplifiers such as the JL Audio HD750/1, 500/1v2 or G1700. The diagram below
shows the recommended crossover, infrasonic filter and equalizer settings for the HD750/1. If another amplifier is
being used, please reference this illustration and use similar settings on that amplifier.
All JL Audio amplifiers are very versatile audio components. Please consult the owner’s manual for even more
detailed information about installing and tuning your amplifier.
C O N N E C T I O N S
Using quality power, signal and speaker wire is essential in ensuring the performance of your Stealthbox®.
JL Audio recommends using a 4 AWG power kit such as the XC-PCS4-1B for your Stealthbox® amplifier, other
kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium
Audio Interconnect Cables should be used that will provide signal for both channels of the amplifier. JL Audio
reccommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 5”x 7” / 6”x 8”- Front Doors
Fits JL Audio Models: TR570-CXi, C2-570x, C5-570, C5-570x & ZR570-CSi
Rear Speaker Size / Location: 5”x 7” / 6”x 8”- Rear Door
Fits JL Audio Models: TR570-CXi, C2-570x, C5-570, C5-570x & ZR570-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011297 07-24-2009 • Printed in USA • ©2009 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
S T E P 1 2
Step back and admire your work, flip the rear seat back
down,
C O N G R A T U L A T I O N S !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
