Oldal 1/11

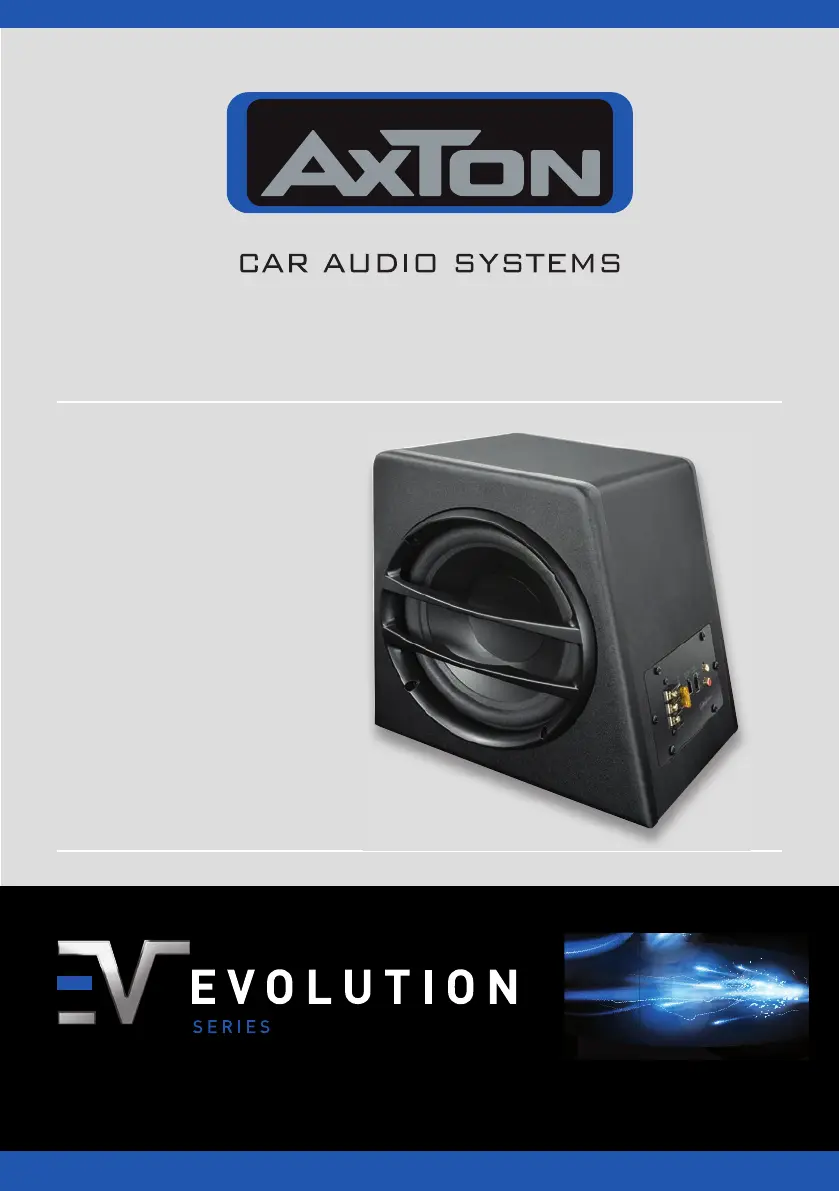

A X B 2 0 A

OWNER‘S MANUAL/BEDIENUNGSANLEITUNG

8"/20 CM

ACTIVE

SUBWOOFER

– 2 –

Dear Customer

Thank you and congratulations on your purchase of the AXTON AXB20A. This active sub-

woofer system exclusively uses very high quality parts and components. As with all high-

quality car audio components, professional installation is highly recommended. If you plan on

installing this active subwoofer by yourself, please read the following installation guide care-

fully, before you attempt the installation. You should retain this manual, the packing and the

purchasing receipt for future reference. For any further additional information about mounting,

connecting or adjusting this subwoofer system, please contact your AXTON dealer.

UNPACKING THE SYSTEM

Carefully remove all parts from the giftbox and check whether they are in good undamaged

condition, and match with the set contents listed below:

nAXB20A active subwoofer

nHigh level input plug

nMounting feet

nOwner‘s manual

nHardware accessory bag

Please contact your authorized AXTON dealer, if the content of this set is incomplete,

or parts of it show signs of transport damage.

SPECIFICATIONS

■ 8” active subwoofer

■ Frequency response: 25 – 120 Hz

■ 70 W rms x 1 @ 4 ohms (< 1.0% THD / 14.4V)

■ 140 W max. x 1 @ 4 ohms (< 10% THD / 14.4V)

■ Class-D MOS-FET amplier

■ Variable lowpass lter: 60 Hz – 120 Hz with 12 dB/oct.

■ Variable phase shift control: 0 – 180°

■ Variable input sensitivity, RCA: 0.2 – 5 V

■ Variable input sensitivity, high-level: 1.0 – 8 V

■ Signal to noise ratio: > 85 dB

■ Dimensions WxHxD: 220 x 275 x 285 mm

■ Net Weight: 6.8 kg

– 4 –

SAFETY INSTRUCTIONS

1. This unit is designed to be used in a vehicle with a 12V battery and negative ground.

2. Before any wiring, always remove the negative terminal of the battery to prevent short-

circuiting.

3. Do not disassemble or alter the unit in any way, because that will void your warranty. Do

not attempt to repair or to service the unit yourself, but contact an authorized AXTON

dealer instead.

4. Use only original accessories which are designed and manufactured for the unit,

otherwise you will risk damage. Install the unit according to the mounting manual and

use only the supplied mounting accessories. The forces of acceleration for accidents are

sometimes huge. Heavy objects may pose a risk for the driver and the passengers of the

car, during an accident.

5. Protect the unit from water and other liquids, which can enter the product. A short circuit

or even fire could result.

6. Before you replace a defective fuse, try to find the cause for the short circuit. Please

pay attention to the cables of the power supply! If the short circuit doesn‘t result from a

failure of the power supply or wiring, you can replace the defective fuse with a new one

of identical value. If the short-circuit still exists, please contact an authorized AXTON

dealer.

7. Be careful not to drain the car battery while using the unit when the car engine is turned

off. Because the unit uses a considerable amount of energy and the battery will be

charged only while the engine is running, it might happen that the battery will discharge

to a point, where it‘s not longer possible to start the engine.

8. If your car is parked in direct sunlight and there is a considerable rise in temperature

inside the car, allow the unit to cool off before operation.

9. The amplifier module employs a protection circuit to protect the woofer from amplifier

malfunction. The amplifier’s protection circuitry will shut-off the amplifier in case of short-

circuit, overload DC offset and in case of overheat. In case the cause for protection

shut-off has been eliminated, the amplifier will operate normally again (green LED ON).

Otherwise the amplifier will continue to remain in protection mode.

10. Do not use the unit with a weak or old battery as its optimum performance depends on

a normal battery supply voltage of 12V.

11. Please pay attention to the music playback volume inside your vehicle, because you are

obliged to notice exterior sounds like a police siren or you might face penalties in case

of an accident or even loose your insurance coverage.

12. Do not operate the unit in any other way than described in this manual. Failure to follow

the instructions within this manual will void your warranty.
