NOTICE

The information contained in this document is

subject to change without notice. SmartAVI

makes no warranty of any kind with regard to this

material, including but not limited to, implied

warranties of merchantability and fitness for par-

ticular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential dam-

ages in connection with the furnishing, perform-

ance or use of this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

20160714

800.AVI.2131

Tel: (818) 503-6200 Fax: (818) 503-6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

V2V-MAX 3

V2V-MAX 3 V2V-MAX 3

Designed and Manufactured in the USA

Full 1080P HD Automatic Switcher

with Integrated Scaler

User Manual

DVI, VGA, Composite, USB,

Y/Pb/Pr, HDMI, Stereo Audio

Converter, Scaler and Automatic

Switcher

WHAT'S IN THE BOX?

PART NO.

PART NO. PART NO. QTY

QTY

QTY QTY DESCRIPTION

DESCRIPTION

DESCRIPTION DESCRIPTION

V2V-MAX 3 1 1080p Switch w Scaler

PS5VDC4A 1 Power Supply/Adapter

1 Quick Start Guide

V2V-MXR 1 Remote Control (Optional)

TECHNICAL SPECIFICATIONS

INPUTS

INPUTS INPUTS

HDMI (2) Type A 19-Pin Female, Up to

1920x1080@60Hz

DVI-D (1) DVI-D Female, Up to

1920x1080@60Hz

VGA (1) DB15 Female, Up to

1920x1080@60Hz

COMPOSITE (1) RCA CVBS, PAL, NTSC, SECAM

Y/Pb/Pr (1) Up to 1080i

USB (1)

USB Type A; MPEG, H.264, RM/RMVB

movie decode, JPEG, BMP, PNG, Pic-

ture decode and MPEG1/2, MP3 au-

dio decode.

Max Resolution 1280 X 720

OUTPUT

OUTPUT OUTPUT

HDMI HDMI Type A 19-Pin Female

CONTROL

CONTROL CONTROL

Front Panel (8) Buttons

RS-232 DB9 Female, 9600, 8, N, 1, No Flow

Control

OTHER

OTHER OTHER

Power 5VDC 4A

Operating Temp.

Range -5 to 35 C (-41 to +95 F)

Operating Humid-

ity Range 50 to 90 % RH (No Condensation)

Dimensions 12” W x 2” H x 6.25” D

Weight 1 lb. 10 oz.

HDMI Output Up to 1080P@60Hz

IR remote IR remote control (Optional)

Stereo Audio Out-

put 3.5 mm output Jack

Stereo Audio Input

3.5 mm input to the left of the DVI

Port. Selected by the DVI button.

AUDIO

AUDIO AUDIO

Stereo Audio Input 3.5 mm input Jack to the right of the

VGA Port. Selected by the VGA button.

CONNECTING THE V2V-MAX3

1. Power off all devices.

2. Connect all sources to the input ports.

3. Optionally connect RS-232 for control functions.

4. Connect power to the V2V-MAX 3.

5. Power on all other devices.

RS-232 COMMANDS

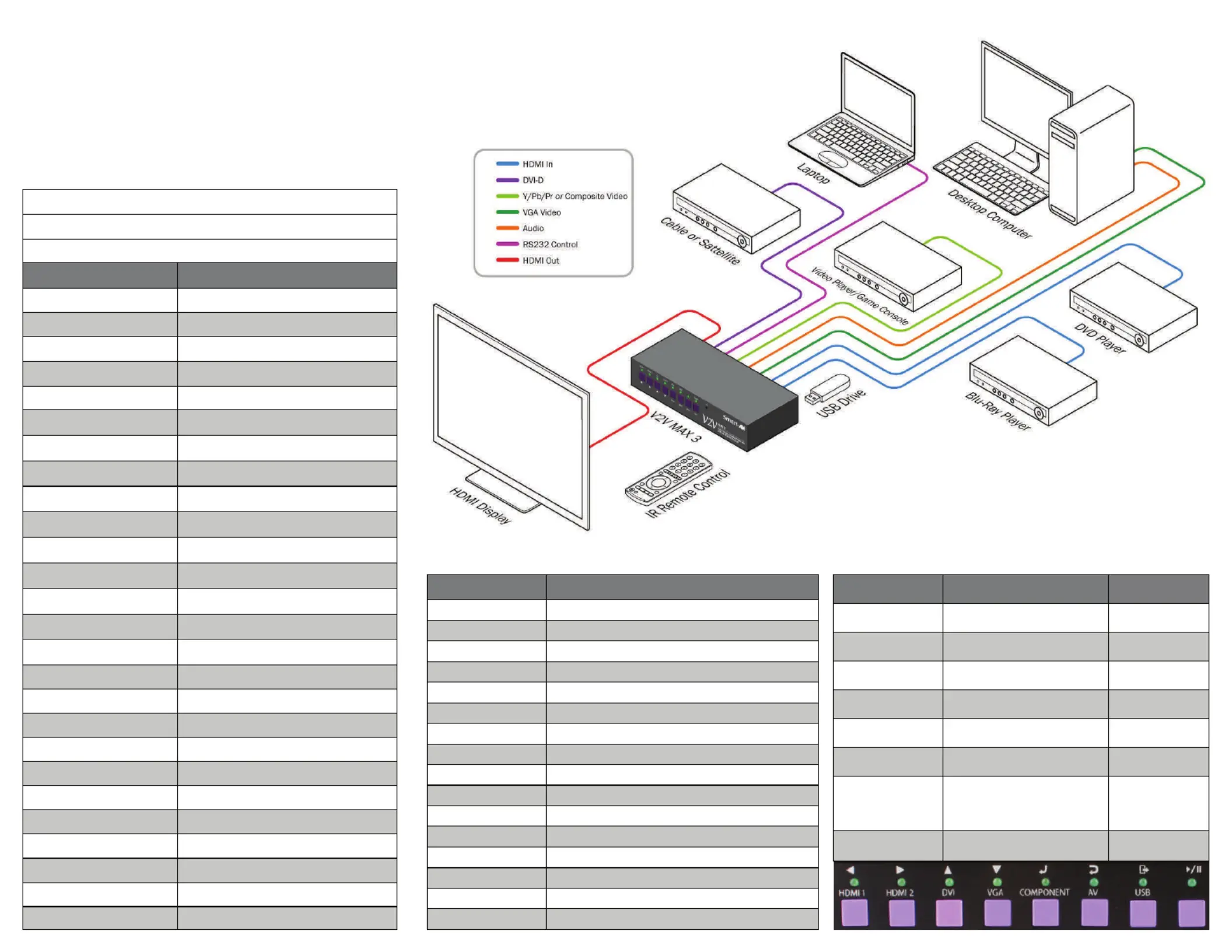

INSTALLATION DIAGRAM

BUTTON

BUTTON BUTTON DESCRIPTION

DESCRIPTION

DESCRIPTION DESCRIPTION USB Mode

USB Mode

USB Mode USB Mode

HDMI 1 Select HDMI 1 Input Left

HDMI 2 Select HDMI 2 Input Right

DVI Select DVI Input Up

VGA Select VGA Input Down

COMPONENT Select Composite Input Enter

AV Select Y/Pb/Pr Input Back

USB Select USB Mode Exit USB

Mode

► /║ Play / Pause

FRONT PANEL CONTROLS

BUTTON

BUTTON BUTTON DESCRIPTION

DESCRIPTION

DESCRIPTION DESCRIPTION

USB Select USB Input

VGA Select VGA Input

DVI Select DVI Input

HDMI Select between the two HDMI Inputs

AV Select AV Input

Menu Picture Adjustment Menu

Up Arrow ▲Volume Up

Down Arrow ▼Volume Down

Left Arrow ◄USB Mode Left

Right Arrow ►USB Mode Right

Center Button  USB Mode Enter

Back USB Mode Back

Mute Mute

Play USB Mode Play

Stop USB Mode Stop

Enter USB Mode Enter

IR REMOTE CONTROL

COM Port Setting: 9600,N,8,1,No flow co

COM Port Setting: 9600,N,8,1,No flow coCOM Port Setting: 9600,N,8,1,No flow control

ntrol

ntrol ntrol

Commands are case sensitive

Commands are case sensitive Commands are case sensitive

<CR> represents Carriage Return or enter key

<CR> represents Carriage Return or enter key <CR> represents Carriage Return or enter key

BUTTON

BUTTON BUTTON DESCRIPTION

DESCRIPTION

DESCRIPTION DESCRIPTION

//?<CR> Help (List of Commands)

//H1<CR> Select HDMI 1 Input

//H2<CR> Select HDMI 2 Input

//DV<CR> Select DVI Input

//VG<CR> Select VGA Input

//AV<CR> Select AV Input

//YB<CR> Select Component Input

//US<CR> Select USB Input

//E0<CR> Echo off

//E1<CR> Echo on

//MU<CR> Picture Adjustment Menu

//B<CR> Boot

//RT<CR> Navigate Right

//LF<CR> Navigate Left

//EN<CR> Enter

//UP<CR> Navigate Up

//DN<CR> Navigate Down

//BK<CR> Back

//PL<CR> Play/Pause

//ST<CR> Stop

//VU<CR> Volume Up

//VD<CR> Volume Down

//QF<CR> Query Firmware version

//QM<CR> Query current Mode

//AO<CR> Enable Auto-Detect

//AF<CR> Disable Auto-Detect
