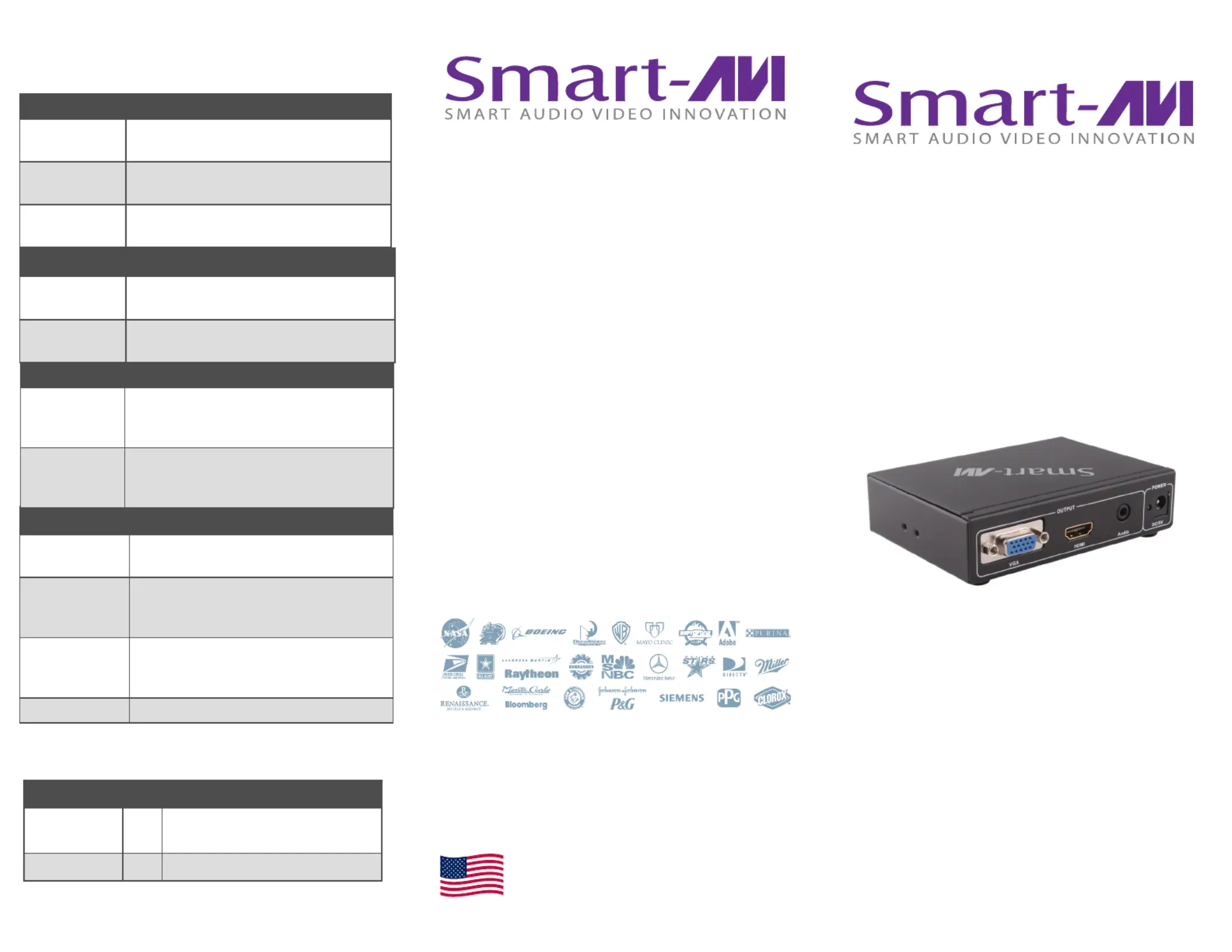

USER MANUAL

V2V-AV2HV

YPBPR, CVBS, S-Video and R/L

Audio to HDMI or VGA and Stereo

Audio Converter

TECHNICAL SPECIFICATIONS

HD Video Converter with

Stereo Audio

INPUT

Input Video

Resolution

YPbPr: 1080p@50/60Hz, 1080i@50/60Hz,

720p@50/60Hz, 576i/p, 480i/p

Input Video

Signal

0.5-1.0 volts p-p

Input DDC

Signal

5 volts p-p (TTL)

OTHER

Power Switching Power Supply 110/220v

5VDC2A

Operating

Temperature

Range

0 to +70°C (32 to + 158°F)

Operating

Humidity

Range

5 to 95 % RH (no condensation)

Dimensions 4.3 in. W x 1.1 in. H x 3.1 in. D

OUTPUT

Video

HDMI Set 720p or 1080p output format

with integrated audio, VGA

Audio

Stereo Audio 3.5mm jack socket

OPERATING FREQUENCY

Vertical

Frequency

Range

50/60Hz

Video

Amplifier

Bandwidth

1.65Gbps/165MHz

PART NO. QTY DESCRIPTION

V2V-AV2HV-S 1 HD Video Converter with Stereo

Audio

PS5VDC2A 1 Power Supply

WHAT’S IN THE BOX?

NOTICE

The information contained in this document

is subject to change without notice. SmartAVI

makes no warranty of any kind with regard to

this material, including but not limited to,

implied warranties of merchantability and

fitness for particular purpose.

SmartAVI will not be liable for errors con-

tained herein or for incidental or consequen-

tial damages in connection with the furnish-

ing, performance or use of this material.

No part of this document may be photocop-

ied, reproduced, or translated into another

language without prior written consent from

SmartAVI Technologies, Inc.

800.AVI.2131

Tel: (818) 503-6200 Fax: (818) 503-6208

11651 Vanowen St. North Hollywood, CA 91605

SmartAVI.com

Many industry-leading companies have recognized the innova-

tion and power of SmartAVI’s technologies and have success-

fully implemented them within their systems. Users of Smar-

tAVI technology include:

Designed and Manufactured in the USA

INTRODUCTION

The V2V-AV2HV connects to older devices via HDMI,

converting video for optimized performance and out-

put picture quality.

The V2V-AV2HV is easy to use and enhances audio-

visual content automatically, so set-up is simple and

hassle-free.

With a wide range of device connectivity and refined

media output, the V2V-AV2HV is the best way to

make the most of aging AV equipment.

FEATURES

 Installs in seconds, no need of setting.

 Auto detect the input resolution without setting.

 Convert YPbPr video and R/L audio into complete

HDMI and VGA+stereo audio.

 Supports CVBS video and R/L audio into complete

HDMI and VGA+stereo audio.

 Convert S-video video and R/L audio into com-

plete HDMI and VGA+stereo audio.

 Supports highest video resolution up to 1080p

 165MHz/1.65Gbps per channel (6.75Gbps all

channel) bandwidth.

 8bit per channel (24bit all channel) deep color.

 Supports OSD( On Screen Display ) menu opera-

tion.

SUPPORTED FILE TYPES

SUPPORTED FILE TYPES SUPPORTED FILE TYPES

Video: MPEG, H.264, RM/

RMVB

Audio: MPEG

Images: BMP, JPEG, PNG

CONNECTING THE V2V-AV2HV

1. Power o all devices

2. Connect the V2V-AV2HV to a display device via HDMI

3. Connect the VGA input to video source

4. Connect 3.5 Audio jack to the audio output source

5. Connect the component video green “Pr,” blue “Pb,” and red to the “Y” RCA jacks and the com-

ponent source audio to L and R.

6. Connect the composite video Yellow jack, to the composite input, and the corresponding audio

jacks R and L into Audio-R and Audio-L respecvely.

7. Connect the power supply to the DC 5v

8. Turn on the power to each external device

9. Turn on the power to the V2V by toggling the power switch

10. Use the Remote control, or front control panel to change sources.

11. Use OSD for advanced control and menu operaon

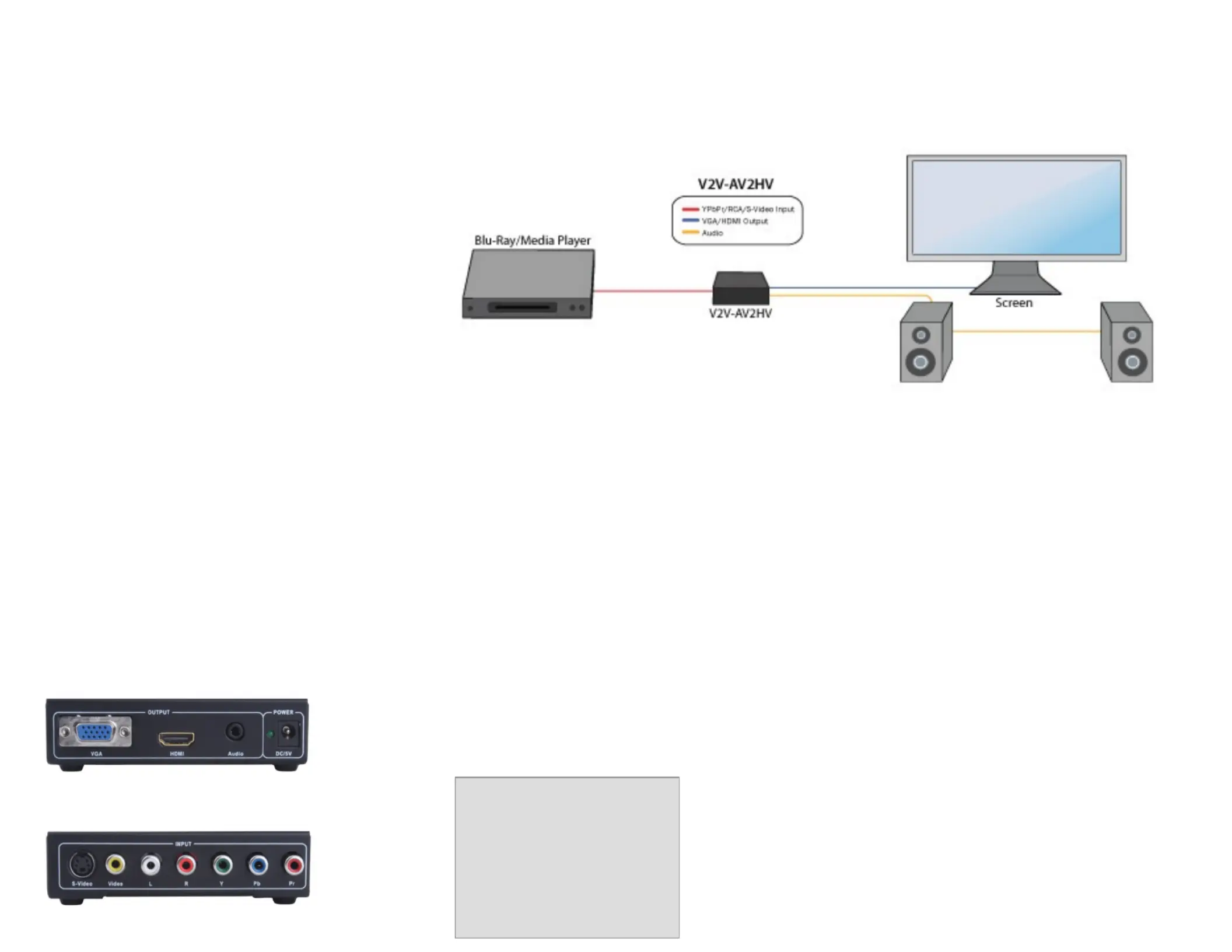

INSTALLATION DIAGRAM

V2V-AV2HV Front

V2V-AV2HV Back

APPLICATIONS

 Courtrooms

 Schools

 Conference Center Systems

 Universities

 Hospitals

 Control Room Systems

 Broadcasting Facilities

 Recording Studios
