LMT1
INSTRUCTION MANUAL
WE’RE HERE TO HELP
2
80 lbs.
(36.3 kg)
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

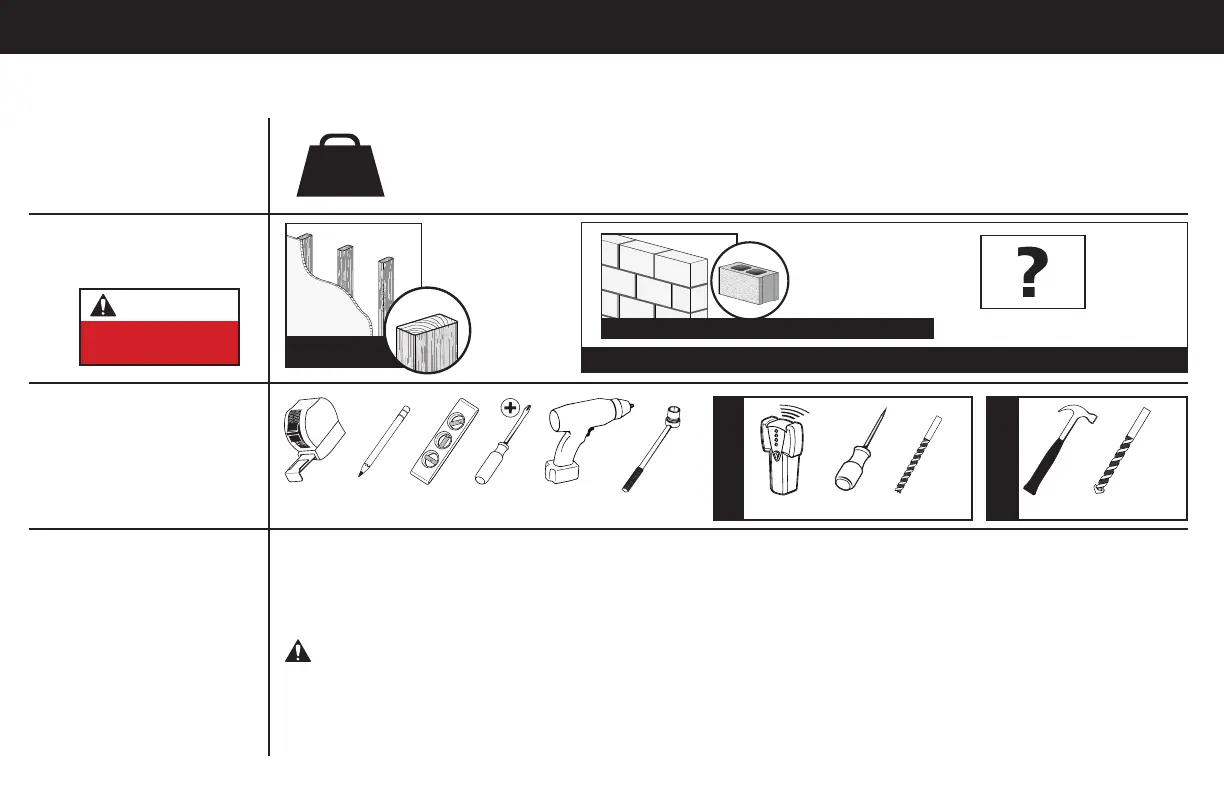

Before getting started, let’s make sure this mount is perfect for you!
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit MountFinder.Sanus.com or call
1-855-734-7805 to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-855-734-7805.
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
Ready to begin?
Does your TV
(including accessories)
weigh more than
80 lbs. (36.3 kg)?
CAUTION:
DO NOT install
into drywall alone
Unsure?
Drywall with
wood studs? Solid concrete or
concrete block?
Call Customer Service: 1-855-734-7805
Perfect!
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Wood Stud Install
Concrete Install
Awl
Pencil Level Stud Finder
Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
Concrete Installation kit required (not included)
3

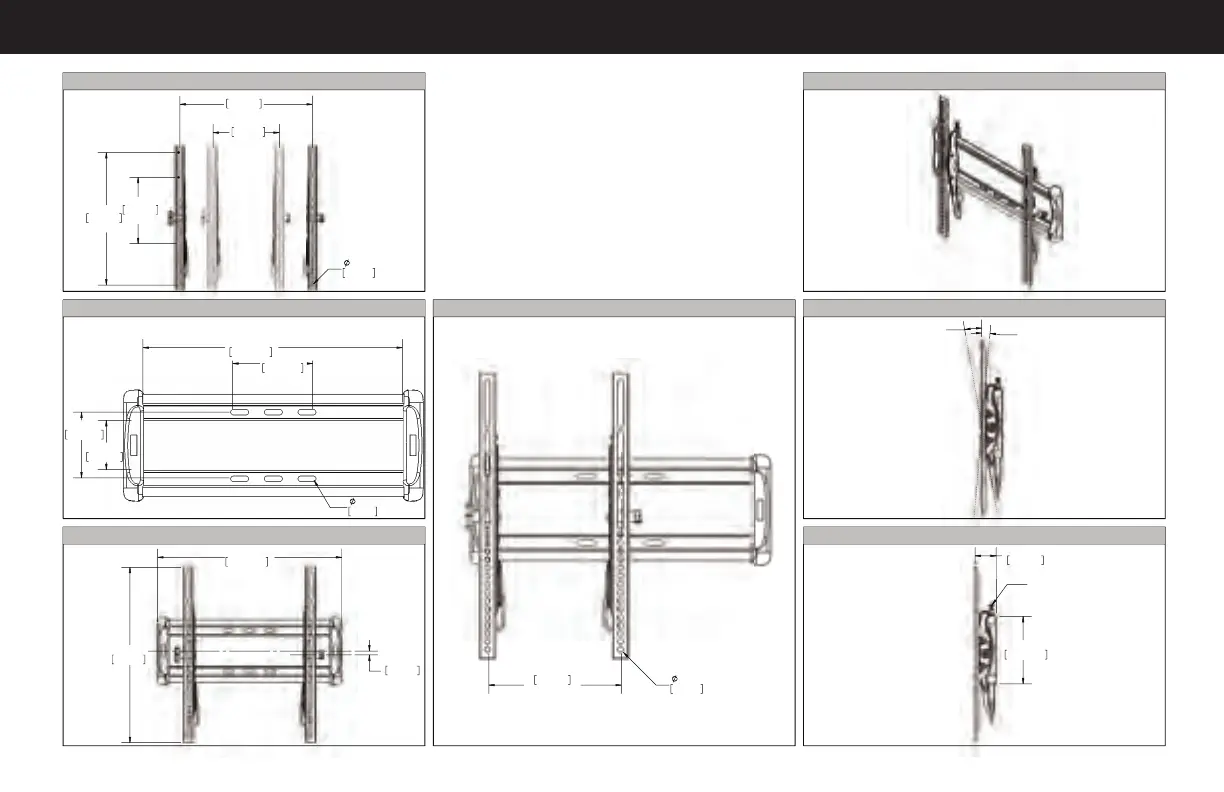

Dimensions
7.87in
200mm
MIN
0.35in
8.8mm
15.75in
400mm
MAX
7.87in
200mm
MIN
15.75in
400mm
MAX
4.75in
120.7mm
15.42in
391.7mm
2.93in
74.4mm
3.91in
99.4mm
0.33in
8.4mm
17.78in
451.6mm
16.93in
430mm
0.38in
9.7mm
OFFSET
7.87in
200mm
LATERAL SHIFT
AT 200 VESA
0.35in
8.8mm
6.50in
165.2mm
2.04in
51.8mm
LEVEL
ADJUST
SCREW
5deg
TIL
UP
10deg
TILT
DOWN
TV INTERFACE
WALL PLATE
FRONT VIEW - LATERAL SHIFT
3-D
SIDE VIEW - TILT
SIDE VIEW
FULLY ASSEMBLED MOUNT
