INSTRUCTION MANUAL
WE’RE HERE TO HELP
Our US-based install experts
are standing by to help.
Call us at:
800-359-5520
Or, chat at:
SANUS.com/chatSP
Get it right the first time.
HeightFinder™ shows you
where to drill.
Check it out at:
SANUS.com/1172
Want to watch a video that
shows how easy this DIY
project will be?
Watch it now at:
SANUS.com/2513
Texto en español, página 12
GET IT
RIGHT
THE FIRST TIME
Follow this step-by-step
instruction manual to
speed up your installation.
2

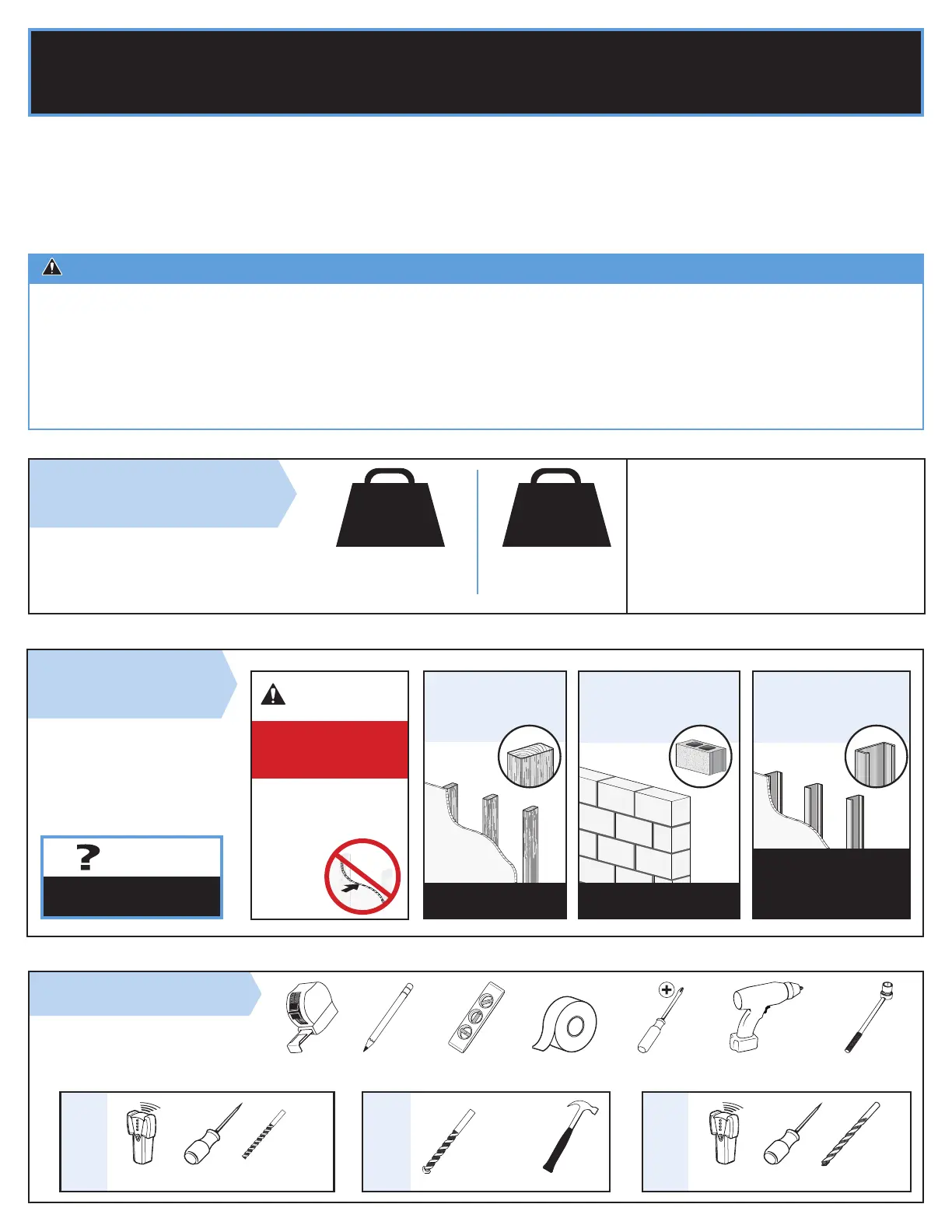

TV Weight Limit
(including accessories)
DO NOT EXCEED
Call Customer Service
Tools Needed
Wall
Construction
ONLY install on
these acceptable
wall types.
Unsure
wood studs Solid concrete or
concrete block Steel studs
ACCEPTABLE ACCEPTABLE
Steel stud kit SSMK1
is required for install,
but NOT INCLUDED.
Call Customer Service
Wood Stud
Install
Steel Stud
Install
Concrete
Install
Awl Awl
Pencil Level Tape
Stud Finder Stud Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
1/2 in.
(13 mm)
Steel
Drill Bit Drill Bit
Electric
Drill
Hammer
1/2 in.
(13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION:
DO NOT install
in drywall alone
150 lbs.
(68.0 kg) 110 lbs.
(49.8 kg)
For stud and wood
Solid or Concrete
Concrete Block Walls
For Steel
Stud Walls
Drywall alone
will NOT hold
the weight
of your TV.
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of
this product, contact Customer Service.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood stud, solid concrete or concrete block or steel stud walls.
— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV .
●This product is designed for .INDOOR USE ONLY
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
If your TV, plus accessories, weighs MORE
than indicated, this mount is NOT compatible.
Visit SANUS.com or call customer service to
find a compatible mount.
3
BEFORE YOU BEGIN
Remove the stand from
your TV if attached.—
Install any accessories you may
have purchased, if they requireTV removal
prior to assembly. The TV is removable for
future accessory purchases.
Soft clean surface
Protect the face of your TV
when laying it down for installation.

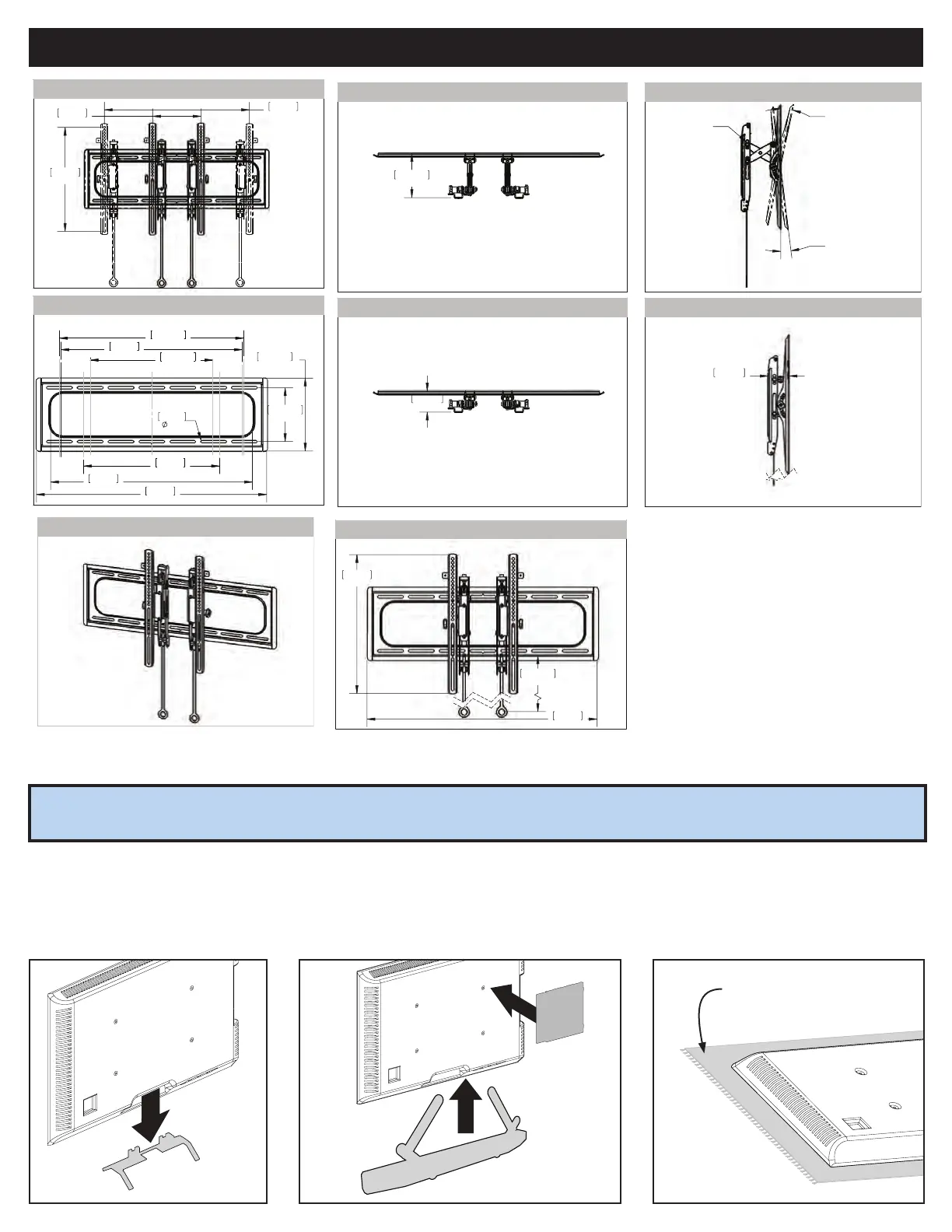

Dimensions in. [mm]
600mm
23.62in
430mm
16.93in
200mm
7.87in
668mm
26.30in
762mm
30.00in
241.3mm
9.50in
177.8mm
7.00in
8.4mm
.33in
406.4mm
16.00in
609.6mm
24.00in
600mm
23.62in
450mm
17.72in
TV INTERFACE
WALL PLATE
144.8mm
5.70in
69.7mm
2.74in
TOP VIEW - EXTENDED
TOP VIEW - RETRACTED
7deg
12deg
1" HEIGHT ADJUST
69.7mm
2.74in
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
3-D
460mm
18.11in
762mm
30.00in
323.5mm
12.73in
FULLY ASSEMBLED MOUNT
