Fresnel Small
User´s Guide
Profoto Fresnel Small
2
www.profoto.com
SAFETY PRECAUTIONS!
Do not operate the equipment before studying the instruction manual and the accompanying safety. Make
sure that Profoto Safety Instructions is always accompanied the equipment! Profoto products are intended
for professional use! Generator, lamp heads and accessories are only intended for indoor photographic
use. Do not place or use the equipment where it can be exposed to moisture, extreme electromagnetic fields
or in areas with flammable gases or dust! Do not expose the equipment to dripping or splashing. Do not
place any objects filled with liquids, such as vases, on or near the equipment. Do not expose the equipment
to hasty temperature changes in humid conditions as this could lead to condensation waterin the unit. Do
not connect this equipment to flash equipment from other brands. Do not use flash heads without supplied
protective glass covers or protective grids. Glass covers shall be changed if it has become visibly damaged
to such an extent that their effectiveness is impaired, for example by cracks or deep scratches. Lamps shall
be changed if they are damaged or thermally deformed. When placing a lamp into the holder ensure not to
touch the bulb with bare hands. Equipment must only be serviced, modified or repaired by authorized and
competent service personnel! Warning - The terminals marked with the flash symbol are hazardous live.
WARNING – Electrical Shock – High Voltage!
Mains powered generator shall always be connected to a mains socket outlet with a protective earthing
connection! Only use Profoto extension cables! Do not open or disassemble generator or lamp head!
Equipment operates with high voltage. Generator capacitors are electrically charged for a considerable
time after being turned off. Do not touch modeling lamp or flash tube when mounting umbrella metal shaft in
its reflector hole. Disconnect lamp head cable between generator and lamp head when changing modeling
lamp or flash tube! The mains plug or appliance coupler is used as disconnect device. The disconnect
device shall remain readily operable. Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
Caution – Burn Hazard – Hot Parts!
Do not touch hot parts with bare fingers! Modeling lamps, flash tubes and certain metal parts emit strong
heat when used! Do not point modeling lamps or flash tubes too close to persons. All lamps may on rare
occasions explode and throw out hot particles! Make sure that rated voltage for modeling lamp corresponds
with technical data of user guide regarding power supply! The unit will be HOT especially if non fan cooled
heads used. It is advisable not to leave it with the modeling lamp switched on for long periods, especially
with the iris in the closed position. Always operate the iris by holding the plastic handle. Always hold the top
plastic handle when adjusting the position and allow the unit to cool before attempting to remove it from
the flash head.
NOTICE – Equipment Overheating Risk!
Remove transport cap from lamp head before use! Do not obstruct ventilation by placing filters, diffusing
materials, etc. over inlets and outlets of the equipment ventilation or directly over glass cover, modeling
lamp or flash tube!
Note about RF!
This equipment makes use of the radio spectrum and emits radio frequency energy. Proper care should
be taken when the device is integrated in systems. Make sure that all specifications within this document
are followed, especially those concerning operating temperature and supply voltage range. Make sure the
device is operated according to local regulations. The frequency spectrum this device is using is shared
with other users. Interference can not be ruled out.
Final Disposal
Equipment contains electrical and electronic components that could be harmful to the environment.
Equipment may be returned to Profoto distributors free of charge for recycling according to WEEE. Follow
local legal requirements for separate disposal of waste, for instance WEEE directive for electrical and
electronic equipment on the European market, when product life has ended!
Safety instructions
NOTICE
Profoto Fresnel Small
3
www.profoto.com

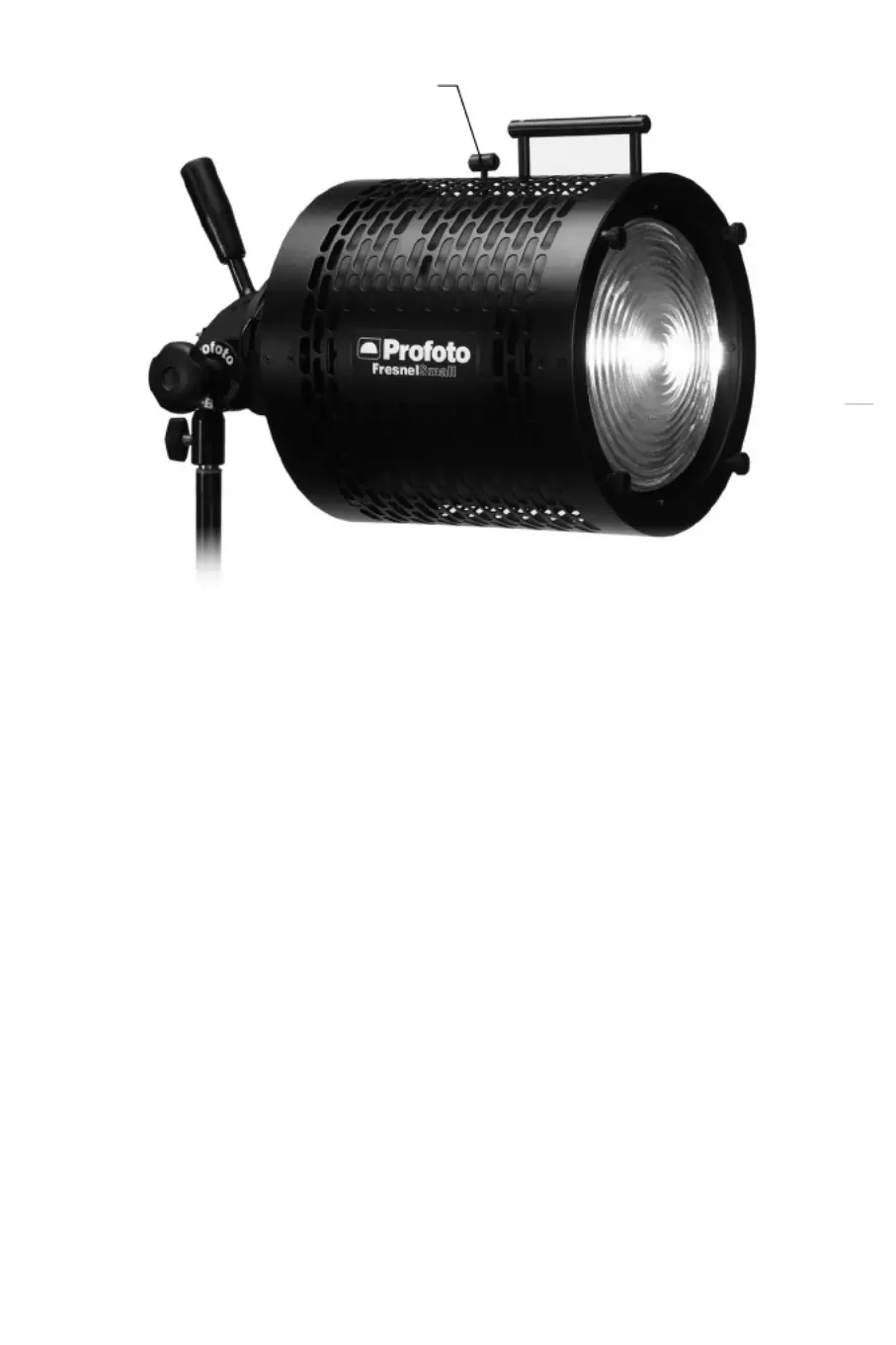

System description
This Fresnel is an attachment for use with Profoto heads.
Fit the unit to the flash head in the same way as a standard reflector, with the handle at the
top.
The size of the projected spot can be adjusted to suit the requirements by sliding the iris
lever across the top of the unit.
Iris lever
