Oldal 1/22

owners manual

O M N I S E R I E S

ENGLISH: Important safety

instructions - Read carefully! We strongly advise that you resist the temptation to play the MIRAGE

speakers to their full capabilities or experiment with critical placement

and listening until they have been properly broken in. This process

should last approximately 50 hours. This can be easily be done by

putting your compact disc player on Repeat mode, while playing a CD

with a wide dynamic range at normal listening levels.

Great care and craftsmanship has gone into the construction and ﬁ nish

of the cabinet. Periodically use a soft, dry cloth to remove dust or

ﬁ ngerprints. Do not use paper towels or other abrasive materials as it

may damage the ﬁ nish.

NOTE: Please retain the carton and packing material for your

MIRAGE products, to protect them in the event of a move or if

they need to be shipped to a service center. Product received

damaged by a service center that has been shipped by the end

user in other than the original packaging will be repaired,

refurbished and properly packaged for return shipment, at the

end user’s expense.

The placement of your new MIRAGE subwoofer is critical to its

performance. The three most common locations include: in the corner

of the room (which can result in a boomy or exaggerated low

frequency response), placement along one wall but out of the corner

(moderate bass performance with increased ﬁ delity over corner

placement), or alongside a front speaker (creating a better blend with

the front speaker, but sacriﬁ cing overall volume). Experimentation with

subwoofer placement is highly encouraged, as slight adjustments can

create large beneﬁ ts in sound reproduction. To further test subwoofer

placement, install the subwoofer temporarily in your main listening

position and while playing a familiar piece of music, walk around the

listening room until you ﬁ nd the best sounding position. This is a

possible location for the subwoofer to be placed.

Front Panel

1. Subwoofer Level Control - This knob can be adjusted to control the

level of output from your subwoofer. The level chosen should allow the

subwoofer to blend its output with that of the rest of your audio system.

2. Status Indicator – The LED found on the front panel will illuminate

when the subwoofer is connected to an AC source and the unit is

active. The LED will display in red when the unit is plugged in but is

not receiving a signal and will display green when the unit is active.

3. Frequency Control – This control allows for the adjustment of the

low-pass ﬁ lter. Adjustments can inﬁ nitely be made from 40Hz to

120Hz. This will determine the highest frequency that the subwoofer

will play.

4. Phase Control – This switch allows for the adjustment of the phase

of the subwoofer, in relation to the speakers used in your system,

either 0 degrees or 180 degrees.

Caution: To prevent the risk of electrical shock, match wide blades of plug to

wide slot, fully insert.

Read Instructions: All safety and operating instructions should be read before

the product is operated.

Retain Instructions: Safety and operating instructions should be retained for

future reference.

Heed Warnings: All warnings on the product & operation instructions should be

adhered to.

Follow Instructions: All operating and use instructions should be followed.

Cleaning: Unplug the product from the wall before cleaning. Do not use aerosol

or liquid cleaners, just a damp cloth.

Attachments: Do not use attachments not recommended by the product

manufacturer as they may cause hazards.

Water and Moisture: Do not use this product near water.

Ventilation: Openings in the cabinet are provided for ventilation and to ensure

reliable operation and protect it from overheating so they must not be blocked or

covered by placing the product on a bed, sofa or other similar surface. This

product should not be placed in a built-in installation such as a bookcase or rack

unless proper ventilation is provided or the manufacturer’s instructions have been

adhered to.

Power Sources: This product should be operated only from the type of power

source indicated on the marking label. If you are not sure of the type of power

supply in your home, call your local power company.

Grounding or Polarization: This product may be equipped with a polarized

alternating current line plug. This plug will ﬁ t the power outlet in only one way as

a safety feature. If you are unable to insert the plug, try reversing it. If the plug

should still fail to ﬁ t, contact your electrician to replace your outlet. Do not

defeat the safety purpose of the plug.

Power Cord Protection: Power supply cords should be routed so that they are

not likely to be walked on or pinched by items placed upon or against them, pay-

ing particular attention to cords at plugs, convenience receptacles and the point

where they exit from the product.

Overloading: Do not overload wall outlets or extension cords, as this can result

in a risk of electrical shock.

Object and Liquid Entry: Never push objects of any kind into this product through

openings as they may touch dangerous voltage points or short out parts that can

result in a ﬁ re or electrical shock. Never spill liquid of any kind on the product.

Servicing: Do not attempt to service this product yourself as openings or

removing covers may expose you to dangerous voltage or other hazards. Refer

all servicing to qualiﬁ ed personnel.

Heat: This product should be situated away from heat sources such as radiators,

heat registers, stoves, or other appliances (including ampliﬁ ers) that produce heat.

Non-Use Periods: The power cord of the product should be unplugged from the

outlet when left unused for a long period of time.

Damage Requiring Service: The product should be serviced by qualiﬁ ed

personnel when:

A. The power supply cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the appliance; or

C. The product has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a marked

change in performance; or

E. Product has been dropped, or the enclosure damaged.

F. If the product does not operate normally by following the operating instructions.

Congratulations on your purchase of MIRAGE® speakers! Proprietary technol-

ogy and high quality manufacturing will allow you to enjoy the most natural and

accurate music reproduction for many years. The advice offered in this manual

is aimed at helping you maximize and maintain peak performance, and therefore,

your listening satisfaction. Please take the time to read all of the instructions

contained in this manual to make certain your system is properly installed and

functioning correctly.

BREAK-IN PERIOD

CABINET CARE

SUBWOOFER PLACEMENT

TERMINOLOGY AND CONTROLS

INTRODUCTION

O W N E R S M A N U A L

5. Filter Mode – This switch allows for the selection of either Filter On

or Filter Off. (Please see the connections section for suggestions on

which mode is appropriate for your installation).

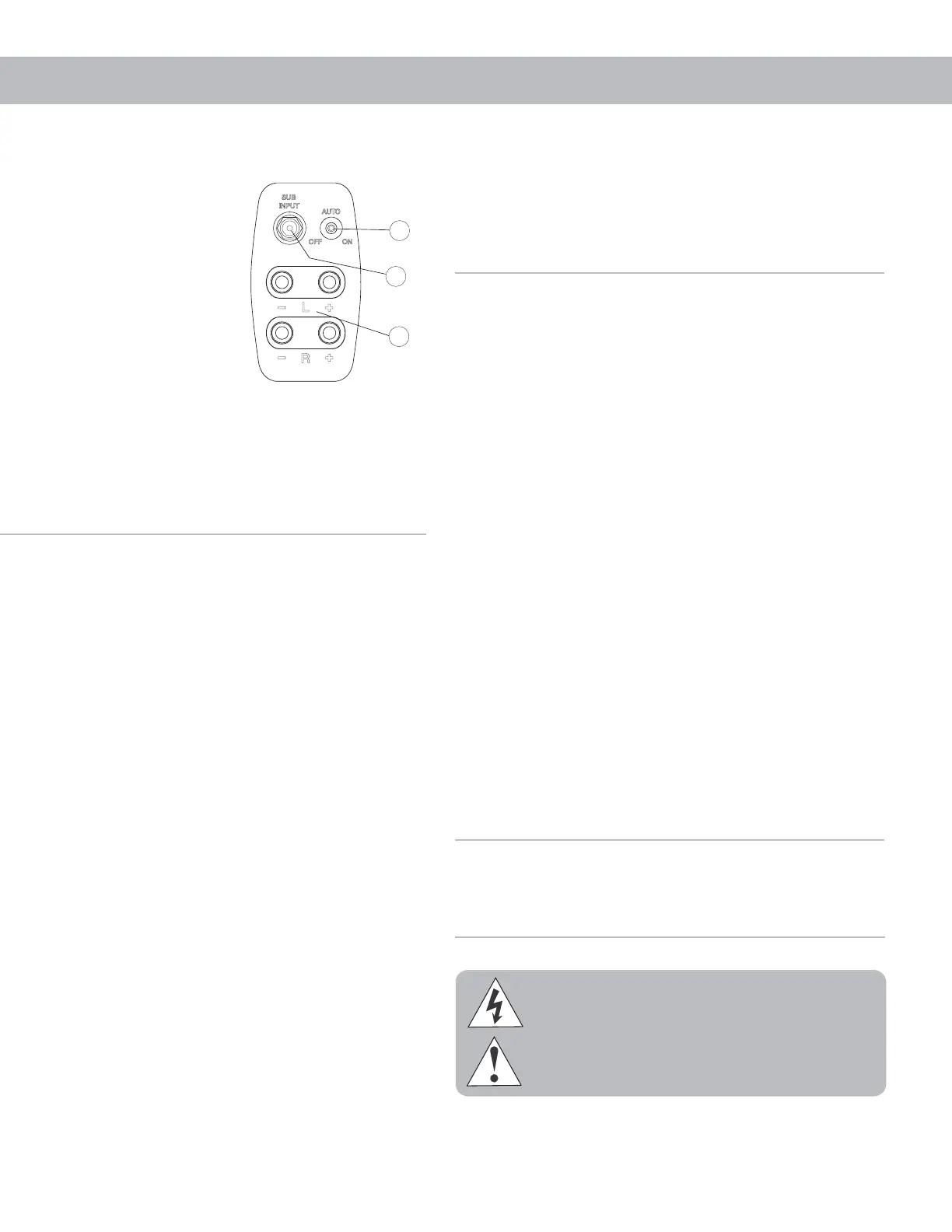

Rear Panel

6. Power Mode – This switch

can be set to either On, Off or

Auto. If the switch is in the Off

position, the subwoofer will not

power up. If the switch is in the

On position, it will constantly

remain on. If the switch is set to

the Auto position, when a signal

is present the subwoofer will turn

on and will automatically turn off

several minutes after a signal is no

longer present.

7. Sub In – This input is an RCA type mono input.

8. High-Level Input – These are 5-way binding post type speaker con-

nectors. The High-Level inputs are designed to be used on receivers

or ampliﬁ ers that do not incorporate any RCA type subwoofer outputs.

If your receiver is equipped with an RCA type subwoofer output, these

speaker level inputs should not be utilized.

CAUTION: All power should be turned off to your system before

any connections are made. Careful attention should be taken to

ensure that all electronic components are not connected to an

AC source. Not doing so could result in potential damage to the

system.

There are two mutually exclusive methods to connect your subwoofer to

your receiver:

Method 1 – RCA – For Home Theater or LFE Applications

1. On the rear of the receiver there should be a single RCA type jack

marked “Subwoofer Out”. Connect a single RCA cable from that jack to

the RCA Sub In (#7) on the rear of the subwoofer. A standard male to

male RCA cable is needed.

2. After connecting the single low level Sub In (#7) connection, plug your

MIRAGE subwoofer into an AC outlet. Do not use the AC outlet on the

rear of your receiver.

3. Select either the Filter Mode On or Off (#5). The Filter Mode On

switch position should be used when connecting your MIRAGE subwoof-

er to a receiver without bass management or when you wish to manually

control the crossover and volume settings (such as in a music system).

The Filter Mode Off switch position should be used when connecting to

a receiver with bass management (such as in a digital surround sound

movie system). This connection defeats the crossover feature on the

MIRAGE subwoofer, allowing this control to be handled by the receiver.

Adjusting the front panel Level Control (#1) will still be required.

4. Ensure that the supplied vibration dampeners are installed in the

high-level speaker inputs, as this ensures that the inputs will not vibrate

audibly.

5. See Final System Adjustments, below.

Method 2 – Speaker Level – For Music Applications

1. The other way to connect your subwoofer to your receiver is using a

High-Level (#8) (speaker wire) connection. First remove the highlevel

vibration dampeners that are installed between the terminals and then

simply connect the speaker wires from the Front Left and Right Speaker

Outputs on your receiver to the Left and Right Inputs on the rear of the

subwoofer (#8). It is imperative that speaker polarities be maintained,

one must connect the positive and negative wires to the appropriate

positive and negative terminals. Failure to do so will result in an out of

phase connection, severely limiting the amount of bass in your system.

2. After connecting the High-Level (#8) (speaker wire) between your receiver and

subwoofer, ensure no fray wires are touching, as this could cause a short circuit and

damage your electronics. Plug your MIRAGE subwoofer into an AC outlet. Do not use

the AC outlet on the rear of your receiver.

3. See Final System Adjustments, below.

Do NOT connect both RCA (#7) and High-Level (#8) connections

simultaneously, as this will damage your MIRAGE subwoofer.

1. The Subwoofer is equipped with a master power switch which must be engaged

prior to use. After having completed the break-in process, select the correct position

for the Power Mode switch (#6), either On or Auto depending on your system. The

Auto selection will leave the unit in a self-sensing mode, such that should the unit

sense an audio signal it will turn itself on and then shut down after several minutes

without signal, while in the On position the subwoofer always remains on. Should

the system not be used for an extensive period of time, it is recommended that the

subwoofer be unplugged from the AC outlet.

2. Adjust the Level Control (#1) on the front panel of your MIRAGE subwoofer so that

the volume of your subwoofer matches the overall system volume. This ensures

a smooth transition between the low and high frequencies of your system.

3. Adjust the Frequency Setting (#3) on your MIRAGE Speakers subwoofer so

that the frequency range of the subwoofer blends well with that of the front speak-

ers (For use with all settings, except when in Filter Mode Off). Setting the crossover

too low will create a gap between the frequency response of the front speakers and

that of the subwoofer, while setting the crossover frequency too high will create a

doubling of certain frequencies, making the music sound boomy. When using small

satellite speakers, the appropriate crossover frequency should be from 95Hz to

120Hz, for the bookshelf speakers 65Hz to 95Hz and for the large crossover

ﬂ oorstanding speakers 40Hz to 65Hz.

4. Adjust the Phase control (#4) so that the subwoofer integrates fully with the rest of

your audio system. This control is adjustable to either 0 degrees or 180 degrees, and

ensuring that the subwoofer operates in phase with the rest of the system is critical,

as an out of phase subwoofer will either sound like it is lacking in bass performance or

that its timing is off. This setting will be determined by your listening position, the char-

acteristics of your listening room and its interaction with your MIRAGE subwoofer. An

out of phase speaker means that the speaker cone is moving inwards when it should

be moving outwards, like the other speakers in your system, causing cancellations of

certain frequencies. By adjusting the phase control, one can ensure that all speakers

move in the proper direction, at the same time.

5. Steps 2, 3 and 4 might require repeating in order to ﬁ ne tune your system. Ensuring

the proper blending between the speakers and the subwoofer is critical to the perfor-

mance of your system, as a whole.

Outside of North America, the warranty may be changed to comply with local

regulations. Ask your local MIRAGE dealer for details of the LIMITED

WARRANTY applicable in your country.

Please see the warranty document on the back cover.

FINAL SYSTEM ADJUSTMENTS

The lightning ﬂ ash with arrowhead symbol within an equilateral triangle

is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the products enclosure that may be of sufﬁ cient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

CONNECTING YOUR

MIRAGE SUBWOOFER

WARRANTY OUTSIDE OF

THE UNITED STATES

WARRANTY FOR THE

UNITED STATES AND CANADA

Termékspecifikációk

Márka:	Mirage
Kategória:	mélynyomó
Modell:	Omni S8

Szüksége van segítségre?

Ha segítségre van szüksége Mirage Omni S8, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek

Az Ön neve*

Az Ön e-mail címe*

Írja ide kérdését

Útmutatók mélynyomó Mirage

Mirage Omni S10 Útmutató

29 Augusztus 2024

Mirage MM-8 Útmutató

29 Augusztus 2024

Mirage MM-6 Útmutató

29 Augusztus 2024

Mirage Omni S8 Útmutató

29 Augusztus 2024

Útmutatók mélynyomó

Legújabb útmutatók mélynyomó

ButtKicker BK-LFE Útmutató

11 December 2024

AudioSource PSW112 Útmutató

10 December 2024

AudioSource PSW110 Útmutató

10 December 2024

Infinity Reference SUB R12 Útmutató

10 December 2024

Infinity TSS-SUB4000 Útmutató

10 December 2024

Infinity TSS-SUB750 Útmutató

10 December 2024

Kenwood KFC-W2513PS Útmutató

9 December 2024

Peavey Versarray 118 Útmutató

9 December 2024

Vonyx SMW15 Útmutató

9 December 2024

Vonyx SMW18 Útmutató

9 December 2024
