ENGLISH: Important safety
instructions - Read carefully! We strongly advise that you resist the temptation to play the MIRAGE
speakers to their full capabilities or experiment with critical placement
and listening until they have been properly broken in. This process
should last approximately 50 hours. This can be easily be done by
putting your compact disc player on Repeat mode, while playing a CD
with a wide dynamic range at normal listening levels.
Great care and craftsmanship has gone into the construction and fi nish
of the cabinet. Periodically use a soft, dry cloth to remove dust or
fi ngerprints. Do not use paper towels or other abrasive materials as it
may damage the fi nish.
NOTE: Please retain the carton and packing material for your
MIRAGE products, to protect them in the event of a move or if
they need to be shipped to a service center. Product received
damaged by a service center that has been shipped by the end
user in other than the original packaging will be repaired,
refurbished and properly packaged for return shipment, at the
end user’s expense.
The placement of your new MIRAGE subwoofer is critical to its
performance. The three most common locations include: in the corner
of the room (which can result in a boomy or exaggerated low
frequency response), placement along one wall but out of the corner
(moderate bass performance with increased fi delity over corner
placement), or alongside a front speaker (creating a better blend with
the front speaker, but sacrifi cing overall volume). Experimentation with
subwoofer placement is highly encouraged, as slight adjustments can
create large benefi ts in sound reproduction. To further test subwoofer
placement, install the subwoofer temporarily in your main listening
position and while playing a familiar piece of music, walk around the
listening room until you fi nd the best sounding position. This is a
possible location for the subwoofer to be placed.
Front Panel
1. Subwoofer Level Control - This knob can be adjusted to control the
level of output from your subwoofer. The level chosen should allow the
subwoofer to blend its output with that of the rest of your audio system.
2. Status Indicator – The LED found on the front panel will illuminate
when the subwoofer is connected to an AC source and the unit is
active. The LED will display in red when the unit is plugged in but is
not receiving a signal and will display green when the unit is active.
3. Frequency Control – This control allows for the adjustment of the
low-pass fi lter. Adjustments can infi nitely be made from 40Hz to
120Hz. This will determine the highest frequency that the subwoofer
will play.
4. Phase Control – This switch allows for the adjustment of the phase
of the subwoofer, in relation to the speakers used in your system,
either 0 degrees or 180 degrees.
Caution: To prevent the risk of electrical shock, match wide blades of plug to
wide slot, fully insert.
Read Instructions: All safety and operating instructions should be read before
the product is operated.
Retain Instructions: Safety and operating instructions should be retained for
future reference.
Heed Warnings: All warnings on the product & operation instructions should be
adhered to.
Follow Instructions: All operating and use instructions should be followed.
Cleaning: Unplug the product from the wall before cleaning. Do not use aerosol
or liquid cleaners, just a damp cloth.
Attachments: Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
Water and Moisture: Do not use this product near water.
Ventilation: Openings in the cabinet are provided for ventilation and to ensure
reliable operation and protect it from overheating so they must not be blocked or
covered by placing the product on a bed, sofa or other similar surface. This
product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s instructions have been
adhered to.
Power Sources: This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power
supply in your home, call your local power company.
Grounding or Polarization: This product may be equipped with a polarized
alternating current line plug. This plug will fi t the power outlet in only one way as
a safety feature. If you are unable to insert the plug, try reversing it. If the plug
should still fail to fi t, contact your electrician to replace your outlet. Do not
defeat the safety purpose of the plug.
Power Cord Protection: Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them, pay-
ing particular attention to cords at plugs, convenience receptacles and the point
where they exit from the product.
Overloading: Do not overload wall outlets or extension cords, as this can result
in a risk of electrical shock.
Object and Liquid Entry: Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or short out parts that can
result in a fi re or electrical shock. Never spill liquid of any kind on the product.
Servicing: Do not attempt to service this product yourself as openings or
removing covers may expose you to dangerous voltage or other hazards. Refer
all servicing to qualifi ed personnel.
Heat: This product should be situated away from heat sources such as radiators,
heat registers, stoves, or other appliances (including amplifi ers) that produce heat.
Non-Use Periods: The power cord of the product should be unplugged from the
outlet when left unused for a long period of time.
Damage Requiring Service: The product should be serviced by qualifi ed
personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The product has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked
change in performance; or
E. Product has been dropped, or the enclosure damaged.
F. If the product does not operate normally by following the operating instructions.
Congratulations on your purchase of MIRAGE® speakers! Proprietary technol-
ogy and high quality manufacturing will allow you to enjoy the most natural and
accurate music reproduction for many years. The advice offered in this manual
is aimed at helping you maximize and maintain peak performance, and therefore,
your listening satisfaction. Please take the time to read all of the instructions
contained in this manual to make certain your system is properly installed and
functioning correctly.
BREAK-IN PERIOD
CABINET CARE
SUBWOOFER PLACEMENT
2
1
2
3
4
5
TERMINOLOGY AND CONTROLS
INTRODUCTION
O W N E R S M A N U A L
5. Filter Mode – This switch allows for the selection of either Filter On
or Filter Off. (Please see the connections section for suggestions on
which mode is appropriate for your installation).

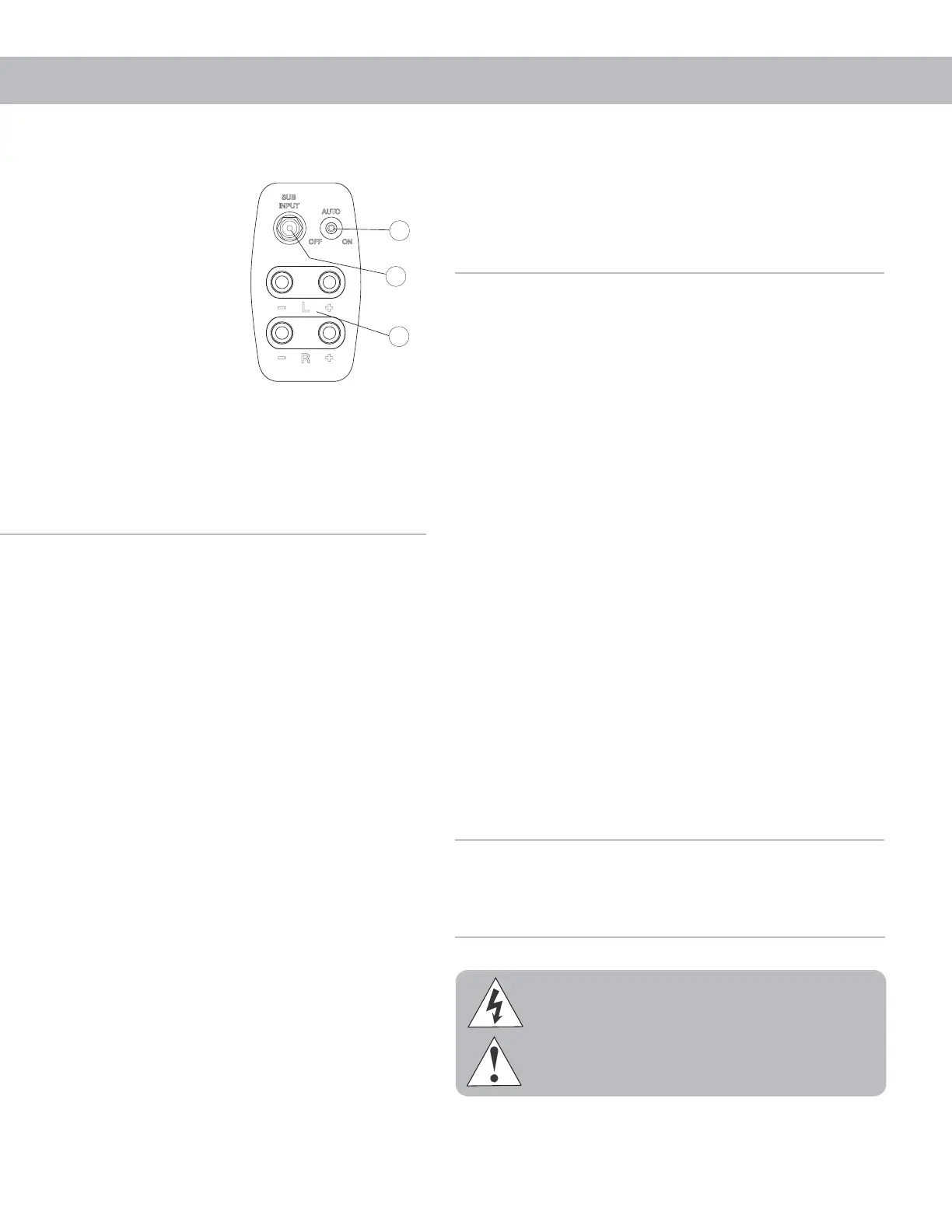

Rear Panel
6. Power Mode – This switch
can be set to either On, Off or
Auto. If the switch is in the Off
position, the subwoofer will not
power up. If the switch is in the
On position, it will constantly
remain on. If the switch is set to
the Auto position, when a signal
is present the subwoofer will turn
on and will automatically turn off
several minutes after a signal is no
longer present.
7. Sub In – This input is an RCA type mono input.
8. High-Level Input – These are 5-way binding post type speaker con-
nectors. The High-Level inputs are designed to be used on receivers
or amplifi ers that do not incorporate any RCA type subwoofer outputs.
If your receiver is equipped with an RCA type subwoofer output, these
speaker level inputs should not be utilized.
CAUTION: All power should be turned off to your system before
any connections are made. Careful attention should be taken to
ensure that all electronic components are not connected to an
AC source. Not doing so could result in potential damage to the
system.
There are two mutually exclusive methods to connect your subwoofer to
your receiver:
Method 1 – RCA – For Home Theater or LFE Applications
1. On the rear of the receiver there should be a single RCA type jack
marked “Subwoofer Out”. Connect a single RCA cable from that jack to
the RCA Sub In (#7) on the rear of the subwoofer. A standard male to
male RCA cable is needed.
2. After connecting the single low level Sub In (#7) connection, plug your
MIRAGE subwoofer into an AC outlet. Do not use the AC outlet on the
rear of your receiver.
3. Select either the Filter Mode On or Off (#5). The Filter Mode On
switch position should be used when connecting your MIRAGE subwoof-
er to a receiver without bass management or when you wish to manually
control the crossover and volume settings (such as in a music system).
The Filter Mode Off switch position should be used when connecting to
a receiver with bass management (such as in a digital surround sound
movie system). This connection defeats the crossover feature on the
MIRAGE subwoofer, allowing this control to be handled by the receiver.
Adjusting the front panel Level Control (#1) will still be required.
4. Ensure that the supplied vibration dampeners are installed in the
high-level speaker inputs, as this ensures that the inputs will not vibrate
audibly.
5. See Final System Adjustments, below.
Method 2 – Speaker Level – For Music Applications
1. The other way to connect your subwoofer to your receiver is using a
High-Level (#8) (speaker wire) connection. First remove the highlevel
vibration dampeners that are installed between the terminals and then
simply connect the speaker wires from the Front Left and Right Speaker
Outputs on your receiver to the Left and Right Inputs on the rear of the
subwoofer (#8). It is imperative that speaker polarities be maintained,
one must connect the positive and negative wires to the appropriate
positive and negative terminals. Failure to do so will result in an out of
phase connection, severely limiting the amount of bass in your system.
2. After connecting the High-Level (#8) (speaker wire) between your receiver and
subwoofer, ensure no fray wires are touching, as this could cause a short circuit and
damage your electronics. Plug your MIRAGE subwoofer into an AC outlet. Do not use
the AC outlet on the rear of your receiver.
3. See Final System Adjustments, below.
Do NOT connect both RCA (#7) and High-Level (#8) connections
simultaneously, as this will damage your MIRAGE subwoofer.
1. The Subwoofer is equipped with a master power switch which must be engaged
prior to use. After having completed the break-in process, select the correct position
for the Power Mode switch (#6), either On or Auto depending on your system. The
Auto selection will leave the unit in a self-sensing mode, such that should the unit
sense an audio signal it will turn itself on and then shut down after several minutes
without signal, while in the On position the subwoofer always remains on. Should
the system not be used for an extensive period of time, it is recommended that the
subwoofer be unplugged from the AC outlet.
2. Adjust the Level Control (#1) on the front panel of your MIRAGE subwoofer so that
the volume of your subwoofer matches the overall system volume. This ensures
a smooth transition between the low and high frequencies of your system.
3. Adjust the Frequency Setting (#3) on your MIRAGE Speakers subwoofer so
that the frequency range of the subwoofer blends well with that of the front speak-
ers (For use with all settings, except when in Filter Mode Off). Setting the crossover
too low will create a gap between the frequency response of the front speakers and
that of the subwoofer, while setting the crossover frequency too high will create a
doubling of certain frequencies, making the music sound boomy. When using small
satellite speakers, the appropriate crossover frequency should be from 95Hz to
120Hz, for the bookshelf speakers 65Hz to 95Hz and for the large crossover
fl oorstanding speakers 40Hz to 65Hz.
4. Adjust the Phase control (#4) so that the subwoofer integrates fully with the rest of
your audio system. This control is adjustable to either 0 degrees or 180 degrees, and
ensuring that the subwoofer operates in phase with the rest of the system is critical,
as an out of phase subwoofer will either sound like it is lacking in bass performance or
that its timing is off. This setting will be determined by your listening position, the char-
acteristics of your listening room and its interaction with your MIRAGE subwoofer. An
out of phase speaker means that the speaker cone is moving inwards when it should
be moving outwards, like the other speakers in your system, causing cancellations of
certain frequencies. By adjusting the phase control, one can ensure that all speakers
move in the proper direction, at the same time.
5. Steps 2, 3 and 4 might require repeating in order to fi ne tune your system. Ensuring
the proper blending between the speakers and the subwoofer is critical to the perfor-
mance of your system, as a whole.
Outside of North America, the warranty may be changed to comply with local
regulations. Ask your local MIRAGE dealer for details of the LIMITED
WARRANTY applicable in your country.
Please see the warranty document on the back cover.
FINAL SYSTEM ADJUSTMENTS
The lightning fl ash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the products enclosure that may be of suffi cient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
CONNECTING YOUR
MIRAGE SUBWOOFER
6
8
7
WARRANTY OUTSIDE OF
THE UNITED STATES
WARRANTY FOR THE
UNITED STATES AND CANADA
“MIRAGE” and the “MIRAGE” logo are trademarks of Klipsch Group Inc ©2010
Termékspecifikációk
Márka: | Mirage |
Kategória: | mélynyomó |
Modell: | Omni S10 |
Szüksége van segítségre?
Ha segítségre van szüksége Mirage Omni S10, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek
Útmutatók mélynyomó Mirage
29 Augusztus 2024
29 Augusztus 2024
29 Augusztus 2024
29 Augusztus 2024
Útmutatók mélynyomó
- mélynyomó Phoenix Gold
- mélynyomó Yamaha
- mélynyomó Philips
- mélynyomó Pioneer
- mélynyomó RCF
- mélynyomó JVC
- mélynyomó Harman Kardon
- mélynyomó Neumann
- mélynyomó Hifonics
- mélynyomó Onkyo
- mélynyomó Technics
- mélynyomó JBL
- mélynyomó DAP-Audio
- mélynyomó Insignia
- mélynyomó Martin Logan
- mélynyomó Boss
- mélynyomó Crestron
- mélynyomó Klipsch
- mélynyomó Kenwood
- mélynyomó ELAC
- mélynyomó Sencor
- mélynyomó Bose
- mélynyomó Cambridge
- mélynyomó Kanto
- mélynyomó Alpine
- mélynyomó Omnitronic
- mélynyomó SPL
- mélynyomó Pro-Ject
- mélynyomó TOA
- mélynyomó SVS
- mélynyomó Crunch
- mélynyomó Dynaudio
- mélynyomó Power Dynamics
- mélynyomó Dynacord
- mélynyomó Memphis Audio
- mélynyomó Ground Zero
- mélynyomó Dali
- mélynyomó Kali Audio
- mélynyomó Denon
- mélynyomó Electro-Voice
- mélynyomó JL Audio
- mélynyomó Speed-Link
- mélynyomó Auna
- mélynyomó Mac Audio
- mélynyomó Behringer
- mélynyomó REL Acoustics
- mélynyomó Atlantic
- mélynyomó KRK
- mélynyomó PreSonus
- mélynyomó Revel
- mélynyomó Tannoy
- mélynyomó Peavey
- mélynyomó Morel
- mélynyomó Clarion
- mélynyomó Metra
- mélynyomó Monacor
- mélynyomó McIntosh
- mélynyomó LD Systems
- mélynyomó Proel
- mélynyomó Jamo
- mélynyomó Blaupunkt
- mélynyomó Deaf Bonce
- mélynyomó Mackie
- mélynyomó Vonyx
- mélynyomó Alto
- mélynyomó Infinity
- mélynyomó Magnat
- mélynyomó TechniSat
- mélynyomó Fenton
- mélynyomó Jensen
- mélynyomó Pyle
- mélynyomó Audioengine
- mélynyomó Stinger
- mélynyomó Audiotec Fischer
- mélynyomó Fender
- mélynyomó Hertz
- mélynyomó Bowers & Wilkins
- mélynyomó FBT
- mélynyomó KEF
- mélynyomó Atlas Sound
- mélynyomó AudioControl
- mélynyomó Monitor Audio
- mélynyomó Audac
- mélynyomó Martin
- mélynyomó Yorkville
- mélynyomó Rockford Fosgate
- mélynyomó Krüger&Matz
- mélynyomó Wharfedale
- mélynyomó Canton
- mélynyomó Orion
- mélynyomó Kicker
- mélynyomó Sonus Faber
- mélynyomó PowerBass
- mélynyomó Definitive Technology
- mélynyomó Focal
- mélynyomó MB Quart
- mélynyomó PMC
- mélynyomó Teufel
- mélynyomó HK Audio
- mélynyomó Argon
- mélynyomó Audison
- mélynyomó Gemini
- mélynyomó Sonos
- mélynyomó Musway
- mélynyomó Sonance
- mélynyomó Marquant
- mélynyomó Polk
- mélynyomó AV:link
- mélynyomó Heco
- mélynyomó Massive
- mélynyomó QTX
- mélynyomó QSC
- mélynyomó Lanzar
- mélynyomó Genelec
- mélynyomó Apart
- mélynyomó Fusion
- mélynyomó Paradigm
- mélynyomó Bazooka
- mélynyomó Skytec
- mélynyomó Monoprice
- mélynyomó Axton
- mélynyomó Nxg
- mélynyomó OSD Audio
- mélynyomó Andover
- mélynyomó Soundstream
- mélynyomó PSB
- mélynyomó Citronic
- mélynyomó LTC
- mélynyomó James
- mélynyomó PSSO
- mélynyomó Quadral
- mélynyomó Wet Sounds
- mélynyomó Extron
- mélynyomó Nubert
- mélynyomó Helix
- mélynyomó Mission
- mélynyomó Martin Audio
- mélynyomó Avid
- mélynyomó Ecler
- mélynyomó Mtx Audio
- mélynyomó Aquatic AV
- mélynyomó DB Technologies
- mélynyomó GoldenEar Technology
- mélynyomó Roswell
- mélynyomó Velodyne
- mélynyomó Chrysalis
- mélynyomó Raveland
- mélynyomó ANT
- mélynyomó IMG Stage Line
- mélynyomó Eikon
- mélynyomó ESX
- mélynyomó Wavemaster
- mélynyomó B&W
- mélynyomó Fluance
- mélynyomó RetroSound
- mélynyomó Pyramid
- mélynyomó On-Q
- mélynyomó Sound Ordnance
- mélynyomó MadBoy
- mélynyomó Planet Audio
- mélynyomó Totem
- mélynyomó Piega
- mélynyomó Energy
- mélynyomó Poly-Planar
- mélynyomó SSV Works
- mélynyomó PrecisionPower
- mélynyomó Theater Solutions
- mélynyomó Mordaunt Short
- mélynyomó Cabasse
- mélynyomó Triangle
- mélynyomó Audiofrog
- mélynyomó AudioSource
- mélynyomó KLH Audio
- mélynyomó Eve Audio
- mélynyomó Proficient
- mélynyomó Alphasonik
- mélynyomó Cerwin-Vega
- mélynyomó BMB
- mélynyomó Origin Acoustics
- mélynyomó Black Hydra
- mélynyomó Glemm
- mélynyomó ButtKicker
Legújabb útmutatók mélynyomó
11 December 2024
10 December 2024
10 December 2024
10 December 2024
10 December 2024
10 December 2024
9 December 2024
9 December 2024
9 December 2024
9 December 2024
