picoPSU-80-WI-32
12-32V, 80watt
ATX Power Supply
Quick Installation Guide
Version 1.0d
P/N picoPSU-80-WI-32
Mini-Box.com ATX DC-DC Converter Series
picoPSU-80-WI-32 Quick Installation Guide Page 2
Introduction

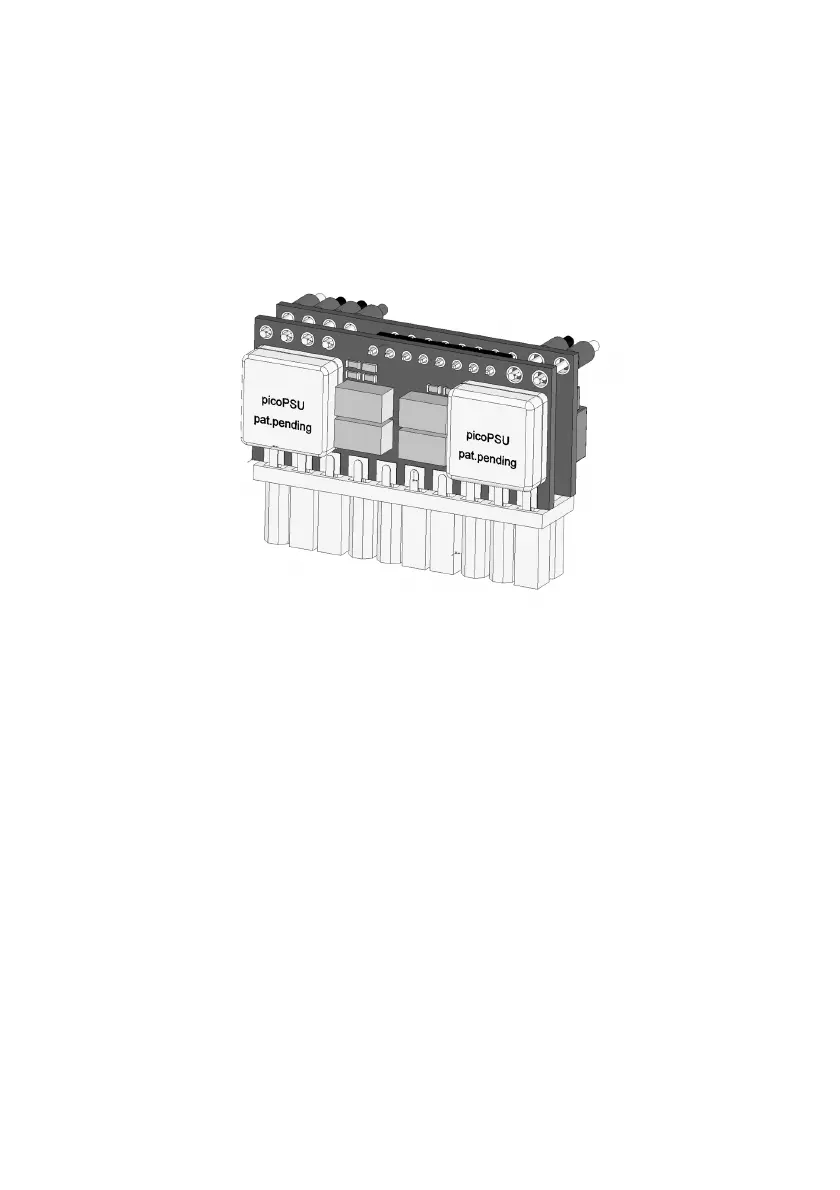

The picoPSU-80-WI-32 is a small yet powerful and fully compliant
ATX power supply designed to power a wide variety of
motherboard from a single 12-32V unregulated power source.
The picoPSU-80-WI-32 is the only “plug-in” wide input range power
supply solution for general purpose low power motherboards.
Compatible with most VIA CPUs M/B and with Atom, Pentium-
M / Core Duo boards picoPSU-80-WI-32, provides cool, 100%
silent power for your system. The PICOPSU-80-WI-32 has many
advantages over a regular power supply:
-Smallest ATX PSU to date
-100% silent operation
-Low heat dissipation with combined eciency over 93%

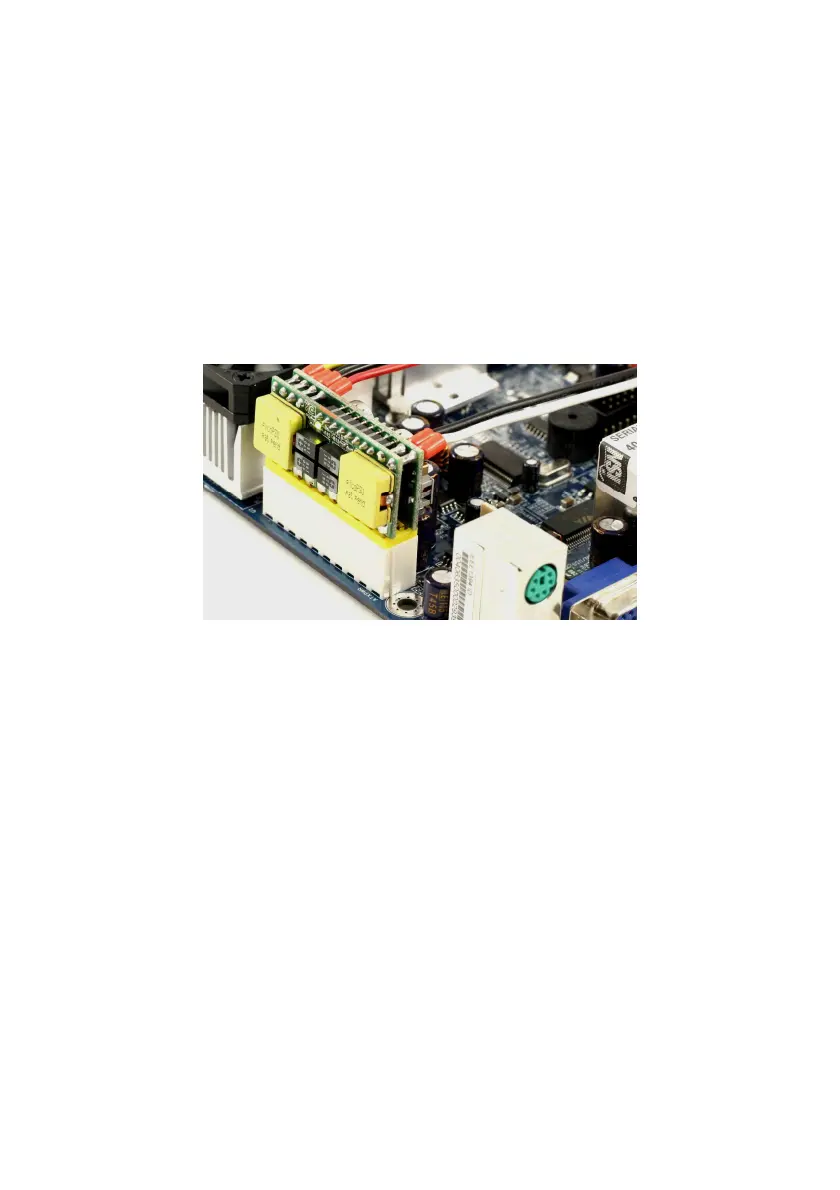

-Plugs directly into the motherboard’s power connector, no cable
mess
Mini-Box.com ATX DC-DC Converter Series
picoPSU-80-WI-32 Quick Installation Guide Page 3
Quick installation Instructions
The PICOPSU-80-WI-32 has been specically designed for the
Mini-ITX form factor, thus eliminating the need for ATX power
cables. It is also 1U compliant – height will not exceed the 1U
formfactor.
1) After the picoPSU module was ‘snapped in’, hook the
hard drive power or oppy power to your oppy/hard
drives. If more hard drives or oppy connectors are
needed, use a HDD/oppy “Y” splitter cable.
2) Connect a 12-32VDC power adapter (peak should not exceed
34V) to the input connector.
3) Turn on the PC using the motherboard ON/OFF switch
Typical conguration
The picoPSU-80-WI-32 has been tested with all mini-ITX board
under virtually any disk/oppy/CDROM/PCI conguration.
Removing the picoPSU-80-WI-32
In order to remove the picoPSU you must release the power
connector latch and then remove the unit. Gently lift the picoPSU
out from the ATX connector, by grabbing from the picoPSU PCB,
not from components or the wire harness.
