picoPSU-160-XT
12V, 160Watt / 200watt peak ATX Power Supply
Quick Installation Guide
Version 1.0d
P/N picoPSU-160-XT
Mini-Box.com ATX DC-DC Converter Series
picoPSU-160-XT Quick Installation Guide Page 2
Introduction
Based on an improved electrical design of the picoPSU-90, the picoPSU-160-XT is
a small yet powerful and fully compliant ATX power supply designed to power a
wide variety of motherboards from a single 12V regulated power source. picoPSU-
160-XT has been optimized for the latest generation of power of Intel or AMD
processors resulting in the highest eciency at light loads while capable of peak
power requirements to an impressive array of peripherals.
picoPSU-160XT has a high performance 4mR Mosfet Switch for the 12V rail,
capable of handling large currents with peak currents up to 15A.
The PICOPSU-160-XT is the only snap power supply solution for general purpose
motherboards. Compatible with an entire range of mini-ITX motherboards the
picoPSU-160-XT provides cool, silent power for system. The PICOPSU-160-XT has
many advantages over a regular power supply:
-Smallest ATX PSU to date
-100% silent operation
-Low heat dissipation with eciency over 96%
-Plugs directly into the motherboard’s power connector, no cable mess
Mini-Box.com ATX DC-DC Converter Series
picoPSU-160-XT Quick Installation Guide Page 3
Quick installation Instructions
The PICOPSU-160-XT has been specically designed for the Mini-ITX form factor,
thus eliminating the need for ATX power cables. It is also 1U compliant – height will
not exceed 1U form factor.
1) After the picoPSU module was ‘snapped in’, connect the hard drive power or P4
power to your oppy/hard drives. If more hard drives or oppy connectors are
needed, use a HDD/oppy “Y” splitter cable.

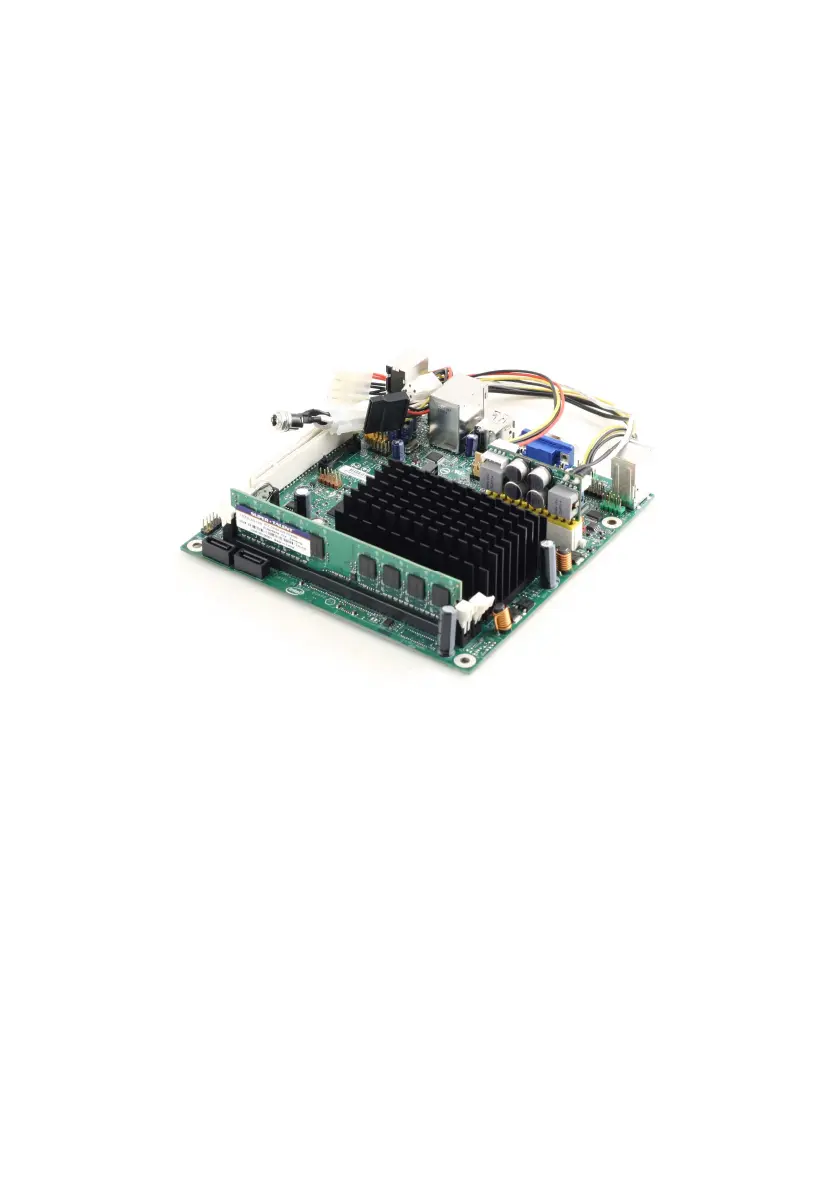

PicoPSU-160-XT shown with the D510MO Intel Motherboard.
2) Connect a 12 VDC power adapter (or any 12V source) to the DC-to-DC
connector, center pin / white wire is positive (+).
3) Turn on the PC using the motherboard ON/OFF motherboard switch
Typical conguration
The picoPSU-160-XT has been tested with all mini-ITX board (VIA C3, VIA C7, low
power AMD and Intel Atom) under virtually any disk / oppy / CDROM
congurations. Additionally, the PICOPSU-160-XT can power low boards equipped
with an 12VATX 4 pin connector (additional cable required). NOTE: The hard drive
cable harness can be disconnected in case the user does not need any peripheral.
Additionally, the cable harness can be made to any length or output connector type
provided that the max load does not exceed 3A for GND return. Please look under
specications for the mating connector type.
