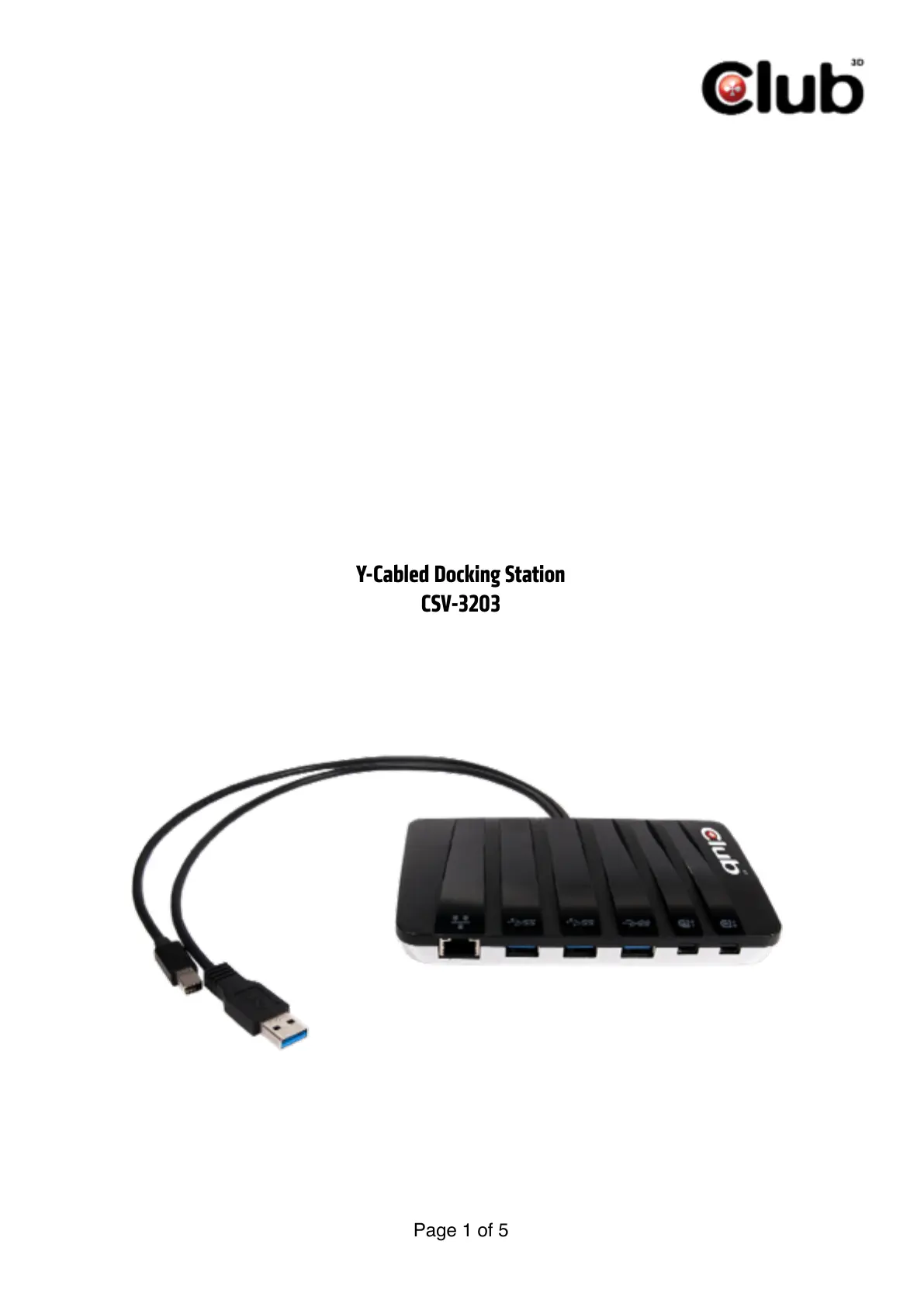

Oldal 1/5

Page  of 1 5

Y-Cabled Docking Station

CSV-3203

Introduction

Y-cable docking station utilises existing limited one USB 3.0 port and one mini DP output port on desktop

or laptop through a Y-cable and a interface box to increase the number of USB3.0/mini DP port and add

one GbE port for ﬁtting the user applications, communication and interface demands of surrounding

accessories.

DisplayPort supports MST format up to eight audio-video streams, which can be further routed on either

of the two outputs in any combination of eight streams.

Y-cable docking station can also replicate the incoming video streams on both output ports

simultaneously, thus allowing cloning on two downstream sinks. For example, a 4K2K 60 Hz video input is

replicated on two output ports simultaneously.

Y-cable docking station features the HDCP 1.3 content protection scheme with embedded keys for secure

transmission of protected audio-video content. It also operates as an HDCP repeater for the downstream

sinks. When the downstream sink is disconnected, Y-cable docking station automatically turns o the ﬀ

inactive port for power saving purposes.

Page  of 2 5

Features

Display Features

• Interface

One mini DP input cable (DP 1.2a compliant)

Two mini DP output ports (DP 1.2a compliant)

• Bandwidth

Video resolution up to 4K x 2K

Audio 7.1 Ch up to 192 kHz sample rate

• Deep color support

RGB/YCC (4:4:4) – 16-bit color

YCC (4:2:2/4:2:0) – 16-bit color

USB Interface

• One USB 3.0 input cable (Backward compatible to USB 2.0 and USB 1.1)

• Three USB 3.0 output ports (Backward compatible to USB 2.0 and USB 1.1)

• Supports Charging Downstream Port (CDP) applications

Ethernet Feature

• One Gigabit Ethernet port (10/100/1000Mbps)

• Support Wake-ON-LAN Technology

• Crossover detection and auto-correction

Applications Diagram
