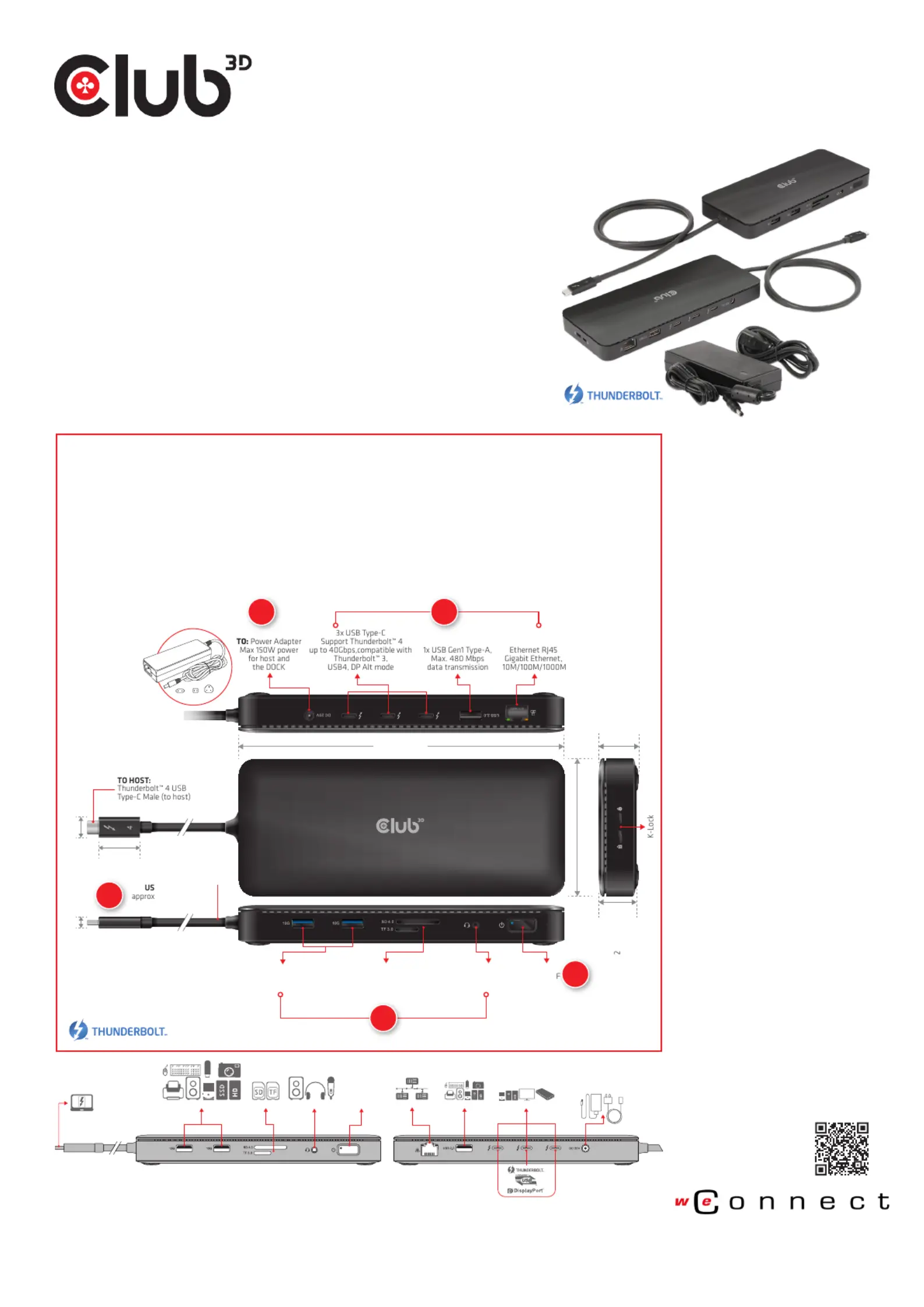

C S V-1 5 8 1 Q U I C K I N S TA L L AT IO N G U IDE
CSV-1581 QIG Jan-2023
Thank you for purchasing our CSV-1581 Product. After unpacking the product,
please make sure you have all the items provided and checked for any damages.
In case of any missing/damaged parts please inform your supplier immediately.
You should have:
• CSV-1581 Thunderbolt™ 4 Certified 11-in-1 Docking Station
• Power Adapter 20V7.5A(150Watt)
• QIG, Quick Installation Guide
Thunderbolt™ 4 Certified 11-in-1 Docking Station
Disclaimer: While we endeavour to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Products might obtain a certification during their lifetime. This doesn’t
change or alter the product specifications and/or performance in any way. Club 3D will provide the updated information on their website www. Club-3d.com at her discretion. Therefore Club 3D does not accept any rights claimed on the content of this document. Please
refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.
Copyright © 2023, Club 3D B.V. www.club-3d.com
The Club 3D CSV-1581 is a Certified Thunderbolt™ 4 11-in-1 Docking Station which provides
the most advanced, ecient, and versatile I/O solution available with up to 40Gb/s for
data and video. Allowing you to connect one 8K30Hz or two 4K60Hz monitors.
The dock supports the smart power function which enables to distribute power according
to the power consumption of the connected device, making full use of external power
supply. It is designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs
utilizing MacOS 11 and later versions (ONLY M1 Pro- and Max Chip).
1. Use the USB Type-C Male
connector to connect the
CSV-1581 to your host
device
(Windows10™ or above version
supported Thunderbolt™
4 host / MacOS™ 11 or
above version supported
Thunderbolt™ 3 host)
(ONLY M1 Pro- and Max Chip)
2. Use the Power Adapter
to connect the CSV-1581
to a wall socket.
3. Connect your devices
to the CSV-1581 with
cables that support the
Device specification to
get the most out of the
connection / data / video
/ power.
(Some devices may need a
driver / firmware update to get
the highest/best performance)
4. Toggle the power switch
on the dock and wait till
the LED turns Blue
8.5 cm / 3.35"
.2 cm / 0.87"
2.4 cm / 0.945"
0.65 cm / 0.256" 1.2 cm / 0.47"
19 cm / 7.48"
2.35 cm / 0.925"
(Height including the
non-slip feet)
B-C Cable Length
.: 0.75 m / 2.46 ft
150W DC POWER ADA PTER
Plug Type A Plug Type GPlug Type C/E /F
2x USB Type-A Gen2
Max. 10Gbps
data transmission
1x SD supports
SD4.0 with max 312Mbps
1x TF supports
SD3.0 with max 104Mbps
Stereo output
Microphone input
Power
ON/OF
Available Interfaces
Upstream: 1x
Thunderbolt™ 4 USB Type-C Male (to host)
Support max 96W,
5V/9V/15V@3A,20V@4.8A Host charging
Downstream:
3x Support Thunderbolt™ 4 up to 40Gbps,
compatible with Thunderbolt™ 3, USB4, DP
Alt mode, USB protocol
Allow you to cascade Thunderbolt™ devices
Support max 8K30Hz or dual 4K60Hz video
Each Thunderbolt™ 4 port supports 15W
downstream charging for connected device
2x USB Gen2 x2 Type-A, Max. 10Gbps data
transmission, downward compatible with
lower versions, Max. 900mA downstream
charging per port
1x USB Gen1 Type-A, Max. 480 Mbps data
transmission
Memory Card Slots SD4.0/TF 3.0
1x SD supports SD4.0 with max 312Mbps
1x TF supports SD3.0 with max 104Mbps
Support 2 card slots to work
simultaneously
1x Ethernet RJ45
Support Gigabit
Ethernet,10M/100M/1000M
Support Wake-On-LAN and
Wake-On-WAN
Light indicator indicates the state, no
light when no Internet connected, orange
light turns on when network connection
is established, green light flashes when
transmitting data.
1x Audio JACK 3.5mm
Stereo output supports 24-bit,
44.1/48/96kHz Sample Rate
Microphone input supports up to 24bit
96kHz Sample Rate
1x DC Power Jack
Support smart charging, dynamically
distribute power to PC and Hub according
to the requirement of the connected
devices
Used to connect 20V 150W DC power
supply. Compatible with 19V ~ 22V, 150W
or higher power DC power supply
Max 140W power for host and the DOCK
Max 96W for host charging
OS Support:
Windows10™ or above version supported
Thunderbolt™ 4 host
MacOS™ 11 or above version supported
Thunderbolt™ 3 host (ONLY M1 Pro- and
Max Chip)
4
2
1
3
3
AUDIO IN/OUTSD/TF Card Reader
Power Switch
ON/OFF2x USB Type-A USB Type-A 3x USB Type-CGigabit Ethernet
AC POWERDC in
Main USB Type-C
connection to Laptop
Power & charge laptop
Max. 8K
