Pace1PRMT - 1 -
Overview:
Pace1PRMT is a long range Ethernet adapter kit which transmits data at 100mbps full duplex and
power via a single twisted pair (UTP) or Cat5e or higher cable in a PoE(+) compliant format. The
Pace1PRM receiver is powered via a PoE midspan such as the Altronix Netway series or by an
endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM trans-
ceiver which in turn passes this power to an enabled IP camera/device. These plug and play units
facilitate cost effective solutions for IP devices that need to be installed at distances greater than
100m. They also provide a simple way to replace legacy analog products with new IP devices over
single twisted pair (UTP) or structured cable.
Features:
Rev. 111413
Installation Guide
Pace1PRMT
IP and PoE+ Over Extended Distance UTP or CAT5e
Pace1PRM Receiver and Pace1PTM Transceiver kit
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
• C-Tick compliant.
Input (Pace1PRM):
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or 1 pair UTP
structured cable.
• Distance: up to 500m (1,640 ft.).
• Speed: 10/100BaseT, half/full duplex, auto
negotiation. PoE compliant to IEEE 802.3af
(15W) and PoE+ compliant to IEEE 802.3at
(30W) delivered to camera by Pace1PTM.
Power provided by Pace1PRM to Pace1PTM
by PoE protocol.*
• Throughput is rated to pass 100mbps of
data at distances up to 500m with
proper headend equipment, this supports
.Megapixel, HD720, HD1080
CAT5e or higher:
• Distance: up to @ 100mbps 500m
(see Maximum Length of Cable Type vs.
Camera Power/PoE Class, pg. 4).
UTP (single pair):
• Distance: up to @ 100mbps152m
(see Max. Length of Cable Type vs.
Camera Power/PoE Class, pg. 4).
LED Indicators:
• Pace1PRM/Pace1PTM:
Green - PoE ON (by respective RJ45 jack).
• Pace1PRM and Pace1PTM (RJ45 jack):
Yellow and Green LED IP Link status,
10/100Base-T/active.
Environmental:
• Operating and Storage Temperature:
(refer to Technical Specifications
chart pg. 2).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Extend Network link distance in an
industrial environment over 700m
.(see note, pg. 2)
• Retrofit digital IP cameras in an analog
CCTV CAT5e wired installations.
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras (see note, pg. 3).
Mechanical:
• Dimensions (W x L x H approx.):
Pace1PRM/Pace1PTM:
3.5” x 3.5” x 1”
(88.89mm x 88.89mm x 25.4mm).
I.T.E. 43KC
Z1409
* See note on page 3.
- 2 - Pace1PRMT
Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and
with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or
Recognized wire suitable for the application.
Pace1PTM and Pace1PRM are not intended to be connected to outside plant leads and should be
installed indoors within the protected premises. Pace1PRM and Pace1PTM are intended for indoor
use only.
1. Pace1PRM installation:
a. Secure unit to desired mounting surface with a proper fastening device utilizing the unit’s
mounting hole (Fig. 2a, pg. 3). Unit should be mounted in proximity to ethernet
switch/network, NVR or video server.
b. Connect structured cable from ethernet midspan or endspan device to RJ45 jack marked
[PoE Input] (Fig. 2, pg. 3).
c. CAT5e or higher: Connect CAT5e or higher to connector marked [RJ45 OUT] (Fig. 2, pg. 3).
UTP: Connect single UTP to connector marked [UTP OUT] (Fig. 2, pg. 3).
2. Pace1PTM installation:
a. Secure unit to desired mounting surface with a proper fastening device utilizing the case’s
mounting hole (Fig. 2a, pg. 3). Unit should be mounted in proximity of camera/device.
b. Connect structured cable from IP camera/device to RJ45 jack marked [PoE Out] (Fig. 2, pg. 3).
c. CAT5e or higher: Connect CAT5e or higher to connector marked [RJ45 IN] (Fig. 2, pg. 3).
UTP: Connect UTP to connector marked [UTP IN].
Technical Specifications:
Parameter Description
Connections RJ45 for ethernet link or single pair UTP.
Input power
requirements
Midspan or endspan port connected.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
Indicators
Yellow (RJ45 connector): On - Link, Off - No Link, Blinking - Activity.
Green (RJ45 connector): On - 100Base-TX, Off - 10Base-T.
Green: PoE Active.
Environmental
Conditions
Operating Ambient Temperature: UL60950-1
Pace1PRM: -- -- 20ºC to 49ºC ( 4ºF to 120.2ºF).
Pace1PTM: For 15W: 40º to 75ºC ( 40º to 167ºF)-- --
For 25W: 40º to 70ºC ( 40º to 158ºF)-- --
For 30W: 40º to 60ºC ( 40º to 140ºF)-- --
Relative humidity: 20 to 85%, non-condensing.
Storage Temperature: 40º to 75ºC ( 40º to 167ºF)-- -- .
Operating Altitude: 304.8 to 2000m ( 1000 to 6,561.679 ft.).-- --
Regulatory
Compliance
UL/CUL Listed for Information Technology Equipment (UL 60950-1).
CE approved. C-Tick compliant.
Weights (approx.) Product: 3.88 oz. Shipping: 6.70 oz. (0.11 kg.), (0.19 kg.)
Pace1PRMT - 3 -
Structured
Cable to
Midspan/
Endspan
Green LED
indicates
PoE Present
from Midspan/
Endspan
Green LED
indicates
PoE being
transmitted
to Pace1PTM
CAT5 or higher
from Pace1PTM
Single UTP
from
Pace1PTM
Structured
Cable from
Camera/Device
Green LED
indicates
PoE transmitted
to Camera/Device
Green LED
indicates
PoE received
from Pace1PRM
CAT5 or higher
from Pace
receiver
Single UTP
from
Pace1PRM
*Note: Caution, once PoE connection is established between Pace1PRM and Pace1PTM, discon-
nection from Pace1PTM will not disable the PoE output voltage on the Pace1PRM, although the
Pace1PTM can be reconnected, caution should be taken not to connect the CAT5e or single UTP
wiring from Pace1PRM to any non-PoE device.
PoE compliant
100m max.
100m max.
Mounting Hole
PoE Camera
Pace1PTMPace1PRM
I. E. 43KCT.
RJ45
Link
Z1409
UT P
Link
RJ45 LEDs llow - Act ivityYe
Green - Speed
Green LED Power and Po E
PoE
Out
Out put
PoE
LED
Input
PoE
LED
ww altronix.comw.
IP-UTP Transceiver
Passes PoE/PoE+
Pace1PTM - ansceiverTr
RJ45
Link
Out put
PoE
LED
Input
PoE
LED
UT P
Link
PoE
Input
I.T.E 43KC.
Z1409
RJ45 LEDs Yellow - Activity
Green - Speed
Green LED Power and PoE
www.altronix.com
IP-UTP Receiver
Pa Po Posses E/ E+
Pace1PRM - Receiver
Structured Cable
or Single UTP
Legend:
PoE+ over CAT5e up to 500m max.
or
Single UTP up to 152.4m max.
Po Wawered Switch or Net y MidSpan

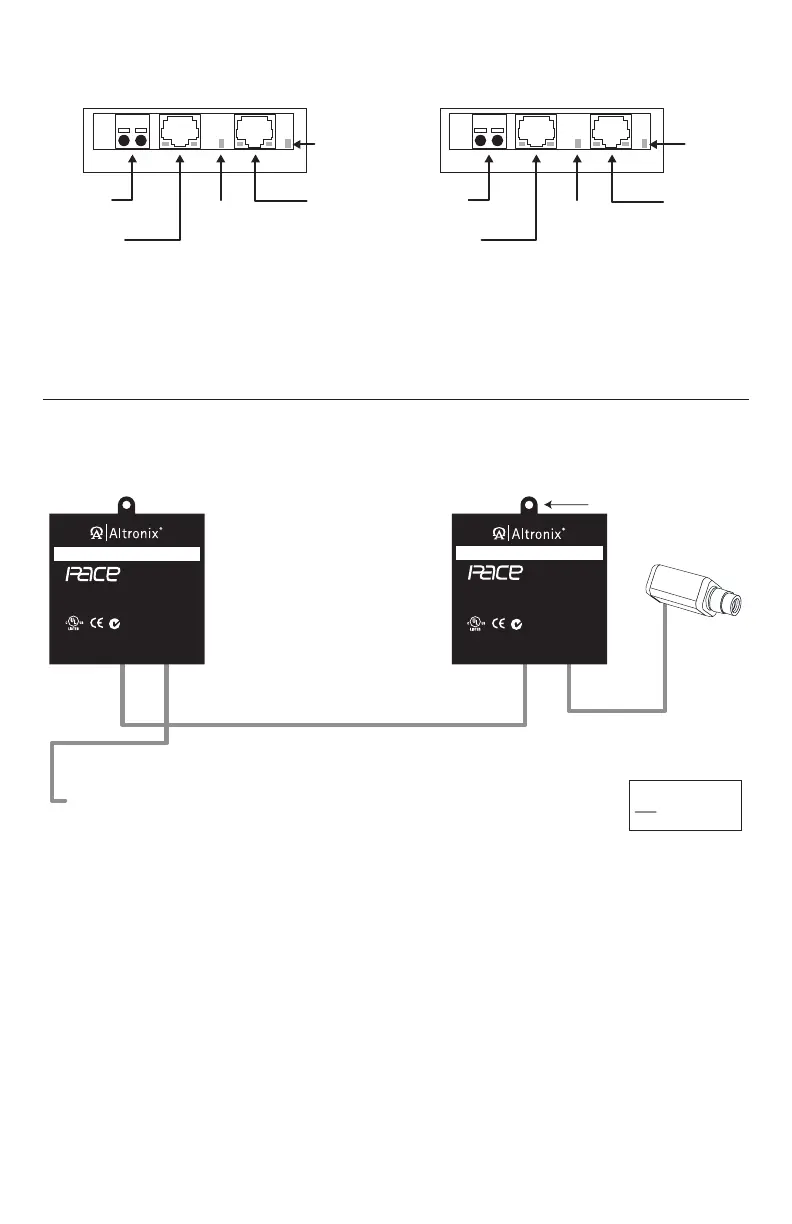

Single PoE Camera Connection Utilizing Pace1PRM and Pace1PTM:
Fig. 2 Fig. 2a
Pace1PRM Pace1PTM
Fig. 1
