MXNET 10G SDVoE® Quick Start Guide
T he MXNet 10G SDVoE® Ecosystem
QUICK START GUIDE
Overview
The MXNet 10G SDVoE® Ecosystem is an AV- -over IP platform of products developed and designed by
AVPro Edge. This system is an ultra-low latency HDMI 2.0, 4K 60Hz 4:4:4 video, multichannel audio, and
control signal distribution system over 10G Ethernet infrastructure, based on SDVoE
® standards and
Semtech® ASIC technologies. -Crystal clear 4K video is provided along with versatile AV and control signal
distribution applications.

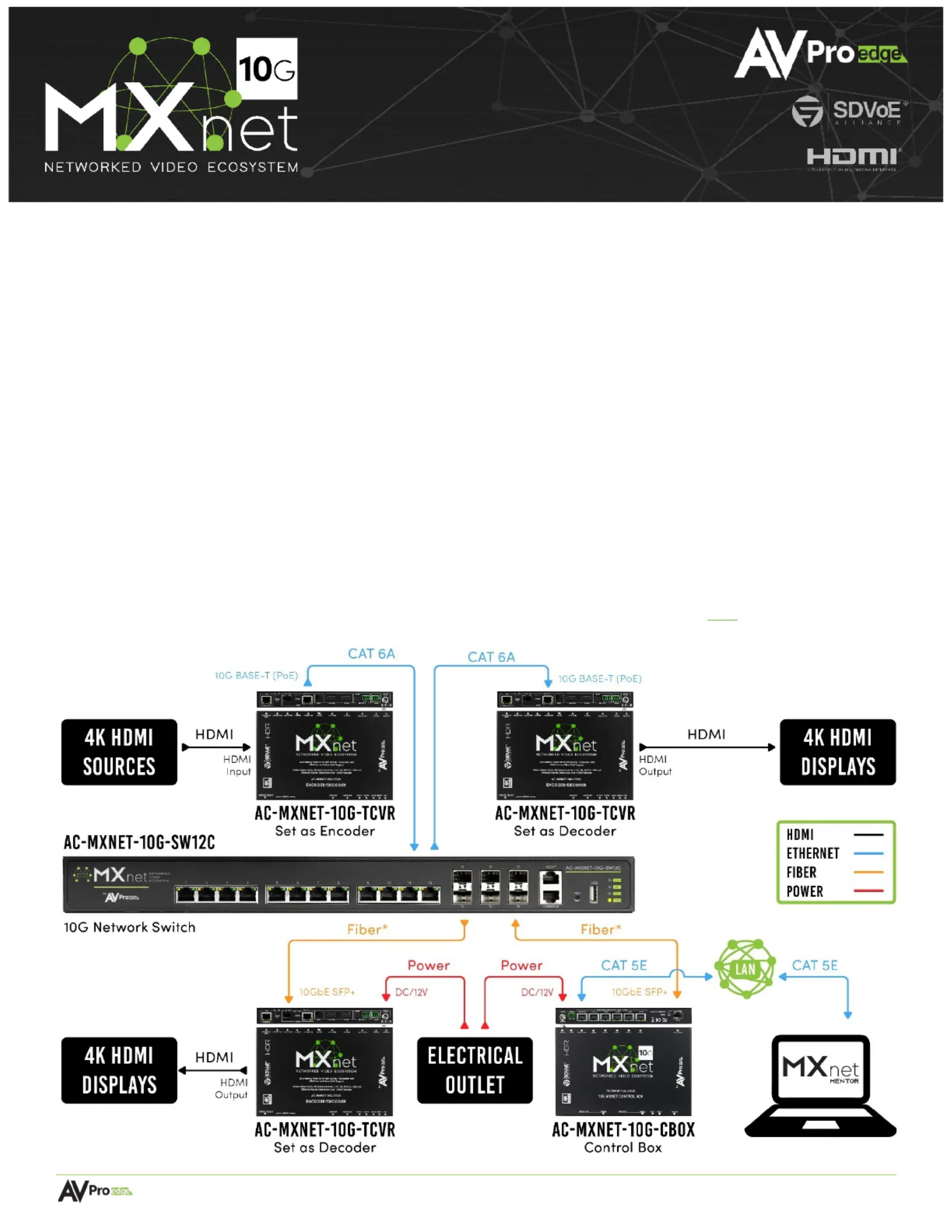

The diagram below shows the basic application with the AC-MXNET- - -10G SW12C managed switch, AC
MXNET- -10G TCVR transceivers, and AC- -MXNET 10G-CBOX control box. The cable connections can be
Category cable, optical fiber, or a combination of both , as shown below.
If using a party network switch with MXNet, please review our Knowledge Base a third- first rticle here.
Page 2 8 of
MXNET 10G SDVoE® Quick Start Guide
1. Select the Transceiver Mode
The encoder and decoder (transmitter/receiver) are combined into one chassis with a simple toggle
switch to select application functionality. By default, the transceiver is set to d ecoder mode.
Flip the ENC/DEC SELECT toggle switch t e dto set the ransceiver to ncoder or ecoder mode.
AC- -10G-MXNET TCVR
( Front Panel)
To the right of the toggle switch is a blue LED that indicates the selected mode:
LED is on = Encoder mode
LED is off = Decoder mode
2. Select the Transceiver Port Type
10GbE copper and fiber ports on each t ransceiver allow flexibility to utilize the cabling that best fits
the specific installation.
For Category Cable Connections
Flip the SDVoE SELECT toggle switch to the 10G BASE-T setting, then flip the POE SELECT toggle
switch to the 10G setting.
AC TCVR- -10G-MXNET
(Rear Panel)
Connect the SDVoE 10G BASE- T port on the transceiver to a 10G Copper PoE port on the network
s . witch
Connect the power supply to the network switch. By using this method, no additional cabling is
required to power the transceiver etwork as it will be powered by the n s - -witch via PoE (Power over
Ethernet).
The
AC- - -MXNET 10G TCVR
is shown, but the
same steps apply
to all transceivers:
AC- - - - MXNET 10G TCVR AVDM
AC- - - - MXNET 10G TCVR USBX
AC- - - -MXNET 10G TCVR PRO
Page 3 8 of
MXNET 10G SDVoE® Quick Start Guide

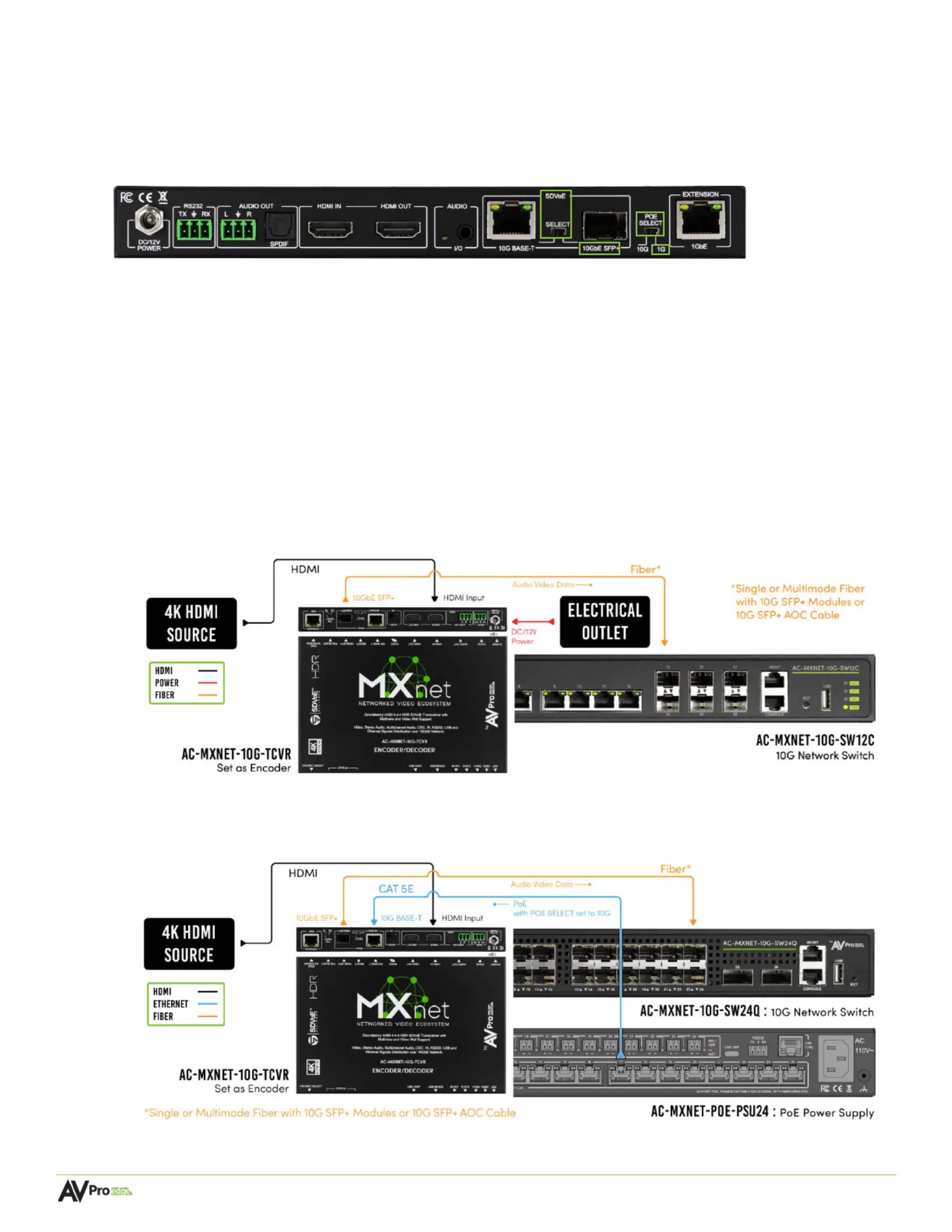

For Optical Fiber Connections
Flip the SDVoE SELECT toggle switch to the 10GbE SFP+ setting, then flip the POE SELECT toggle
switch to the 1G setting.
AC- -10G-MXNET TCVR
(Rear Panel)
Connect the SDVoE 10GbE SFP+ port on the transceiver to a 10G SFP+ port n s on the etwork witch
(or an SFP28 port on the AC- - - . MXNET 10G SW12C)
Connect the power supply to the network switch.
Power with Fiber Connections
Fiber optic cables do not carry an electrical current and cannot supply power from one device to
another. There are two ways to power the transceivers when using fiber optic connections:
1
1
1
11 Fiber with local power:
2
2
2
22 Fiber with PoE Power Switch:
