TOOLS REQUIRED ACCESSORIES FOR ROUND MOUNTING TUBES
INSTALLATION GUIDE
For TWS7 Series hardwired towel warmers.
INSTRUCTIONS
Before using this product, please read the following instructions carefully and keep this
pamphlet for future reference.
ABOUT THE PRODUCT:
This heated towel warmer is designed for drying/warming towels or clothes, it has a surface
stabilized temperature of 122-131ºF, and it is used in household bathrooms and kitchens, as
well as in hotels and restaurants or other public areas. This appliance uses a voltage of 120
VAC, and is manufactured according to cULus standards.
SAFETY PRECAUTIONS:
1. The towel warmer must be used with a Ground Fault Circuit Intercepter (GFCI) circuit.
2. This product is supplied with a three-prong plug or three-wire cable.
To avoid unnecessary risk or danger, this product must be properly grounded.
3. Any repairs must be done by a qualified technician who is deemed qualified by industry
standards. When any external wire fittings are required, the unit must be disconnected
from the circuit.
WARNING:
1. Only use for drying textiles which have been dampened by water.
2. If heating wire is damaged, the whole product should be replaced.
NOTE:
1. In the event of any difference in technical specifications, please refer to the actual product.
2. Please wipe the towel rail with a soft, dry cloth when cleaning it.
Do not use scrubbers or abrasive cleaners.
Installation Support •(800) 875-5285 • WarmlyYours
1+2
3
5
4
6

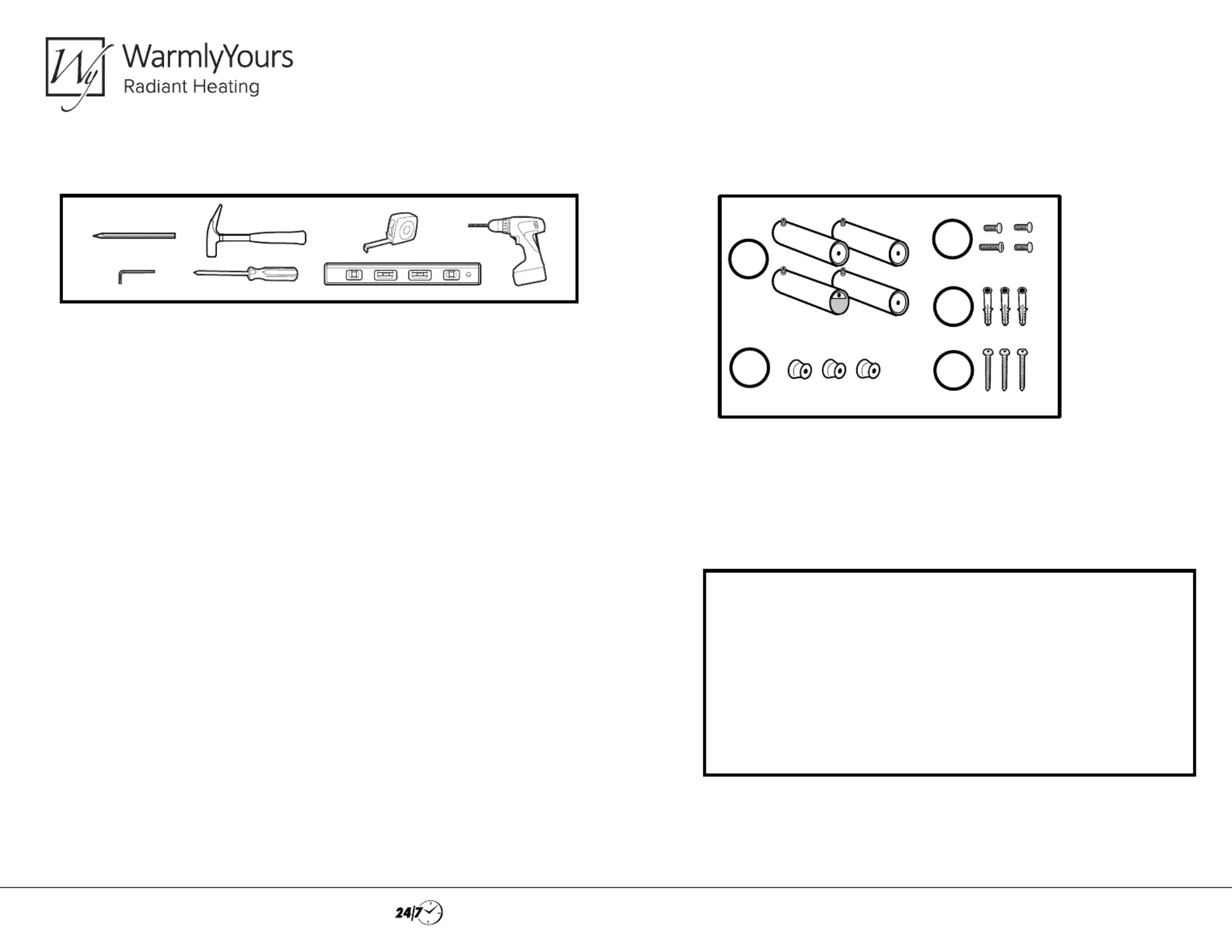

Installation Fittings:
(1+2): Mounting tubes (4 pieces) & Set screws (4 pieces)
(3) 3 brackets (3 pieces)
(4) Short mounting screws (3 pieces) Long mounting screw (1 piece)
(5) Drywall anchor (3 pieces)
(6) Long screws (3 pieces)
This product must be installed in accordance with the instructions in
the manual and the NEC and CEC guidelines relating to electrical
fixtures in bathrooms. The Towel Warmer must be on a GFCI
protected circuit and be wired by a professional who is certified
to do electrical wiring.
In order to reduce electrical shock, this towel warmer should be
installed on a 15A GFCI protected branch circuit (14AWG) and to an
outlet box that is 4 inches (10.16 cm) high by 2 Inches
(5.08 cm) wide.
ACCESSORIES
Installation Support •(800) 875-5285 • WarmlyYours
3 PCS
4 PCS
3 PCS
3 PCS
3 PCS
1 PCS
3 PCS
2 PCS
a
c
d
e
i
j
f
g
h
INSTALLATION: (WARNING: The electrical
connection should avoid all water.)
Please refer to all the following steps if the wall
brackets are taken apart from the vertical bars.
Please refer to Steps 5-11 if the wall brackets are
fixed on vertical bars already.
1 PCS
b
INSTALLATION GUIDE
For TWS7 Series hardwired towel warmers.
STEP 1
ac
STEP 2
STEP 3

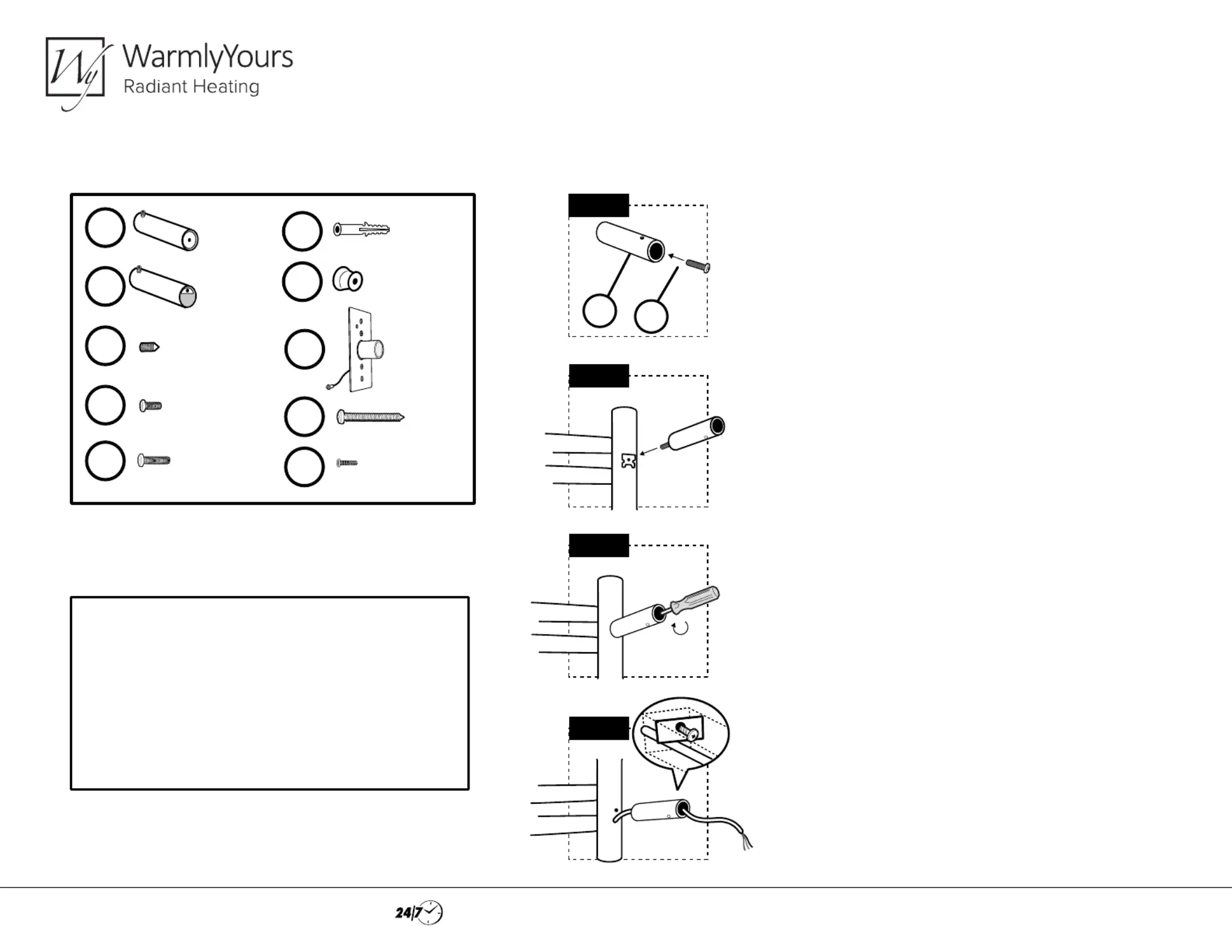

STEP 1: As shown in the picture, insert the short mounting
screw (d) through the tube in the center of the mounting
tube (a).
STEP 2: Use the short mounting screw (d) to fix the
mounting tube (a) to the threaded metal pad on the
vertical bar on the back of the towel warmer.
STEP 3: Screw down the short mounting screw (d) with a
screwdriver. Note that the set screw of the tube (a) should
point towards the floor when the towel warmer is wall mount-
ed. Fix the remaining two mounting tubes (a) to the vertical
bars with threaded metal pads by repeating Step 1-3.
STEP 4: Guide the electrical cord through the electrical
connection mounting tube (b) and use the long mounting
screw (e) to tighten the electrical connection mounting tube
to the vertical bar.
STEP 4
STEP 5
Installation Support •(800) 875-5285 • WarmlyYours
INSTALLATION GUIDE
For TWS7 Series hardwired towel warmers.
CD
AB
STEP 8
STEP 9
STEP 10
STEP 11

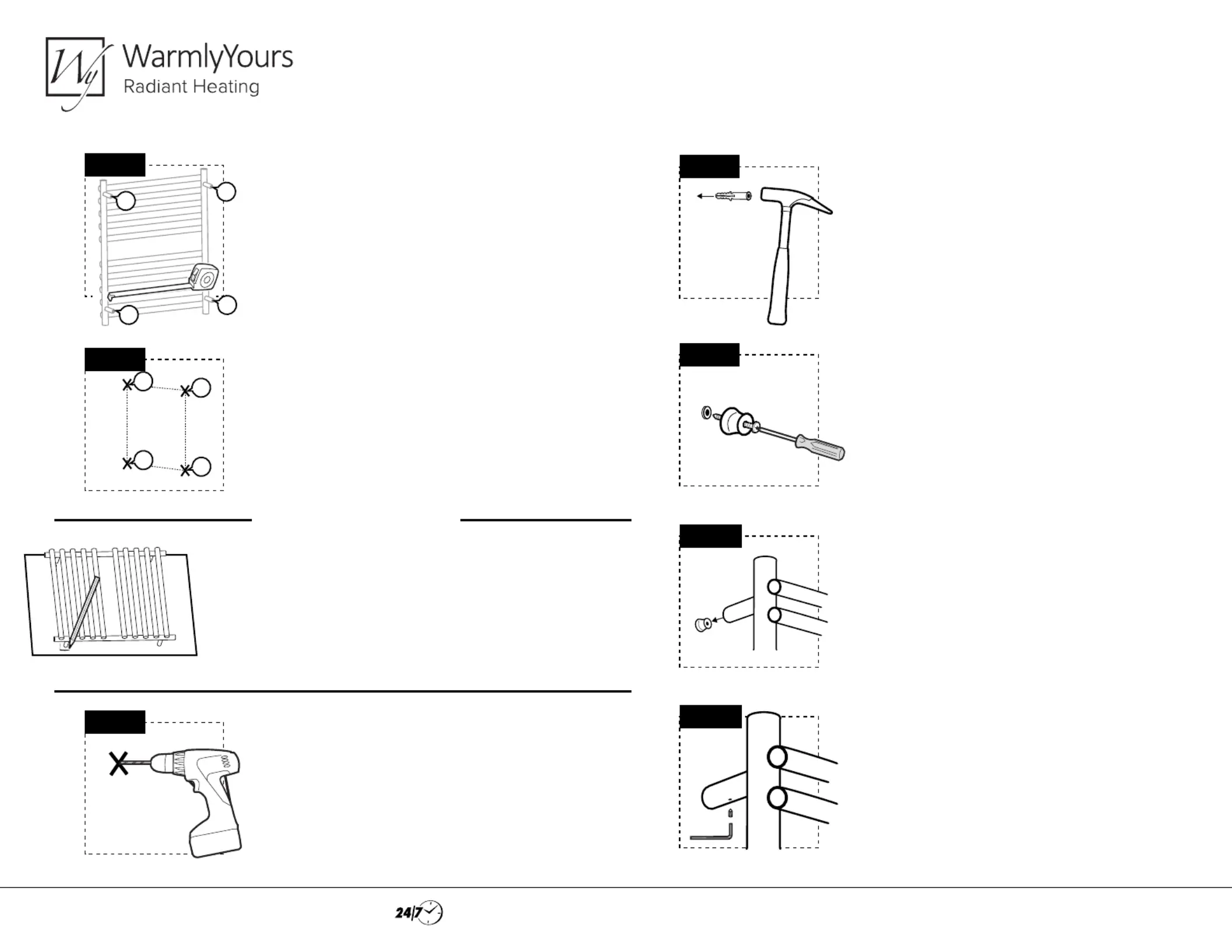

STEP 5: Use a tape measure to measure the distance
between the center points of each wall bracket tube;
record the distances between points AB, AC, CD, and
BD. Mounting point C will determine electrical box
location. See Electrical Assembly in following
instructions.
STEP 6: Mark A, B, C, and D according to the data from
Step 5; It is suggested that this product be installed at
least 23.5 inches (59.69 cm) above floor level.
(WARNING: The electrical connection should avoid all
water). This mounting location must comply with all local
building and electrical codes.
Place towel warmer on the box (or a large sheet of paper) and
lay on a flat surface with mounting tubes facing downwards.
Mark the location of the following:
• The electrical collar (hardwired model only)
• The location of the mounting tubes
Use the template as a guide to mark the wall with the correct
locations of the four mounting tubes (A, B, C, and D)
STEP 6
STEP 7: Drill A, B, C, and D holes with an
appropriately sized bit.
STEP 7
ALTERNATIVE TO STEPS 5 & 6
AB
D
C
STEP 8: Use a hammer to knock plastic
drywall anchor (f) into wall completely.
STEP 9: Insert long screw (i) through
mounting bracket (g), then screw into plastic
drywall anchor (f).
STEP 10: Install the tube (a) onto the bracket (g).
STEP 11: As shown in the picture, install the
set screws (c) into the hole of all the tubes (a
and b) using the allen wrench; fix the tube (a)
onto the mounting bracket (g and h).
