Ed : Rev : Cod :
INSTRUCTION
01/23 GRLDTOORXMSX3000
STEP 1:
1. Insert two Guide Rods (14) into the Rear Stabilizer (2), using two Allen Bolts M10×25mm (104) and two
Washers M10 (109).
2. Attach the Base Frame(8) and Arc Brackets(28) to the Rear Stabilizer(2), using two Carriage Bolts
M10×100mm (91), two Washers M10 (109) and two Nylon Locknuts M10(113).
3. Attach the Support Frame(3) and U shaped Brackets(30) to the Base Frame(8), using four Carriage Bolts-
M10×60mm (94), four Washers M10 (109) and four Nylon Locknuts M10 (113).
4. Attach the Bracket 120×45mm (27) to the Base Frame(8), using two Carriage Bolts
M10×60mm (94),
Do not tighten the nuts and bolts except (104) and (91).
STEP 2:
1. Attach the Crossover Support Frame (15) to the Base Frame(8), using one Allen Bolts M10×100mm (96),
two Washers M10 (109) and one Nylon Locknut M10(113).
2. Attach the Cable Crossover Support(11) to the Crossover Support Frame (15), using the Bracket 120×45mm
(27), two Carriage Bolts M10×65mm (93), two Washers M10 (109) and two Nylon Locknuts M10(113).
3. Attach the Cable Crossover Support(11) and Arc Brackets(28) to the Support Frame(3), using two Carriage
Bolts M10×100mm (91), two Washers M10 (109) and two Nylon Locknuts M10 (113).
Do not tighten the nuts and bolts yet.
STEP 3:
1. Slide two weight cover brackets(33) onto Guide Rods (14), then attach them to the Rear Stabilizer (2),using
two Allen Bolts M10×25mm (104) and two Washers M10 (109).
2. Slide two Rubber Bumpers Ø65×25mm(64) onto Guide Rods (14).
3. Slide fourteen Weight Plates(41) onto Guide Rods (14), insert the Selector Rod (13) into the hole of the
Weight Plate (41).
4. Slide the Top Weight Plates(36) down two Guide Rods (14), then down the Selector Rod (13), insert the
Weight Select Pin(59) into hole of desired weight.
5. Attach the Seat Support Frame(5) to the Support Frame (3), using two Carriage Bolts M10×100mm (91), two
Washers M10 (109) and two Nylon Locknuts M10(113).
6. Attach the Seat Support Frame(5) and Bracket 120×45mm (27) to the Front Support Frame(1), using two
Carriage Bolts M10×70mm (92),two Washers M10 (109) and two Nylon Locknuts M10(113).
7. Attach the Support Frame(1) to the Base Frame (8), using two Washers M10 (109) and two Nylon Locknuts
M10(113).
Do not tighten the nuts and bolts except (104).
STEP 4:
1. Slide two weight cover brackets(33) onto Guide Rods (14).
2. Attach the Upper Frame(4) to the Support Frame(3), using one Arc Bracket(28), two Carriage Bolts
M10×100mm (91), two Washers M10(109) and two Nylon Locknuts M10 (113).
3. Attach the Upper Frame(4) to the top of Guide Rods (14), using two Allen Bolts M10×25mm (104) and two
Washers M10(109).
4. Attach the Front Leg Developer(7) to the Support Frame(1), using one Allen Bolt M10×80mm (97), two
Washers M10 (109) and one Nylon Locknut M10 (113).
5. Attach the Foot Plate(17) to the Base Frame(8),using one Foot Plate Tube (26).
Do not tighten the nuts and bolts yet.
STEP 5:
1. A ach the Front Press Base(12) to the Upper Frame (4), using one Ø16×172×M10 Axle(31),two Washerstt
Ø25× Ø10 (108) and two Nylon Nuts M10 (113).
2. A ach the Front Press Frame (6) to the Front Press Base(12), using one Ø16×198×M10 Axle(32), twott
Washers Ø25× Ø10 (108), two Bushings Ø31×Ø25.7×8(70) and two Nylon Locknuts M10 (113).
3. Insert the Insert Pin (38 41) through the single hole on the Front Press Frame(6) and align to any one of the-
holes on fan type plate.-
STEP 6:
1. A ach the Lett ft le Crossover Arm(18) to the Cable Crossover Support(11), using one Nylon Nut M24Cab
(112), insert the T Shaped Pin (37) onto the Le Cable Crossover Arm(18) to any oneft
of the holes on fan type plate.-
2. A ach the Right Cable Crossover Arm(19) to the Cable Crossover Support (11), using one Nylon Nut M24tt
(112), insert the T Shaped Pin (37) onto the Right Cable Crossover Arm(19) to any one of the holes on fan type -
plate.
3. A ach Two Cable Crossover Pulley Brackets(16) to the Le and Right Cable Crossovertt ft
Arm(18&19), using two Nylon Locknuts M24 (112).

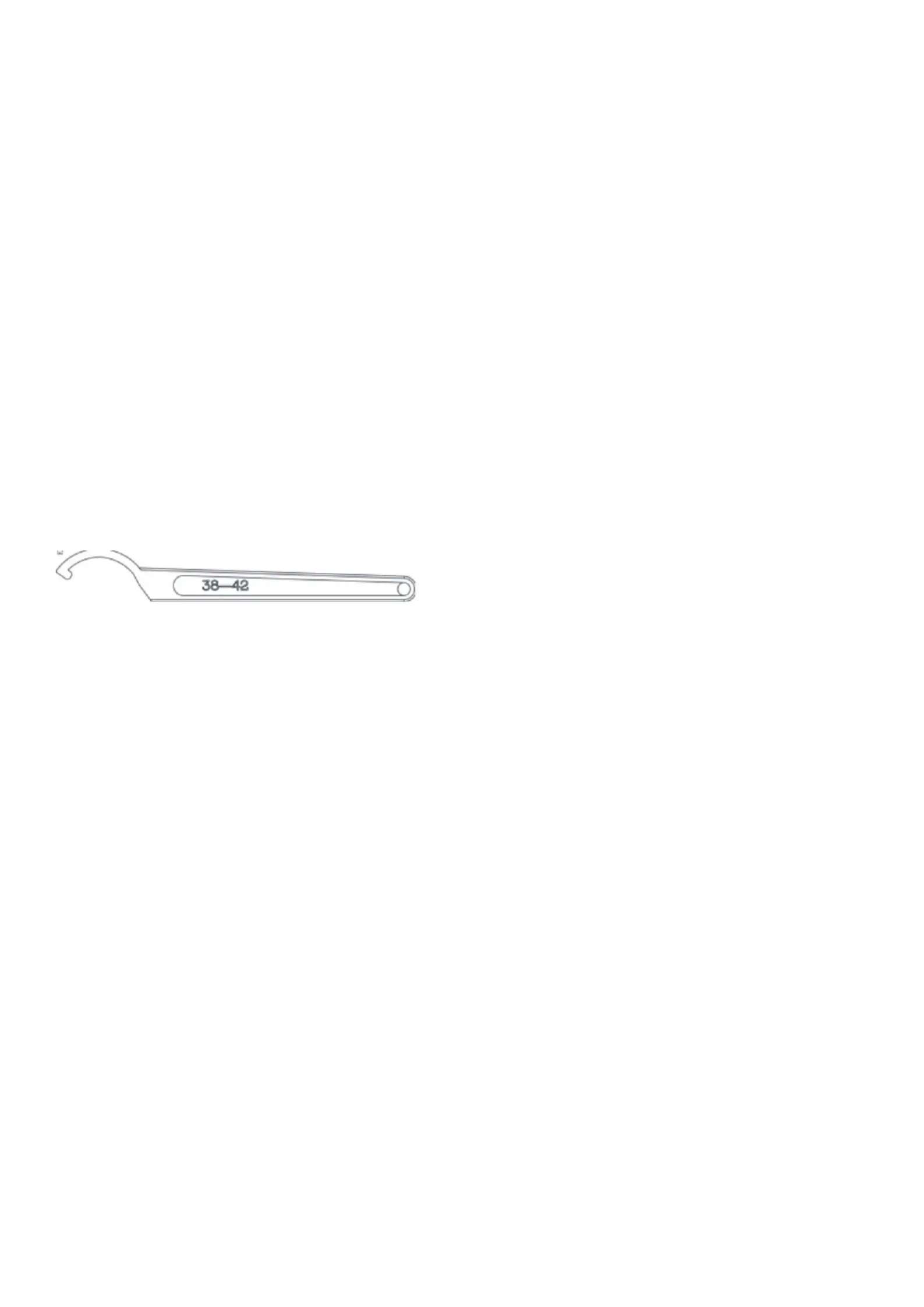

Note: Install Nylon Nuts M24 (112), using one Special wrench 38 42#-
STEP 7:
1. A ach the Backrest Pad (44) to the Backrest Frame (9), using two Allen bolts M8×40mm(105) and twott
Washers M8 (110).
2. Insert the Backrest Frame (9) into the Support Frame (3), using one Lock Knob(60).
3. A ach Seat Pad (45) to the Seat Frame (10), using four Allen bolts M8×18mm(106) and four Washers M8tt
(110).
4. Insert the Seat Frame (10) into the Seat Support Frame (5), using one Lock Knob(60).
5. A ach the Arm Curl Pad (40) to the Arm Curl Frame (39), using two Allen bolts M8× mm(106) and twott 18
Washers M8 (110).
6. Insert the Arm Curl Frame ( ) into the Front Support Frame(1), using one Lock Knob(60).39
7. Insert two Foam Roll Tubes (25) into Front Support Frame(1) and the Front Leg Developer(7).
8. Slide four Foam Rolls (46) onto two Foam Roll Tubes (25), then tap four Foam Roll End Cap (67).
STEP 8:
Assembly of the Upper Cable (51)
a) With Upper Cable (51) in groove of Large Pulley(63), thread Upper Cable(51) through Upper Frame(4).
b) Install Large Pulley NO.1 (63) to Upper Frame (4), using one Allen Bolt M10×60mm (100), two Pulley Bushing
(68), two Washers M10 (109),and one Nylon Locknut M10 (113).
c) Install Large Pulley NO.2 (63) to Upper Frame (4), using one Allen Bolt M10×60mm (100), two Pulley Bushing
(68), two Washers M10 (109),and one Nylon Locknut M10 (113).
d) Install Large Pulley NO.3&5 (63) to Front Press Base (12), using two Allen Bolts M10×155mm (95), four
Washers M10 (109), and two Nylon Locknuts M10 (113).
e) Install Large Pulley NO.4 (63) to Support Frame (3), using one Allen Bolt M10 50mm (102), two Cable×
Retainers (65), two Cable Retainer Bushings (66), two Washers M10 (109), and one Nylon Locknut M10 (113).
f) Install Large Pulley NO.6 (63) to Support Frame (3), using one Allen Bolt M10 60mm (100), two Pulley×
Bushing (68), two Washers M10 (109),and one Nylon Locknut M10 (113).
