Oldal 1/2
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
PC-3WR
PC-3WR-L
SPLASHPROOF
CEILING SPEAKER
INSTRUCTION MANUAL
SAFETY PRECAUTIONS
• Be sure to read the instructions in this section carefully
before use.
• Make sure to observe the instructions in this manual as
the conventions of safety symbols and messages
regarded as very important precautions are included.
• We also recommend you keep this instruction manual
handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used
in this manual to prevent bodily injury and property
damage which could result from mishandling. Before
operating your product, read this manual first so you are
thoroughly aware of the potential safety hazards as well as
understand the safety symbols and messages.
WARNING Indicates a potentially hazardous
situation which, if mishandled, could result in death or
serious personal injury.
CAUTION Indicates a potentially hazardous
situation which, if mishandled, could result in moderate
or minor personal injury, and/or property damage.
When Installing the Unit
• Install the unit only in a location that can structurally
support the weight of the unit and the mounting bracket.
Doing otherwise may result in the speaker falling down
and causing personal injury and/or property damage.
• Be sure to tighten screws when mounting the speaker. If
not tightened, the screws may come off due to a
vibration, etc. and the speaker may fall, resulting in
personal injuries.
When the Unit is in Use
• Do not operate the speaker for an extended period of
time with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate
and result in a fire.
WARNING
CAUTION
GENERAL DESCRIPTION
The PC-3WR and PC-3WR-L are both splashproof, flush-mounted ceiling speakers. The PC-3WR is a high impedance
100 V line speaker, and the PC-3WR-L is a low impedance (8 ) speaker.Ω
HANDLING PRECAUTIONS
The PC-3WR-L cannot use the 100 V line.

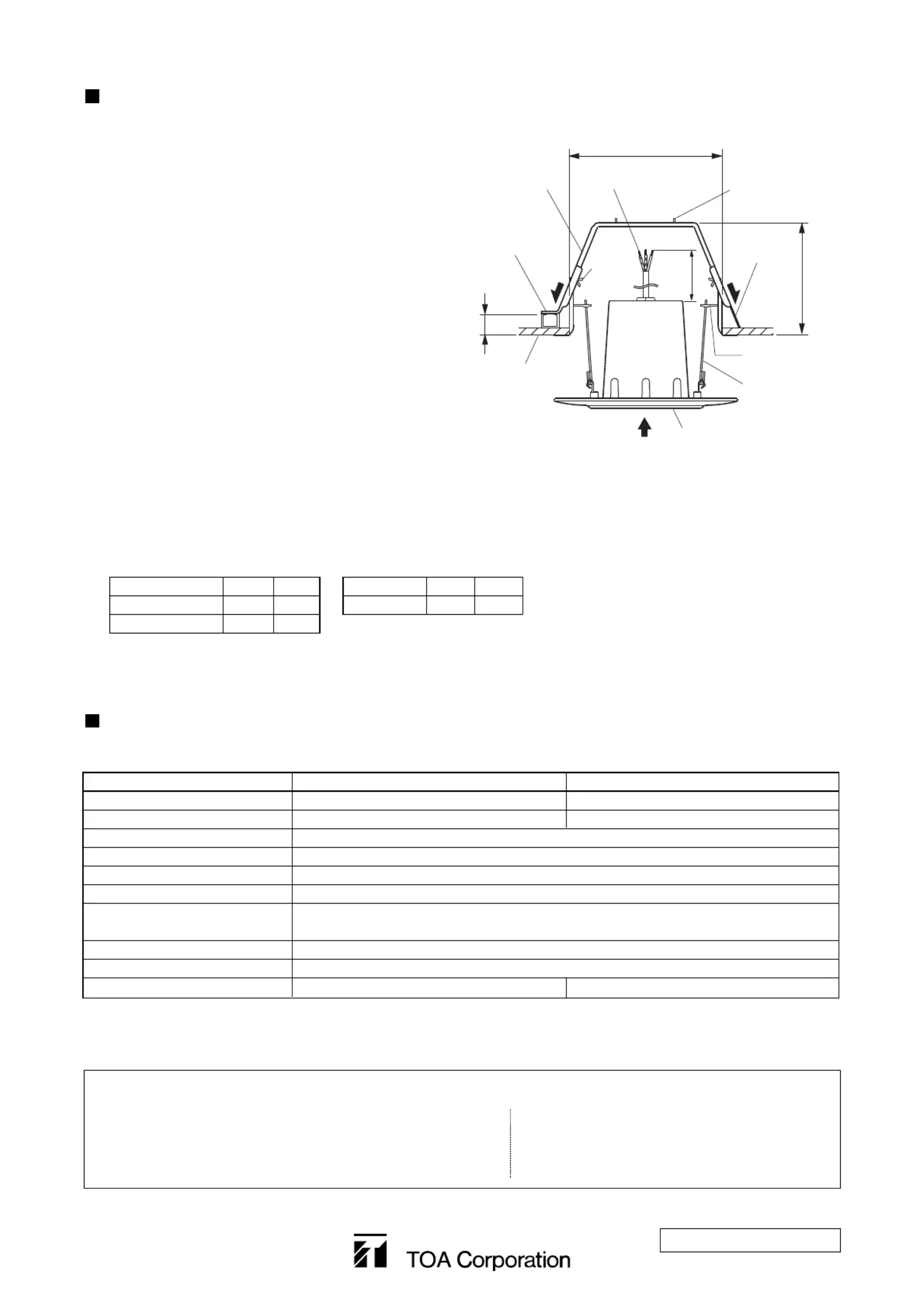

INSTALLATION
1. Make a 150 mm hole in a ceiling.
Tip:
Using the marking-off pins on the speaker mounting
bracket, you can describe a circle with designated
diameter.
2. Insert the speaker mounting bracket into the
mounting hole.
3. Loosen butterfly bolts on the speaker mounting
bracket, and move the sliding frames in the direction
indicated by the arrow.
4. Hold the ceiling panel between the speaker
mounting bracket and sliding frame, then tighten the
butterfly bolts.
Tip:
When the ceiling panel is thick, bend the sliding
frame. The ceiling panel with thickness of up to 50
mm can be used.
5. Squeezing the sides of either V-shaped spring, connect it to the spring holder of the speaker mounting bracket.
6. Connect the input cable to the speaker cable.
7. Squeezing the sides of other V-shaped spring, connect it to the bracket's spring holder, then push the speaker up into
the ceiling hole.
PC-3WR COM HOT
3 W connection White Red
1 W connection White Black
SPECIFICATIONS
Model No. PC-3WR PC-3WR-L
Rated Input 1W or 3 W 3 W
Rated Impedance 3.3 k (3 W) or 10 kΩ Ω (1 W) 8 Ω
Output Sound Pressure Level 88 dB (1 W, 1 m)
Frequency Response 180 – 20,000 Hz
Operating Temperature Range
-
10°C to +50°C
Dust/Water Protection IP64
Finish Panel/Case : ABS resin, off white
Punched grille : Stainless steel
Mounting Hole Diameter 150 mm
Dimensions ø180 x 104.5 (d) mm
Weight 700 g 600 g
Note : The design and specifications are subject to change without notice for improvement.
110 mm
Sliding frame
V-shaped spring
Spring holder
Speaker
Push up
Up to 50 mm
Marking-off pin
Speaker mounting bracket
Speaker cable
(Red: 3 W, Black: 1 W, White: COM)
Sliding frame can
be bent.
Ceiling panel
ø150 mm (mounting hole diameter)
330 mm
Butterfly
bolt
Note: The figure is the PC-3WR.
PC-3WR-L COM HOT
3 W (8 ) White BlackΩ
333-01-040-0B
URL: http://www.toa.jp/
Traceability Information for Europe
Manufacturer:
TOA Corporation
7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
