Oldal 1/15
Origins™
-1.5 1.5 gpm (5.7 L/min) flow restrictor
-2.0 2.0 gpm (7.6 L/min) flow restrictor
-231 Super showerhead in place of Clear-Flo
-295 Institutional showerhead in place of
Clear-Flo
-SS Slip spout on any tub/shower unit
-X Integral service stops
-CHKS Integral check stops
-IPS 1/2” female IPS connections
-REV Reverse coring for back to back
installations
-B Chrome brass escutcheon
-D Chrome brass dome cover
-VP Vandal proof escutcheon screws
-OP 13” oval plate
-L/HD Less showerhead
-TRM Trim only, valve not included
Model Numbers
Operation & Maintenance Manual
S-9600-P, S-9600TS-P, S-9601-P, S-9602-P
Specification
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Compliance
Certied by
CSA Group
Modifications
Note: Append appropriate -sufx to model number.
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm (5.7 L/min)
2.0 gpm (7.6 L/min)
S-9600-P
Origins Shower Valve
S-9600TS-P
Origins Tub/Shower Valve
S-9601-P
Origins Shower System
S-9602-P
Origins Tub/Shower System
S-9600-P/S-9601-P
Shower system powered by the Temptrol
® Pressure
Balancing valve. Features adjustable stop screw to
limit handle turn, integrated volume control, 1 mode
showerhead with easy to clean rubber nozzles and
standard 2.5 gpm (9.5 L/min) ow restrictor. Components
made from metal and nonmetallic materials plated in
standard polished chrome nish.
S-9600TS-P/S-9602-P
Tub/shower system powered by the Temptrol
® Pressure
Balancing valve. Features adjustable stop screw to limit
handle turn, integrated diverter, non-diverter tub spout, 1
mode showerhead with easy to clean rubber nozzles and
standard 2.5 gpm (9.5 L/min) ow restrictor. Components
made from metal and nonmetallic materials plated in
standard polished chrome nish.
For California Residents
WARNING: This product contains chemicals known to
the State of California to cause cancer, birth defects, or
other reproductive harm.
2

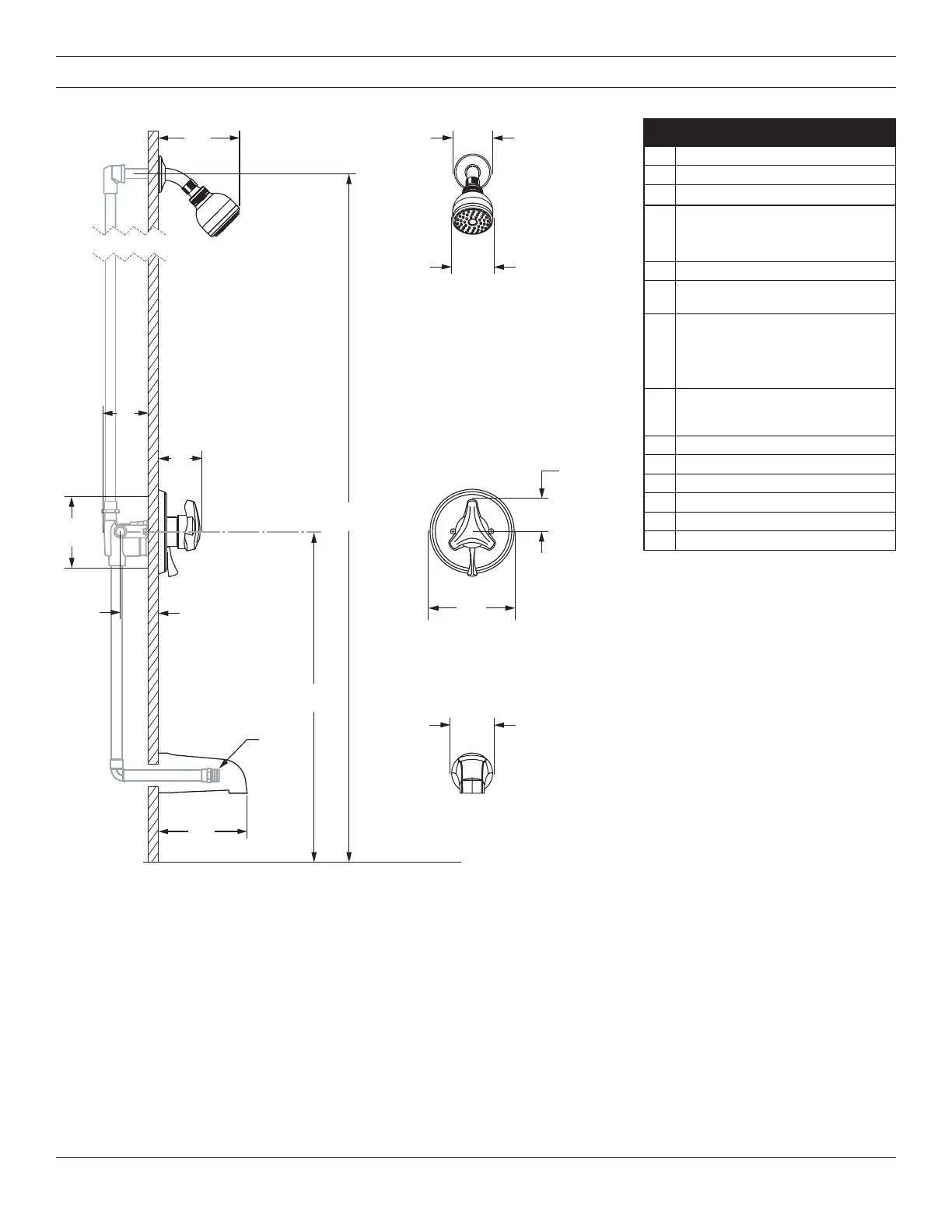

Dimensions
Measurements
A 6 3/8”, 162 mm
B 3 1/2”, 89 mm
C 2 7/8”, 73 mm
D
Shower Valve Hole Size
Min. Ø 3”, 76 mm
Max. Ø 4”, 102 mm
E Ref. 77”, 1956 mm
FRough-in
2 3/8” ± 1/2”, 60 mm ± 13 mm
G
Ref. 32”, 813 mm
(S-9602-P, S-9600TS-P)
Ref. 42”, 1067 mm
(S-9601-P, S-9600-P)
HMale 1/2” NPT tting must
protrude 4” from
nished wall
I 5 1/2”, 140 mm
J Ø 2 1/2”, 64 mm
K Ø 2 3/4”, 70 mm
L 2 1/8”, 54 mm
M Ø 5 3/4”, 146 mm
N Ø 2 1/2”, 64 mm
FLOORFLOOR
EE
GG
AA JJ
KK
CC
HH
II
BB
FF MM
LL
NN
DD
Notes:
1) All dimensions measured from nominal rough-in (see F as reference).
2) Dimensions subject to change without notice.
3

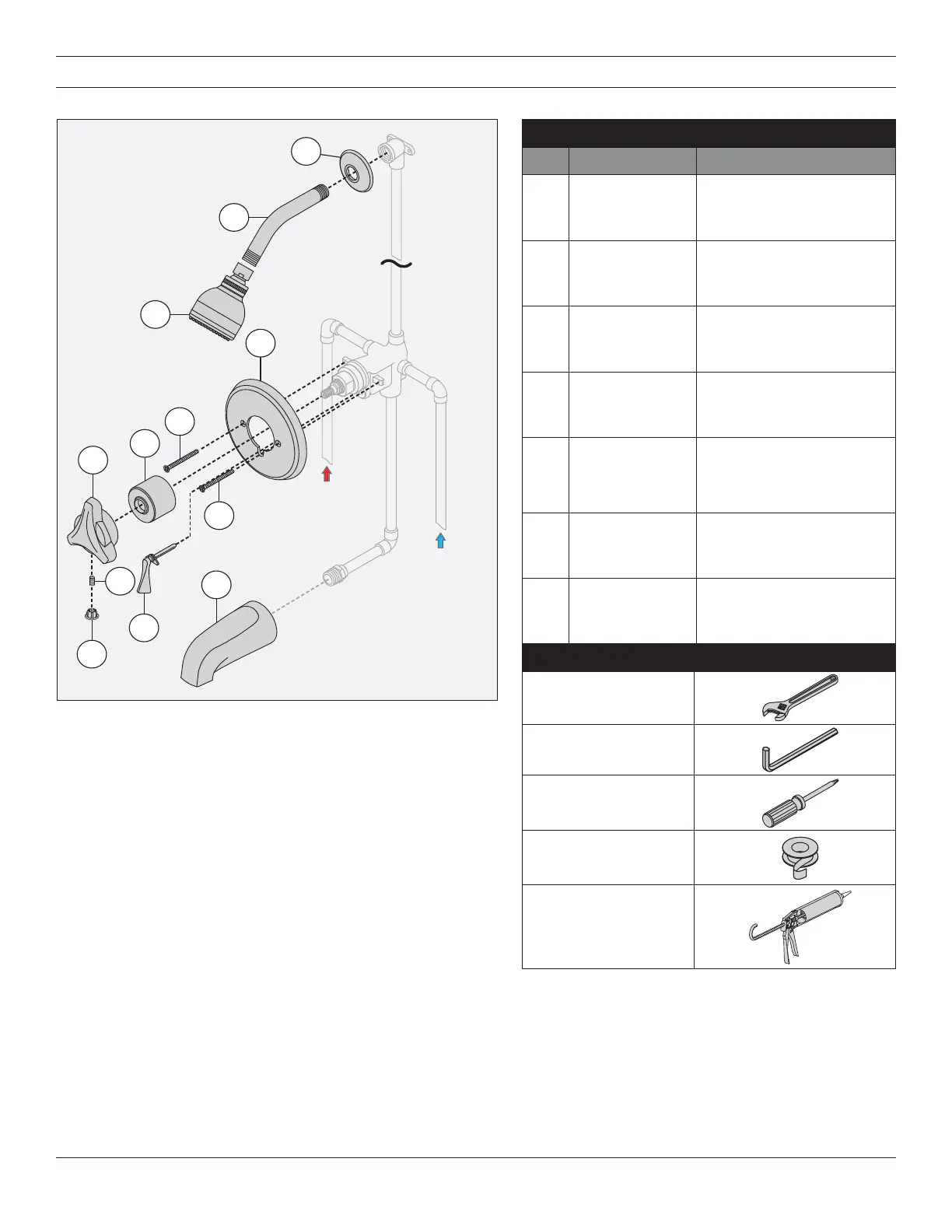

Replacement Parts
Item Description Part Number
A Showerhead 4-141
B
C
Shower Arm &
Flange 300S
D
H
I
Handle
Assembly RTS-061
E Dome Cover T-19
F
G
Shower
Escutcheon Kit
S-9600TS-TRM-KIT
(S-9602-P, S-9600TS-P)
S-9600-TRM-KIT
(S-9601-P, S-9600-P)
JDiverter/Volume
Control Handle
RTS-062
RTS-062-B (Brass)
K Tub Spout 060
Parts Breakdown
A
HOT
Water Supply
COLD
Water Supply
B
C
D
E
F
I
F
G
K
H
J
Notes:
1) Apply a bead of silicone around the perimeter of all shower
trim installed ush to the nished wall. Leave opening on
bottom of escutcheon for weep hole.
2) Apply plumber tape to all threaded connections.
3) Escutcheon artwork is dependent on handle style.
Tools Required
Adjustable wrench
Allen wrench (1/8”)
Phillips head
screwdriver
Plumber tape
Silicone
