Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 1, 2023 1:18 PM

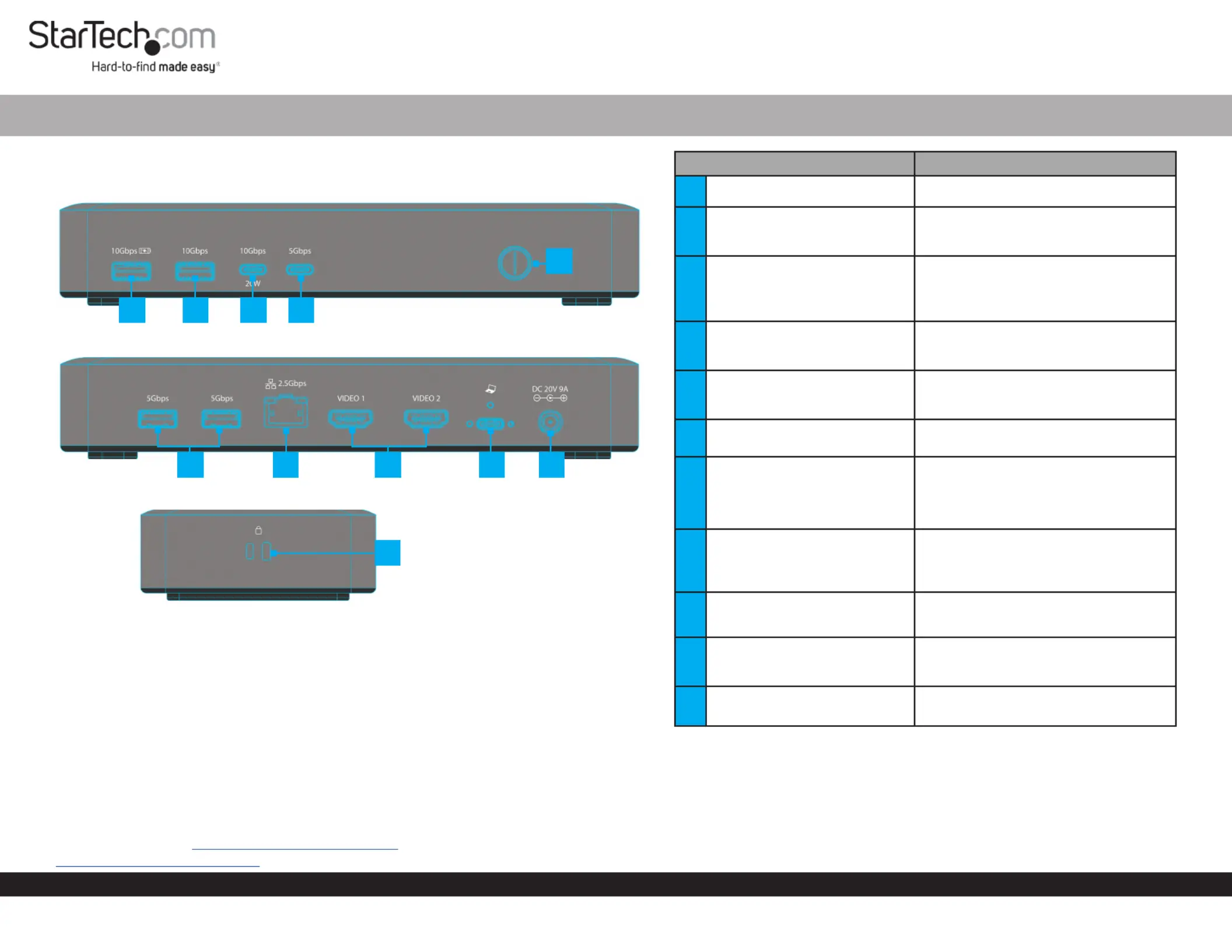

Product Diagram (Side A)

USB4 Docking Station - Dual 4K 60Hz HDMI, 6-Port USB Hub, 2.5GbE, 100W PD

679

(Side B)

Product ID

155NA-USB4-DOCK / 155UE-USB4-DOCK

(Side C)

Component Function

1Power Button • Press and Release to Toggle Power for the

Dock

2USB-C Data Port

• Connect a USB-C Peripheral

• USB 3.2 Gen 1 (5Gbps)

• Supports up to 7.5W(5V/1.5A) of Power

3USB-C Data/Power Port

• Connect a USB-C Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Power Delivery 3.0

4USB-A Data Port

• Connect a USB-A Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports up to 4.5W (5V/0.5A) of Power

5USB-A Data/Charge Port

• Connect and/or Charge a USB-A Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports 7.5W BC 1.2 Charging (5V/1.5A)

6DC 20V Port • Connect the Dock to a Power Source, using

the Universal Power Adapter

7USB4 Host Port

(Screw-Locking, USB Type-C)

• Connect to a USB-C Port on a Host Computer

• USB4 (40 Gbps)

• Power Delivery 3.0 Specication

• Capability of charging the Host Computer

up to 100W

82x HDMI Video Ports

• Connect HDMI Displays

• HDMI 2.1

• Up to 8K (7680x4320) 60Hz

• Via DisplayPort 1.4 Alt Mode

92.5 Gigabit Ethernet Port • Connect the Dock to a Network Device,

using a Network Cable

• 2.5GBASE-T

10 2x USB-A Data Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 1 (5 Gbps)

• Supports up to 4.5W (5V/0.9A) of Power

11 2x Lock Slots

(Standard & Nano)

• Connect a K-Slot Style Locking Device to

deter the theft of the Docking Station

Requirements

• Computer

• USB4 Port

• USB-C Port with DP Alt Mode

• This Dock can function with either a USB4 or USB-C host port. For

maximum performance a USB4 port is recommended. Video support

and performance, such as resolution, and refresh rate depend on the

host computer’s video controller. Please verify the specications of the

host computer.

For the latest drivers, manuals, product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/155NA-USB4-DOCK or

www.StarTech.com/155UE-USB4-DOCK

810

345

Package Contents

• USB-C Docking Station x 1

• 3 ft (1 m) USB4 Host Cable x 1

• Universal Power Adapter x 1

• Quick-Start Guide x 1

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a 3-year warranty.

For further information on product warranty terms and conditions, please refer to .

www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp,

The Netherlands

Regulatory Compliance

FCC -- Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance 20cm between the radiator and your body.

Installation

1. Connect the from an AC outlet, to the Power Adapter DC 20V Port on the Dock.

2. When connecting USB-A peripheral devices, connect a USB-A cable from the USB

peripheral devices to the and/or the USB-A Data Ports USB-A Data/Charge Port

on the Dock.

3. When connecting USB-C peripheral devices, connect a USB-C cable from the USB

peripheral devices to the and/or the USB-C Data Port USB-C Data/Charge Port

on the Dock.

4. When connecting a wired network, connect an RJ-45 terminated network cable

(CAT 5e or better) from the local area network (e.g. Router, Switch, Modem, etc.)

to the on the Dock.2.5 Gigabit Ethernet Port

5. When connecting up to two HDMI displays, connect an HDMI cable from each of

the HDMI displays to the on the Dock.HDMI Video Ports

6. Press the on the Dock, into the ON position.Power Button

7. Connect the included from a or USB4 Host Cable USB4 Port DP Alt Mode

Enabled USB-C Port Host Computer USB4 Host Port on the , to the on the Dock.

The will automatically detect and install the Dock.Host Computer
