Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: June 30, 2023 10:12 AM

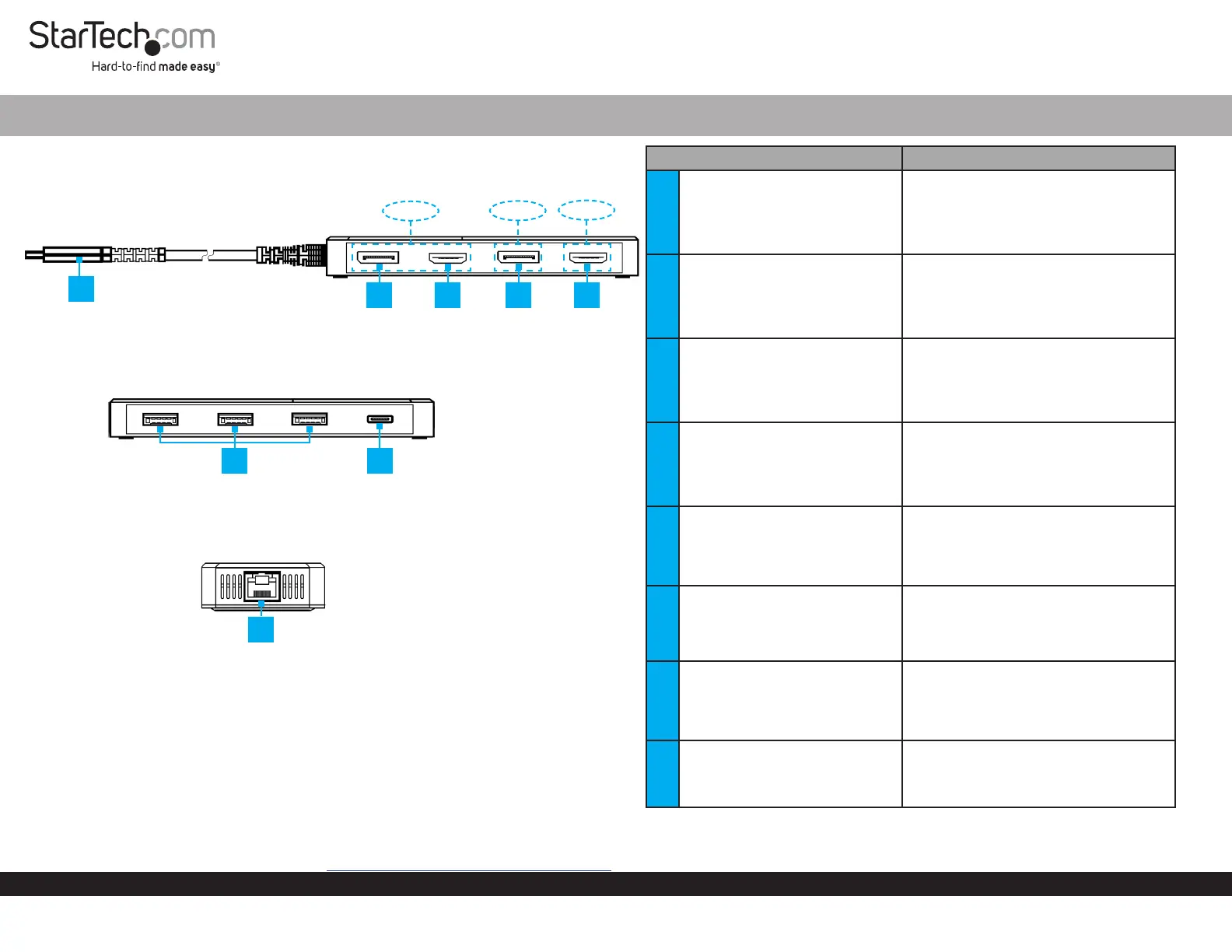

Product Diagram (Side A)
(Side B)
(Side C)
Package Contents
• Multiport Adapter
• Quick-Start Guide
Requirements
• Host Computer
• With Available DP Alt Mode Enabled USB-C Port Supporting MST
For the latest drivers, manuals, product information, technical specications, and
declarations of conformance, please visit: www.StarTech.com/117B-USBC-MULTIPORT
Product ID
117B-USBC-MULTIPORT
USB-C Multi-Monitor Multiport Adapter, 2x HDMI/2x DP - 3x USB-A/GbE/100W PD
Component Function
1HDMI Video Output Port
(Video Output 1)
• Connect an HDMI Display Device
• HDMI 2.0b
• Up to 4K (4096x2160) 60 Hz
• Via DisplayPort 1.4 DP Alt Mode
2DisplayPort Video Output Port
(Video Output 2)
• Connect a DisplayPort Display Device
• DisplayPort 1.4
• Up to 4K (4096x2160) 60 Hz
• Via DisplayPort 1.4 DP Alt Mode
3HDMI Video Output Port
(Video Output 3)
• Connect an HDMI Display Device
• HDMI 2.0b
• Up to 4K (4096x2160) 30 Hz
• Via DisplayPort 1.4 DP Alt Mode
4DisplayPort Video Output Port
(Video Output 3)
• Connect a DisplayPort Display Device
• DisplayPort 1.4
• Up to 4K (4096x2160) 30 Hz
• Via DisplayPort 1.4 DP Alt Mode
5Built-in USB-C Host Cable
• Connect to a USB-C Port on a Host
Computer
• USB 3.2 Gen 2 (10Gbps)
• DisplayPort 1.4 Alt Mode
6USB-C 100W Power Delivery
Pass-Through Port
• Connect a USB-C power adapter
• USB Power Delivery 3.0 (up to
100W, with up to 85W available for
charging)
73x USB-A Data Ports
• Connect USB-A Peripherals
• USB 3.2 Gen 2 (10 Gbps)
• Supports Up to 5 V/0.9 A (4.5 W) of
Power
8Gigabit Ethernet Port
• Connect a CAT 5e/CAT 6 cable to
establish a network connection
• 10/100/1000 Mbps
54 3
7 6
8
2 1
Video Output 2 Video Output 1
Video Output 3
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.
Warranty Information
This product is backed by a 3-year warranty.
For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
StarTech.com
Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
4490 South Hamilton
Road
Groveport, Ohio
43125
U.S.A.
StarTech.com Ltd.
Siriusdreef 17-27
2132 WT Hoofddorp
The Netherlands
Regulatory Compliance
FCC - Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void
the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Installation
1. Connect the , located on the , to Built-In USB-C Host Cable Multiport Adapter
a , located on the . The DP Alt Mode Enabled USB-C Port Host Computer Host
Computer Multiport Adapter will automatically detect and install the .
2. Video Output 1
Connect an HDMI enabled display device to the HDMI Output Port (Video
Output 1) Multiport Adapter located on the , using an HDMI cable (sold
separately).
3. Video Output 2
Connect a DisplayPort enabled display device to the DisplayPort Output Port
(Video Output 2) Multiport Adapterlocated on the , using a DisplayPort cable
(sold separately).
4. Video Ouput 3
Connect a DisplayPort or HDMI enabled display device to the DisplayPort
Output Port (Video Output 3) HDMI Output Port (Video Output 3) or the ,
using the required cabling (sold separately).
Notes:
• Only a single display can be connected to either of the Video Output #3 output
options.
• The computer’s USB-C port must support DP Alt Mode in order to output video
to an external display.
• The computer’s USB-C port must support MST in order to output video to more
than one external display.
• Video performance, such as resolution and refresh rate depends upon the
host computer’s video controller. Please verify the specications of the host
computer.
5. Connect USB peripherals to the , located on the USB-A Data Ports Multiport
Adapter.
6. Connect a USB-C power adapter (up to 100W) from an AC outlet to the USB-C
100W Power Delivery Pass-Through Port Multiport Adapter on the , to charge
the that’s connected to the .Host Computer Built-in USB-C Host Cable
Note: The computer must support USB-C Power Delivery on the port the
multiport adapter is connected to, in order to charge the computer via USB-C.
7. Connect an RJ-45 terminated network cable (CAT 5e or better) from your
local area network (e.g. Router, Switch, Modem, etc.) to the Gigabit Ethernet
Port, located on the Multiport Adapter, to access a network via a wired LAN
connection.
Termékspecifikációk
| Márka: | StarTech.com |
| Kategória: | Overige computer accessoire |
| Modell: | 117B-USBC-MULTIPORT |
