SLM453 System Quick Start Guide
Prior to connecting and operating the SLM453 Surveillance System, please read this quick start guide care-
fully. Refer to the individual users manuals included with the DVR for detailed operation.
Camera Setup and Connection
1) Remove all individual components and accessories from their packaging.
2) Using the included mounting hardware, install each of the cameras as desired. The (9) cameras supplied
are weatherproof and may be used indoor or out. Do NOT submerge these cameras. Be aware of any
existing utilities lines (electric, gas, water, etc) in the camera mounting area. Place the cameras under an
eave or other protective area when mounting outdoors.
3) To connect the cameras to the DVR:
• Connect the video/power cable (supplied) to each camera. The BNC connection will supply
video to the DVR, the DC plug will supply power to the camera.
• Connect the BNC plug on the other end of the video/power cable to one of the video inputs on
the DVR.
• Connect the 2.1mm power jack and power supply as shown in the diagram. DO NOT power other
accessories or equipment not supplied in this system.
• Repeat for all cameras.
4) Connect the VIDEO OUT terminal on the DVR to the VIDEO IN terminal on the monitor using the supplied
VGA cable. If the monitor or TV does not have a VGA connector, connect the VIDEO OUT on the DVR to the
VIDEO IN on the monitor or TV.
5) Connect power to the DVR with the power supply as shown in the diagram.
6) Set up the DVR operation menu according to desired recording requirements
SECURITY LABS DOES NOT ASSUME LIABILITY FOR ANY VIOLATION OF PRIVACY FROM ILLEGAL RECORDINGS OR MONITORING MADE
ON OR FROM THIS UNIT. THE USER/OWNER ASSUMES FULL LIABILITY FOR ANY AND ALL RECORDINGS MADE FROM THIS UNIT IN A
SECURITY OR SURVEILLANCE OPERATION OR IN ANY OTHER USE. SECURITY LABS IS NOT RESPONSIBLE FOR RECORDINGS THAT
VIOLATE LAWS OR THAT MAY PROVE OFFENSIVE OR TEND TO INCRIMINATE ANOTHER INDIVIDUAL. LOCAL, STATE, AND FEDERAL
LAWS MUST BE OBSERVED REGARDING ALL RECORDINGS.
Security Labs Customer Support Hotline
1-800-774-0284
15540 Herriman Blvd. Noblesville, IN 46060 www.security-labs.com
VIDEO (VGA) IN AUDIO IN (optional)*
CAMERA VIDEO OUT
VIDEO
FROM
DVR
Monitor

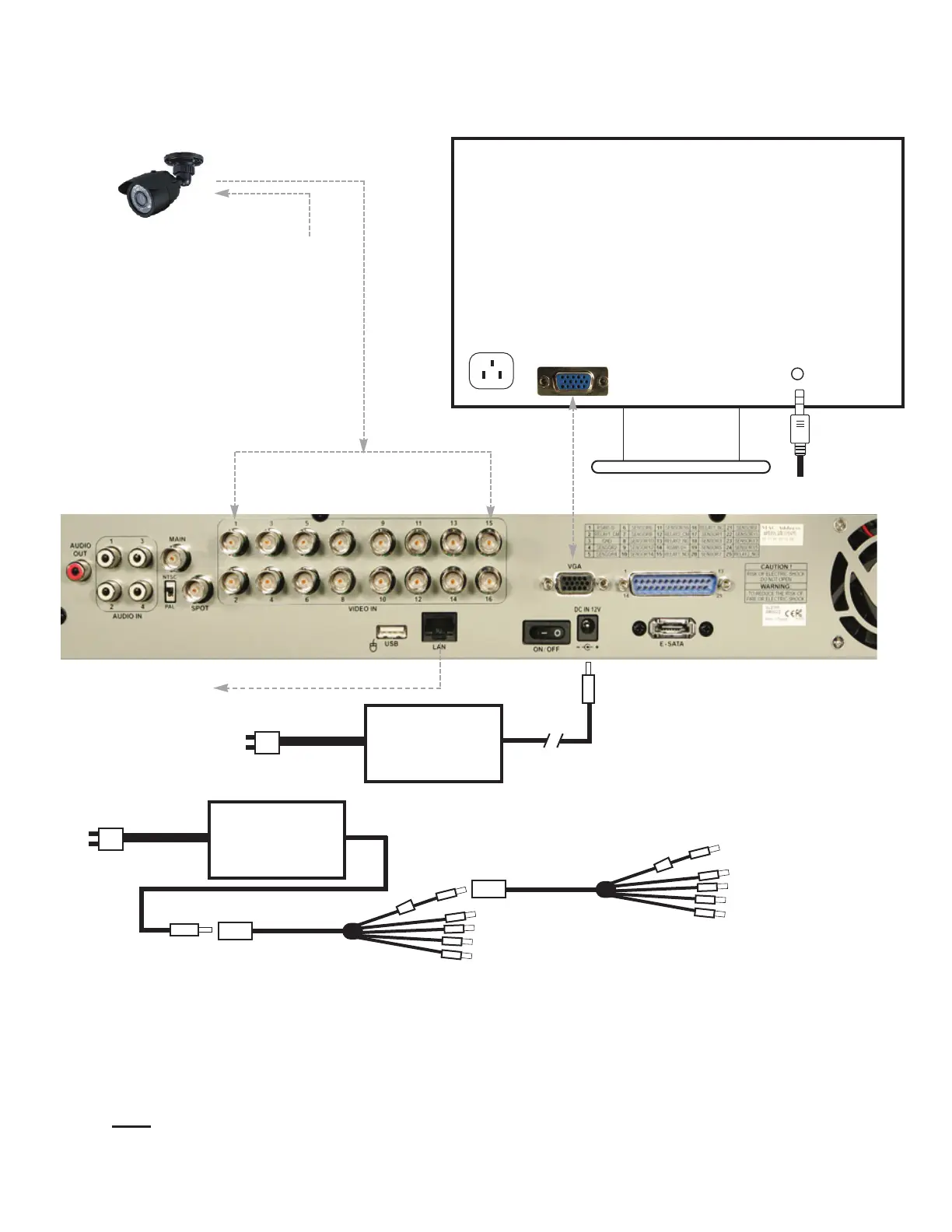

SLM453 System Connection Diagram
Model 159 Cameras
To: PWR SUPPLY
DVR-Camera
power breakout
adapter (below)
To broadband
router connection
DVR BACK PANEL
DO NOT USE THE POWER SUPPLIES TO POWER EQUIPMENT NOT INCLUDED IN SYSTEM
AC PLUG POWER SUPPLY
DVR ONLY MATCH LABELED
POWER SUPPLIES
TO DVR & CAMERAS
NOTE:
Cameras can connect
to any open CAM
video input
on the DVR
AC PLUG POWER SUPPLY
CAMERAS ONLY
Connect 12VDC plugs to
(5) SLC-159 bullet
camera cable power jacks
Connect 12VDC plugs to
(4) SLC-159 bullet
camera cable power jacks
9x
12VDC POWER
Audio from DVR
