Model SLC-171C

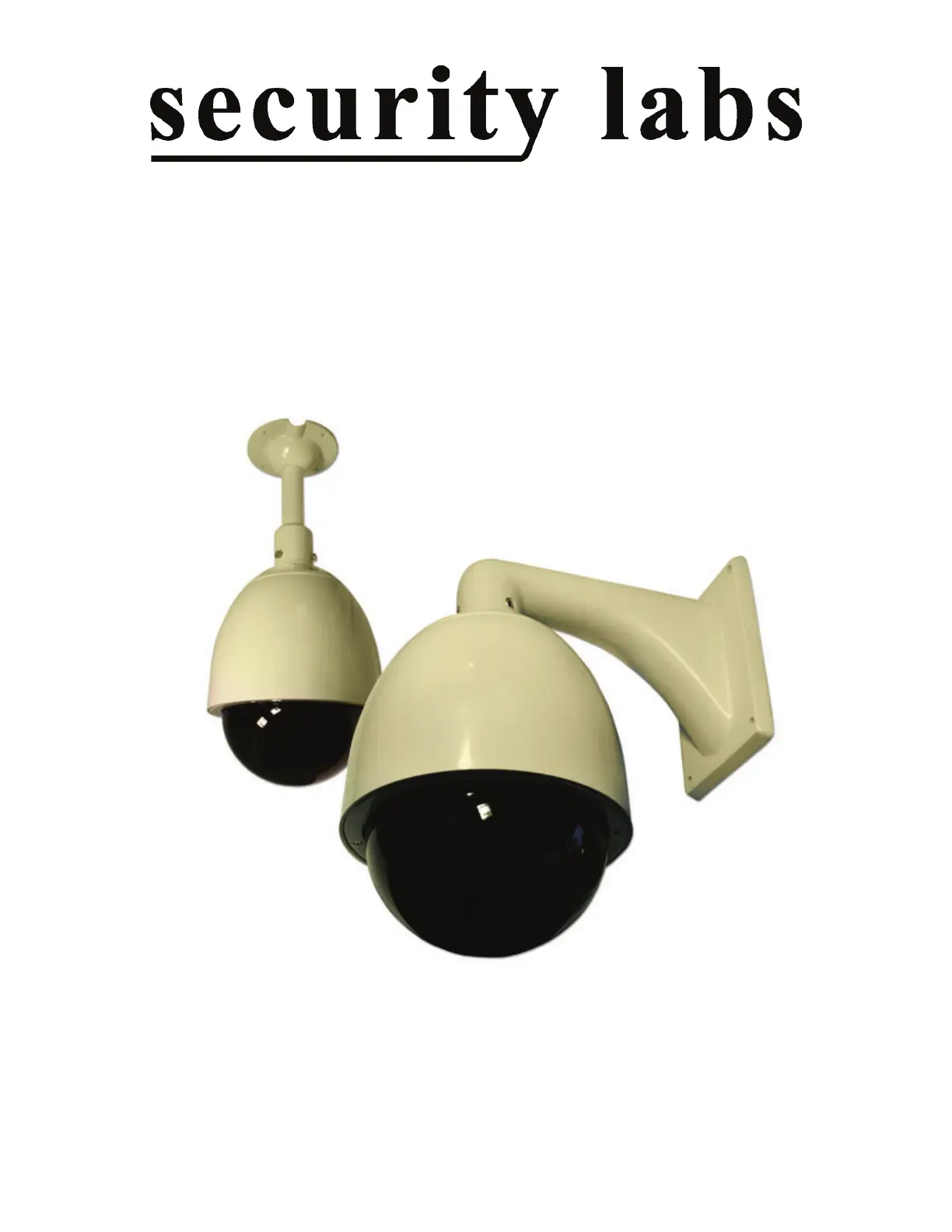

Weatherproof Pan/Tilt 22X Optical Zoom Speed Dome
Owner’s Manual
15540 Herriman Blvd. Noblesville, IN 46060 - -Customer Support 1 800 0284- -774
www.security-labs.com
2
Important Safety Measures
1) Please read this manual before installing the equipment.
2) Please follow all warning notices on the equipment and in the manual.
3) accessories Please only use which are recommended by your dealer or ones that are listed at the
end of this manual.
4) Please protect cables well, especially near connection points.
5) Prevent corrosive type liquids from coming in contact with the dome.
6) Do not install equipment on unstable surfaces or structures. High winds can cause a poorly installed
dome to become a hazard.
7) Contact customer service @ 1 maintenance issues.-800 774- -0284 for
8) The input voltage of this equipment is 12VDC. Please only use the power supply that comes with the
unit.
CONTENTS
Important Safety Measures………………………………………………… 2
Dome Operation, Use, & Installation
1. Dome Wiring…………………………………………………..……………. 3
2. Installation………………………………………………….………………. 3
3. Switch Settings………………….…………………...………………..…... 4
4. Camera ID Settings……………………………………………...………. .. 4
5 ……….………………………..……. 5 . Communication Protocol Setting
6. Baud Rate Setting………………………………………………..……….. 5
7. Camera Selection..…………………...………………………….……….. 6
8. Basic Function & Operation……………………………………….……. 6
9 Presets………………………………..……………………..………...……. 6 .
10. Tour Groups………………..…..………………………………..….……. 8
11. Horizontal Scanning…………..…………………………….……..……. 9
12. Pan/Tilt/Zoom Lens Matching……………………….………..………. 10
13. Auto Flip…………………………………………………………………....10
14. Screen Characters………………………………………………………..10
15. Display Zoom…………………………………………………………...…10
16. Camera Specifications…………………………………………………...11
17. SW1 Camera Address Code Switch Settings………………………..12
18. Optional Accessories…………………………………………………….13
3
1 . Wiring
Wiring for Dome System
100 feet of CAT5E twisted pair cable, and a 12VDC power supply is included with your dome camera.
Additional CAT5E cable can be purchased from a variety of stores or distributors and easily spliced to
your cable. Up to 1,000 feet of cable can be successfully used on an installation. More distance can
be achieved with the use of an amplifier. Call our customer service line for information on current
models of amplifiers.
The RS-485 communication signal is sent over one twisted pair while the video is sent over another
twisted pair. Video balun transformers are included to connect the video output of the dome to the
CAT5E cable, and to connect the CAT5E cable to your DVR or other control device. Please make sure
to follow polarity markings (+ and ) on the video baluns and the RS 485 connections. - -
Wires coming from dome:
12VDC Power Supply Jack
RS- -485 Communication Cable RS 485 A , + -RS 485B-
Coax video cable with connector for balun transformer.
Remarks: lease P refer to the indications of the label the cables.s on
CAUTION
Please confirm the supply voltage meets the
requirements of the dome camera’s power supply.
