SINGLE-ZONE DUCTLESS
MINI-SPLIT SYSTEM
OWNER’S MANUAL
MODELS: 3PAMSH30B-SZW, 3PAMSH30B-SZO, 3PAMSH36B-SZW, 3PAMSH36B-SZO
2
TABLE OF CONTENTS
IMPORTANT NOTE: Please check the applicable models, technical data, F-GAS data, and manufacturer
information on the indoor and outdoor product stickers before installation.
SAFETY INSTRUCTIONS ................................................................................................................... 3
PREPARATION BEFORE USE ............................................................................................................ 4
PRESET .............................................................................................................................................................................................4
SAFEGUARDING THE ENVIRONMENT .................................................................................................................................. 4
INSTALLATION INSTRUCTIONS ...................................................................................................... 6
INSTALLATION DIAGRAM .......................................................................................................................................................... 6
BEST INSTALLATION PRACTICES .......................................................................................................................................... 6
BOX PART BREAKDOWN ........................................................................................................................................................... 7
SUGGESTED TOOLS ...................................................................................................................................................................7
SITE INSTRUCTIONS ................................................................................................................................................................... 8
INDOOR UNIT INSTALLATION .................................................................................................................................................. 9
OUTDOOR UNIT INSTALLATION ...........................................................................................................................................14
POWER AND WIRING ................................................................................................................................................................15
WIRING DIAGRAM.......................................................................................................................................................................16
EVACUATION INSTRUCTIONS ...............................................................................................................................................17
START-UP ......................................................................................................................................................................................17
CARE AND MAINTENANCE .............................................................................................................18
FRONT PANEL MAINTENANCE .............................................................................................................................................18
AIR FILTER MAINTENANCE .....................................................................................................................................................18
PROTECTION ......................................................................................................................................19
NOISE POLLUTION ....................................................................................................................................................................19
FEATURES OF PROTECTOR ...................................................................................................................................................19
FEATURES OF HEATING MODE .............................................................................................................................................19
ENERGY SAVING TIPS ......................................................................................................................20
TROUBLESHOOTING........................................................................................................................21
IDENTIFICATION OF PARTS ...........................................................................................................22
INDOOR UNIT ...............................................................................................................................................................................22
OUTDOOR UNIT ..........................................................................................................................................................................22
DISPLAY INTRODUCTION ...............................................................................................................23
DISPLAY SCREEN .......................................................................................................................................................................23
EMERGENCY BUTTON ..............................................................................................................................................................23

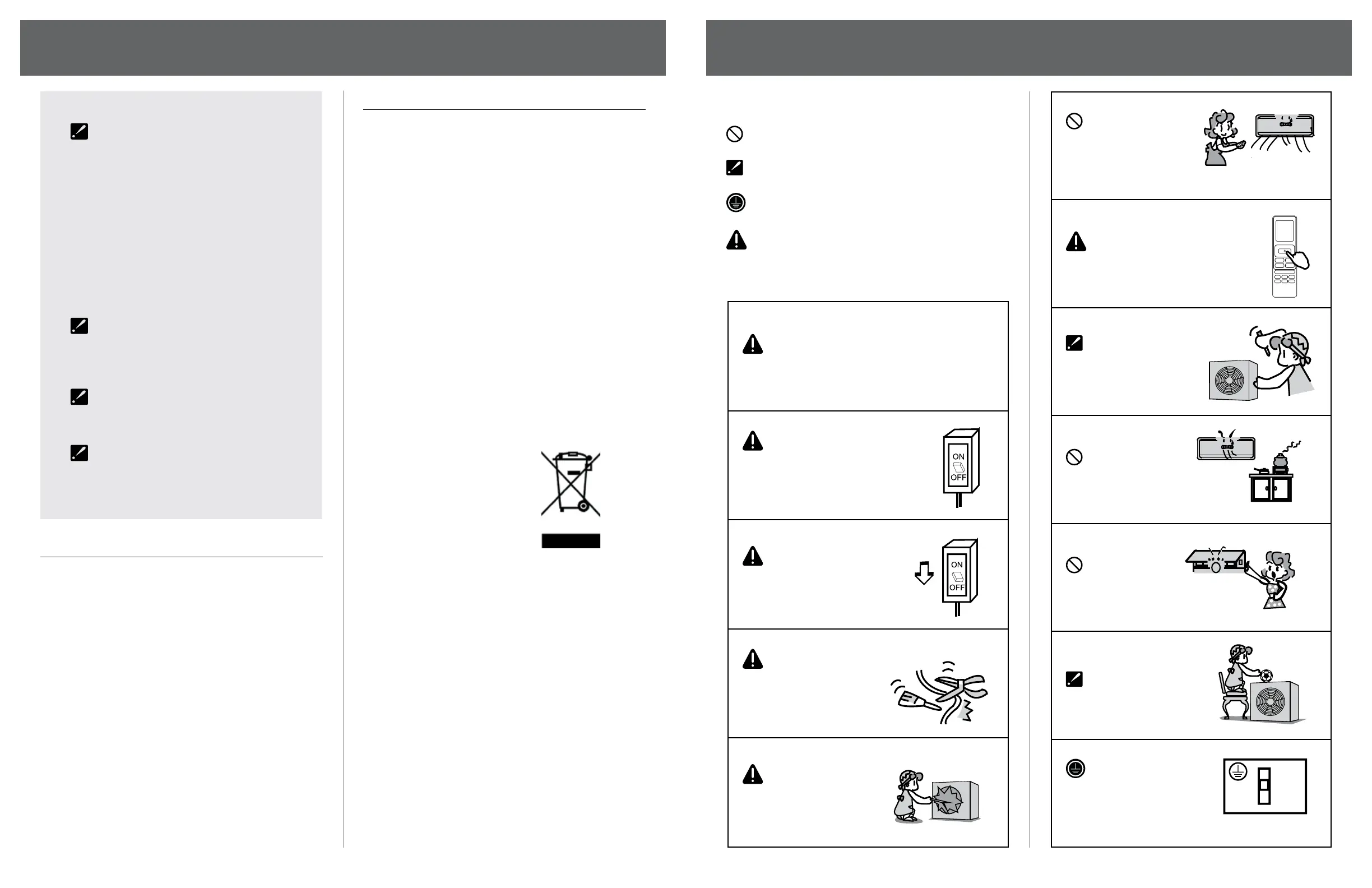

SAFETY INSTRUCTIONS
4
NOTE:
• When charging refrigerant into the
system, make sure to charge in liquid
state,if the refrigerant of the appliance is
R410A. Otherwise, chemical composition
of refrigerant (R410A) inside the system
may change and thus aect performance
of the air conditioner.
• According to the character of refrigerant
(R410A,the value of GWP is 2088), the
pressure of the tube is very high, so be
sure to be careful when you install and
repair the appliance.
• If the supply cord is damaged, it
must be replaced by the manufacturer, its
service agent or similarly qualied persons
in order to avoid a hazard.
• The air conditioner must be installed
by trained, qualied installers and service
mechanics.
• The temperature of refrigerant
circuit will be high, please keep the
interconnection cable away from the
copper tube.
PREPARATION BEFORE USE
PRESET
Before using the air conditioner, be sure to check
and preset the following.
• Remote Control Presetting
Each time after the remote control is replaced
with new batteries or is energized, remote
control auto presetting heat pump. If the air
conditioner you purchased is a Cooling Only
one, heat pump remote control can also be
used.
• Back-light Function of Remote Control
Hold down any button on remote control to
activate the back light. It automatically shuts
o 10 seconds later.
• Auto Restart Presetting
The system has an Auto-Restart function and
will resume to previous settings once power
has been restored.
SAFEGUARDING THE ENVIRONMENT
This appliance is made of recyclable or
re-usable material. Scrapping must be carried
out in compliance with local waste disposal
regulations. Before scrapping it, make sure to
cut o the mains cord so that the appliance
cannot be re-used.
For more detailed information on handling
and recycling this product, contact your
local authorities who deal with the separate
collection of rubbish or the shop where you
bought the appliance.
SCRAPPING OF APPLIANCE
This marking indicates that this product should
not be disposed with other household wastes
throughout the North America. To prevent
possible harm to the environment or human
health from uncontrolled
waste disposal, recycle it
responsibly to promote
the sustainable reuse of
material resources. To
return your used device,
please use the return and
collection systems or
contact the retailer where
the product was purchased. They can take this
product for environmental safe recycling.
SAFETY PRECAUTIONS
