INFLATE-IT

COMPRESSOR KIT

1100 W

INSTRUCTION MANUAL

SPECIFICATIONS

Power supply: 230 – 240V ~ 50Hz

Motor: 1100W (S3:15%)

No Load Speed: 3,550/min

Max. Pressure: 8bar (116psi)

Max. Flow Rate: 140 l/min

IP Rating: IP20

Product weight: 5.7 kg

ACK-0015

WHAT’S IN THE BOX

IN ORDER TO MAKE A CLAIM UNDER THIS

WARRANTY YOU MUST RETURN THE PRODUCT

TO YOUR NEAREST BUNNINGS WAREHOUSE WITH

YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY

PLEASE TELEPHONE OUR CUSTOMER SERVICE

HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from

the original date of purchase. If a product is defective it will

be replaced in accordance with the terms of this warranty.

Warranty excludes consumable parts, for example: valve adaptors

and accessories.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other

thanthatspeciedonthetool.

• If the tool shows signs of damage or defects caused

by or resulting from abuse, accidents or alterations.

• Failure to perform maintenance as set out within the

instruction manual.

• If the tool is disassembled or tampered with in any way.

• Professional, industrial or high frequency use.

DESCRIPTION OF SYMBOLS

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of

with household waste but in an environmentally friendly way. Please

recycle where facilities exist. Check with your local council authority

for recycling advice.

Recycling packaging reduces the need for landll and raw materials.

Reuse of recycled material decreases pollution in the environment.

Please recycle packaging where facilities exist. Check with your

local council authority for recycling advice.

WARRANTY

TO ENSURE A SPEEDY RESPONSE PLEASE

HAVE THE MODEL NUMBER AND DATE OF

PURCHASE AVAILABLE. A CUSTOMER SERVICE

REPRESENTATIVE WILL TAKE YOUR CALL

AND ANSWER ANY QUESTIONS YOU MAY

HAVE RELATING TO THE WARRANTY POLICY

OR PROCEDURE.

OZITO Australia/NewZealand(HeadOfce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.

Thebenetsprovidedunderthiswarrantyareinaddition

to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded

at law. You are entitled to a replacement or refund for a major

failure and for compensation for any other reasonably foreseeable

loss or damage. You are also entitled to have the goods repaired

or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

Generally you will be responsible for all costs associated with

a claim under this warranty, however, where you have suffered

any additional direct loss as a result of a defective product you

may be able to claim such expenses by contacting our customer

service helpline above.

Gun with Gauge & Hose 402052101001

Air Nozzle 402052001040

Spare parts can be ordered from the Special Orders Desk

at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit

www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: enquires@ozito.com.au

SPARE PARTS

ozito.com.au

This appliance is not intended for use by young or inrm persons unless supervised by are

sponsible person to ensure that they can use the appliance safely. Young children should be

supervision to ensure that they do not play with play with the appliance.

WARNING. Before connecting a tool to a power source (mains switch power point

receptacle, outlet, etc.) be sure that the voltage supply is the same as that specied on the

nameplate of the tool. A power source with a voltage greater than that specied for the tool

can result in serious injury to the user, as well as damage to the tool. If in doubt, do not plug in the tool.

Using a power source with a voltage less than the nameplate rating is harmful to the motor.

Always remove the plug from the mains socket before making any adjustments or maintenance.

• To reduce the risk of re or explosion, never spray ammable liquids in a conned area. If sparks

come into contact with petrol vapours or solvents, they may ignite the vapours and cause a re or

explosion.

• Always operate the compressor in a well ventilated area. Do not smoke while spraying. Do not

spray where sparks or ames are present. Keep the compressor as far away from the spray area as

possible.

• The solvents trichloroethane and methylene chloride can chemically react with the aluminium

used in some paint spray guns and form an explosion. If these solvents are used, ensure that only

stainless steel spray equipment is connected. The compressor is not affected by the use of these

solvents.

• Never directly inhale the compressed air produced by a compressor and do not use it for charging

breathing tanks.

• Do not use welding equipment in close proximity to the compressor. Do not weld anything to the air

tank of the compressor: this could dangerously weaken the tank and will void the warranty.

• Do not use the compressor outdoors when it is raining or on a wet surface; either situation could

cause an electric shock.

• Always maintain a safety distance of at least 3 meters between the compressor and the work area,

Ensure that the compressor is on a stable surface.

• Always use the handle to move the compressor.

• Never let the compressor come into contact with water or other liquids, as the appliance is live, this

could cause electrocution or short-circuits. Never use the appliance with bare feet, wet hands or wet

feet.

•

Never pull on the power cable to disconnect the plug from the power outlet or to move the compressor.

• The compressed air produced by the compressor cannot not be used for pharmaceutical, food or

medical purposes or to ll the air bottles of scuba divers.

• Do not cover the air inlets on the compressor.

• Compressors and lines reach high temperatures during operation. Avoid contact! Risk of burns!

• Gases or vapours drawn in by the compressor have to be kept free of constituents that may cause

re or explosions inside the compressor.

• When you disconnect the hose coupling, hold the coupling element in your hand to prevent injury

from the whiplashing hose.

• Never point the blow-out gun at other persons and never use it to clean clothes that are still being

worn.

• Be certain to read all the labels on the containers of paint or other materials to be sprayed. Closely

follow all safety instructions. Use a respirator mask if there is a chance that you might otherwise

inhale the spray material. Carefully check the effectiveness of any respirator mask you intend using.

• Always wear safety goggles or glasses when using the air compressor. Never point the nozzle of an

accessory towards any part of your body or towards another person.

• Keep the compressor at least 300mm from the nearest wall to ensure adequate ventilation for

cooling purposes.

• Protect the air hose and cordset from damage. Inspect for weak or worn spots regularly and replace

if necessary.

• Avoid using an extension cord with this product. Use additional air hose instead of an extension

cord to prevent power loss and possible damage to the motor. Use of an extension cord voids the

warranty.

• Always switch off the compressor before switching off the power or removing the power plug.

• After using the compressor, switch off the on/off button, disconnect the power supply and release

any remaining pressure.

• Do not attempt to remove any part of the machine whilst it is under pressure.

• Use safety equipment including safety goggles or shield, ear protection, breathing or respirator

mask and protective clothing.

Wear goggles, wear earmuffs, wear a breathing mask

Never apply the outlet air of this compressor directly on to any part of a person’s body. Do not attempt to

block the air outlet with your nger or any part of your body.

The tool must be used only for its prescribed purpose. Any use other than those mentioned in this

Manual will be considered a case of misuse. The user and not the manufacturer shall be liable for any

damage or injury resulting from such cases of misuse.

The manufacturer shall not be liable for any changes made to the tool nor for any damage resulting from

such changes.

Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The

following hazards may arise in connection with the tool’s construction and design:

• Damage to the lungs if an effective breathing mask is not worn.

• Damage to hearing if effective earmuffs are not worn.

• Damage to the eyes if effective safety goggles or shield are not worn.

WARNING. I

n the event that an air line is cut or broken, the air supply must be turned off at

the compressor. A broken air line which is not supported is extremely dangerous and can whip

around very quickly, both with the capability of striking people, and blowing foreign particles into

the air.

Do not attempt to catch the air line but immediately keep bystanders well clear and turn off the air

supply to the hose, turn off the compressor at the On / Off button, and then remove the hose from the

compressor.

AIR COMPRESSOR SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, re and/or serious injury.

Save all warnings and instructions for future reference. The term “power tool” in the

warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)

power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of ammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and

matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or

grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled

cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol

or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment

such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate

conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting

to power source and/or battery pack, picking up or carrying the tool. Carrying power

tools with your nger on the switch or energising power tools that have the switch on invites

accidents.

d. Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control

of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities,

ensure these are connected and properly used. Use of dust collection can reduce dust-

related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that

cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool

before making any adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar

with the power tool or these instructions to operate the power tool. Power tools are

dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of

parts and any other condition that may affect the power tool’s operation. If damaged,

have the power tool repaired before use. Many accidents are caused by poorly maintained

power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,

taking into account the working conditions and the work to be performed. Use of the

power tool for operations different from those intended could result in a hazardous situation.

5. Service

a. Have your power tool serviced by a qualied repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

b. If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualied persons in order to avoid a hazard.

GENERAL POWER TOOL SAFETY WARNINGS-PERSONAL SAFETY

ELECTRICAL SAFETY

1113

6. CLEANING & MAINTENANCE

OPERATION

7. STORAGE

IMPORTANT! BEFORE CLEANING YOUR COMPRESSOR

OR CARRYING OUT ANY MAINTENANCE PROCEDURE,

MAKE SURE THAT THE MOTOR IS OFF AND THE TOOL

DISCONNECTED FROM THE POWER SUPPLY TO PREVENT

ACCIDENTAL STARTING.

IMPORTANT! WAIT UNTIL THE COMPRESSOR HAS

COMPLETELY COOLED DOWN. RISK OF BURNS!

IMPORTANT!

ALWAYS DEPRESSURIZE THE EQUIPMENT

BEFORE CARRYING OUT ANY CLEANING AND

MAINTENANCE WORK.

Cleaning

• Keep the safety devices free of dirt and dust as far as possible.

Wipe the equipment with a clean cloth or blow it with compressed

air at low pressure.

• We recommend that you clean the appliance immediately

after you use it.

• Clean the appliance regularly with a damp cloth and some soft soap.

Do not use cleaning agents or solvents; these may be aggressive to

the plastic parts in the appliance. Ensure that no water can get into

the interior of the appliance.

• You must disconnect the hose and any spraying tools from the

compressor before cleaning. Do not clean the compressor with

water, solvents or the like.

IMPORTANT! STORE THE COMPRESSOR ONLY IN

A DRY LOCATION WHICH IS NOT ACCESSIBLE TO

UNAUTHORISED PERSONS. ALWAYS STORE UPRIGHT,

NEVER TILTED!

Air Compressor

Air Gun

Ination Adaptors x 3

Air Nozzle

5. TROubLE ShOOTING

Problem Cause Solution

The compressor

does not start

No supply voltage Check the supply

voltage, the power

plug and the socket-

outlet.

Insufcient supply

voltage

Make sure that the

extension cable is

not too long.

Try another product

in power point

Outside temperature is

too low

Never operate

with an outside

temperature of

below 5°c.

Motor is overheated Allow the motor

to cool down. If

necessary, remedy

the cause of the

overheating.

The compressor

starts but there is no

pressure

The seals are

damaged.

Check the seals

and have any

damaged seals

replaced by a

service centre

The compressor

starts, but the tools

do not .

Loose hose

connections

Check the

compressed air

hose and tools

and replace if

necessary.

Leak in a quick-lock

coupling

Check the quick-

lock coupling

and replace if

necessary.

MAINTENANCE

WARNING! When using mains-powered tools, basic safety precautions, including the

following, should always be followed to reduce risk of re, electric shock, personal injury

and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before

operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

The electric motor has been designed for 230V and 240V only. Always check that the power supply

corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

This tool is double insulated in accordance with AS/NZS 60335:2002;

therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid

a hazard.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The

insulation system is for added protection against injury resulting from a possible electrical insulation failure

within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the

extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not

suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric

shock.

The power outlet for the compressor is recommended to be protected by a 30amp residual current device

VVolts Hz Hertz

~Alternating current WWatts

min¯

Revolutions or

reciprocation per minute

no No load speed

Warning

Wear hearing protection

Read instruction manual

Beware of electrical voltage

Regulator compliance mark

Beware of hot parts.

Sound power level

Pressure ratingbar

lLitres Double insulated

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to

the online manual.

7. Air Gun

8. Air Hose

9. Valve Connector

10. Pressure Gauge

11. Air Gun Trigger

12. Integrated Release Valve

13. Blower Nozzle

14. In ation Adaptors

Using the Equipment

as a Blower Pistol

1. To use the air gun as a

blower pistol you must  rst

unscrew and remove the

rubber hose.

2. The blower nozzle can then be

screwed into the in ation gun.

3. By varying the pressure on the

trigger, you can control the amount

of compressed air released through

the air nozzle.

WARNING!: OPERATOR IS ADVISED TO WEAR EYE

PROTECTION WHEN USING THE AIR GUN. TAKE

CARE NOT TO BLOW DIRT OR OTHER LOOSE

PARTICLES TOWARDS YOURSELF OR OTHER PERSONS

4. The blower nozzle adapter is useful

for blowing dust out of hollow

spaces or hard to reach areas,

such as vents in electrical items or

between the keys of a keyboard.

It is also useful for cleaning soiled

equipment.

5. To in ate the tyre, hold down

the trigger of the air gun.

6. After a short time, release the trigger and

check the tyre pressure by referring to the

pressure gauge.

7. If the tyre pressure is too high,

it can be reduced with the

integrated release valve.

Connecting to the Compressed Air Hose

1. Insert the nipple of the air tool into the

quick-lock coupling of the air hose.

2. The quick-lock sleeve will spring forward

automatically, connecting the accessory.

Disconnecting

1. To disconnect the air tool, pull back the

sleeve on the quick-lock coupling and

remove the tool.

In ating Tyres

1. Attach the air gun to the

compressed air hose.

2. When in ating tyres with normal “Schrader”

valves, no adaptors need to be  tted to the

rubber hose.

3. Connect the rubber hose of the air gun

to the tyre by pressing the end of the

hose onto the tyre valve while holding

down the hose tab.

4. Release the valve connector. The hose

will now be connected to the tyre valve.

Switching On and Off

Note: It is recommended to use in conjunction with this appliance a

Residual Current Device (RCD) of rating not exceeding 30mA.

1. Attach the desired tool to the quick

release coupling of the air hose.

2. Connect the compressors’ power

cord to the mains power supply.

3. To switch ON the equipment, set the

On/Off switch to position “I” (On).

4. To switch OFF the equipment, move

the On/Off switch to position “0” (Off).

Disconnect the power cord from the

mains.

5. Run the attached air tool until no

compressed air remains in the hose.

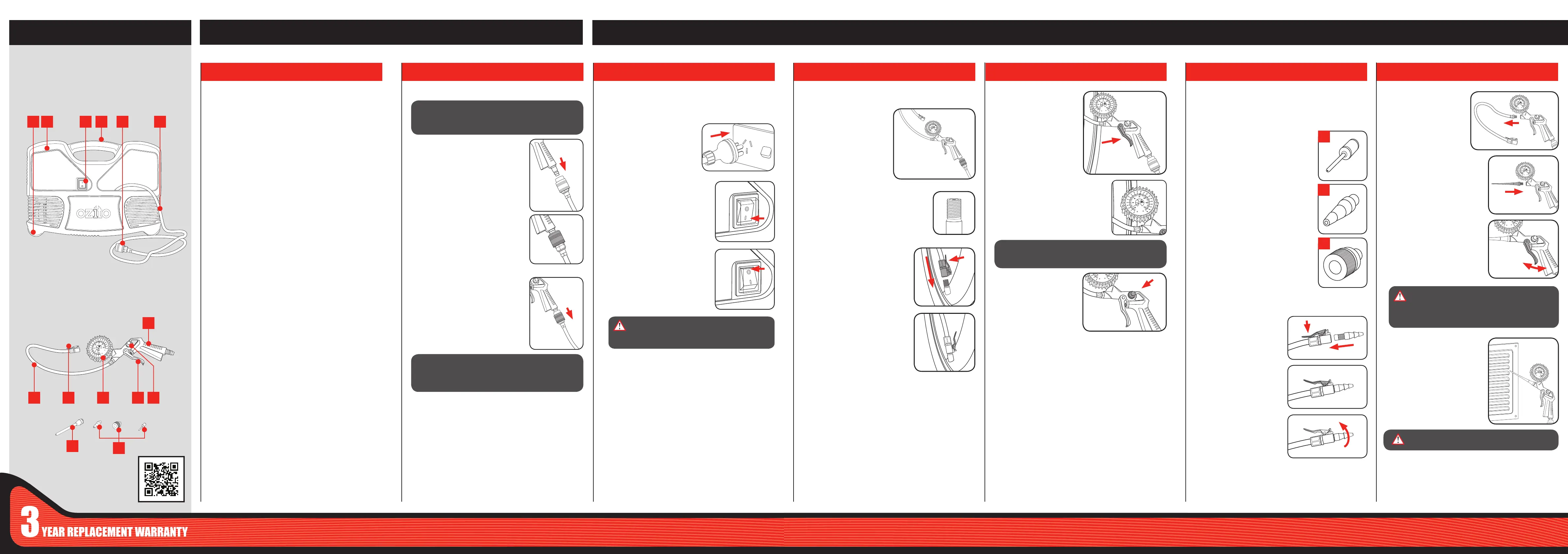

1. Supporting Foot

2. Housing

3. ON/OFF Switch

4. Transport Handle

5. Quick-release Nitto Coupling

6. Compressed Air Hose

AIR COMPRESSOR

ACCESSORIES

KNOW YOUR PRODUCT

ACK-0015

1. ASSEMbLY AND STARTING 4. bLOWER PISTOL3. INFLATING2. OPERATION

Pre Setup Checks

• Examine the machine for signs of transit damage. If damaged, do not

use, return to place of purchase

• The compressor should be set up near to the user.

• Avoid long air lines and long supply lines (extensions).

• Make sure the intake air is dry and dust-free.

• Do not set up the compressor in damp or wet rooms.

• The compressor is designed to be used in dry rooms. It is prohibited

to use the compressor in areas where work is conducted with sprayed

water. Before you use the machine, make sure that the mains voltage

complies with the speci cations on the rating plate.

SETUP & PREPARATION OPERATION

21 3 5 64

WARNING!: DO NOT DIRECT THE JET OF

COMPRESSED AIR TOWARDS PEOPLE OR ANIMALS.

IMPORTANT!: WHEN RELEASING THE QUICK-RELEASE

COUPLING, BE SURE TO HOLD THE COUPLING PIECE

TO PROTECT YOURSELF AGAINST INJURY FROM THE

REBOUNDING HOSE.

IMPORTANT!: BEFORE CONNECTING OR DISCONNECTING

ACCESSORIES, ALWAYS MAKE SURE THAT THE

COMPRESSOR IS OFF.

In ating other items

The compressor kit is supplied with a variety of adapters that can be

 tted to the rubber hose. These adapters are suitable for different valves

that are often used on in atable items:

Adapter A is used for footballs, basketballs,

soccer balls etc.

Adapter B is used for rubber dinghies,

in atable small swimming pools and air beds.

Adapter C is used for bicycle tyres with

“French” or “Presta” valves.

Attaching In ation Adaptors

to the Rubber Hose

1. Push the suitable adaptor into

the rubber hose while pressing

the hose tab.

2. Once it is inserted, release

the hose tab.

3. Turn the adaptor in a clockwise

direction to secure it in place.

IMPORTANT!: AVOID INFLATING THE OBJECTS ABOVE

THE RECOMMENDED INFLATION PRESSURE. THIS MAY

LEAD TO DAMAGE AND/OR INJURIES.

WARNING!: COMPRESSED AIR CAN BE A

DANGEROUS FORM OF ENERGY. GREAT CARE IS

REQUIRED WHEN USING THE COMPRESSOR AND ITS

ACCESSORIES.

9 10

11 12

Termékspecifikációk

Márka:	Ozito
Kategória:	kompresszor
Modell:	ACK-0015

Szüksége van segítségre?

Ha segítségre van szüksége Ozito ACK-0015, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek

Az Ön neve*

Az Ön e-mail címe*

Írja ide kérdését

Útmutatók kompresszor Ozito

Ozito ACP-2115K Útmutató

9 Október 2024

Ozito ACK-0015 Útmutató

29 Augusztus 2024

Ozito ACP-2415 Útmutató

29 Augusztus 2024

Ozito PXHDIS-240U Útmutató

23 Augusztus 2024

Ozito ACK-190U Útmutató

5 Augusztus 2024

Ozito ACP-2420 Útmutató

4 Június 2024

Ozito ACP-24151 Útmutató

4 Június 2024

Ozito ACP-5020K Útmutató

4 Június 2024

Ozito AMC-3000 Útmutató

4 Június 2024

Ozito PXOFCS-636 Útmutató

20 Május 2024

Útmutatók kompresszor

Legújabb útmutatók kompresszor

Einhell KCK 210/8 Útmutató

8 December 2024

Einhell EURO 210/24 Útmutató

8 December 2024

Einhell EURO 4300 V Útmutató

8 December 2024

Einhell BT-AC 190/24 Útmutató

8 December 2024

Einhell BT-AC 140/24 OF Útmutató

7 December 2024

Einhell BT-AC 190/10 Útmutató

7 December 2024

Bavaria BAC 200/200F Útmutató

6 December 2024

Einhell TE-AC 400/100/10 D Útmutató

5 December 2024

Einhell BT-AC 160/6 OF Útmutató

5 December 2024

Einhell YPL 206 Útmutató

5 December 2024
