wAP R

wAP RwAP R

wAP R

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing

accidents.

Ultimate disposal of this product should be handled according to all national laws and regulations.

All installation methods for mounting an access point on any wall surface is subject to the acceptance of local jurisdiction.

The Installation of the equipment must comply with local and national electrical codes.

This product is intended to be mounted outdoors on a pole but can also be installed indoors. Please read the mounting instructions carefully before

beginning installation. Failure to use the correct hardware and configuration or to follow the correct procedures could result in a hazardous situation to

people and damage to the system.

Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.

Read the installation instructions before connecting the system to the power source.

We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your

own risk!

In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.

It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling

requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.

Exposure to Radio Frequency Radiation:

Exposure to Radio Frequency Radiation:Exposure to Radio Frequency Radiation:This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an

uncontrolled environment.This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the

general public.

Quickstart

Use a Phillips head screwdriver to loosen the screw, which secures the bottom lid.

Install your modem (optional).

Choose your powering solution, please see the section for possibilities.

Powering

Plug the included PoE injector into the ISP outlet and attach an Ethernet cable to it. Connect the other end of the Ethernet cable to this MikroTik

router. Plug the provided power supply into the PoE injector.

Wireless AP mode is enabled by default, you can connect from your computer to the SSID that begins with "MikroTik". The configuration interface

is available via a web browser. The address is .https://192.168.88.1

Once connected to the wireless network, open in your web browser to start the configuration.

https://192.168.88.1

User name: a and there is no password by default you will be logged in automatically to the Quick Set screen,

dmin

(or, for some models, check

user and wireless passwords on the sticker).

We recommend clicking the "Check for updates" button on the right side and updating your RouterOS software to the latest version to ensure the

best performance and stability.

To personalize your wireless network, SSID can be changed in the fields "Network Name";

Choose your country on the left side of the screen in the field "Country", to apply country regulation settings.

Set up your wireless network password in the field "WiFi Password" the password must be at least eight symbols.

Set up your router password in the bottom field "Password" to the right and repeat it in the field "Confirm Password", it will be used to login next

time.

Click on the "Apply Configuration" to save changes.

MikroTik mobile app

Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point.

Scan QR code and choose your preferred OS.

Install and open application.

By default, the IP address and user name will be already entered.

Click Connect to establish a connection to your device through a wireless network.

Choose Quick setup and application will guide you through all basic configuration settings in a couple of easy steps.

An advanced menu is available to fully configure all necessary settings.

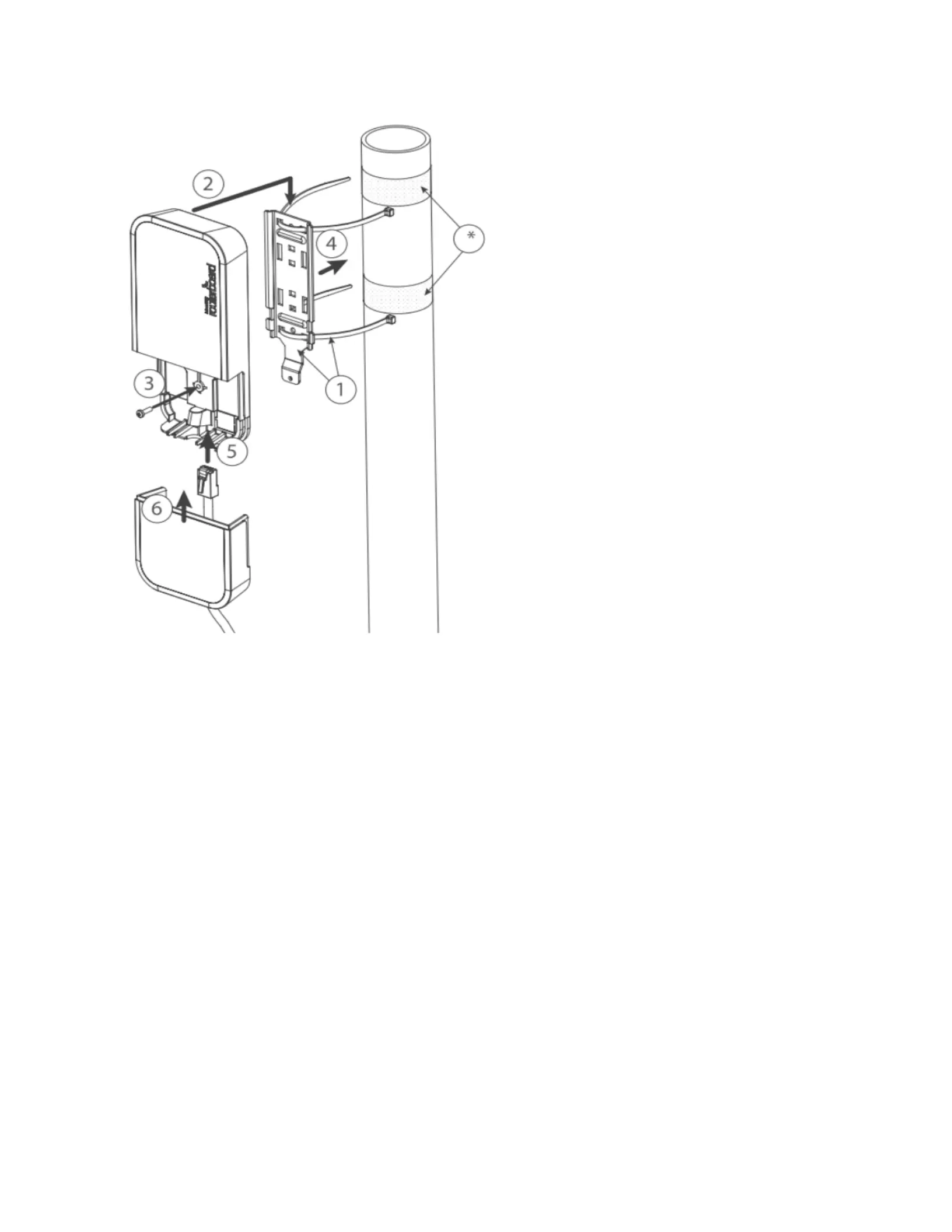

Mounting

The device can be mounted in several ways: wall, ceiling, pole or it can be placed in specially designed Mikrotik holder which comes with the package. The

package includes a drill hole template with instructions, to help you with the Ethernet cable installation and attachment to a ceiling or a wall. The package

also includes a steel bracket to put on the other side of a dropdown ceiling tile and two screws and wall anchors. The Unit can be attached to the pole

using zip ties or steel clamp.

To prevent the bottom lid for opening the different screw can be used. One Torx T20 security screw is included for optional use. Use it with the included L-

shaped wrench to fix it into the bottom lid. Detailed instructions of replacing screw are in the package.

The IP rating scale for this device is IP54.
