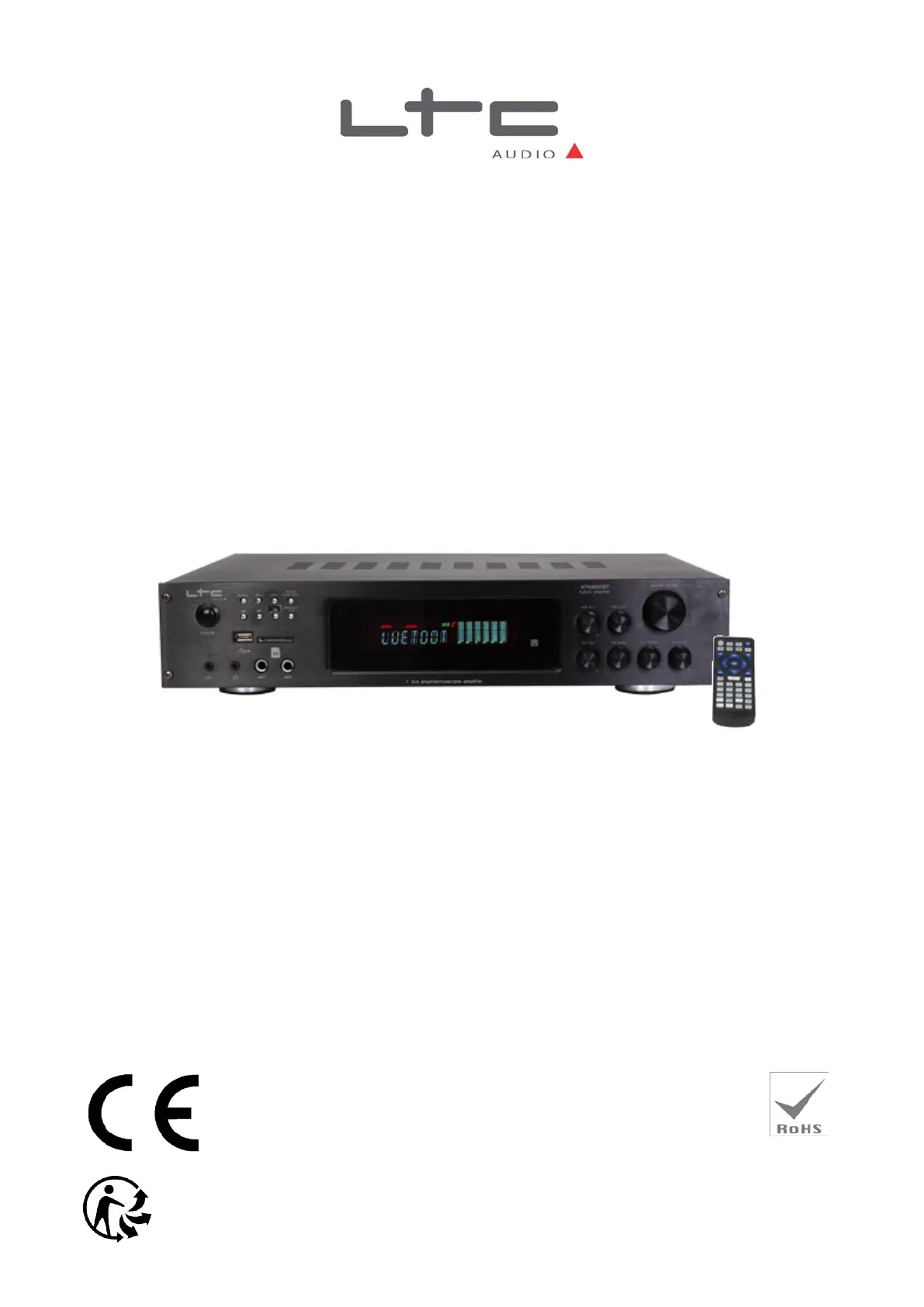

©Copyright LOTRONIC 2016 ATM8000BT 1
HIFI STEREO AMPLIFIER WITH BLUET OOTH FUNCTION
AMPLIFICATEUR HIFI STEREO AVEC FONCTION BLUETOOTH
HIFI STEREOVERSTÄRKER MIT BLUETOOTH FUNCTION
HIFI STEREOVERSTERKER MET BLUETOOTH FUNCTIE
AMPLIFICADOR HIFI STEREO COM A FUNÇÃO BLUETOOTH
HIFI STEREO OJAČEVALEC Z BLUETOOTH FUNKCIJO
AMPLIFICATOR DE PUTERE PROFESIONAL CU FUNCTIE BLUETOOTH
ATM8000BT
GB - USER
MANUAL
F - MANUEL D’UTILISATION
D - BEDIENUNGSANLEITUNG
NL – HANDLEIDING
E – MANUAL DE USO
P - MANUAL DE INSTRUÇÕES
SLO - NAVODILA ZA UPORABO
RO - MANUAL DE UTILIZARE
Imported from China by
LOTRONIC SA
Avenue Zénobe Gramme, 9
1480 SAINTES
Belgium
©Copyright LOTRONIC 2016 ATM8000BT 2
SAFETY RECOMMENDATIONS
• Before using the device, please check it for any possible damages. In case of damage do not operate it.
• Unplug the UNIT if you do not use it for a certain time.
• Do not expose the unit to mechanical stress and humidity.
• Ensure sufficient ventilation around the unit. Do not cover the device and protect it from direct solar radiation.
• Clean the device with a dry and soft cloth only.
• Caution! Should the device itself get damaged, please let the repair to the manufacturer or to a qualified service
agent.
• The unit must be connected to an earthed mains outlet only.
• Keep out of the reach of children
• DISCONNECT DEVICE
Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.
Features
• FM Tuner
• USB/SD/MP3 input
• Bluetooth function
• VFD to display track title, track no & elapsed time
• 2 microphone inputs with Echo & volum , bass & treble controle control
• O ptical input
• Headphone output
• Subwoofer output surround output &
Front panel
POWER: Press this button to power ON or OFF the unit
Play/Pause & RECORD: Press this button to play the signal from USB/SD, Bluetooth. Press again to pause. When the
input selected is TUNER/MP3/DVD/CD/VCD and there is an USB flash drive or SD card inserted into their respective slot,
pressing and holding this button will activate the recording function. Press this button and hold for several seconds and
the word “REC” will display on the screen. The unit will create a new file in the connected USB flash drive or SD card and
get ready to make a recording. At this point there is no actual recording yet. Press the button again and the unit will
start recording onto the USB flash drive or SD Card and the elapsed time and “REC” will display on the screen. Press the
button a third time to pause the recording and the word “REC” and the elapsed time displayed on the screen will start
flashing. Press again to continue the recording. Press and hold this button for several seconds to save the file and end
GB
©Copyright LOTRONIC 2016 ATM8000BT 3
the recording and exit. If both USB flash drive and SD card are connected, the unit will begin recording onto the USB
flash drive. If the USB flash drive is full, remove it and then press the record button again to start another recording. The
unit will also be able to record the signal from microphone onto the USB flash drive or SD Card. When the recording
function is activated and there is a microphone connected and have it turned on, the unit will mix the signal from Tuner,
MP3 or DVD with the microphone’s into one track. If two microphone are connected and turned on, both signals from
them will be recorded and mixed into one track with the signal from Tuner, MP3 or DVD.
THE RECORDING FILE FORMAT IS .WAV.
THERE IS NO RECORDING FUNCTION WHEN INPUT SELECTED IS USB/SD/BLUETOOTH.
Previous: Press this button to go back to the beginning of the current track or move to the previous track.
Next: Press this button to move to the next track.
Repeat/Random: Press this button to select the repeat mode between REPEAT ONE, REPEAT ALL, RANDOM. The default
setting is repeat all.
Input: Press this button to cycle through the various inputs.
USB: Connect your USB flash drive here
SD: Connect your SD card here
MP3 input: Connect your MP3 here
EQ MODE: Press this button to cycle through -the pre set equalizer modes.
Audio Function: Press this button to switch the control mode between bass, treble & master volume
MIC1 & MIC2: Connect your microphones here
MIC VOL: Use this knob to adjust the microphone volume
MIC ECHO: Use this knob to adjust the echo of microphone.
MIC Bass: Use this knob to adjust the bass of microphone
MIC Treble: Use this knob to adjust the treble of microphone
Headphone Output: Connect your headphone here
Sub Output: Use this knob to adjust the sub output volume
Pre Output: Use this knob to adjust the pre output volume
Master Volume: Use this knob to control the master volume
OPERATION
Select a central location for the amplifier.
Connect the speaker wires (red & black) to the + and – terminals on the rear panel of the amplifier.
Connect the audio signal to the relevant sockets with the correct polarity.
Plug the mains lead in and switch the amplifier on once you have checked all connections.
Switch the audio sources on and adjust the master volume to the required level.
Karaoke: Plug a mic into MIC1 or MIC2 socket on the front panel. Before you use the mic, make sure that it is switched
off and the MIC volume button is set to the minimum. Connect the microphone, switch it on and adjust slowly the
volume and the echo.
If you don’t use the unit any longer, switch the amplifier off and disconnect it from the mains.
Signal Sources and their Connections:
• Connect an audio source relevant input to the terminals or a data storage unit to the USB-interface or insert a
SD-memory card in the suitable slot or activate the Bluetooth function on your smartphone.
• Select the active signal source by pressing the INPUT button until the desired input source is displayed.
• Use the MP3 CONTROL-function for controlling the files on a connected data storage unit.
• If you wish to use the karaoke function of this device insert one or two microphones into MIC1 and MIC2. Their ,
signals are going to the signal output too.
