Thank you for purchasing a Logik dishwasher.
Please refer to this guide for the installation process.
1. Remove all packaging before positioning the machine. (Fig 1)
2. Please ensure the dishwasher is installed by a qualied technician. Refer to the tools required in Fig 2.
3. Ensure there is clearance each side of the unit to allow slight sideways movement for servicing when
required. Good levelling is essential for correct closure and sealing of the door. When the unit is correctly
levelled, the door should not catch the inner liner on either side of the cabinet. The adjustable feet may
be loosened or tightened in order to obtain the optimum leveling of the unit. (Fig 3)
4. If required, the worktop of the dishwasher can be removed. The height without the worktop is 820 mm.
Figure 3 outlines the minimum dimensions required to accommodate the dishwasher within tted
kitchen furniture units.
Do not connect the unit to the mains before installation. Ensure you are not installing the unit right in
front of the mains. This is to avoid potential damage to the back of the unit. (Fig 4)
5. The condensation strip must be tted to the underside of the worktop above your dishwasher to protect
it against any moisture. Its purpose is to protect your worktop’s underside from steam rising from the
dishwasher. (Fig 5 and 6)
• Ensure the surface is clean prior to sticking the condensation strip to the underside of the worktop.
• Remove the backing paper from the condensation strip. (Fig 5)
• Stick the condensation strip to the underside of the worktop. (Fig 6)
NOTE: FAILURE TO ATTACH THE CONDENSATION STRIP COULD RESULT IN DAMAGE TO THE UNDERSIDE OF
YOUR WORKTOP!
6. The worktop can be removed by removing the xing screws located at the rear of the dishwasher (Fig 7).
After removing the screws, lift and push the worktop forward to release the lugs from the front section of
the dishwasher. The polystyrene block and the lugs should be saved for future use.
7. Position the dishwasher next to a water tap and a drain. Ensure the water inlet and drain hoses are
not kinked or squashed. The unit must not stand on the mains cable. (Fig 8)
8. Make sure your plumbing is suitable for use with the dishwasher. If in doubt contact a qualied plumber.
This unit MUST BE connected to COLD WATER MAINS using the new water inlet hose. OLD HOSE SETS
MUST NOT BE RE-USED. The water pressure from the water mains needs to be at a minimum of 0.04 MPa
and a maximum of 1.00MPa.
Dishwasher Installation Guide

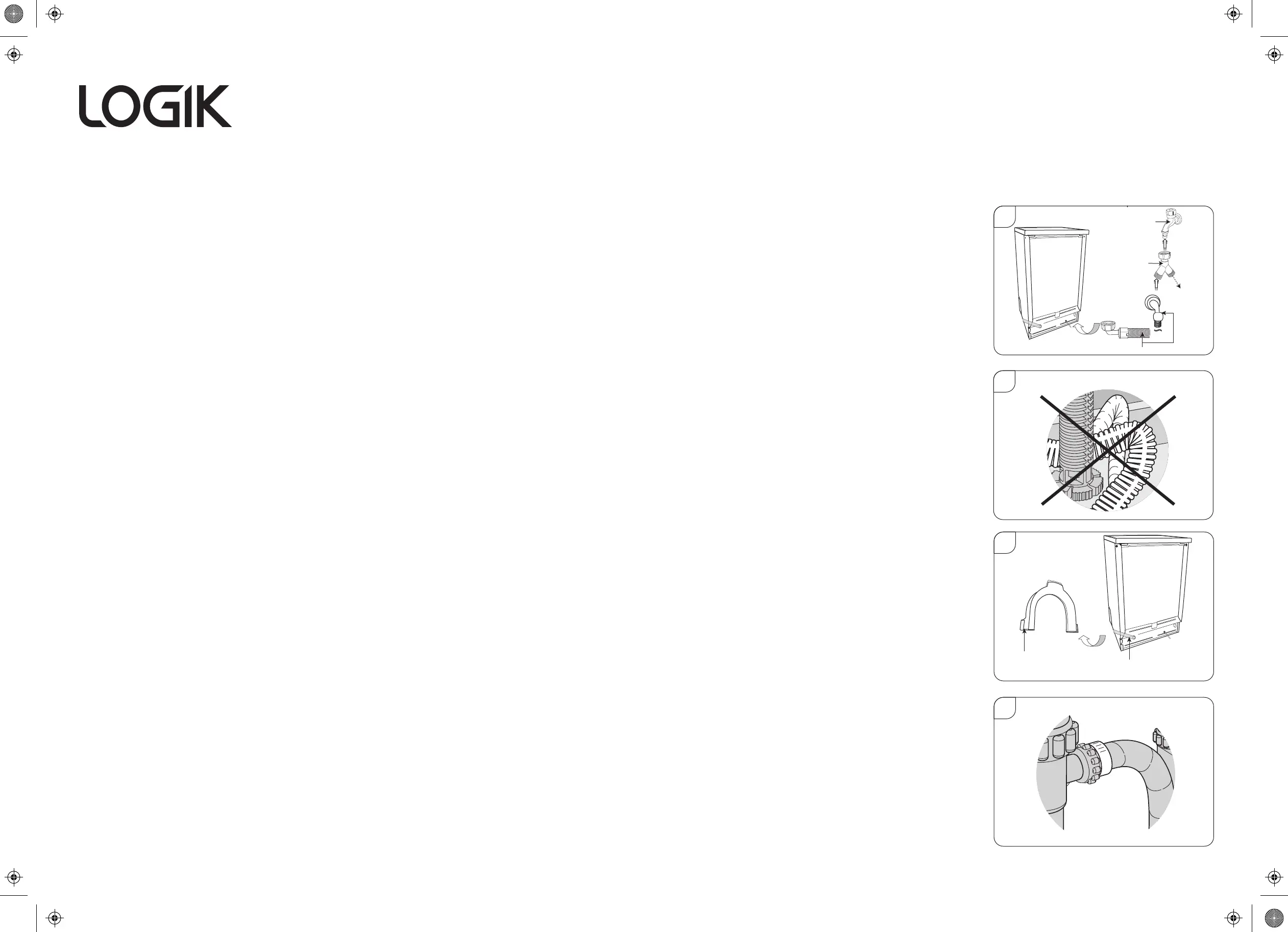

8. (continued)
• Connect one end of the safety water supply hose to your
dishwasher, and then connect the other end of the hose
to your water mains (Fig A). Please ensure the black
rubber seal is in place.
• After connecting the hose, turn on your water mains and
check for leaks.
• Connect the dishwasher to the mains socket.
NOTE: YOU MAY USE A Y-ADAPTOR (NOT INCLUDED)
FOR ADDITIONAL WATER FEED FOR ANOTHER APPLIANCE,
FOR INSTANCE A WASHING MACHINE. THIS IS ONLY
APPLICABLE FOR COLD WATER MAINS. A Y-ADAPTOR IS
AVAILABLE FROM MOST DIY STORES. (Fig A)
• Do not bend your drain hose. (Fig B)
• You may use the U-shaped drain hose holder to secure
your drain hose and to avoid bending it. (Fig C)
• Secure the water drain hose to the waste pipe to avoid it
coming o during the washing process. (Fig 9 and D)
NOTE: THE WASTE PIPE MUST ONLY BE CONNECTED TO
THE FOUL DRAINS AND NOT THE SURFACE WATER
DRAINAGE SYSTEM.
THE WATER DRAIN HOSE SHOULD BE PLACED BETWEEN 40
CM AND 100 CM FROM THE FLOOR LEVEL AND MUST NOT
BE EXTENDED, OTHERWISE THE UNIT MAY NOT BE ABLE TO
EXPEL THE WASTE WATER PROPERLY.
Awater mains
safety water supply hose
C
water drain hose
U-shaped drain hose
holder
B
D
Y-Adaptor
(not included)
Connect to
another
appliance
if required.
Logik LDW45S10_IG_GB_p1_100225.pdf 1 2/25/10 1:42 PM
123
4 5 6
7 8
450
600
unit in mm
850
30
850
450
620
min.100
80
Remove
Remove
Remove
level level
level
level
Unscrew
9
Stick the Condensation Strip
under the worktop, where you
want to install the dishwasher.
Leave some space
ST4 screws
Logik LDW45S10_IG_GB_p2_100322.pdf 1 3/22/10 4:05 PM
