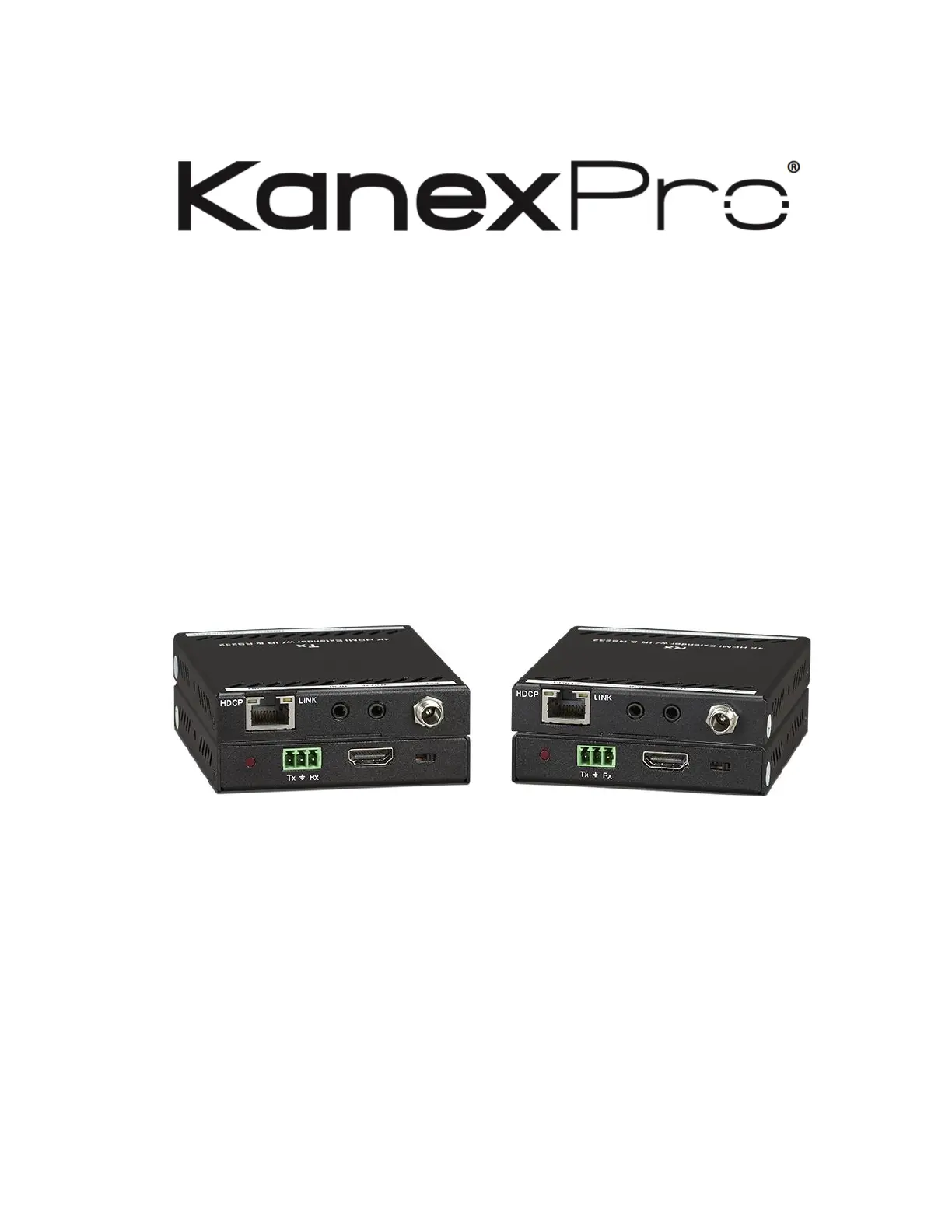

EXT-HDBT70C
4K/30 HDMI® Extender over HDBaseT™
All Rights Reserved
MPN: EXT-HDBT70C
EXT-HDBT70C
1
Statement
Read this user manual carefully before using the product. Pictures shown in this manual is for reference
only. Different models and specifications are subject to real product.
This manual is only for operation instruction only. The functions described in this version are updated till
August 16, 2017. In the constant effort to improve our product, we reserve the right to make functions or
parameters changes without notice or obligation. Please refer to the dealers for the latest details.
Safety Precaution
To insure the best from the product, please read all instructions carefully before using the device. Save
this manual for further reference.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
Do not dismantle the housing or modify the module to avoid electrical shock or burn.
Using supplies or parts not meeting the products’ specifications may cause damage, deterioration or
malfunction.
Do not expose the unit to rain, moisture or install this product near water.
Install the device in a place with fine ventilation.
Do not twist or pull by force ends of the CAT5e/CAT6a cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
Unplug the power cord when left unused for a long period of time.
Refer all servicing to qualified service personnel.
Customer Service
We provide limited warranty for the product within three years.
For more details, please contact your distributor.
Introduction
The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a
transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-
resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable
at a distance of up to 70/40m.
EXT-HDBT70C
2
Features
Extend pristine 4K/30 with bi-directional PoC, IR & RS-232 up to 40m
Extend full HD 1080p/60 with bi-directional PoC, IR & RS-232 up to 70m
Control bi-directional 5V IR and RS232 pass-through for long-distance control
wered over Cable only one power supply to power both devices Po –
Supports CEC, HDMI 1.4 & HDCP2.2
Package List
1 x Transmitter (TX)
1 x Receiver (RX)
2 x TX Mounting Ears with 2 Screws
2 RX Mounting Ears with 2 Screws x
4 Plastic Cushions x TX
4 R Plastic Cushions x X
1 x Power Adaptor (12VDC, 1A)
1 x User Manual
Panel Description
No.
Name
Description
①
Power LED
Illuminates red when power is applied.
②
RS232
Euroblock/Phoenix connector for connecting an RS232 data device.
③
HDMI IN (TX)
HDMI port for connecting the video source device (e.g. Blu-ray DVD)
HDMI OUT (RX)
HDMI port for connecting the video display.
④
CTRL/UPDATE
Switch for determining the behavior of the RS232 connection.
When in the position, it serves as an RS232 serial extender. CTRL
When in the UPDATE position, it allows you to update the Valens IC
program by connecting to a PC and running the batch file.
⑤
HDBT OUT (TX)
RJ45 jack for connecting the Cat5e/6 cable to the Receiver.
HDBT IN (RX)
RJ45 jack for connecting the Cat5e/6 cable to the Transmitter.
⑥
IR IN
3.5mm jack for connecting an IR Receiver (not included).
⑦
IR OUT
3.5mm jack for connecting an IR Emitter (not included).
⑧
DC 12V
DC barrel connector for connecting the included AC power adaptor.
Tx Rx
LINKHDCP
1 2 34 5 6 78
Front Rear
