Oldal 1/8

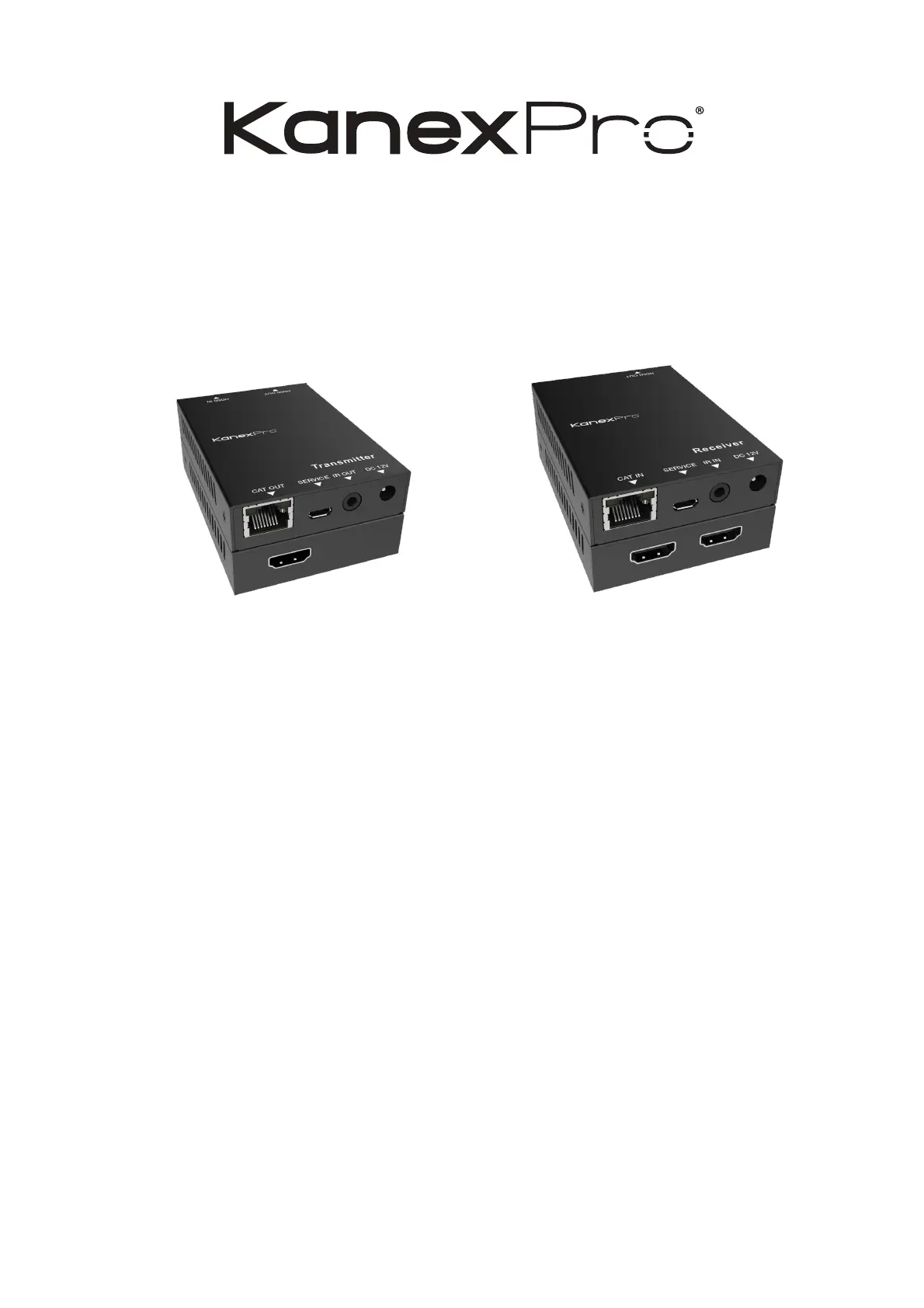

VER. 1.0
4K HDR HDMI 2.0 18G Extender 50M over Cat6
All Right Reserved
MPN: EXT-USB250M
2
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this
equipment and before connecting the power supply. Please keep the following in
mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire, electrical
shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or
install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is
damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for sufficient space
for air to circulate around the unit.
Table of Contents
1. Introduction ............................................................................................................................................. 3
2. Features .................................................................................................................................................... 3
3. Package Contents ............................................................................................................................... 3
4. Specifications ........................................................................................................................................ 4
5. Operation Controls and Functions .............................................................................................. 5
5.1 Transmitter Panel ....................................................................................................................... 5
5.2 Receiver Panel ............................................................................................................................ 5
5.3 IR Pin Definition ......................................................................................................................... 6
6. Application Example .......................................................................................................................... 7
7. Customer Service ................................................................................................................................. 8
3
1. Introduction
The KanexPro EXT-50M18G extender is a set of transmitter and receiver which
sends full UHD 4K/60 HDMI signals over CAT6 cable up to 164ft. (50m). The
transmitter module features a local HDMI output for preview monitor or local
display support enabling you to see what you are extending over CATx cable.
Beneficial for large lecture halls, house of worship centers and conference rooms.
For control, the extender set can send/ receive IR signals from each other over
CAT5e/6 cable with IR pass-through.
The extender includes two units: transmitter unit and receiver unit. The
transmitter unit is responsible for capturing HDMI input signal and carries the
signal
via one cost effective Cat6 cable and emitting IR control signals. The receiver
unit is responsible for receiving the HDMI signal and transmitting IR control
signal.
The extender offers the most convenient solution for HDMI extension over a
single Cat5e/6 with long distance capability, and is the perfect solution for
any application.
2. Features
• HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Supports 18Gbps bandwidth
• Supports input and output video resolution up to 4k2k@60Hz 4:4:4,
extends
• distance up to 164ft / 50 meters
• Supports one HDMI loop output
• Supports one-way IR pass-through
• Supports HDR function
• Supports PoC (Power over Cable) function, it means that either transmitter
• or receiver is powered supply by 12V/1A power adapter, the other doesn’t
• need power supply.)
• Supports automatic copy EDID function
• Compact design for easy and flexible installation.
3. Package Contents
1. 1 HDMI 18Gbps Extender (Transmitter) ×
2. 1 HDMI 18Gbps Extender (Receiver) ×
3. 1 IR Blaster cable (1.5 meters) ×
4. 1 20~60KHz IR Receiver cable (1.5 meters) ×
5. 1 12V/1A Locking Power adapter ×
6. 4 Mounting Ears ×
7. 1 User Manual ×
