JBLCELEBRITY150

I. BEFORE YOU START

Congratulations on your purchase of the JBL Celebrity 150 in-car

head unit! For correct installation and connection, as well as the

correct use of functions during operation, we recommend that you

read this manual ﬁrst. Save it, it will be useful to you in the future.

The JBL Celebrity 150 head unit has a standard installation size of

1DIN and contains:

• AM/FM tuner,

• Player for audio ﬁles from USB ﬂash drives,

• Player for audio ﬁles from SD memory cards,

• Bluetooth module that allows the head unit to work in hands

free mode and play music from the connected device through

the car audio system (BT Audio mode)

• AUX input for connecting any audio sources with headphone

output (players, smartphones, tablets, etc.)

II. INSTALLATION AND CONNECTION

OF THE HEAD UNIT

Choosing a place to install

• The head unit is intended for use inside the car.

• To mount it, choose a regular place in the panel, provided by

the car manufacturer.

• If the dimension of footprint is not in 1-DIN format, select a

suitable adapter frame to accommodate a standard 1-DIN

footprint.

• If the design of the panel does not provide for a regular place

for the installation of the head unit, choose the mounting

location where the unit will not interfere with the normal driving

function of the driver.

• Avoid installing the unit where it would be subject to high

temperature, such as from direct sunlight, or from hot air,

form the heater, or where it would be subject to dust, dirt, or

excessive vibration.

Choosing an installation method

• Use only the parts included with the unit to ensure proper

installation. To use of unauthorized parts can cause

malfunctions.

• Consult with your nearest dealer if installation requires the

drilling of holes or other modiﬁcations of the vehicle.

• Install the unit where it does not get in the driver's way and

cannot injure the passenger if there is a sudden stop. Like an

emergency stop.

• To avoid short circuits, disconnect the battery from the vehicle

electrical system (if possible). After making connections,

connect the positive terminal of the battery ﬁrst, then the

negative one.

• Before ﬁnal assembly of the unit, make sure all connections are

correct and the system is working properly.

Installation option with the mounting frame

1. Insert the mounting frame into the car dashboard.

2. Select the appropriate tab according to the thickness of the

dashboard material and bend them inwards to secure the

frame in the panel.

3. Make all the necessary connections and insert the unit into

the mounting frame.

4. Attach the decorative frame to the front of the unit.

5. If there is need to remove the head unit, use the remove tools

included in the kit.

Installation option without the mounting frame,

but using the factory head unit bracket in the

car dashboard

1. Select a position where the screw holes of the bracket and

the screw holes of the main unit become aligned (are ﬁtted).

2. Attach the head unit to the brackets on both sides of the

unit in at least two places. To do this, use the ﬁxing screws

supplied with the head unit. Do not use screws with longer

lengths or other thread sizes, as this may damage the device.

Connecting to the head unit

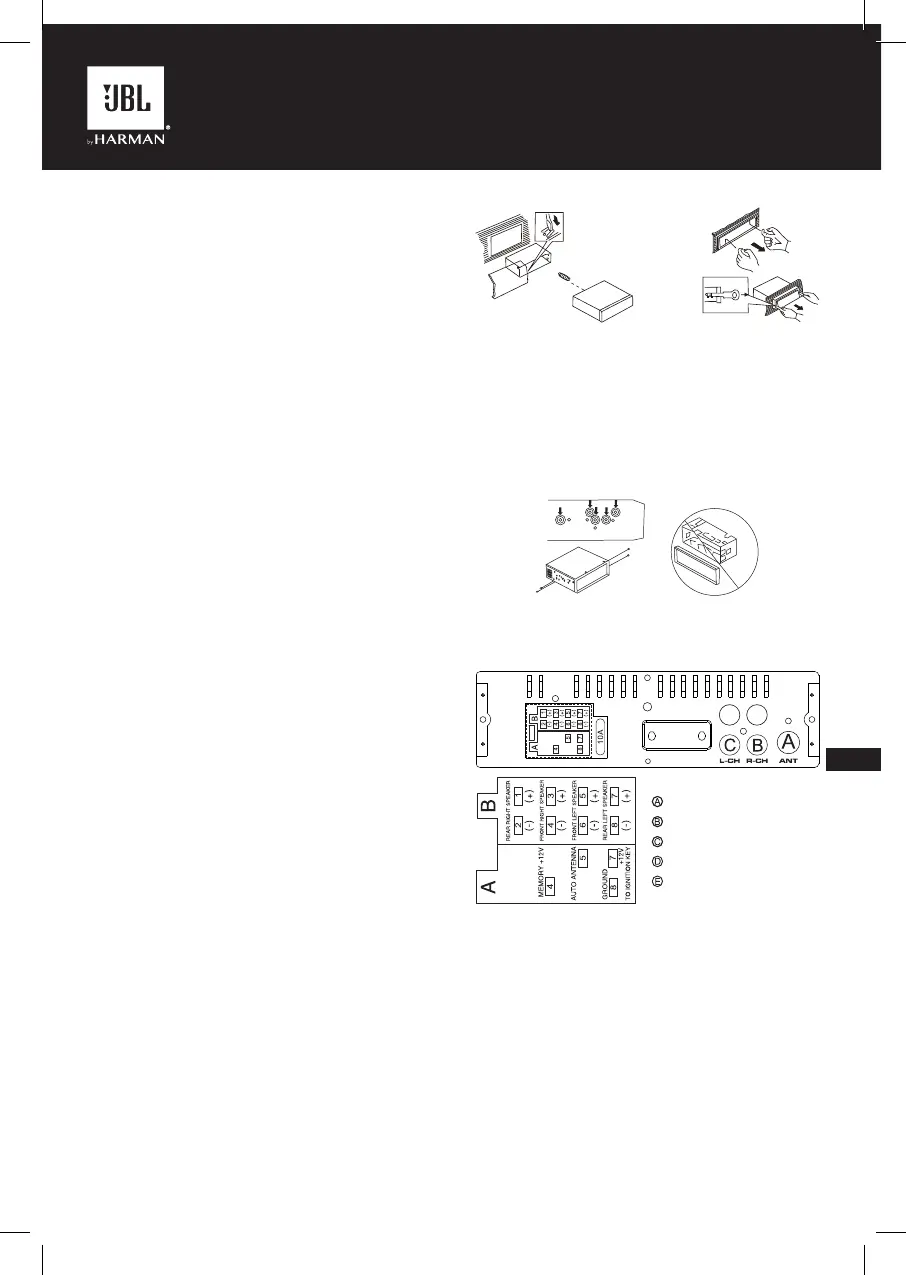

Location of the connectors on the back of the head unit:

FR ON T

RE AR

Note1:

The red wire of the unit can only be connected to the ignition

circuit (ACC). Connecting it together with the yellow wire to a

permanent B+can lead to a discharge of the car's battery during

prolonged parking.

Note2:

In some vehicles, the locaon of the red and yellow wires in the ISO

connector may be reversed. If the settings are reset every time

when the car ignition is turned off, swap the red and yellow wires

in the connector.

• Be careful when connecting the head unit. Incorrect

connection can lead to its breakdown and void the right to

warranty service.

• When connecting the speakers, do not short-circuit the wires to

the vehicle ground, to the +12 V power wire, or to each other.

-------ANTENNA

-------REAR Rch LINE OUT

-------REAR Lch LINE OUT

-------FRONT Rch LINE OUT

-------FRONT Lch LINE OUT
