Instruction Manual Bedienungsanleitung • Manuel d’utilisation • Manuale di Istruzioni
®
UM T-28 Trojan S
RE SCU E
®
®
EN
2
®
T-28 Trojan S
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to operate the product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this product in a safe and responsible manner could
result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product
in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions
for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings
in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or
serious injury.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion
of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the
support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential
harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage
AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property
damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage,
collateral damage, and serious injury OR create a high probability of superfi cial injury.
Safety Precautions and Warnings
• Always keep a safe distance in all directions
around your model to avoid collisions or injury.
This model is controlled by a radio signal subject
to interference from many sources outside your
control. Interference can cause momentary loss
of control.
• Always operate your model in open spaces away
from full-size vehicles, traf c and people.
• Always carefully follow the directions and
warnings for this and any optional support equip-
ment (chargers, rechargeable battery packs,
etc.).
• Always keep all chemicals, small parts and
anything electrical out of the reach of children.
• Always avoid water exposure to all equipment
not specifi cally designed and protected for this
purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your
mouth as it could cause serious injury or
even death.
• Never operate your model with low transmitter
batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep the transmitter powered on while
aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set
before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
Age Recommendation: Not for children under 14
years. This is not a toy.
EN
3
T-28 Trojan S

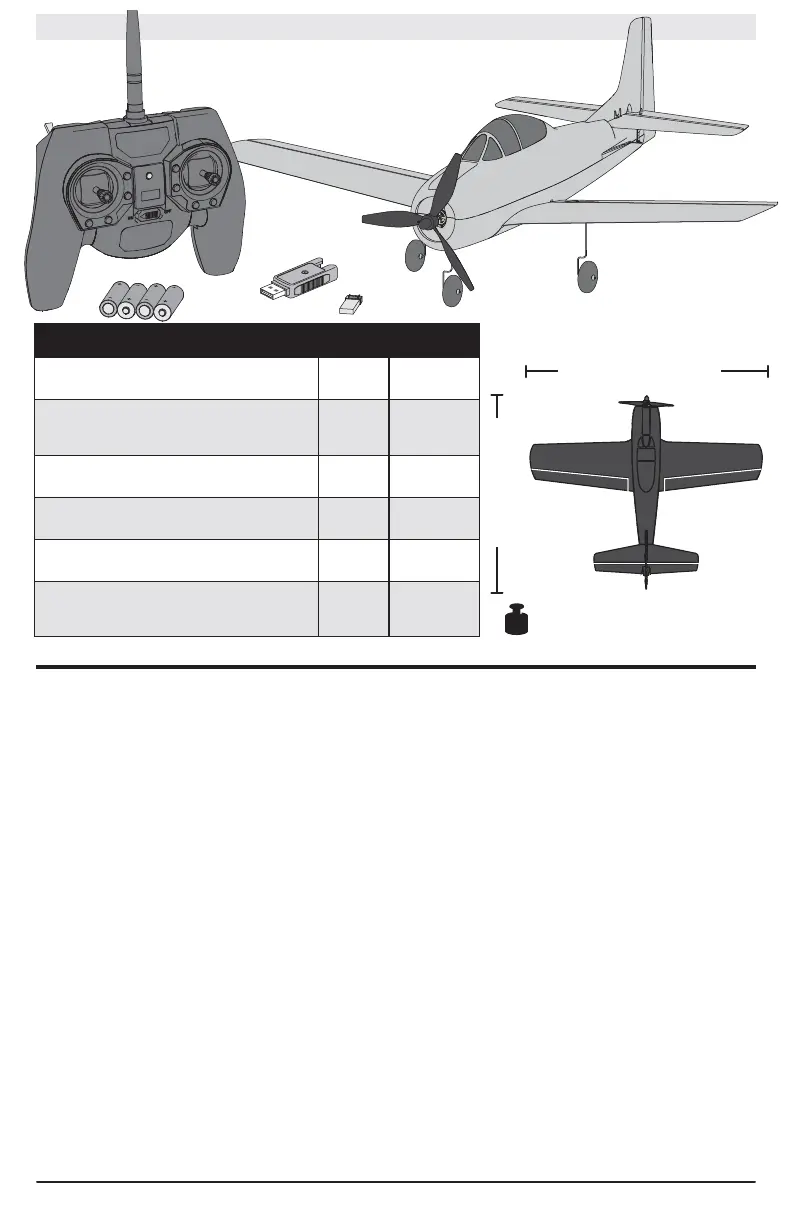

Weight:
1.65 oz (47.0g) with battery
16.58 in (426mm)
13.5 in (343mm)
RTF Transmitter ........................................................................................................................................................... 4
Transmitter Batteries Installation .................................................................................................................................. 4
Transmitter Setup ........................................................................................................................................................ 4
Transmitter Setup ........................................................................................................................................................ 5
SAFE® Technology Flight Modes ................................................................................................................................... 6
Installing Landing Gear ................................................................................................................................................ 7
Settings for Control Horns ............................................................................................................................................ 7
Charging Warnings....................................................................................................................................................... 8
Charging the Flight Battery .......................................................................................................................................... 8
Installing the Flight Battery .......................................................................................................................................... 9
Binding ........................................................................................................................................................................ 9
Control Direction Test ................................................................................................................................................. 10
SAFE® Control Direction Test ...................................................................................................................................... 11
Flying ........................................................................................................................................................................ 11
Prefl ight Checklist ...................................................................................................................................................... 12
Takeoff ...................................................................................................................................................................... 12
Low Voltage Cutoff (LVC) ............................................................................................................................................ 13
Landing ..................................................................................................................................................................... 13
After Flying ................................................................................................................................................................ 13
Adjusting Trim in Flight .............................................................................................................................................. 14
Motor Service ............................................................................................................................................................ 15
Flying Tips ................................................................................................................................................................. 16
Optional First Person View (FPV) ................................................................................................................................. 16
Troubleshooting Guide ............................................................................................................................................... 17
Re-Binding the RTF Transmitter ................................................................................................................................. 17
Limited Warranty ....................................................................................................................................................... 19
Warranty and Service Contact Information ................................................................................................................. 20
FCC Information ......................................................................................................................................................... 20
IC Information ............................................................................................................................................................ 20
Compliance Information for the European Union ......................................................................................................... 20
Replacement Parts ..................................................................................................................................................... 81
Optional Parts ........................................................................................................................................................... 82
Table Of Contents
Components RTF BNF Basic
Motor:
8.5mm Brushed Motor in Gearbox (EFLRMLP6) Installed Installed
Receiver:
SAFE Receiver and ESC with Integrated Linear
Servos (SPMA3185)
Installed Installed
Aileron Servo:
Spektrum 2.3g Linear Long Offset (SPMSA2030LO)
Installed Installed
Battery:
3.7V 1S 150mAh 25C Li-Po (EFLB1501S25)
Included Sold
Separately
Battery Charger:
USB Li-Po Charger, 300mA (EFLC10081S)
Included Sold
Separately
Transmitter:
6-Channel (or more) 2.4GHz with Spektrum
DSM2 ®
/DSMX® technology. (EFLRMLP6)
Included Sold
Separately
