I N S T A L L A T I O N I N S T R U C T I O N S
RSM Elite Series Projector Mounts
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RPA Elite Series Projector Mount
RSM A-D
RSM Elite Installation InstructionsSeries Projector Mounts
2
DISCLAIMER
Milestone AV Technologies, and its affiliated corporations and
subsidiaries (collectively, "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to the RSM does not exceed 25 lbs
(11.34 kg).
• The weight capacity of the RSM may be LIMITED to the
lowest weight capacity of any other components
located between the RSM and the supporting structure!
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
IMPORTANT ! : The RSM mounts are designed to be:
• mounted to a 1-1/2" NPT or NPSM following ANSI/
ASME B1.20.1 (Schedule 40, 0.154" minimum
thickness aluminum- ASTM B221) threaded extension
column.
• mounted to double 2" x 4" wood stud cross bracing
(1-1/2" on center) between two 2" x 4" ceiling joists;
with a maximum drywall covering of 5/8".
• mounted to a concrete ceiling with a minimum
thickness of 8" and a maximum drywall covering of
5/8"; or
• suspended from four 1/4" diameter (minimum) Grade 2
or better threaded rods (not included) which are
secured to unistrut, angle or channel assembly
overhead structural members (trusses or I-beams) by
Grade 2 or better 1/4" channel nuts (not included).
NOTE: RSM Series may be used with Listed Chief models
WM110S, WM120S, WM130S, WM210S, WM220S,
WM230S, WM240S, WM210SI, WM220SI, WM230SI,
and WM240SI (not included).
--SAVE THESE INSTRUCTIONS--
Installation Instructions RSM Elite Series Projector Mounts
3

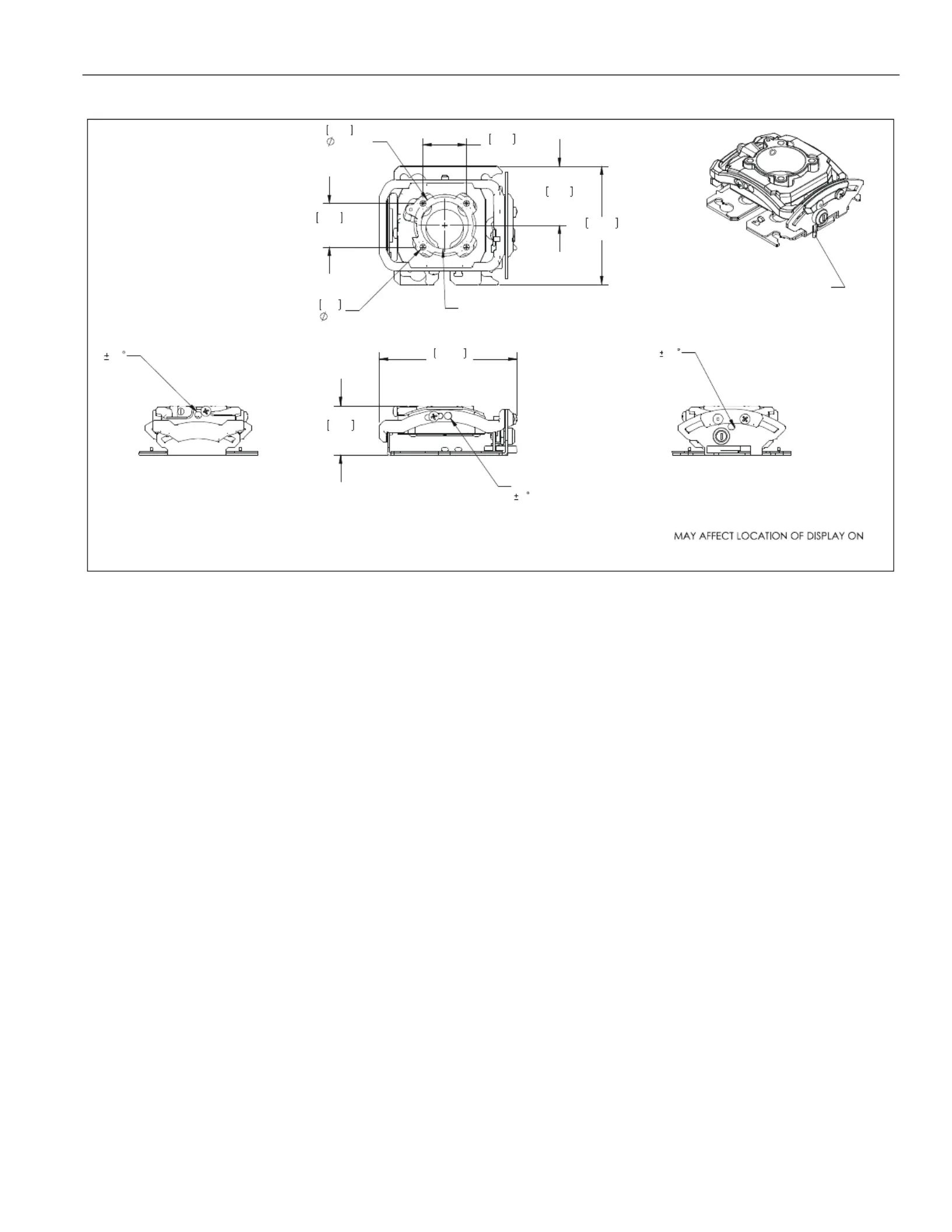

DIMENSIONS
5.07
128.7
1.83
46.4
ROLL ADJUSTMENT POINT
4
1.61
40.9
1.61
40.9
2.18
55.4
4.37
110.9
.22
5.6
2.28
BOLT CIRCLE
57.8
THREADS ONTO 1-1/2' NPT
YAW ADJUSTMENT POINT
10
PITCH ADJUSTMENT POINT
INTERFACE LOCKING SWITCH
NOTE: CUSTOM INTERAFCE BRACKET
NOT SHOWN. THE CUSTOM INTERFACE
BRACKET NEEDED FOR YOUR PROJECTOR
WILL ADD DEPTH TO INSTALLATION AND
THE MOUNT.
SEE SSM-XXX DRAWING ALSO.
