BENEFITS
NO CAT 5 NEEDED
Deliver great in-room Wi-Fi and concurrent
wired IP connectivity using an integral
DOCSIS 3.0 cable modem for backhaul over
coaxial cable.
GREAT ALL-IN-ONE
Combines the best of Wi-Fi with 802.11ac
Wave 2 and a switch with two 100Mbps
ports into one wall-mounted unit.
STUNNING WI-FI PERFORMANCE
Extends coverage with patented
BeamFlex+™ adaptive antenna technology
while mitigating interference by utilizing
multi-directional antenna patterns.
AUTOMATE OPTIMAL THROUGHPUT
ChannelFly dynamic channel technology
uses machine learning to automatically nd
the least congested channels. You always
get the highest throughput the band can
support.
SERVE MORE DEVICES
Connect more devices simultaneously with
two MU-MIMO spatial streams and
concurrent dual-band 2.4/5GHz radios
while enhancing non-Wave 2 device
performance.
SUPPORT MORE SERVICES
Multiple SSIDs and switch ports help
support services such as VoIP, IPTV, and
high-speed Internet access and in-room
device connectivity.
MORE THAN WI-FI
Support services beyond Wi-Fi with Ruckus
IoT Suite Cloudpath, security and
onboarding software, Wi-FiSPoT
locationing engine, and networkSCI
analytics.
In hotels and housing structures, residents and guests have
sky-high expectations for their in-room connectivity options.
The technology experience—the quality of available high-
speed wired and wireless Internet, voice, and TV services—is
becoming a central factor in which hotels people choose for
both business and leisure. When weighing options for long-
term housing, poor-quality wired and wireless services can
cause prospective residents to disqualify a property
altogether.
The Ruckus C110 delivers a modern, in-room wall-mount solution that is fast and
easy to install, using existing in-building or o-premises Cable Modem Termination
Systems (CMTS). The C110 combines the industry's highest-performing 802.11ac
Wave 2 wireless access point with a DOCSIS 3.0 cable modem and Ethernet switch.
The C110 is the perfect choice for hotels, student residence halls, and multi-
dwelling unit (MDU) properties that depend on coaxial cable to deliver high-speed
Internet. Equipped with two Ethernet ports, it can connect IPTV set-top, VoIP
telephones, and other wired devices. At the same time, the C110 delivers great
802.11ac wireless performance with advanced features such as guest access and
Hotspot 2.0.
The C110 802.11ac Wave 2 Wi-Fi AP and switch incorporates patented technologies
found only in the Ruckus Wi-Fi portfolio.
•Extended coverage with patented BeamFlex+ utilizing multi-directional
antenna patterns.
•Improve throughput with ChannelFly, which dynamically less congestednds
Wi-Fi channels to use.
The C110 also provides next-generation 802.11ac features like MultiUser MIMO
(MU-MIMO) connectivity. It can simultaneously transmit to multiple client devices,
drastically improving spectral overall throughput for all users—eveneciency,
those with non-Wave 2 clients. Additionally, it features a USB port for hosting
Internet of Things (IoT) devices such as Bluetooth Low Energy (BLE), and support
for smart mesh networking to minimize the need for extra cabling.
Whether you're deploying ten or ten thousand APs, the C110 is easy to manage
through Ruckus' appliance, virtual and cloud management options.
NOTE: The C110 is available only through approved DOCSIS Ruckus Partners, as its
installation requires specialized knowledge of cable modems and CMTS
equipment. For more details, please contact your local Ruckus sales team.
C110
Wall-Mounted 802.11ac Wave 2 Wi-FI AP, Switch and
Cable Modem
DATA SHEET
© 2019 ARRIS Enterprises LLC. All rights reserved.

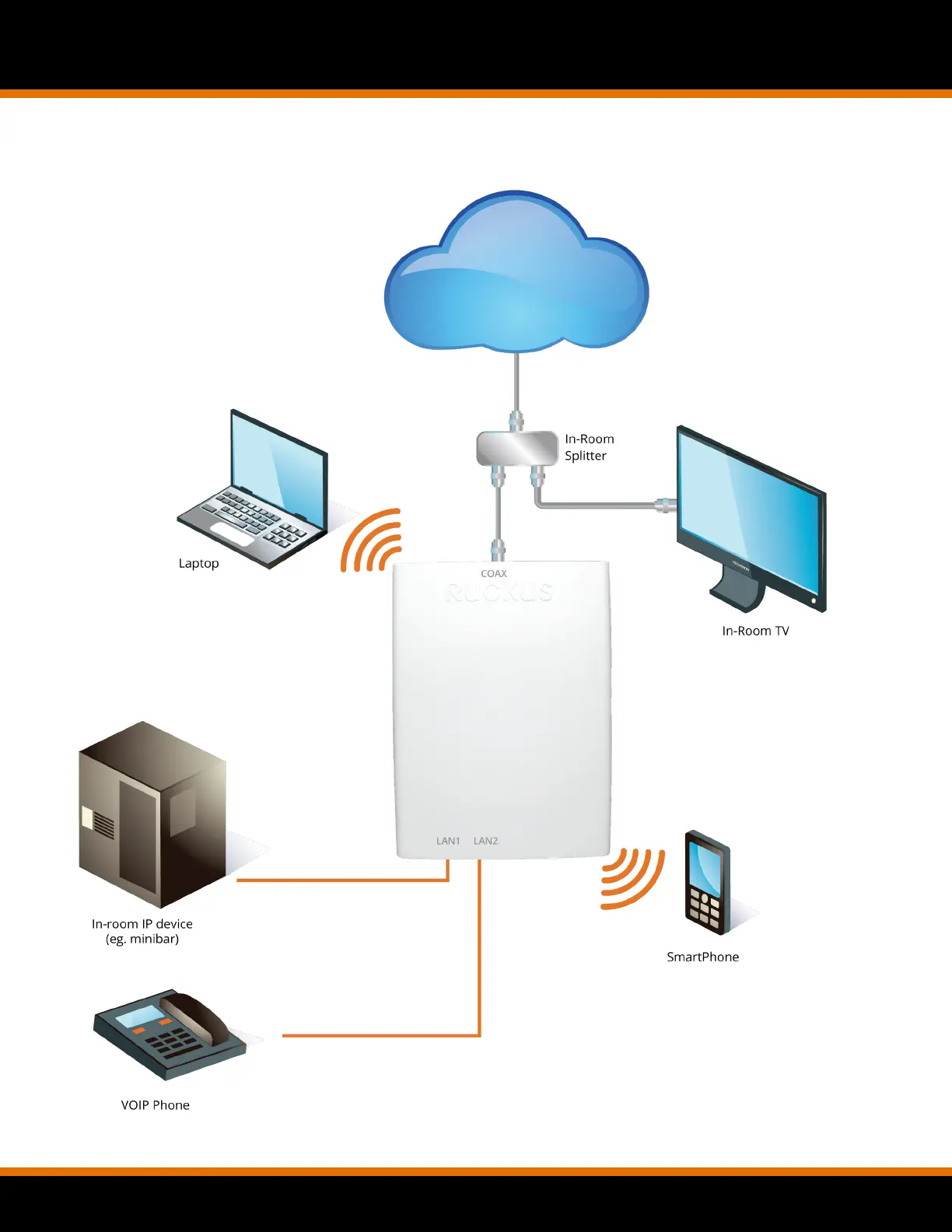

CONVERGED WIRED AND WIRELESS SERVICES
C110
Wall-Mounted 802.11ac Wave 2 Wi-FI AP, Switch and Cable Modem
DATA SHEET
© 2019 ARRIS Enterprises LLC. All rights reserved. 2
ACCESS POINT ANTENNA PATTERN
Ruckus' BeamFlex+ adaptive antennas allow the C110 AP to dynamically choose
among a host of antenna patterns in real-time to establish the best possible
connection with every device. This leads to:
•Better Wi-Fi coverage
•Reduced RF interference
Traditional omni-directional antennas, found in generic access points, oversaturate
the environment by needlessly radiating RF signals in all directions. In contrast, the
Ruckus BeamFlex+ adaptive antenna directs the radio signals per-device on a packet
by-packet basis to optimize Wi-Fi coverage and capacity in real-time to support high
device density environments. BeamFlex+ operates without the need for device
feedback and hence can even devices using legacy standards.benet
Figure 2. C110 2.4GHz Azimuth
Antenna Patterns
Figure 3. C110 5GHz Azimuth
Antenna Patterns
Figure 4. C110 2.4GHz Elevation
Antenna Patterns
Figure 5. C110 5GHz Elevation
Antenna Patterns
Note: The outer trace represents the composite RF footprint of all possible BeamFlex+ antenna patterns, while the inner trace
represents one BeamFlex+ antenna pattern within the composite outer trace.
Figure 1. Example of BeamFlex+ pattern
C110
Wall-Mounted 802.11ac Wave 2 Wi-FI AP, Switch and Cable Modem
DATA SHEET
© 2019 ARRIS Enterprises LLC. All rights reserved. 3
