Használati útmutató B-tech BT7373/GB

B-tech Lapos panel támogatás BT7373/GB

Olvassa el alább 📖 a magyar nyelvű használati útmutatót B-tech BT7373/GB (16 oldal) a Lapos panel támogatás kategóriában. Ezt az útmutatót 5 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra

Letöltés PDF

Oldal 1/16

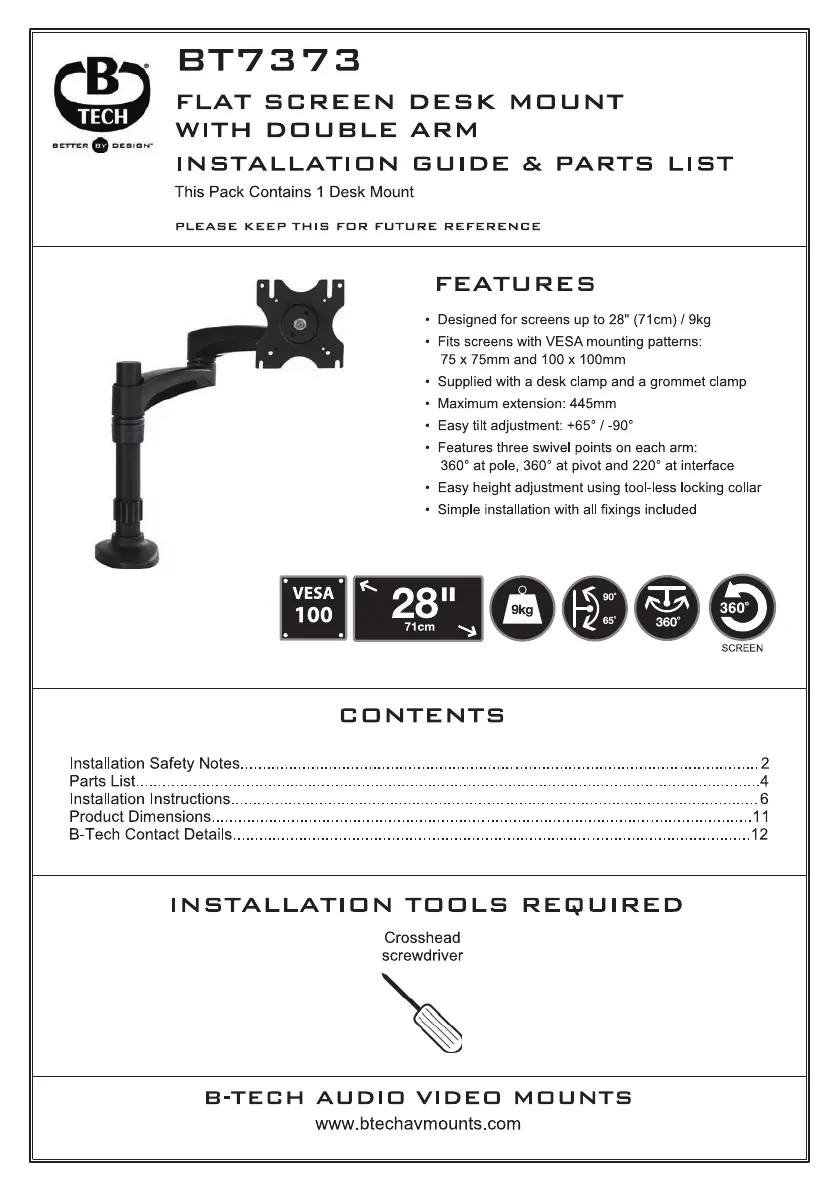

www.btechavmounts.com

This Pack Contains 1 Desk Mount

Crosshead

screwdriver

Installation Safety Notes.....................................................................................................................2

Parts List.............................................................................................................................................4

Installation Instructions.......................................................................................................................6

Product Dimensions..........................................................................................................................15

B-Tech Contact Details.....................................................................................................................16

2.5mm Hex Key

(Supplied)

4mm Hex Key

(Supplied)

● Designed for screens up to 24" (61cm) / 9kg (20lbs)

● Fits screens with VESA mounting patterns:

75 x 75mm and 100 x 100mm

● Optional desk clamp and grommet included

● Easy tilt adjustment +/-40° tilt

● Maximum extension is 457mm (18”)

● Features three swivel points: 360° at pole,

360° at both pivot points and 180° at interface

● Simple installation with all mounting hardware included

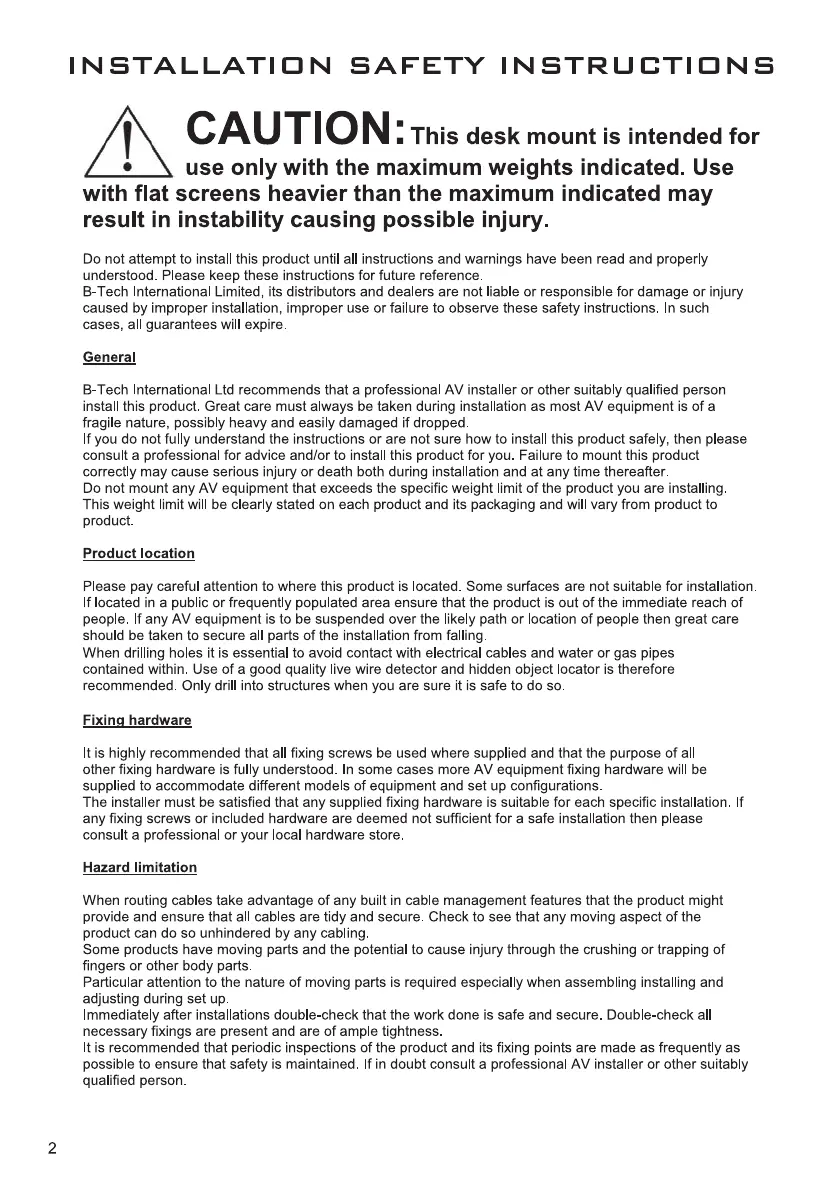

CAUTION: This mount is intended for use only with the maximum weights

indicated. Use with flat screens heavier than the maximum indicated may

result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and

properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for

damage or injury caused by improper installation, improper use or failure to observe these

safety instructions. In such cases, all guarantees will expire.

General

Great care must always be taken during installation as most AV equipment is of a fragile

nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely,

then please consult a professional for advice and/or to install this product for you. Failure to

mount this product correctly may cause serious injury or death both during installation and at

any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are

installing. This weight limit will be clearly stated on each product and its packaging and will

vary from product to product.

Product location

Please pay careful attention to where this product is located. Some locations are not suitable

for installation.

If located in a public or frequently populated area ensure that the product is out of the

immediate reach of people.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of

all other fixing hardware is fully understood. In some cases more AV equipment fixing

hardware will be supplied to accommodate different models of equipment and set up

configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific

installation. If any fixing screws or included hardware are deemed not sufficient for a safe

installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the

product might provide and ensure that all cables are tidy and secure. Check to see that any

moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or

trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling

installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-

check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as

frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV

installer or other suitably qualified person.

The articulating arm may spring upward and may cause injury or damage to the equipment

when the monitor is removed. Secure the arm by lifting the arm to highest position, to remove

monitor safely.

Termékspecifikációk

Márka:	B-tech
Kategória:	Lapos panel támogatás
Modell:	BT7373/GB
