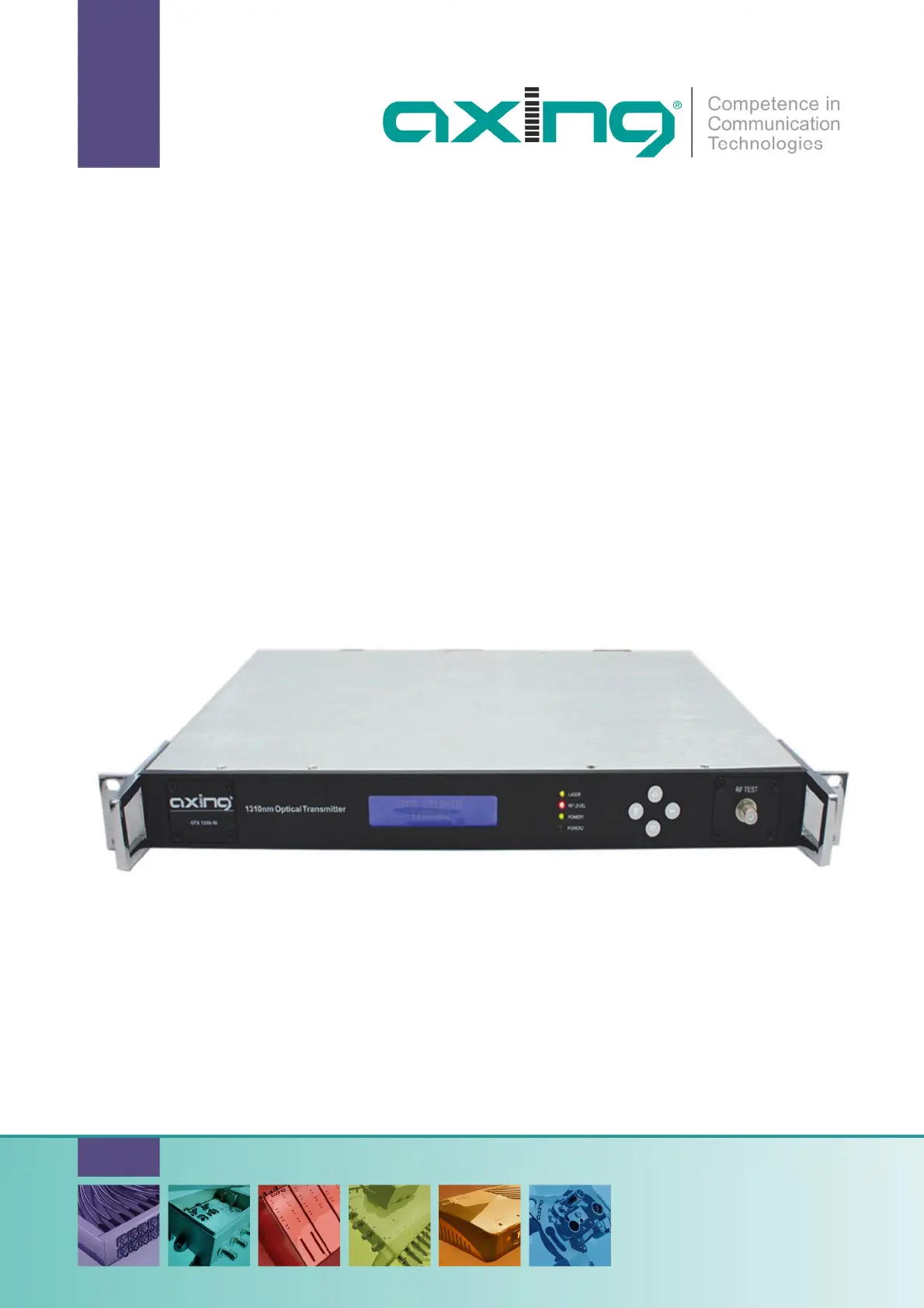

OTX 1310-10
Optical Transmitter
Operation Instructions
Operation Instructions | OTX 1310-10 | Optical Transmitter
2 2017-10-03 | © AXING AG Switzerland | Technical data are subject to change, errors and omissions excepted
Table of contents
1.
Description ...........................................................................................................................................................4
1.1. Block Diagram .............................................................................................................................................4
2.
Front and rear panel ............................................................................................................................................5
2.1.
Operating elements on the front panel ........................................................................................................5
2.2.
Connectors on the rear panel.......................................................................................................................6
3. Installation ...........................................................................................................................................................7
3.1.
Menu Interface ............................................................................................................................................8
4. WEB Management .............................................................................................................................................10
4.1.
Parameters ................................................................................................................................................10
4.2.
Settings ......................................................................................................................................................11
4.3.
Information ................................................................................................................................................11
4.4.
Network configuration ...............................................................................................................................12
4.5.
Change password ......................................................................................................................................12
5. Troubleshooting .................................................................................................................................................13
6. Specification.......................................................................................................................................................14
6.1.
Optical characteristics ................................................................................................................................14
6.2.
RF characteristics .......................................................................................................................................14
6.3.
Other characteristics ..................................................................................................................................14
6.4.
Outlines Drawing .......................................................................................................................................15
2017-10-03 | © AXING AG Switzerland | Technical data are subject to change, errors and omissions excepted 11
Safety instructions
∂The core part of OTX 1310-10 is a ESD laser.
∂Please obey the operation rule strictly and carefully when disassemble and assemble. The wrist belt and
the union suit should be also grounded.
∂All electric power and optical transmitter should be given a good grounding connection.
∂The electric power of the optical transmitter should be 90…265VAC and a regulated AC power is
suggested.
∂The RF signal must not be connected until the optical transmitter arrives at it’s normal working point. The
amplitude of the RF signal should follow the instructions in the test report of the optical transmitter. An
abnormal RF signal power will overload and damage the laser.
∂The optical transmitter should be stored in a ESD protection environment (such as a ESD protection
container) and cannot be stored with corrosive cargo. The store temperature should be within -20℃ ～
+50 .℃
∂Forced cooling should be added when multiple optical transmitters are mounted on the same rack.
∂Please don’t open or repair any part of the transmitter, otherwise the producer don’t pay the fiddler.
∂Eyes may be hurt if you watch the optical output directly.
∂The heat elimination hole should not be blocked. The transmitter need good airing to work properly.
∂The optical output should be covered with our dust-proof if the transmitter don’t work for a long period.
∂When failure occurs, the transmitter should be sent to the producer in time. And please don’t open or
repair any part of the transmitter, otherwise the producer don’t pay the fiddler

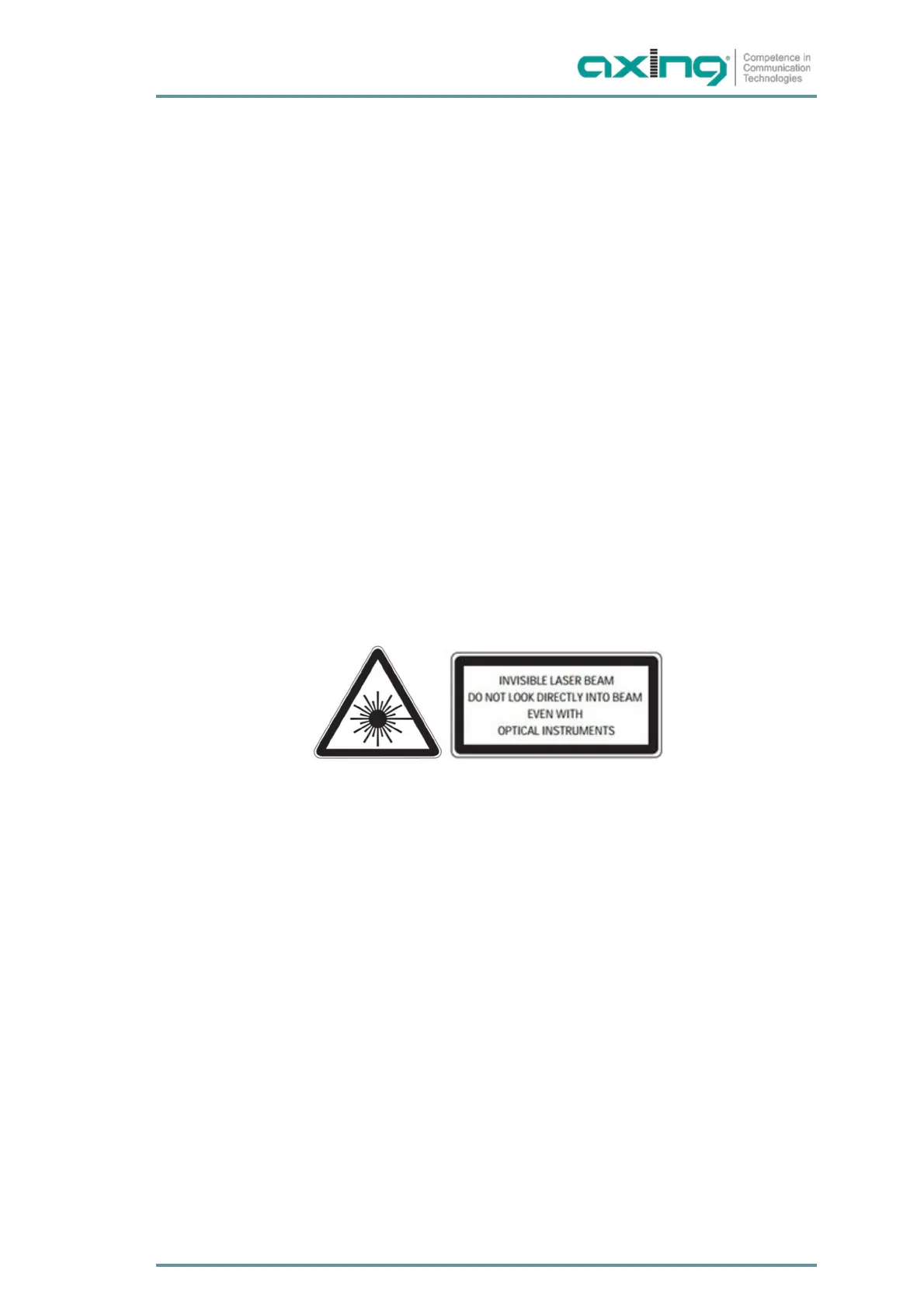

Direct eye exposure to laser beam may cause physical damage
