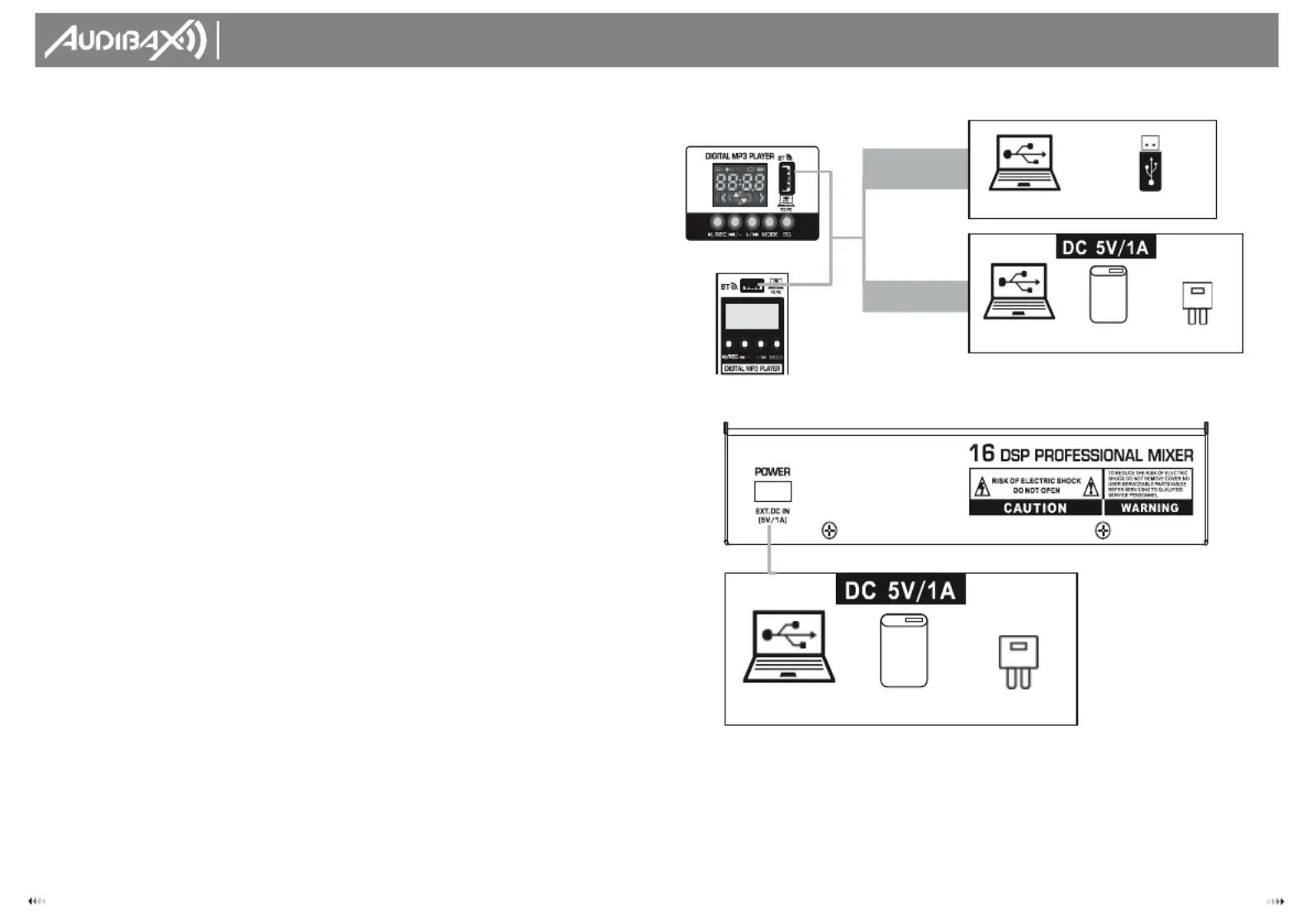

USB FOR DATA TRANSFER AND RECORDING, AND POWER SUPPLY
USB FOR POWER SUPPLY ONLY
Data transfer
a recordingnd
Power
s lyupp
Plug
Power
bank
Com ter USB Power pu
S lyupp
Play a Record Pl an R ord nd ay d ec
on on PC USB isk d
Power s plyup
Plug
Power
bank
USER´S
MANUAL
MG05 XU
5 2
ATTENTION
To avoid the possibility of product malfunction/damage, damage to data, or damage to
other property, please follow the points below.
Operation and maintenance.
- Do not use the device near a TV, radio, stereo, mobile phone or other electrical devices.
Otherwise, the device, TV or radio may generate noise.
- To avoid the possibility of panel defacement, unstable operation, or damage to internal
components. Do not expose the device to excessive dust or vibration, or extreme heat or
cold (such as in direct sunlight, near a heater, or in a car during the day).
- Do not place vinyl, plastic or rubber objects on the device, as they may discolor the panel.
- When cleaning the device, use a soft, dry cloth. Do not use paint thinners, solvents,
cleaning fluids, or chemical-impregnated cleaning cloths.
- Condensation may occur on the device due to rapid and drastic changes in ambient
temperature when the device is moved from one place to another, or the air conditioner is
turned on or off. For example, using the device while there is condensation can cause
damage. If there is reason to believe that condensation may have occurred, leave the
device for several hours without turning it on until the condensation has completely dried.
- Avoid setting all controls to maximum. Depending on the status of the connected devices,
doing so may cause feedback and damage the speakers.
- When turning on your audio system, always turn on the power amplifier LAST, to prevent
damage to the speakers. When turning off the unit, the power amp should be turned off
FIRST for the same reason.
Precautions when using USB 2.0 and 5V DC terminals.
- When connecting the USB2.0 connector to the computer, you must comply with the
following points. Otherwise, it may cause the computer to crash, crash, or lose data. If the
computer or mixer freezes, restart the application software or computer's operating system,
or unplug the mixer and turn it back on.
- Use a type AB USB cable. The USB 3.0 cable cannot be used.
- Before connecting the computer to the USB 2.0 terminal, exit any power-saving modes of
the computer (such as sleep, sleep, standby).

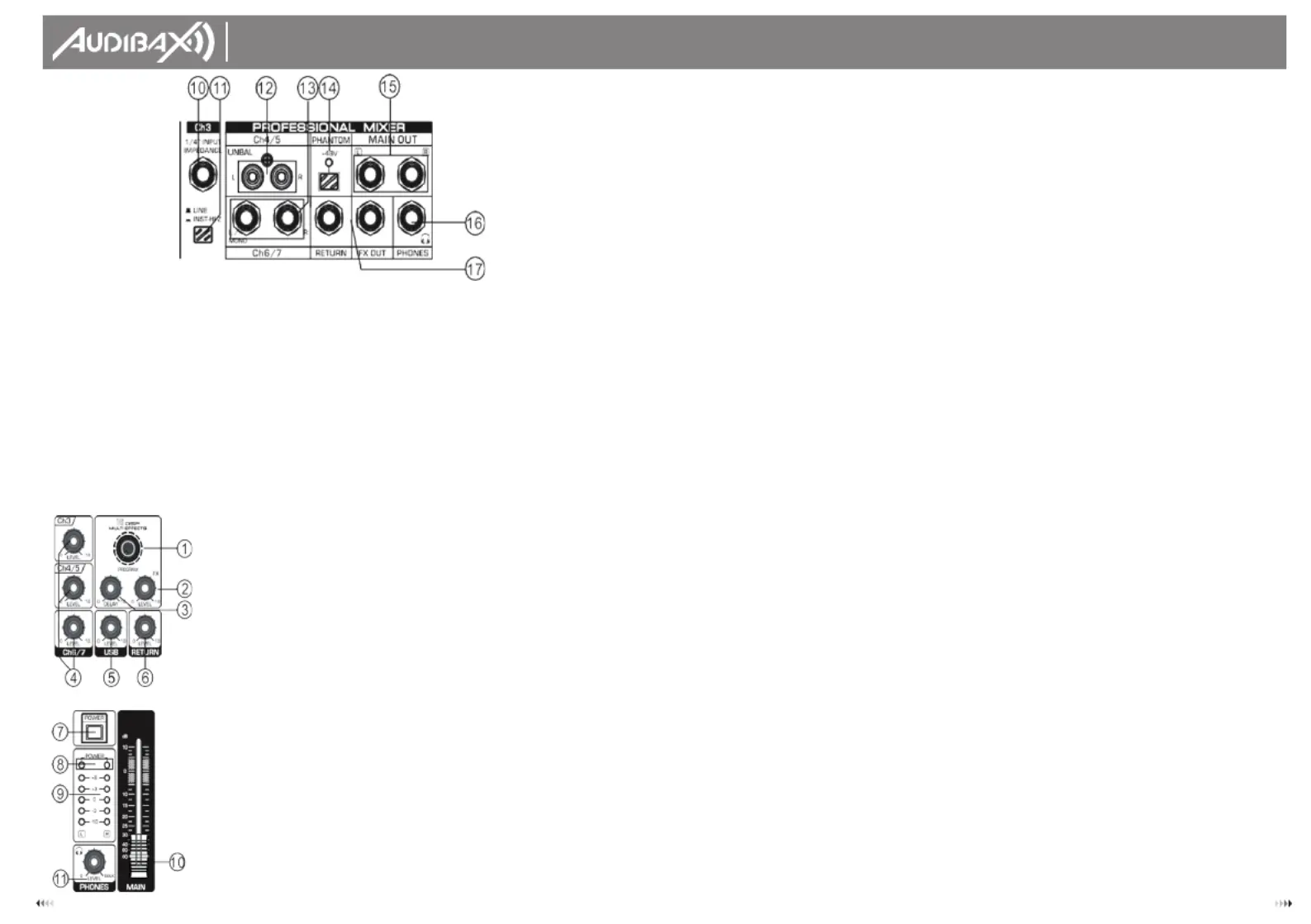

12.[TAPE/CD IN] TAPE / CD signal input jack.
13. Stereo channel input jack, if it is only connected to the L (MONO) jack, the mixer will send
the same mono signal to the L and R jacks.
14.[+48V PHANTOM] Button / LED, when the button is on, the LED light is on, provides +48V
DC phantom power to the XLR connector on the mono MIC input. Turn this button on when
using the condenser microphone that works with phantom power.
15.[MAIN OUT] output, connect active speaker or amplifier.
16.[PHONES] Plug, plug in a headset, the plug is compatible with the stereo phone plug.
17.[FX OUT&RETURN] The jack, when the [FX OUT] jack is used separately, can be connected
with a power amplifier, acts as a monitoring signal. When the [RETURN] input jacks are used
separately, they can be connected with the audio source. When two plugs are used
together, it can be connected with external audio processor.
MAIN CONTROL
1.[PROGRAM] controller, select from 16 kinds of internal digital
effects, provide the same signal to L stereo and R.
2.[FX LEVEL] Effects return level controller, adjust effect volume
Effects return level controller, adjust effect volume.
3.[DELAY] Controller, adjusts the depth of the reverberation.
4.Level knob
Adjust to balance the volume of each channel.
: [LEVEL] Controller, adjusts the volume of the 3CH channel.
: [LEVEL] Controller, adjust the volume of 4CH and 5CH channels.
: [LEVEL] Controller, adjust the volume of 6CH and 7CH channels.
5.[LEVEL] Controller, adjust the volume of the USB channel.
6.[RETURN] Level controller, adjust the return level.
7.[POWER] power control switch.
8.[POWER ON LED] the light is on, that the mixer has been running.
9. The level meters can show the signal level of the [MAIN OUT]
output. Adjust the [LEVEL] controller to lower the level of the [PEAK]
indicator light in RED.
10.[MAIN LEVEL] Fader, adjusts the overall volume of the output
signal [MAIN OUT].
11.[PHONES LEVEL] Headphone controller, adjusts the volume of the
headphones.
