Oldal 1/8
1

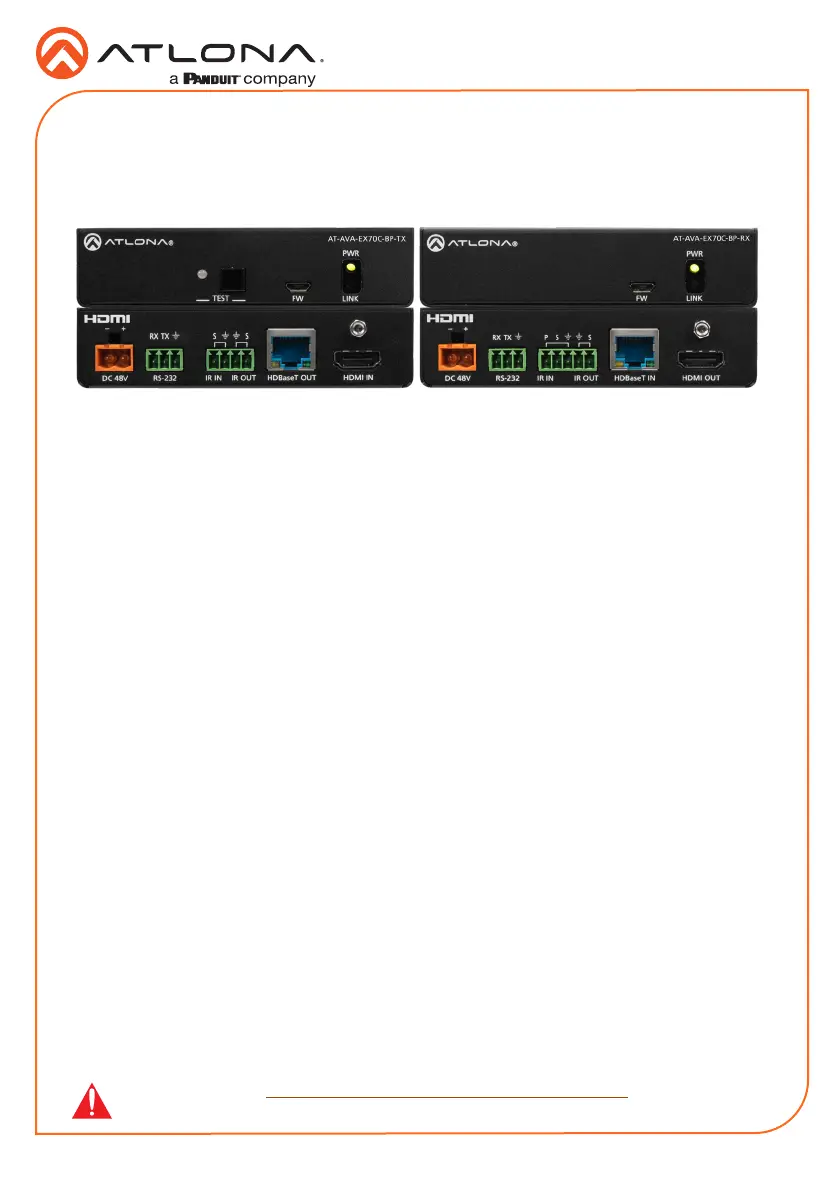

Installation Guide
AT-AVA-EX70C-BP-KIT
4K/UHD HDMI Extender Kit with Control and
Bidirectional Remote Power
AT-AVA-EX70C-BP-KIT
The Atlona AT-AVA-EX70C-BP-KIT is an Avance™ Series HDBaseT transmitter and receiver
set that supports control pass-through and bidirectional remote power capabilities. The kit
transmits 4K/UHD 60Hz 4:2:0 video up to 130 feet (40 meters) or 1080P 60Hz video up to 230
feet (70 meters). In addition to video with embedded multi-channel audio, RS-232 and IR control
signals, and remote powering by either the transmitter or the receiver are supported on the
single CAT6A/7 cable. Integrated HDBaseT link status testing allows quick verication of cable,
termination, and link quality. HDMI clock stretching and EDID ltering are included to ensure
the integrity of video transmission as well as compatibility with the widest array of sources and
display devices. ARC is available on the HDMI connections to minimize cabling in audio return
applications. Compact enclosures and included brackets allow the transmitter and receiver
endpoints to be surface mounted in furniture or behind a display. The AT-AVA-EX70C-BP-KIT
delivers a cost-eective solution for extension of video, audio, control, and bidirectional power at
resolutions up to 4K/UHD.
IMPORTANT: Visit https://atlona.com/product/AT-AVA-EX70C-BP-KIT for the latest
rmware updates and Installation Guide.
1 x AT-AVA-EX70C-BP-TX
1 x AT-AVA-EX70C-BP-RX
1 x 2-pin captive screw connector
2 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 5-pin captive screw connector
1 x IR emitter
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IEC cable
1 x Installation Guide
Package Contents
2
Installation Guide
AT-AVA-EX70C-BP-KIT
Panel Descriptions
HDBaseT IN HDMI OUT
AT-AVA-EX70C-BP-RX
PWR
LINKFW
S SP
IR IN IR OUT
RX TX
RS-232
DC 48V
+-
DC 48V HDBaseT OUT HDMI IN
AT-AVA-EX70C-BP-TX
PWR
LINKFW
+-
RX TX
RS-232
S S
IR IN IR OUT
TEST
1 TEST
Quick and easy test for category cables.
Use the button to start the test and the
LED to determine pass or fail.
2 FW
Connect a micro-USB to USB-A type
cable from this port to a computer, to
update the rmware.
3 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
4 DC 48V *Optional*
Connect the included power supply to
either this port or the power port on the
receiver.
5 RS-232
Bidirectional control port, used for pass
through of commands to or from the
receiver.
6 IR IN/OUT
Connect a 3rd party controller to the IR IN
port or an IR emitter to the IR OUT port.
7 HDBaseT OUT
Connect an HDBaseT cable from this port
to the port on the receiver.HDBaseT IN
8 HDMI IN
Connect an HDMI cable from a source to
this port. e.g. HDR BluRay Player
9 FW
Not used at this time.
10 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
11 DC 48V *Optional*
Connect the included power supply to
either this port or the power port on the
transmitter.
12 RS-232
Bidirectional control port, used for pass
through of commands to or from the
transmitter.
13 IR IN/OUT
Connect an IR receiver to the IR IN port or
an IR emitter to the IR OUT port.
14 HDBaseT IN
Connect an HDBaseT cable from this
port to the port on the HDBaseT OUT
transmitter.
15 HDMI OUT
Connect an HDMI cable from this port to
an HDMI display.
121156 7 8 13 14 154
103 921
3
Installation Guide
AT-AVA-EX70C-BP-KIT

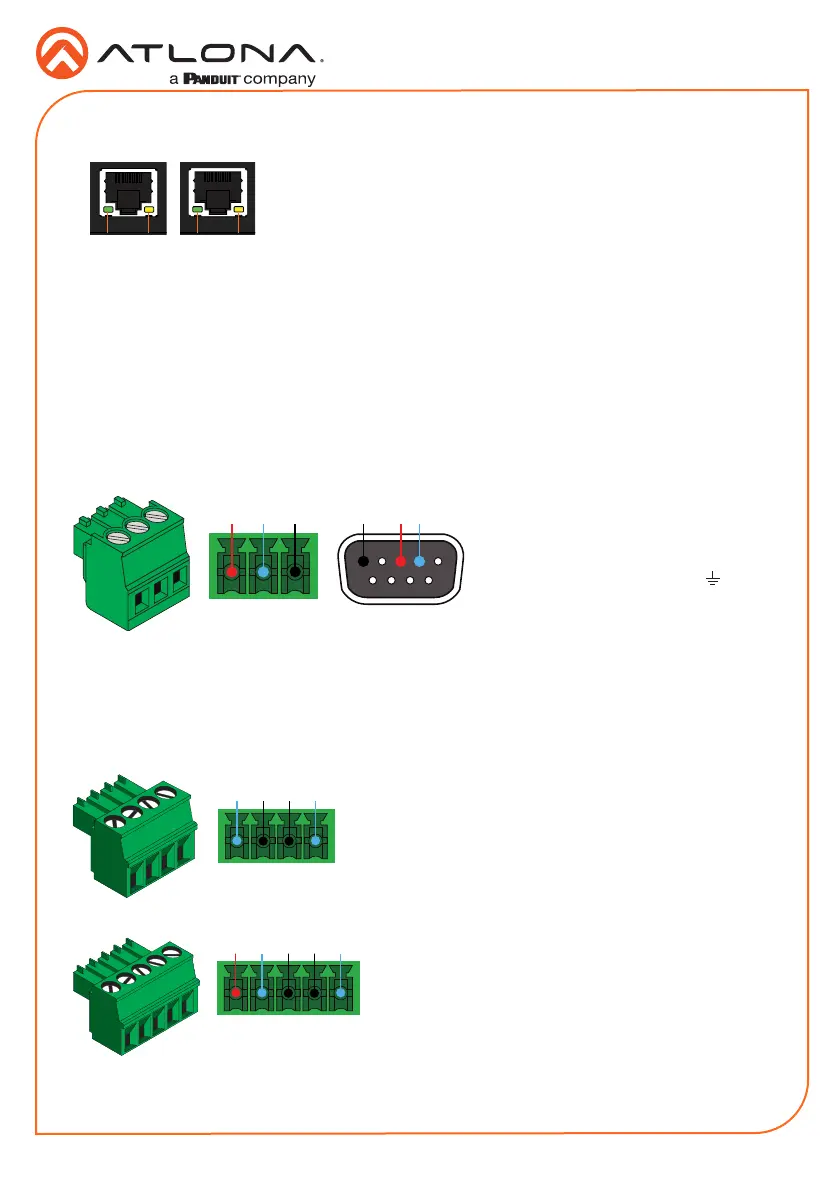

HDBaseT IN
HDBaseT OUT
HDBaseT LED Descriptions
a Green LED
When a category cable is connected
and receiving signal this LED will be
illuminated. If no cable or signal is being
received, the LED will be o.
b Yellow LED
This LED displays the status of the
HDBaseT rmware. When the LED is
blinking slowly, the rmware is good. If
the LED is blinking rapidly or o, there
is no rmware or the rmware has been
corrupted.
b ba a
Pin out will be determined by the
RS-232 cable and connect as
RX (receive), TX (transmit) and
(Ground).
A 3-pin captive screw connector for RS-232 has been included.
Two captive screw connectors for IR have been included. A 4-pin connector for the transmitter
and a 3-pin connector for the receiver.
IR IN is connected by a power, ground, and signal
wire. Use a 12V IR receiver with it ( AT-IR-CS-RX e.g.
purchasable through atlona.com).
IR IN is connected by a ground and signal wire. Use
with 3rd party control systems. For easy termination,
Atlona recommends using the 2 meter IR cable AT-LC-
CS-IR-2M (purchasable through atlona.com).
IR OUT is connected by a ground and signal wire.
Use the included IR emitter with this port.
IR OUT is connected by a ground and signal wire.
Use the included IR emitter with this port.
RS-232
IR
IR IN IR OUT
GND SSP
GND RX TXGNDRX TX
IR IN IR OUT
GND SS
