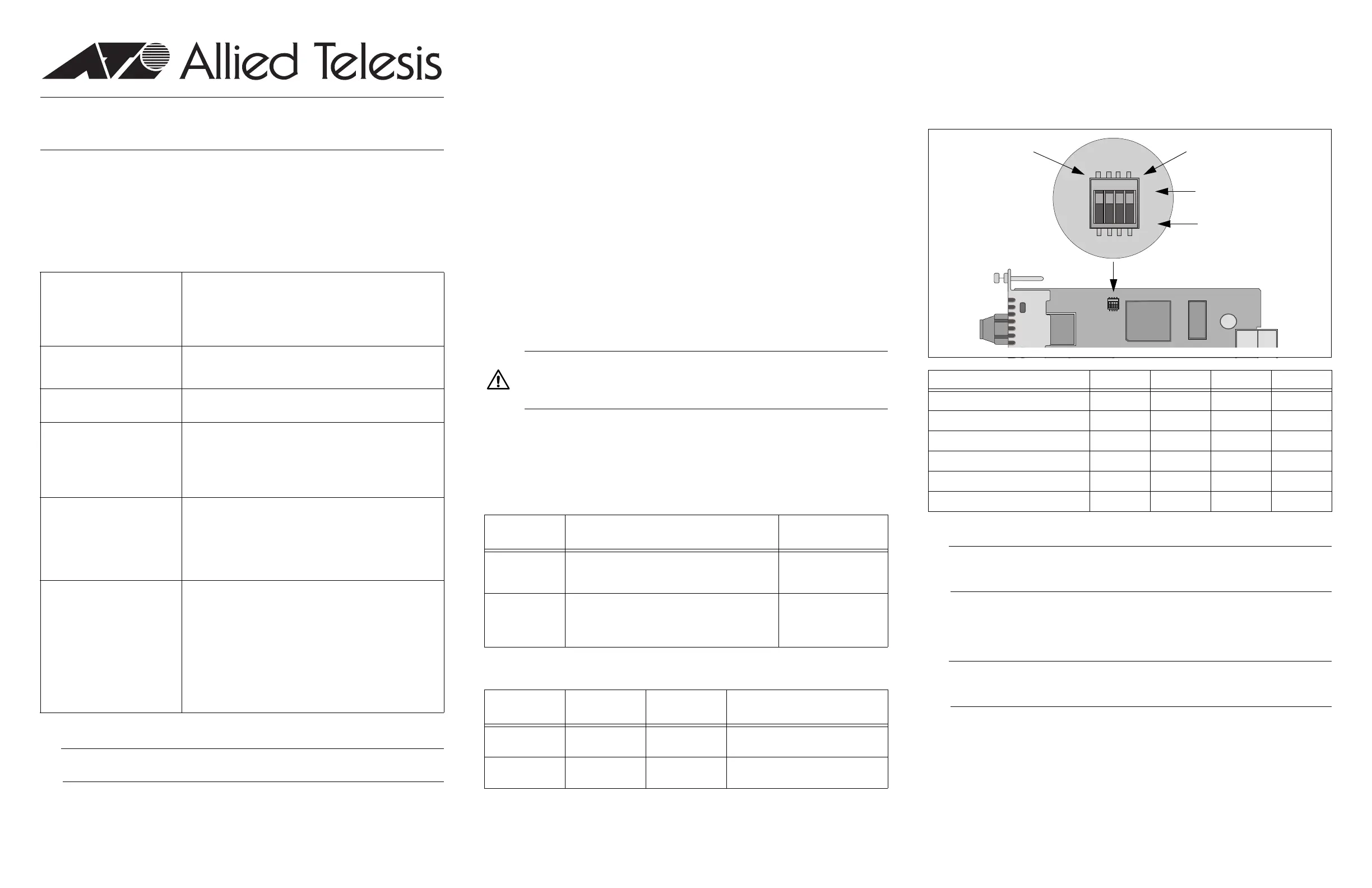

AT-CM301 and AT-CM302 Fast Ethernet
Media Converters Installation Guide
Overview
The AT-CM301 and AT-CM302 Media Converters are members of the Converteon family
of media converter products. They provide a simple and reliable way to connect Fast
Ethernet networks across distances of up to 2 kilometers (1.24 miles) using multimode
fiber optic cable. The products feature a 10/100Base-TX port and a 100Base-FX port.
The two cards support all of the same features, but they have different connectors on the
100Base-FX fiber optic ports. The features are listed here.
(* Requires the AT-CV5M02 Management Card.)
(** Requires an AT-CV5M02 Management Card in the upstream AT-CV5000 Chassis.)
Note
These line cards cannot be managed with the AT-CV5M01 Management Card.
613-001068 Rev. A
Converteon Enclosures
This product is supported in all four Converteon enclosures:
AT-CV5000 Chassis
AT-CV1203 Chassis
AT-CV1200 Chassis
AT-CV1000 Chassis
Related Documents
For background information on the Converteon product, refer to the Converteon AT-S73,
AT-S99, and AT-S102 Management Software User’s Guide, available from the Allied
Telesis web site.
Verifying the Package Contents
The following items should be in the shipping container:
One AT-CM301 or AT-CM302 Media Converter
This Installation Guide
Warranty card
If any item is missing or damaged, contact your Allied Telesis sales representative for
assistance. You should retain the original shipping material in case you need to return the
unit to Allied Telesis.
Reviewing Safety Precautions
Before installing the media converter, review the safety precautions detailed in the
Converteon chassis’ Installation Guide.
Twisted Pair Cable Specifications
The cable specifications for the 10/100Base-TX twisted pair port are listed here.
Fiber Optic Cable Specifications
Setting the DIP Switches
The line card has DIP switches for setting the operating mode. You can also set the
operating mode with the optional AT-CV5M02 Management Card. To use the DIP
switches, refer to the figure and table. For background information on the operating
modes, refer to the Converteon AT-S73, AT-S99, and AT-S102 Management Software
User’s Guide.
Installing the Media Converter
Note
The media converter supports hot swapping and can be installed while the chassis
is powered on.
To install the media converter:
1. Remove the slot cover from one of the slots in the Converteon chassis by loosening
the captive screw with a Phillips head screwdriver. The unit can be installed in any of
the media converter slots.
Note
Retain the slot cover and reinstall it if you ever remove the card. An open slot allows
dust to enter the unit and reduces proper airflow in the chassis.
2. Align the edges of the line card with the guides in the slot and carefully slide the card
into the chassis until it is flush with the front of the chassis. Light pressure may be
needed to seat the module on the connector on the backplane in the chassis.
3. Secure the line card in the chassis by tightening the captive-screw with a Phillips
head screwdriver.
4. Remove the dust cover from the fiber optic port.
5. Connect the fiber optic cable to the fiber optic port.
6. Connect a twisted pair cable to the RJ-45 twisted pair port on the line card.
10/100Base-TX Twisted Pair
Port
IEEE 802.3u Auto-Negotiation
Half- or full-duplex mode
Auto-MDI/MDI-X
RJ-45 connector
IEEE 802.3x flow control at 10 or 100 Mbps
100Base-FX Port Supports distances up to 2 kilometers (1.24 miles) using
50/125 µm or 62.5/125 µm (core/cladding) multimode fiber
optic cable.
Fiber Optic Port Connectors AT-CM301 - duplex ST
AT-CM302 - duplex SC
Operating Modes Link Test
MissingLink™
Smart MissingLink
The operating modes can be activated with or without support
for Operations, Administration, and Maintenance.
Operations, Administration, and
Maintenance (OAM) Features
Loopback tests*
Remote Converteon line card management*
Remote management software downloads*
Dying gasp**
Variable requests*
Other Features Jumbo frames up to 10,240 bytes
Ingress and egress packet rate limiting*
Operating mode and port status LEDs
Low power mode
Cyclical redundancy check
Suitable for managed and unmanaged network
environments
Management available with the AT-CV5M02 Management
Card
AT-S102 Management Software (preinstalled)
*613-001068 RevA*
Caution
The media converter line card is sensitive to and can be damaged by
electrostatic discharge. Wear a grounding device and observe electrostatic
discharge precautions when installing the card in the chassis.
Speed Cable Type Maximum Operating
Distance
10 Mbps Standard TIA/EIA 568-B-compliant Category 3 or
better shielded or unshielded cabling with 100 ohm
impedance and a frequency of 16 MHz.
100 m (328 ft)
100 Mbps Standard TIA/EIA 568-A-compliant Category 5 or
TIA/EIA 568-B-compliant Enhanced Category 5
(Cat 5e) shielded or unshielded cabling with 100
ohm impedance and a frequency of 100 MHz.
100 m (328 ft)
Line Card Connector Maximum
Distance Fiber Optic Cable
AT-CM301 Duplex ST 2 km (1.24 mi.) 50/125 µm or 62.5/125 µm (core/
cladding) multimode fiber optic cable
AT-CM302 Duplex SC 2 km (1.24 mi.) 50/125 µm or 62.5/125 µm (core/
cladding) multimode fiber optic cable
Operating Mode Switch 4 Switch 3 Switch 2 Switch 1
Link Test (default setting) Off Off Off Off
MissingLink Off Off Off On
Smart MissingLink Off Off On Off
Link Test with OAM Off On Off Off
MissingLink with OAM Off On Off On
Smart MissingLink with OAM Off On On Off
ON
1 432
OFF
14
SW1
1447
ON
14 3 2
OFF
14
SW1
1448
DIP Switch 1
Off
On
DIP Switch 4
4 5 6
LEDs
The RDY LED displays general status information.
The operating mode of the line card is displayed by the SML, ML and OAM LEDs.
The 100Base-FX port has two LEDs.
The 10/100Base-TX twisted pair port has four LEDs.
Note
For more information on the Link LEDs, refer to the explanation of the media
converter operating modes in the Converteon AT-S73, AT-S99, and AT-S102
Management Software User’s Guide.
ECO Friendly Button
The recessed ECO Friendly button on the front panel of the line card is used to toggle the
low power mode, which controls the LEDs. You can use the mode to turn off the LEDs to
conserve power when you are not monitoring them. To toggle the LEDs on or off, press
the recessed button with a pointed object, such as the end of a straightened paperclip.
You can also toggle the low power mode with the AT-CV5M02 Management Card. The
low power mode does not affect the network operations of the line card or control the
RDY LED.
Default Settings
The default settings for the media converters are listed here.
Fiber Optic Port Specifications
Technical Specifications
Electrical, Safety, and Emissions Statements
Standards: This product meets the following standards when installed in compliant host equipment.
Emission FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, CE
Immunity EN55024
Electrical Safety UL60950-1 ( cULus), EN60950-1 (TUV), CAN/CSA C22.2 No. 60950-1
Copyright © 2008 Allied Telesis, Inc. All rights reserved. No part of this publication may be
reproduced without prior written permission from Allied Telesis, Inc. www.alliedtelesis.com.
LED State Status/Operating Mode
RDY
(Ready)
Off The line card is initializing the AT-S102 Management Software,
which takes approximately one minute, or the card is not receiving
power.
Green The line card has initialized its management software and is ready to
transfer network traffic.
Operating Mode
LEDs
SML
(Smart
MissingLink)
ML
(Missing Link)
OAM
(Operations,
Administration
and
Maintenance)
Link Test mode Off Off Off
Link Test mode with OAM Off Off On
MissingLink mode Off On Off
MissingLink mode with OAM Off On On
Smart MissingLink mode On Off Off
Smart MissingLink mode with OAM On Off On
LED Color Description
LK
(Link)
Off The fiber optic port has not formed a link with the remote device.
Green The port has formed a link with the fiber optic port on the remote
device.
Blinking
Green
The media converter is operating in the Smart MissingLink mode
and the twisted pair port has not formed a link with a network device.
AT
(Activity)
Off The port is not connected to a fiber optic cable, has not formed a link
with the remote device, or is not sending or receiving network traffic.
Blinking
Green
The fiber optic port is receiving or transmitting network packets.
LED Color Description
LK
(Link)
Off The port has not formed a link with a network device.
Green The port has formed a link with a network device.
Flashing Green The media converter is operating in the Smart MissingLink
mode and the fiber optic port has not formed a link with a
network device.
AT
(Activity)
Off The port is not receiving or transmitting network packets.
Blinking Green The port is receiving or transmitting network packets.
FD
(Full
duplex)
Off The port is operating in half-duplex mode.
Green The port is operating in full-duplex mode.
100M Off The port is operating at 10 Mbps.
Green The port is operating at 100 Mbps.
Feature Default Setting
Basic Settings
Operating Mode Link Test
Maximum Frame Size 10240 bytes
Twisted Pair Port Auto-Negotiation with auto-MDI/MDI-X
Ingress and Egress Filtering None
Low Power Mode Disabled
Operating Mode DIP Switches Enabled
OAM Settings
Admin State Enabled
Mode Passive
Maximum OAMPDU Size 1518 bytes
Loopback Support Enabled
Variable Retrieval Support Enabled
General
Maximum Distance 2 km (1.24 miles)
Fiber Optic Cable 50/125 µm or 62.5/125 µm (core/cladding) multimode fiber optic
cable
Transmitter
Wavelength 1310 nm
Output Optical Power - 50/
125 µm
BOL: -22.5 dBm min.; -14 dBm max.
EOL: -23.5 dBm min.; -14 dBm max.
LED Color Description Output Optical Power - 62/
125 µm
BOL: -19 dBm min.; -14 dBm max.
EOL: -20 dBm min.; -14 dBm max.
Receiver
Wavelength 1310 nm
Sensitivity -31 dBm max.
Maximum Input Power -14 dBm min.
Physical and Environmental
Dimensions (H x W x L) 22 mm x 73 mm x 130 mm
(.86 in. x 2.9 in. x 5.1 in.)
Weight 113 grams (0.25 lb.)
Operating Temperature 0° C to 40° C (32° F to 104° F)
Storage Temperature -25° C to 70° C (-13° F to 158° F)
Operating Relative Humidity 5% to 90% RH (non-condensing)
Storage Relative Humidity 5% to 95% RH (non-condensing)
Operating Altitude Range Up to 3,048 m (10,000 ft.)
MTBF 1,500,000 hours
Electrical Ratings
Power Consumption 8.5 Watts maximum
U.S. Federal Communications Commission
RADIATED ENERGY
Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant
to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with this instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
Note: Modifications or changes not expressly approved of by the manufacturer or the FCC, can void your right
to operate this equipment.
Industry Canada
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur
du Canada.
Warning
In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.

Termékspecifikációk

Márka: Allied Telesis
Kategória: hálózati kártya/adapter
Modell: AT-CM301

Szüksége van segítségre?

Ha segítségre van szüksége Allied Telesis AT-CM301, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek


Útmutatók hálózati kártya/adapter Allied Telesis

Allied Telesis

Allied Telesis AT-2874SX/SC-001 Útmutató

28 Augusztus 2024
Allied Telesis

Allied Telesis AT-CM301 Útmutató

28 Augusztus 2024
Allied Telesis

Allied Telesis AT-2973SX Útmutató

28 Augusztus 2024
Allied Telesis

Allied Telesis 2911SX/ST Útmutató

28 Augusztus 2024
Allied Telesis

Allied Telesis AT-2814FX/SC-001 Útmutató

28 Augusztus 2024
Allied Telesis

Allied Telesis AT-ANC10S/2+SP10SR-001 Útmutató

28 Augusztus 2024
Allied Telesis

Allied Telesis 2716POE/FXSC Útmutató

28 Augusztus 2024
Allied Telesis

Allied Telesis AT-SBx81GS24a Útmutató

28 Augusztus 2024
Allied Telesis

Allied Telesis AT-ANC10S/2 Útmutató

28 Augusztus 2024

Útmutatók hálózati kártya/adapter

Legújabb útmutatók hálózati kártya/adapter

Mikrotik

Mikrotik RB493 Útmutató

8 Április 2025
EtherWAN

EtherWAN EX41941F Útmutató

3 Április 2025
Vigitron

Vigitron MaxiiView Vi00023 Útmutató

3 Április 2025
AVPro Edge

AVPro Edge AC-MXNET-10G-TCVR Útmutató

2 Április 2025
EtherWAN

EtherWAN TG103H-0802 Útmutató

2 Április 2025
AVPro Edge

AVPro Edge MXNet AC-MXNET-10G-TCVR Útmutató

1 Április 2025
ScreenBeam

ScreenBeam ECB6250 Útmutató

30 Március 2025
Ubiquiti Networks

Ubiquiti Networks USW-Aggregation Útmutató

29 Március 2025
Vigitron

Vigitron Vi22601 Útmutató

15 Március 2025
Vigitron

Vigitron Vi22201 Útmutató

15 Március 2025
