INSTRUCTIONS FOR INSTALLATION AND USE
Ceiling Fan Model : FN72238
BEFORE YOU START
Proper use:
-This product is intended exclusively for non-commercial use as ceiling fan.
-The product has to be installed and used in accordance with these instructions.
-Any use of this product that is not in accordance with these instructions will void the legal
warranty of the manufacturer.
Please keep the original carton and packaging material as the warranty will only be honored if product
is returned in complete original packaging.
FOR YOUR OWN SAFETY
General safety instructions:
-For the safe use of this product, you need to have read and understood these instructions
before installing or using the product.
-Please follow all safety instructions! If you ignore these safety instructions, you will endanger
yourself and others.
-Keep these instructions for future reference.
-All parts of this product have to be installed properly in order to ensure safe operation.
-Modication of the product and use of non-approved parts are prohibited.
-This product is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the product by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the product.
Electrical safety:
-The electrical installation must be performed by a qualied electrician and must be in
accordance with national and local regulations.
-Use a fault-current circuit breaker with a rated residual current of no more than 30 mA.
-Make sure to install an all-pole disconnection switch having a contact separation of at least
3mm between poles in the supply wiring to the ceiling fan.
-Before connecting the appliance to the electrical grid, make sure that it will only be operated
within the specied parameters.
-The fan must be properly grounded to avoid the risk of electric shocks.
-Switch off the power before connecting, repairing or cleaning the fan.
-Install only bulbs of the type intended for your fan.
Storage and transport:
-Always store the fan in a dry environment.
-Protect the fan from damages during transport.
2
Safety instructions specic to this fan:
-Attach the fan only directly to the ceiling structure.
-The carrying capacity of the ceiling structure from which the fan is hung must be at least 100kg.
-The minimum distance between the blades of the fan and the oor must be 2.3m.
-Never mount the fan outside or in a humid or wet environment. The fan can not be installed
within proximity of water (e.g. bath tub, swimming pool, water connection).
-The fan can only be installed horizontally on the ceiling.
-Install only bulbs of the type intended for your fan.
-Switch off the power before connecting, repairing or cleaning the fan.
-The rotor area has to be kept clear of any objects at all times.
-Be careful when working near the rotating blades.

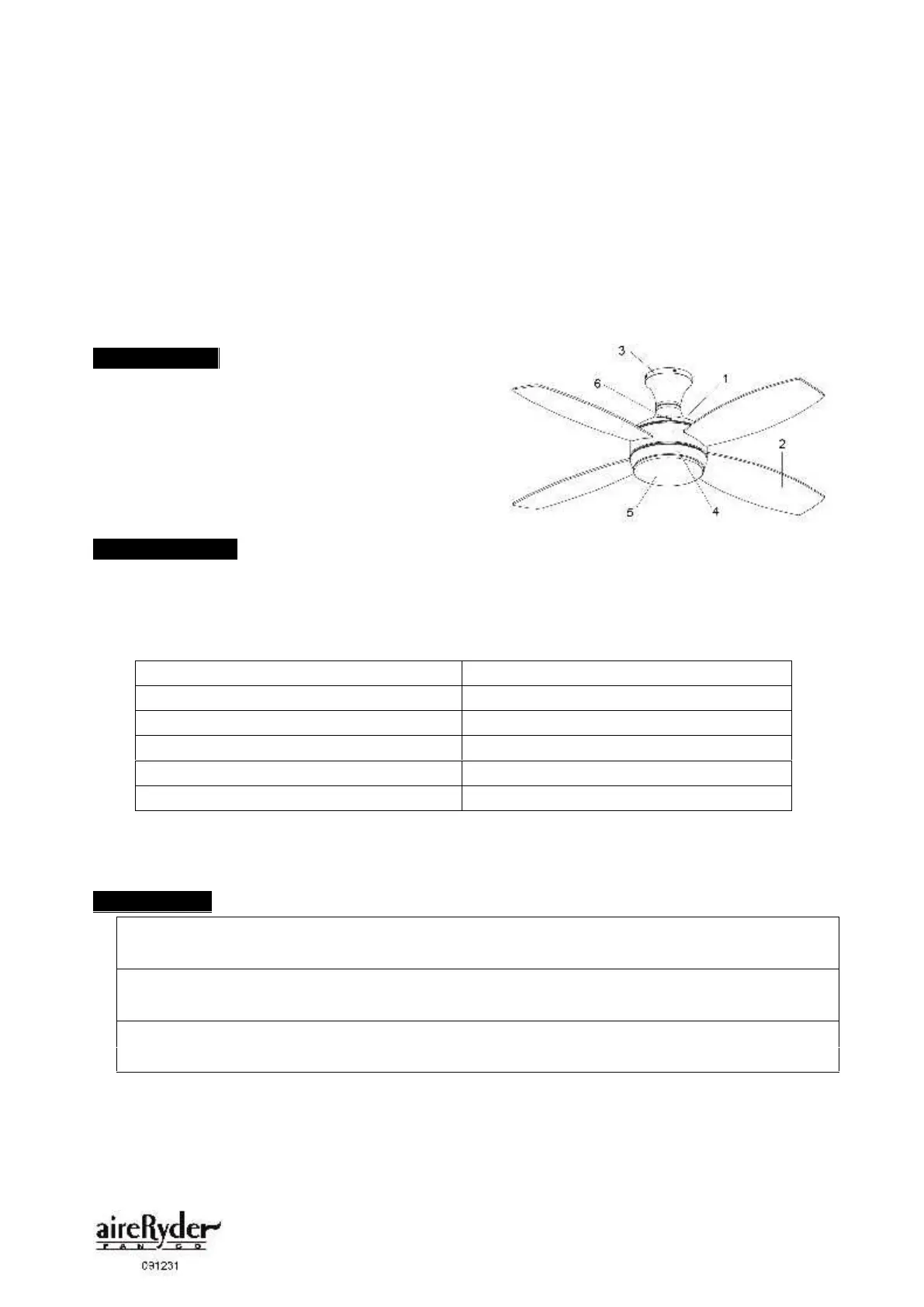

FAN OVERVIEW
1. Motor housing
2. Fan blades
3. Canopy
4. Fan light housing
5. Glass shade
6. Switch for rotating direction
UNPACK THE FAN
-Unpack the fan and check that contents of are complete.
-Dispose of packaging – see also “Disposal”.
Contents of packaging:
Instructions for installation and use
Screws
Mounting bracket
Spring washers
Fan assembly
Flat washers
Fan blades
Transmitter for remote control
Blade balance kit
Receiver for remote control
Glass shade
Note: In case of damaged or missing parts, please contact your retailer.
INSTALLATION
Risk of electric shock: Switch off the electricity using the switch at the circuit breaker box before
installing the fan.
Risk of electric shock: The electrical installation must be performed by a qualied electrician and
must be in accordance with national and local regulations.
Risk of injury: In case you need to drill holes for mounting the fan, make sure that the drills have
sufficient distance to in-ceiling wiring.
3

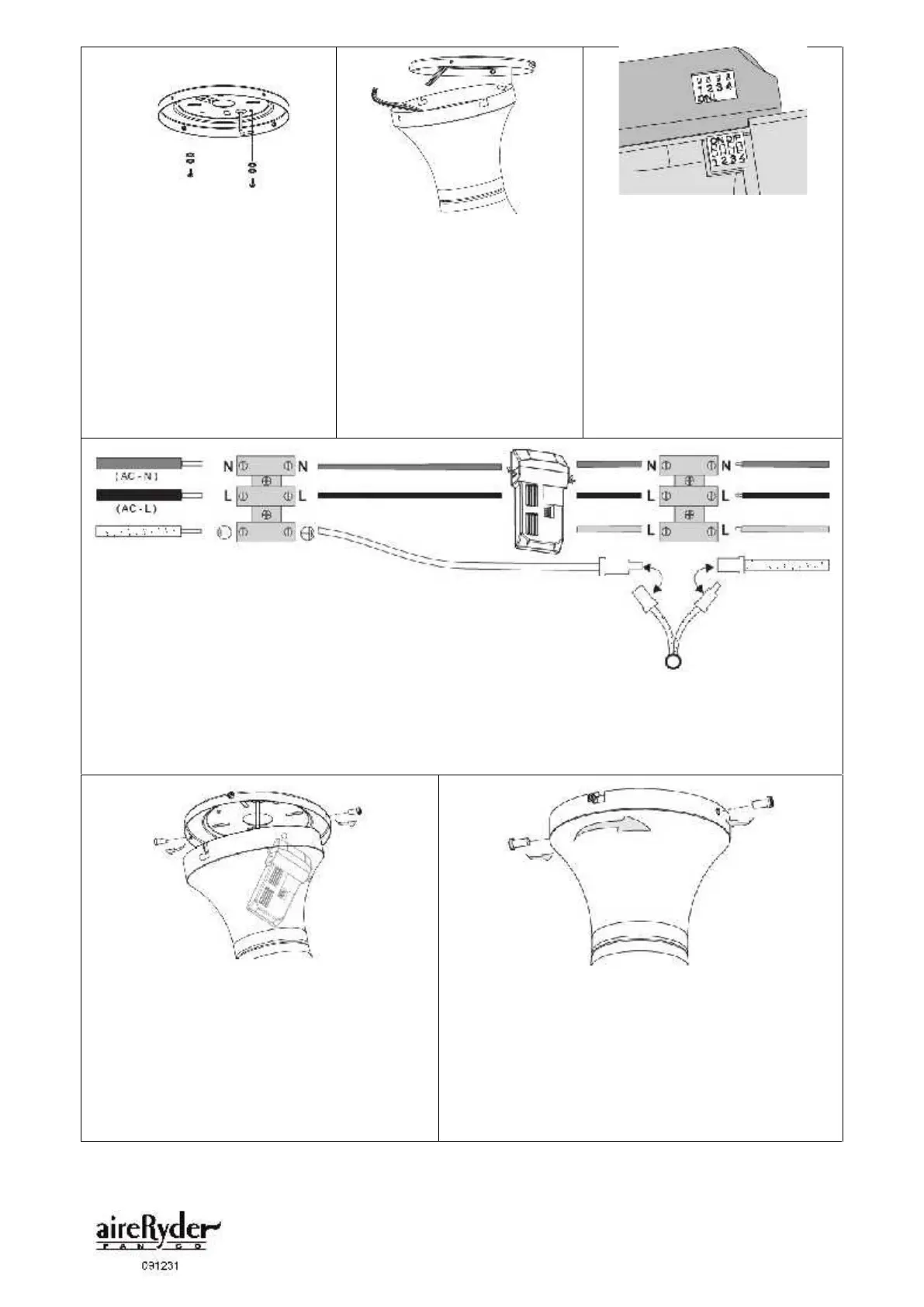

1. Pass the supply wires through
the hole in the mounting bracket.
Secure the mounting bracket to a
ceiling joist or other structural
ceiling element with two screws,
spring washers and at washers.
Ensure that the support for the
mounting bracket is capable of
safely holding the moving weight
of the fan.
2. Lift the fan assembly and
hand onto the hook on mounting
bracket. This will permit you to
make the electrical connections
without having to hold the fan up
as well.
3. There is a frequency-setter
respectively in the transmitter and
receiver. This "DIP Switch" is a 4
key unit. All keys were set
at "ON" position in the beginning.
Set the keys to a different code.
Make sure the same numbered
keys are switched "ON" for both
DIP Switches. Take note that the
"ON" position may have different
orientation in each.
5-1. After the splicing has been made, gently
place the receiver into the canopy and secure it
in place using double-sided adhesive tapes
which pre-adhered on the back of the receiver.
5-2. Take o side screws (one of each across)
on mounting bracket rst, then loosen the other
two.
6-1. Push up the canopy until the two screws on
mounting bracket are engaged with L type slot holes
on canopy.
6-2. Rotate the canopy slightly until the two screw
heads are in the L type slot holes.
6-3. Tighten 4 screws rmly.
From Fan
From mounting bracket
Orange(For light kit)
Orange
Brown (Motor-L)
Blue (Motor-N)
Brown
Blue
Blue
Brown
Green/Yellow
Blue
Brown
Green/Yellow
Terminal block on
Mounting bracket
From House
