INSTRUCTIONS FOR INSTALLATION AND USE
Ceiling Fan Model Borealis (FN66636/FN66635)
BEFORE YOU START
Proper use:
- This product is intended exclusively for non-commercial use as ceiling fan.
- The product has to be installed and used in accordance with these instructions.
- Any use of this product that is not in accordance with these instructions will void the
legal warranty of the manufacturer.
Please keep the original carton and packaging material as the warranty will only be honored if
product is returned in complete original packaging.
FOR YOUR OWN SAFETY
General safety instructions:
- For the safe use of this product, you need to have read and understood these instructions
before installing or using the product.
- Please follow all safety instructions! If you ignore these safety instructions, you will endanger
yourself and others.
- Keep these instructions for future reference.
- All parts of this product have to be installed properly in order to ensure safe operation.
- Modification of the product and use of non-approved parts are prohibited.
- This product is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the product by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the product.
Electrical safety:
- The electrical installation must be performed by a qualified electrician and must be in
accordance with national and local regulations.
- Use a fault-current circuit breaker with a rated residual current of no more than 30 mA.
- Make sure to install an all-pole disconnection switch having a contact separation of at least
3mm between poles in the supply wiring to the ceiling fan.
- Before connecting the appliance to the electrical grid, make sure that it will only be
operated within the specified parameters.
- The fan must be properly grounded to avoid the risk of electric shocks.
- Switch off the power before connecting, repairing or cleaning the fan.
- Install only bulbs of the type intended for your fan.
Storage and transport:
- Always store the fan in a dry environment.
- Protect the fan from damages during transport.
F A N
C O
1
171213
Safety instructions specific to this fan:
- Attach the fan only directly to ceiling structure.
- The carrying capacity of the ceiling structure from which the fan is hung must be at least
three times the weight of the fan.
- The minimum distance between the blades of the fan and the floor must be 2.3m.
- Never mount the fan outside or in a humid or wet enviroment. The fan can not be
installed within proximity of water (e.g bath tub, swimming pool, water connection).
- The fan can be installed on ceilings with a slope of up to 23 degrees.
- Switch off the power before connecting, replairing or cleaning the fan.
- The rotor area has to be kept clear of any objects at all times.
- Be careful when working near the rotating blades.

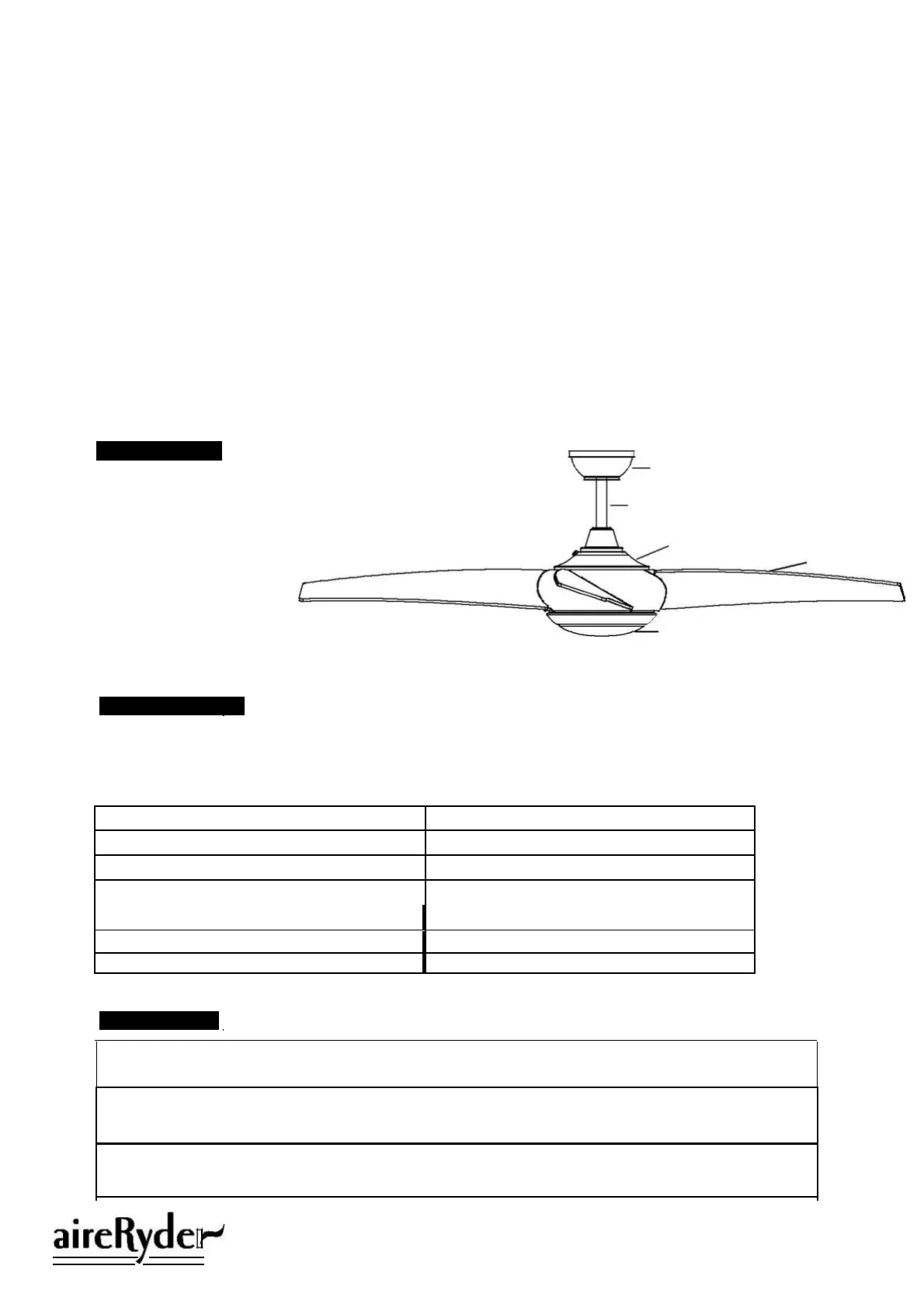

FAN OVERVIEW
1
1. Canopy
2. Downrod
2
3.
Motor Housing
3
4
4.
Fan Blade
5. Fan Light
5
UNPACK THE FAN
- Unpack the fan and check that contents of packaging are complete.
- Dispose of packaging – see also “Disposal”.
Instructions for installation and use
Fan Blades (4 PCS)
Hanger Bracket
Motor Housing
Canopy
Fan Light
Downrod Set (Includes Ball Joint, 6”
Assembly Kit
Downrod, Hanger Pin & Lock Pin)
Downrod Stand Cover
Remote Control
Decorative Cap
Blade Balancing Kit
Note: In case of damage or missing parts, please contact your retailer.
INSTALLATION
Risk of electric shock: Switch off the electricity using the switch at the circuit breaker box
before installing the fan.
Risk of electric shock: The electrical installation must be performed by a qualfied electrcian and
must be in accordance with national and local regulations.
Risk of injury:In case you need to drill holes for mounting the fan, make sure that the drills
have sufficient distance to in-ceiling wiring.
F A N
C O
2
171213
Fig.1
Turn off the electric circuit at the
main fuse or circuit breaker box.
Hanger
Bracket
Flat Washer
Spring Washer
Guide Pin
Fig.2
Attach the hanger bracket to the ceiling
with spring washers, flat washers and 2
mounting screws.
Note: For sloped ceiling installation, make
sure that the hanger bracket is installed so
that the guide pin is facing upward.
Fig.3
Remove the Hanger Ball screw, then
slide the Hanger Ball downwards.
Fig.4 Support Pin
Ball Joint
Screw
Lock Pin
Hanger Pin
Slide the support pin out. Remove the
Ground Wire screw. Remove the
Lock Pin and take off the Hanger Pin.
Remove the Hanger Ball.
Fig.5
Downrod
Canopy
Decorative Cap
Motor Wires
D ownrod Sta nd
Cover
Coll ar
Thread the motor wires through the
downrod stand cover, decorative
Fig.7
cap, canopy and downrod.
Fig.6
Downrod
Canopy
Decorative Cap
Downrod Stand
Cover
Collar
Hanger Pin
Loosen the collar screws in part way.
Insert the Downrod into the Collar.
Slide Hanger Pin through holes of
Collar and Downrod.
Fig.7
Lock P in
Collar Screws
Insert and tighten the two Collar
Screws. Slide Lock Pin into Hanger
Pin until it is locked into position.
Fig.8 Hanger Bracket
Slot
Chip
Hang the fan on Hanger Bracket, and
make sure the slot of hanger ball is
snapped into the chip of Hanger
Bracket exactly.
Note: For slope ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket face down.
F A N
C O
3
171213
