Oldal 1/2

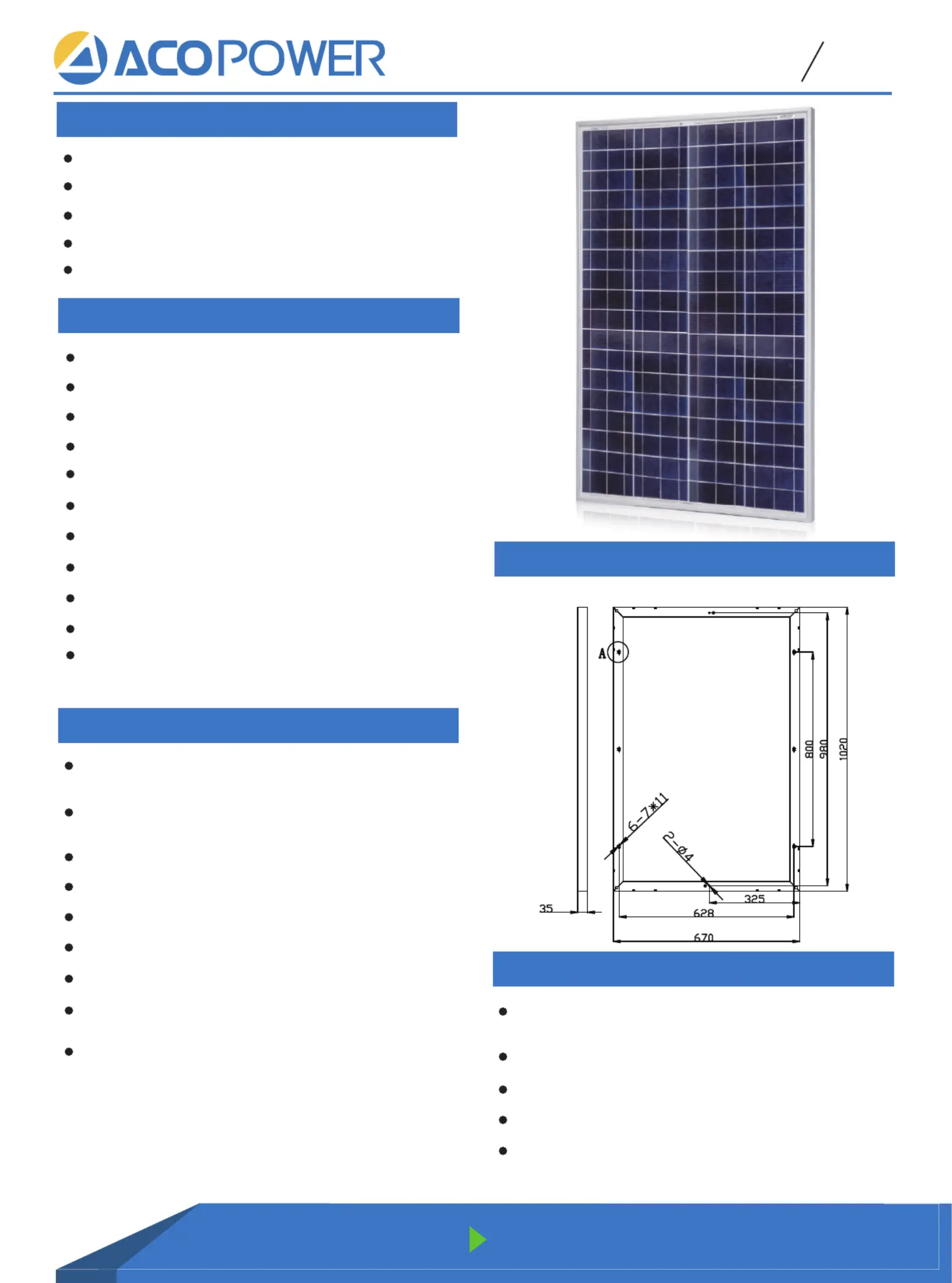

(40.2x26.4x1.4 inches)
Mechanical Characteristics
Type of cell
Dimensions
Weight
Front Glass
Frame
Encapsulation
Relative Humidity
Resistance
Snow load
parameters
Poly-crystalline 156 x 156 mm
1020x670x35mm
9.5Kg (20.6 lbs)
Low-Iron Tempered Glass
Aluminum Alloy
Glass/EVA/Cells/EVA/TPT
0 to 100%
2400Pa
227g steel ball fall down from
1m height and 60m/s wind
Electrical Characteristics
Characteristics 100W
Open-Circuit Voltage(Voc) 22.0V
Optimum Circuit Voltage(Vmp) 17.48V
Short-Circuit Current(Isc) 6.21A
Optimum Circuit Current(Imp) 5.72A
Maximum Power at STC(Pmax) 100W
Module Efficiency 14.35%
Operating Temperature -40 to +85℃ ℃
Maximum System Voltage 1000V DC
Power tolerance ±3%
STC: Irradiance 1000W/ , Module temperature 25 ,㎡ ℃
AM=1.5
HY100-12P 100W
www.ACOPower.com
Power Your Green Life!
Size
Application Scope
Courtyard lighting.
Small household lighting system.
Street lighting.
Portable solar power.
All small power electrical devices & small PV
Temperature Coefficients
Nominal Operating Cell 45 ±5℃ ℃
Temperature(NOCT)
Temperature Coefficient of Pmax -0.45%/℃
Temperature Coefficient of Voc -0.35%/℃
Temperature Coefficient of Isc +0.05%/℃
Maximum SeriesFuse/current rating 10A
Unit:mm
(5 inches)
USA Sales: 4120 Valley Blvd, Ste B, Walnut, CA 91789, USA
Tel:+1-626-575 8822/7722 Fax: 626-800 2255
Email: sales@acopower.com
a. Pole Mount Single Arm Pole-Wall Mounting Brackets
installstion adopted. 4 angles (30 ° 35 ° 40 ° 45 °) can
be adjusted according to the position of the hole.
b. For simple installation, please use facile fixative bracket
to set up. It is easy to adjust the angle. This installation
can be set up on the floor or the wall.
The length of the cable that connected with the solar panel junction box is 1M (39.37 INCH) which should be ，
noted the polarity of the output. The standard wiring polarity is "face terminal box: left" - "right" + ", also the
polarity can be viewed on the wiring.After installation of each solar panel, series and parallel connection must be
set up based on design requirements of voltage and current. Series connection is "-" and "+", "-" and "+" operator
,increased the charging voltage, FIG:(a). Parallel connection is "-" and "-" connected, "+" and "+" increased the
charging current, FIG:(b). To use a different connection, solar panel can charge battery for 12V, 24V 36V 48V
through the solar charge controller
The installation angle can be adjustable according to different geographical location, mostly associated with latitude.
ACOPOWER Team has solar design experts can provide professional and free design Email :tech@acosolar.com！

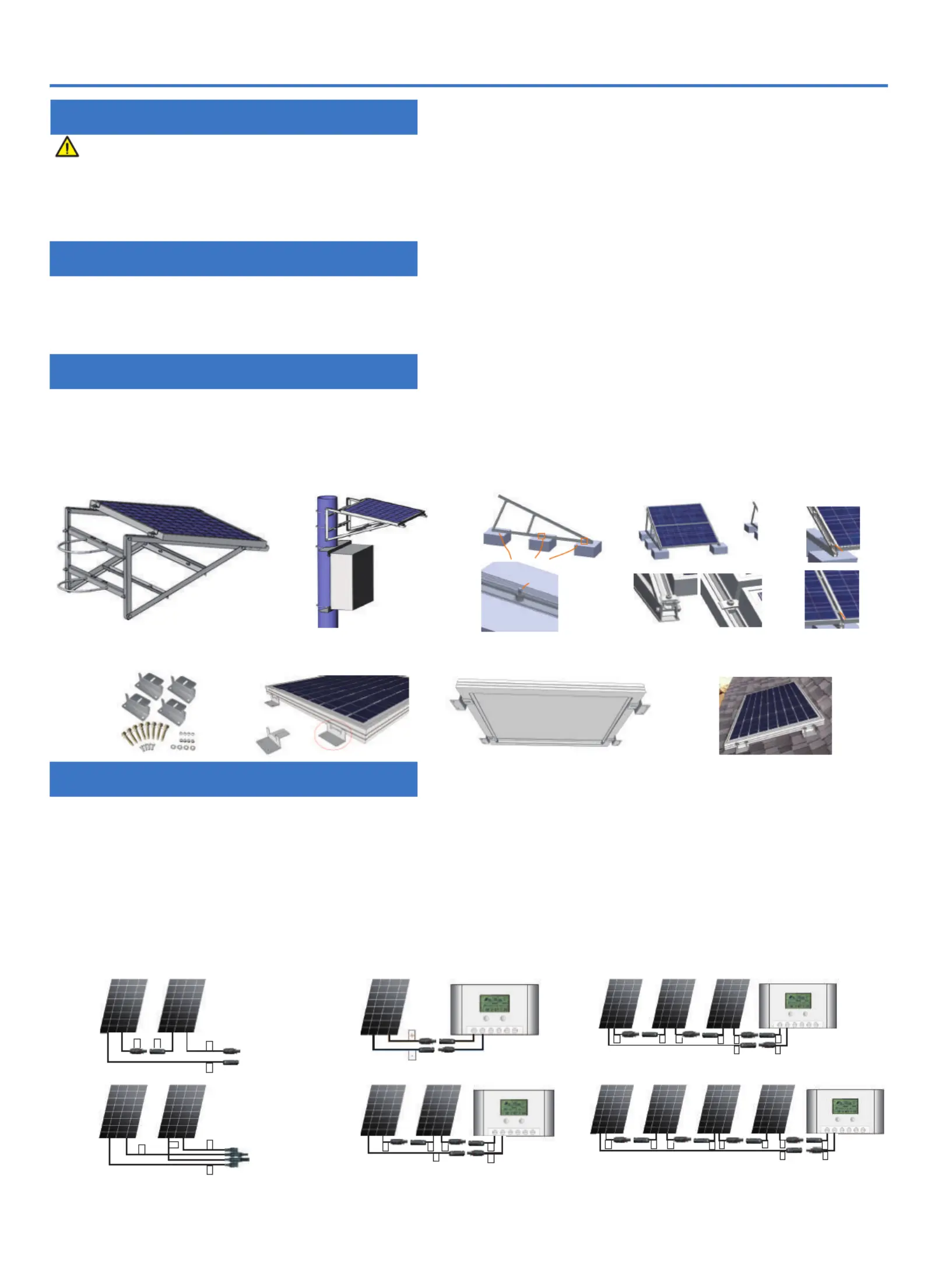

ACOPOWER Solar Panel Installation Manual
General provision
a. Installation should only be performed by qualified personnel. Each module is supplied with connectors used
for system electrical connections. For the convenience of installation, ACOPOWER can provide customized cables as
client required. Installers should assume all risks of injury that might occur during installation.
b . Inappropriate transport and installation may break the module and void the warranty.
Installation Photovoltaic Module
Solar panel connection
(a)
(b)
12V battery charging:1pc
24V battery charging: 2pc
36V battery charging:3pc
48V battery charging:4pc
Grounding installation ：
-
-
++
-
-
+
-
- -
+ +
+
+
-
+ +
--
+
-
-
+
+
-
+ +
-
-
-
+
+
expand bolt or anchor bolt
GS-KEC-F__
GS-KIC-F__
Ready to work
To set up the mounting bracket of solar panel depends on its size. The bracket fixting hole must be on the basis of the
pitch of hole of the solar panel module. The installation tools include: appropriate fasteners (Rails Clamp Hardware
screws, nuts ) and the other installation tools.
c. For rooftop installation, please choose“Solar Panel Mounting Z Bracket ”to Install on the roof and RV, Boats and
other systems
