Oldal 1/4
FIRMWARE UPDATE
Firmware can be updated using the CRMX Toolbox 2 app from
LumenRadio. The app is available for both iOS and Android and
can be downloaded from App Store or Google Play.
1. Press and hold the link switch for more than 10 seconds,
until the unit indicates that it is in update mode.
2. Within 60 seconds, connect to the device using the app.
3. After connecting, select the “Update” option in the app.
Note: The device will automatically leave update mode after 60
seconds if no connection has been made.

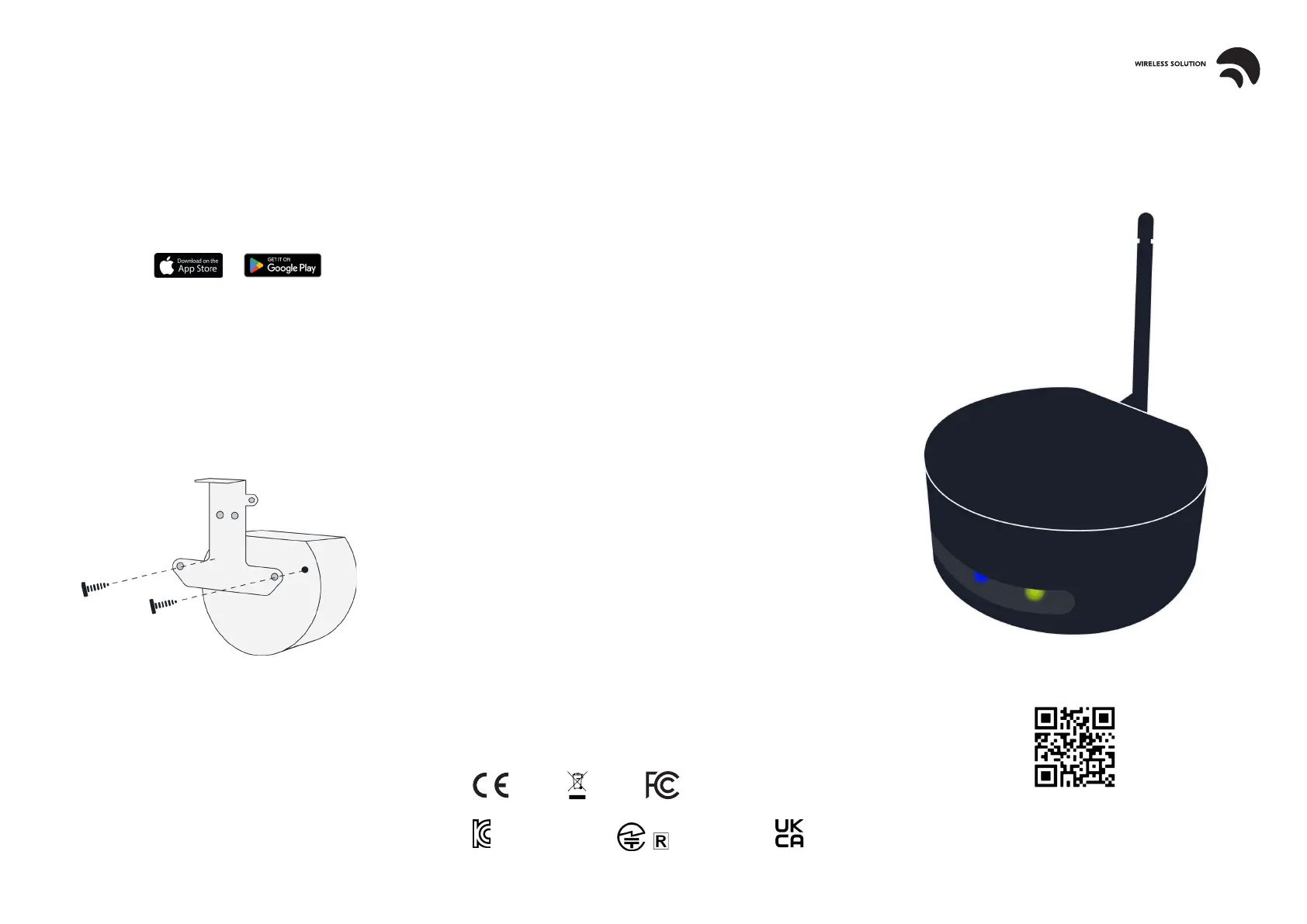

RIGGING
Whenever you are going to rig your Orb unit in a truss or other-
wise place it more than 2m above ground, the supplied truss
mounting bracket must be used.
Fasten the bracket in a suitable truss clamp using an M10 or
3/8” bolt. The truss mounting bracket also allows for a safety
wire to be used whenever necessary.
The truss mounting bracket shall be mounted according to the
picture below.
WARRANTY AND SUPPORT
All warranty claims or support topics for this product shall be
directed to the local distributor/reseller. To nd your local distri-
butor, visit www.wirelessdmx.com
Warranty is deemed void if:
(1) The product is modied, repaired or otherwise altered unless
it has been directed by LumenRadio AB; or
(2) The serial number on the product (the QR code) has been
compromised.
SPECIFICATIONS
Power supply AC1: 100-240 VAC +/- 10% 50/60 Hz
Power supply DC: 5 VDC +/- 10%
Max. power consumption: 1W
Self-healing fuse: Yes
IP rating: IP 20
Dimensions (W x H x D): 99 x 97 x 43 [mm]
Weight: 190 g
Antenna connector: RP-SMA
Operating temp. range: -20 to +55 °C
Storage temp. range: -30 to +80 °C
Humidity: 0 – 90% non-condensing
Frequency range: 2402 – 2480 MHz (ISM band)
Max. RF output power: 35 mW
Supported protocols: DMX-512A
Supported RF protocols (TX): W-DMX G3
Supported RF protocols (RX): CRMX, CRMX2 , W-DMX G3, G4,
G4S & G5
1With external power supply only
LEGAL
CRMX is a trademark of LumenRadio AB, W-DMX is a trade-
mark of Wireless Solution Sweden AB.
Wireless Solution Sweden AB is a fully-owned subsidiary of
LumenRadio AB.
DMX-512A refers to ANSI national standard developed and
maintained by ESTA, Entertainment Services and Technology
Association.
This product makes use of US patents 9,208,680; EU patents
EP 2415317, EP 2803248, China patents CN 102369774, CN
104041189B and others.
Version of this quick start guide: Version 1 (2023-11-01)
MANUFACTURER
LumenRadio AB LumenRadio
Johan Willins gata 6 Alfred-Herrhausen-Allee 3-5
416 64 Gothenburg DE-65760 Eschborn
Sweden Germany
Scan for additional
information
W-DMX ORB
FCC ID: XRSTIMOMWA201
IC ID: 8879A-TIMOMWA201
017-200015R-R-xrs-200-2019
by LumenRadio
GENERAL
All personnel must acquaint themselves with the instructions
in this leaet before using this product. This product must not
be used if damaged. For additional documentation for W-DMX
Orb and instructional videos, scan the QR code on this leaet,
or visit www.wirelessdmx.com.
APPLICATION AREA
W-DMX Orb is a wireless lighting control device and is de-
signed to be used indoors only. It is intended to be used by
professional users.

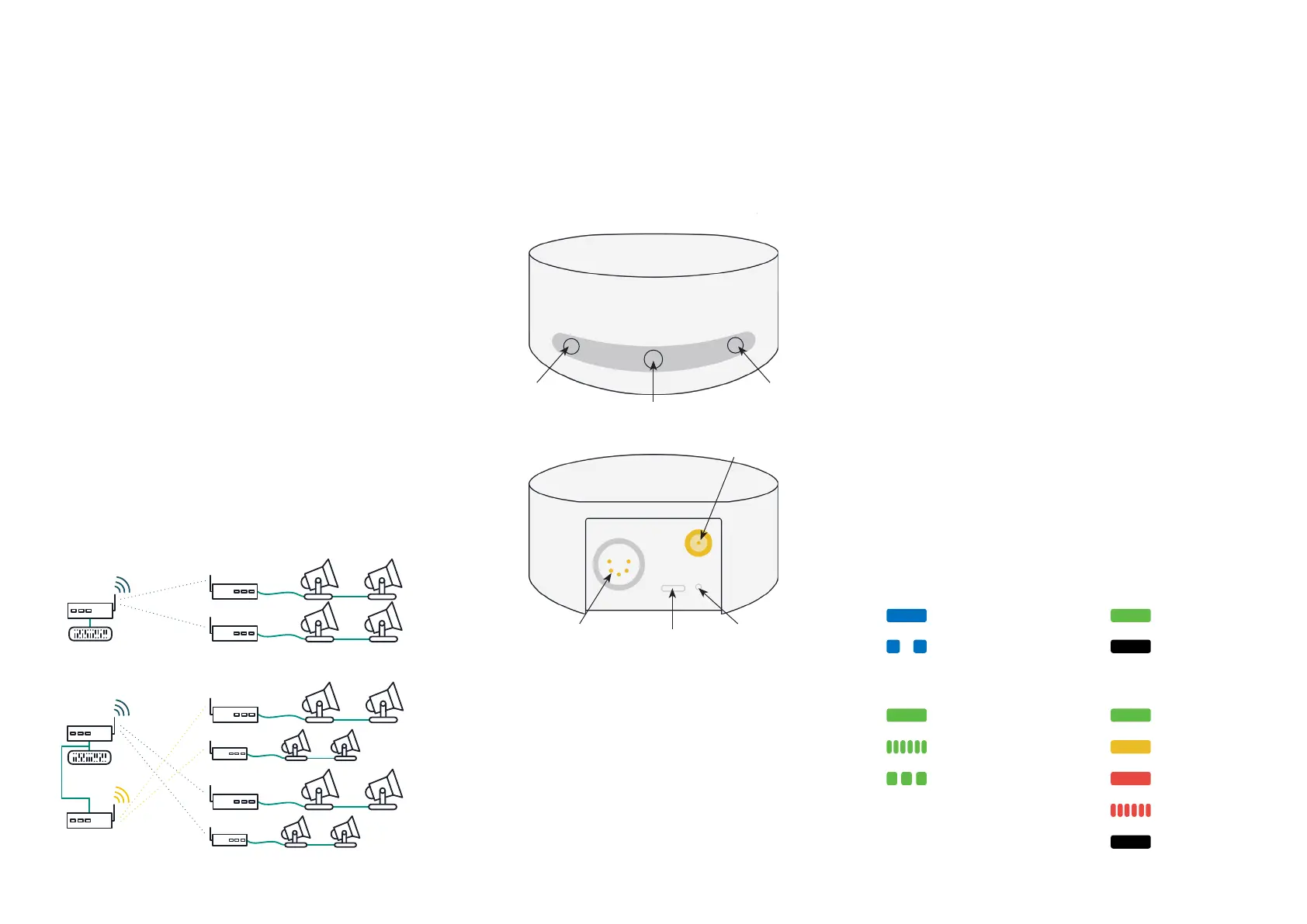

YOUR WIRELESS DMX SYSTEM
Welcome to the Wireless DMX family! We hope you enjoy your
brand new devices – W-DMX products are known for it’s ease of
use, and we thrive on avid users like you who use our products.
But before you use, you must know: there are two main modes
of operation, that with Orb comes in two different versions;
• Transmitter (TX) – it will transmit your wireless DMX data
• Receiver (RX) – it will receive your wireless DMX data
A transmitter can transmit to one or several receivers at a time,
and it is possible to use multiple transmitters to transmit mul-
tiple DMX universes.
Point-to-multipoint operation
Multioint-to-multipoint operation
BOX CONTENT
• 1 pc. W-DMX Orb unit (RX or TX)
• 1 pc. External power supply for world-wide use
• 1 pc. USB-C to USB-C cable for power
• 1 pc. RP-SMA 2dBi antenna
• 1 pc. Quick start instruction (this leaet)
YOUR W-DMX ORB UNIT
Data LED Radio Led
Power LED
Antenna connector
Data in/out Link Switch
5V input
INSTALLATION
Before you start using your W-DMX Orb unit, make sure the
device does not have any visible damages. Also make sure the
supplies power supply does not have any damages.
1. Connect the antenna
2. Plug in the supplied power supply using the supplied USB
cable, and make sure the blue power LED lights up.
3. Connect data cable
4. Perform linking (see instructions on next page)
LINK AND UNLINK
Before your wireless DMX system can transport data the TX and
RXes needs to be linked together. After an RX is linked to a TX
it will stay linked until actively unlinking it.
To link:
1. Make sure the RXes you with to link is powered on, within
range, and unlinked (see unlink instructions if needed).
2. Momentarily press the link switch on the TX unit.
3. Wait approx. 10 seconds while the TX is performing the
linking procedure.
4. Now all receivers that was within range and not already
linked to a TX will be linked to this TX.
To unlink one RX:
1. Press and hold the link switch on the RX you want to unlink
for more than 3 seconds.
2. Check the Radio LED to verify that the RX is unlinked.
To unlink several RXes from a TX:
1. Make sure all RXes you wish to unlink is powered on and
within range from the TX.
2. Press and hold the link switch on the TX for more than 3 se-
conds until the Radio LED on the TX starts to blink slowly.
3. Verify that all RXes became unlinked by checking the Radio
LED.
Note: RXes that are either not powered or not within range from
the TX when unlinking is performed will remain linked to the TX.
LEDS
Power LED Data LED
Power on DMX present
Update mode No DMX present
Radio LED (TX) Radio LED (RX)
Transmitting > 70% signal
Linking 30–70% signal
Unlinking < 30% signal
TX not found
Unlinked
TX
TX
RX
RX
RX
RX
RX
RX
TX
