4K & Multi-Channel SD/HD HEVC HDMI Encoder
Key Features
· Low latency streaming from 2x HDMI, DVI-I or RGBHV sources simultaneously
· Ultra High Definition (4K)
· Up to 4 output streams
· Next-generation HEVC(H.265) compression support to reduce network bandwidth utilization by up to 50% compared to H.264
· Stream protection for reliable video/audio and metadata transmission (Zixi, SRT and Pro-MPEG)
· KLV/STANAG metadata ingest from IP plus multiplexing – JITC Compliant
Applications
· Multi-site and Multi-channel IP Video contribution
· IPTV Distribution from analog/digital video sources
· Direct-to-Web from HDMI sources
· Streaming Intelligence, Surveillance and Reconnaissance (ISR) video feeds from ground and airborne sources across LANs and WANs
· Streaming video to desktop/laptop, TV and mobile devices over bandwidth-constrained pipes
· Distribution of TV content / PC screen on an organizational network

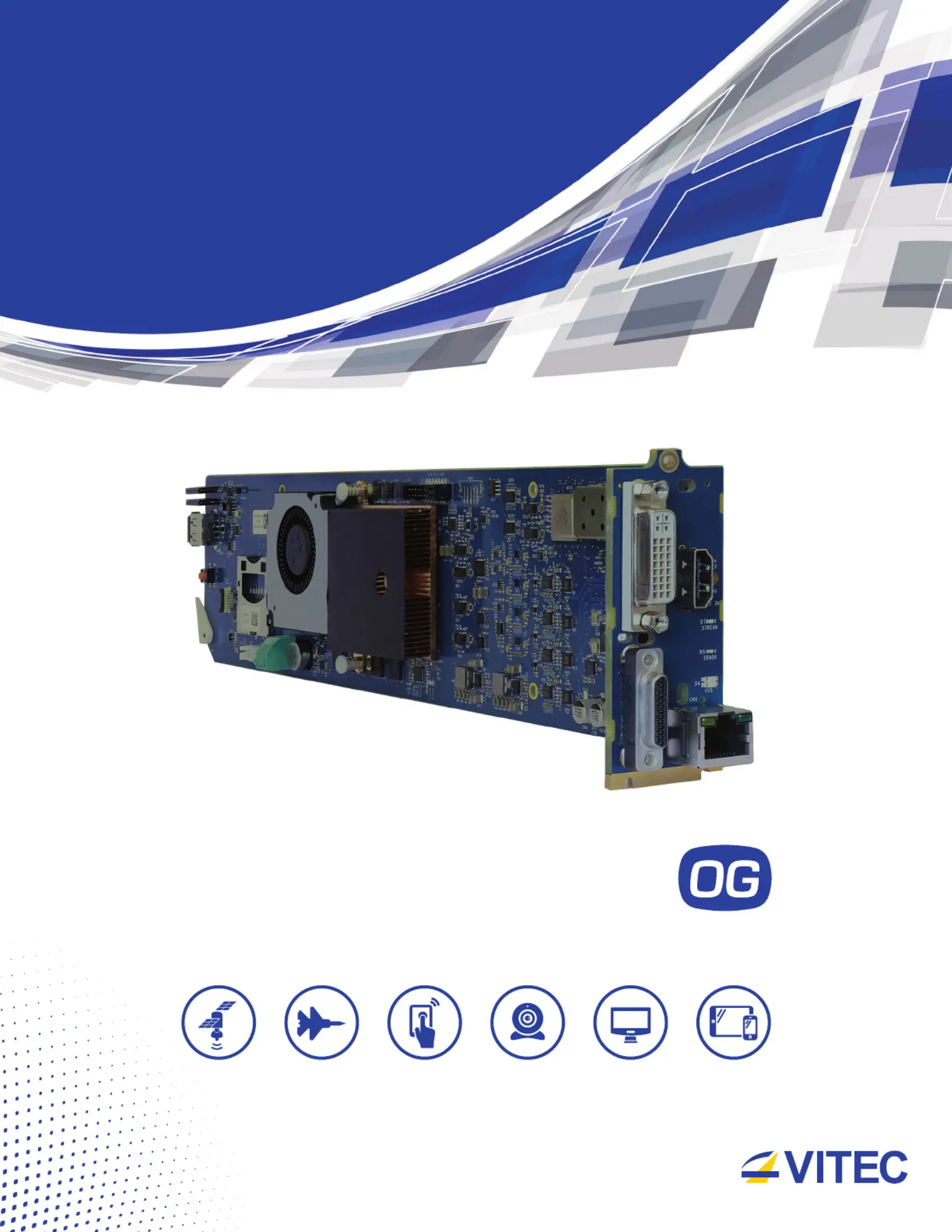

MGW Diamond-Hx OG is an openGear 4K HEVC video encoder card that is ideal for IPTV distribution or Direct-to-Web applications. It features a powerful
encoding engine with the ability to deliver up to four streams simultaneously. MGW Diamond-Hx OG is available as an openGear card for easy integration
with production studios, broadcast facilities or enterprise server room environments.
MGW Diamond-Hx OG captures up to 2x 4K/UHD/HD/SD sources from HDMI, DVI-I or RGBHV inputs and streams up to 4 live channels, addressing
diverse applications in enterprise, broadcast, defense and surveillance markets. With support for Ultra High Definition (UHD) and High Dynamic Range
(Roadmap), MGW Diamond delivers exceptional 4K60p picture quality taking advantage of a richer color gamut than other standard HD/4K encoders.
Ready for Direct-to-Web applications, MGW Diamond-Hx OG can capture HDMI feeds and publish to Content Delivery Network servers (CDN such as
YouTube™, Akamai™, Facebook™) for large scale distribution. Featuring advanced transport protocol protection with Zixi, SRT and Pro-MPEG, as well
as AES encryption, video feeds can be reliably and securely delivered over the internet for broadcast quality contribution. For data-sensitive applications,
the MGW Diamond-Hx OG supports KLV / STANAG metadata ingest from various sources (IP or Serial), real-time image cropping and video scaling, and
delivers JITC compliant output streams.
HDMI 1
Ethernet I/O
RGBHV / Serial / AudioDVI-I / HDMI 2

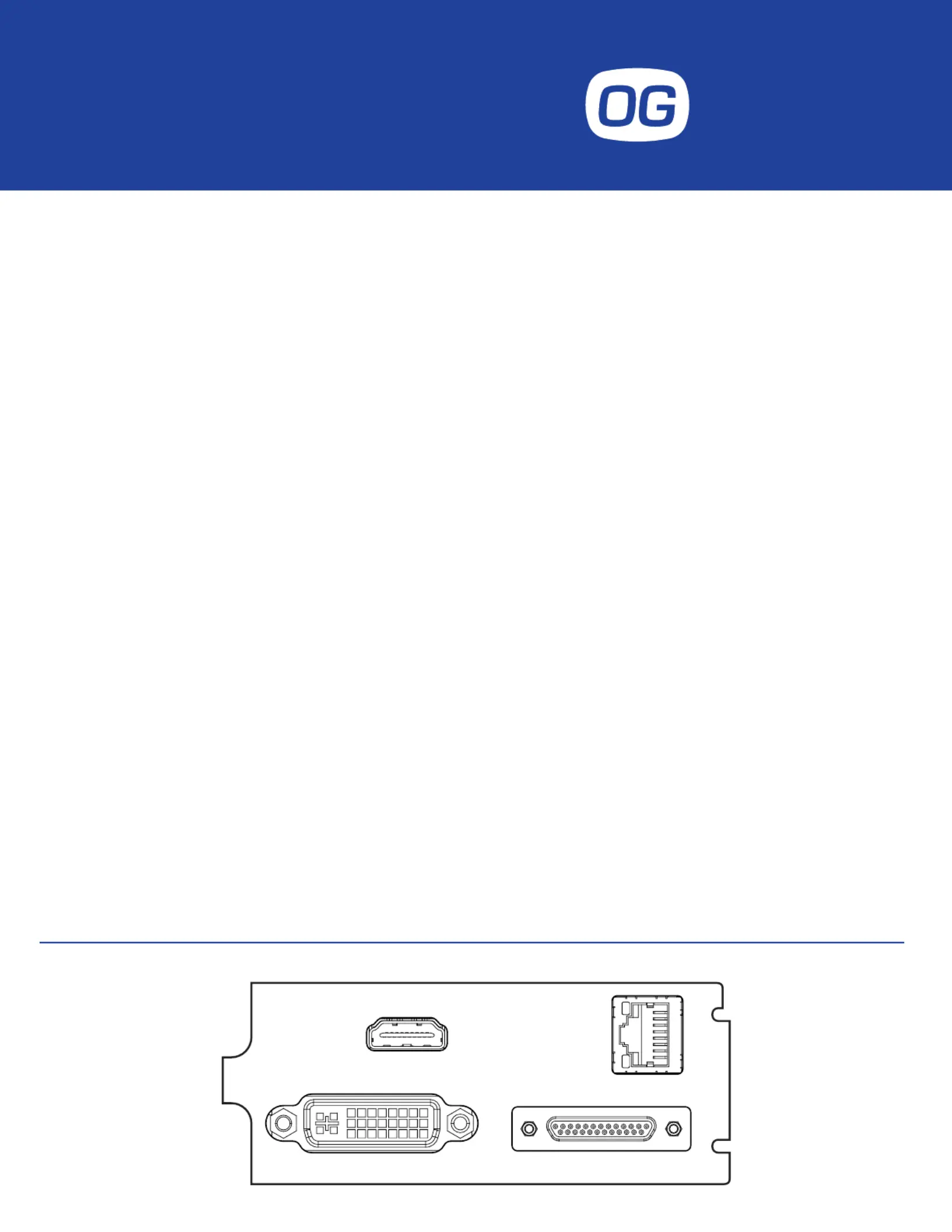

Rear Panel Interfaces
H.264 (MPEG-4 AVC Part 10) - ISO\IEC 14496-10 MPEG-4 AVC – Rec.
ITU-T H.264
· Modes:
o Baseline Profile L3
o Main Profile L3 and L4
o High Profile L4 and L4.2
· Bit Rate: 64Kbps to 80Mbps
· Selectable GOP structure and size: I, IP, IBP, IBBP, I(3)BP, I(4)BP
· Frame Rate: 1-60 fps. Configurable framerate from 60 down to 1fps.
· Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
· Output Resolutions: Configurable from CIF up to 3840x2160p60
· Encoding latency less than 30ms
Audio Output
Up to x32 audio encoding channels
· Codec: MPEG-4 AAC-LC (ISO/IEC 14496-3) and AAC-ELD
· Stereo and Mono modes
· Bit Rate: 32Kbps - 256Kbps in Stereo, 16Kbps - 128Kbps in Mono
· Sampling Rate: 16 kHz - 48 kHz
Ancillary Data Support
· High Dynamic Range (HDR) - HDMI (Roadmap):
o HDR10 (SMPTE ST 2084/ITU-R BT.2100)
o HLG (ITU-R BT.2100) from SDI (SMPTE ST 2108)
Network Protocols
· UDP TS: MPEG Transport Stream over UDP
· RTP TS: MPEG Transport Stream over RTP
· RTP ES (RTSP): Elementary stream over RTP
· Zixi™ Stream protection
o Zixi P2P and Broadcaster modes
o Zixi ABR streaming (Adaptive Bitrate)
o Zixi Low Latency
· RTP TS with ProMPEG Forward Error Correction (SMPTE 2022)
· SRT Caller, Listener and RendezVous with FEC support
o SRT Listener multi-destination
o Stream ID / tagging for easier streaming port management
· RTMP (H.264)
· Unicast and Multicast (IGMPv3) streaming
· HTTPS, SSH, SAP
· NTP, PTP v1 & v2 (IEEE 1588-2002, IEEE 1588-2008)
Encryption
· Real-time AES encryption for video, audio and metadata.
· 128- and 256-bit encryption key support.
· Interoperability with AES compliant systems such as VITEC
EZ TV and FITIS distribution platforms
Technical Specifications
Video Inputs
· HDMI (Type A connector)
· DVI-I (Female connector): DVI-A and DVI-D/HDMI
· RGBHV
· Supported standards: HDMI 2.0, from SD up to 4K60p
Input Resolutions / Frame Rates
o 4096x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (4K DCI) - HDMI1
o 3840x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (UHD) - HDMI1
o 2048x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (2K) - HDMI1
o 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
o 1920x1080i @ 60, 59.94, 50 Hz (HDMI, DVI-D)
o 1280x720p @ 60, 59.94, 50, 30, 29.97, 25 Hz
o 720x480/576i @ 60, 59.94, 50 Hz (HDMI, DVI-D)
Graphical resolutions
o 1600x1200p @ 60, 50 Hz
o 1400x1050p @ 60, 50 Hz
o 1440x900p @ 60, 50 Hz
o 1366x768p @ 60, 50 Hz
o 1280x1024p @ 60, 50 Hz
o 1280x800p @ 60, 50 Hz
o 1280x768p @ 60, 50 Hz
o 1024x768p @ 60, 50 Hz
o 800x600p @ 60, 50 Hz
Audio Inputs
· HDMI Embedded audio (Stereo and Mono)
· 2x Analog unbalanced audio (Stereo and Mono)
Video Output
· Simultaneous HEVC and H.264 IP Video encoding of 2x independent
channels (up to 1080p60 per channel)
· Up to 4 output streams with independent resolution (downscaling),
frame rate and bitrate
· Up to 1x 4K60p output stream
HEVC (H.265) MPEG-H HEVC (ISO/IEC 23008-2)
· Main / Main 10 and Main 4:2:2 - up to 4:2:2 10-bits
· Level up to Level 5.2, Main and High Tier
· Selectable GOP structure and size: I, IP, IBP, IBBP, I(3)BP
· Bit Rate: 36Kbps to 80Mbps
· Frame Rate: 1-60 fps. Configurable frame rate from 60 down to 1fps.
· Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
· Output Resolutions: Configurable from CIF up to 3840x2160p60
· Encoding latency less than 30ms
