Oldal 1/16

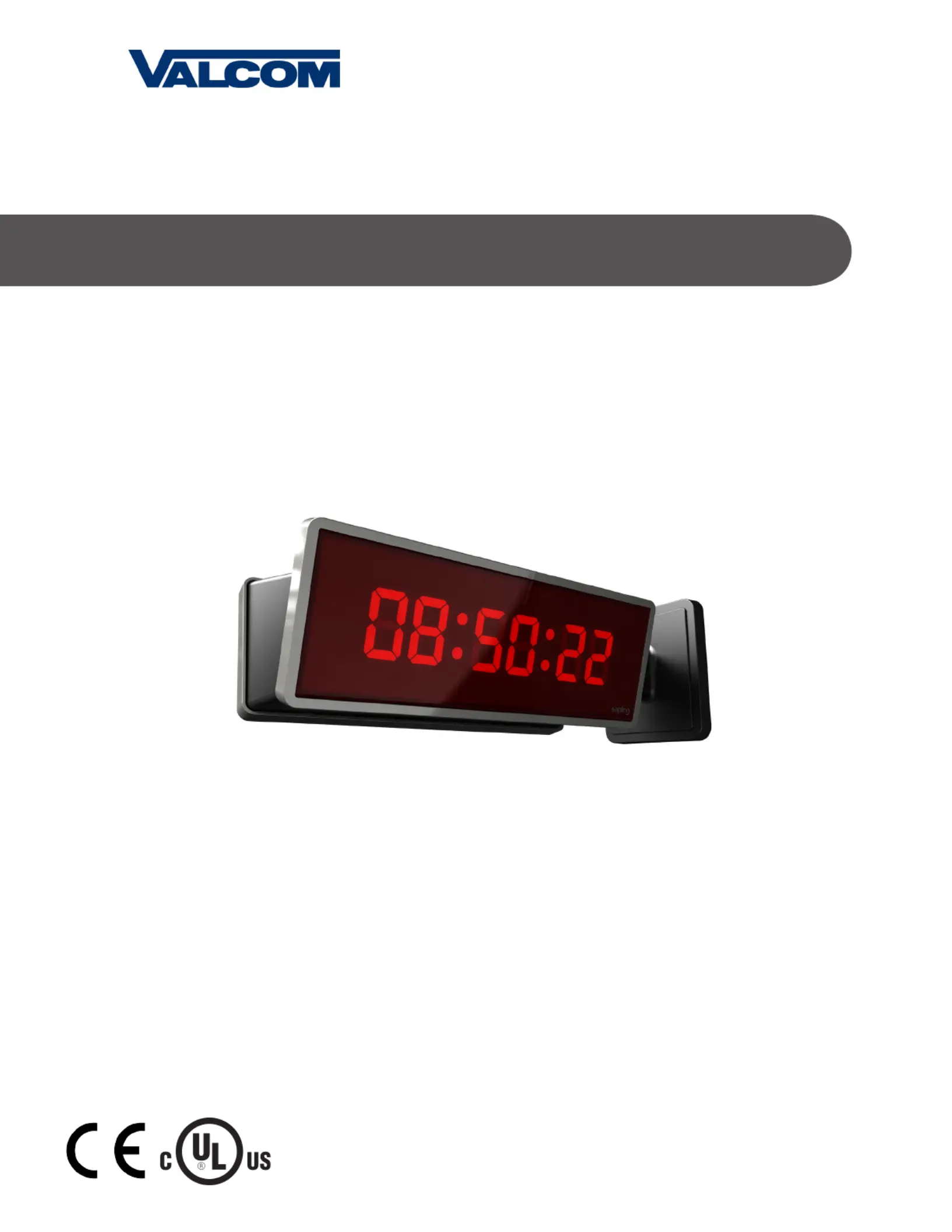

V-D2425 and V-D2440 Digital Clock
Installation Manual V1.03
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
540-563-2000 P.
540-362-9800 F.
www.valcom.com
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
540-563-2000 P.
540-362-9800 F.
www.valcom.com
2
Table of Contents
Installation Instructions
Flush Mount 3
Wall Mount 4
Double Mount 5
Wiring Information
Wiring and Jumper Settings 6
2-Wire Digital Communication 7
RS485 Communication 110V 8
Support
Frequently Asked Questions 9
Troubleshooting 10
V-D2425 and V-D2440 Wired Clock
Table of Contents—2
Flush Mount Installation—3
Surface (Wall) Mount Installation—4
Metal Double Mount Installation—5
Plastic Surface (Wall) Mount Installation—6
Plastic Surface (Wall) Mount Installation—7
Plastic Double Mount Installation—8
Plastic Double Mount Installation—9
Plastic Double Mount Installation—10
Wiring and Jumper Settings—11
2 Wire Digital Communication Wiring Information—12
Troubleshooting—13
Frequently Asked Questions—14
Compliances—15
*manuals may change without prior notice
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
540-563-2000 P.
540-362-9800 F.
www.valcom.com
3

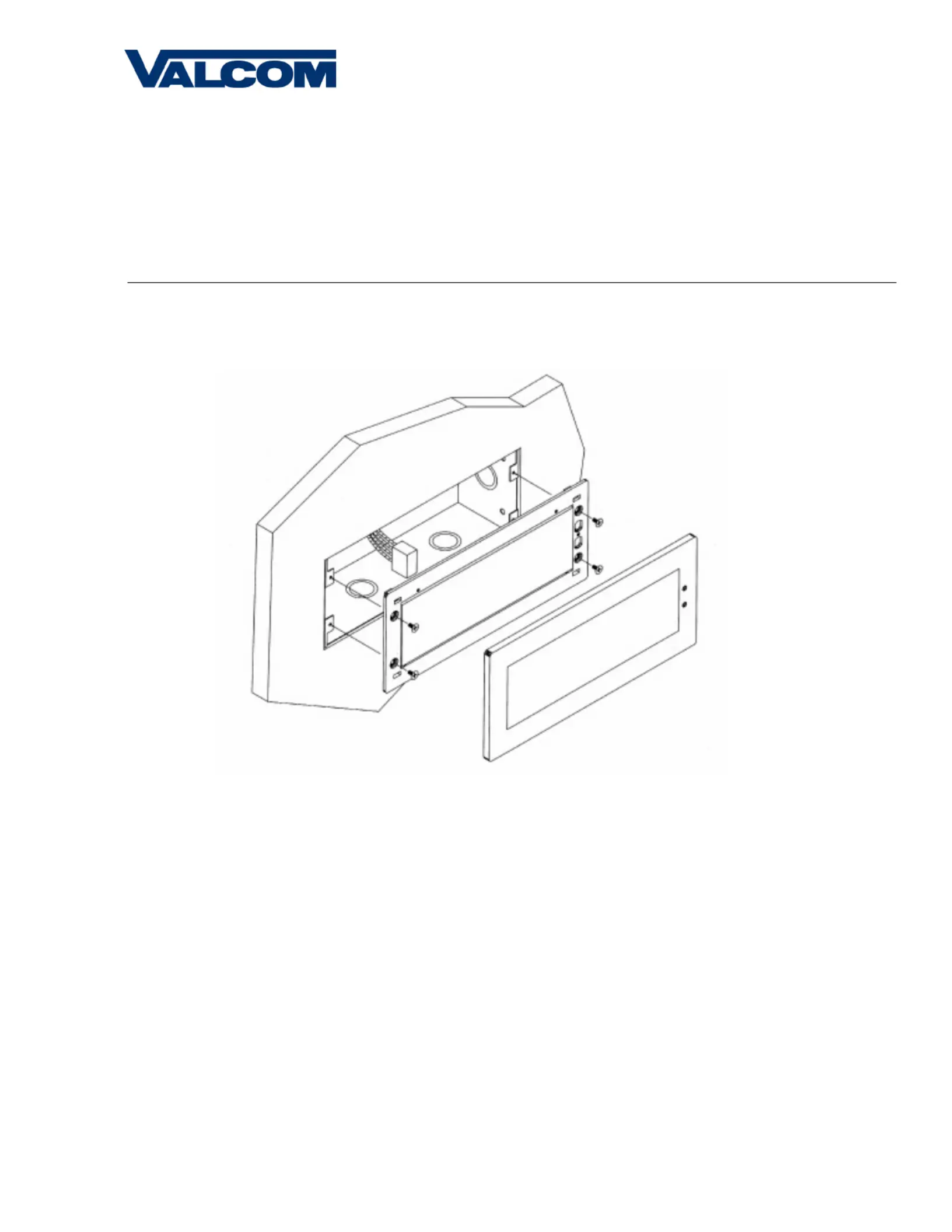

1. Mount the flush mount box into the wall.
2. Connect the ground wire into the flush mount box using the tooth lockwasher and the machine screw nut (included in the
kit).
3. Disconnect the red filter from the display panel.
4. Connect the wiring as shown on the wiring diagram.
5. IMPORTANT: If using a low voltage system (24 volt) make sure that the transformer is an transformer.isolated
6. Mount the display panel into the flush mount box using the four (4) black machine screws (#6, included in the kit). Make
sure the switches are on the right side.
7. Snap the red filter into the display panel.
Installation Instructions
Flush Mount Installation
