Installation Guide
Note:
1. The PoE Injector supplies steady power and data connectivity to a powered device such as PoE IP Camera, PoE AP and PoE IP Phone through an Ethernet cable.
2. For POE170S/POE380S, plug the product into the wall outlets with earthing connection through the power supply cord.
PoE Injector

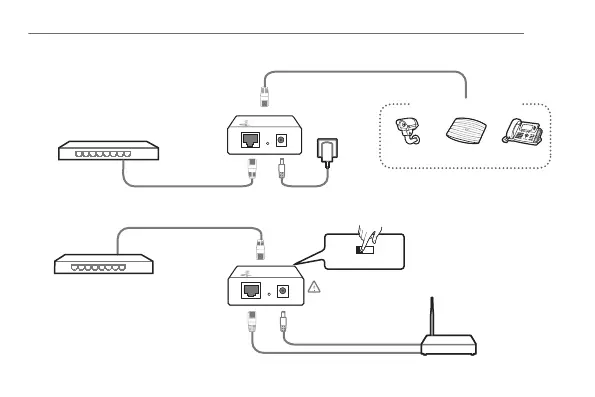

Connection
IP Camera AP IP Phone
Powered Device (PD)
PWR PWR+DATA OUT DATA IN
Ethernet Device
(switch, router, etc.)
PoE+ Injector
Note:
For simplicity, we will take POE160S for example in this Guide.
LED Explanation
O: Power o
Steady Yellow: Power on, no PoE power supply
Steady Green: Power on, normal PoE power supply
Flashing Green: Abnormal PoE power supply
PWR
On: Power on
O: Power o
PWR
On: Normal PoE power supply
O: No powered device connected
Flashing: Abnormal PoE power supply
PoE
© 2023 TP-Link
7106510598 REV2.0.0
For POE170S/POE380S
For POE160S/POE260S
A:
Yes. All RJ45 ports of the PoE injector support 10/100/1000 Mbps.
Q1. Can the PoE injector supply power to a PoE device which
doesn’t have a gigabit PoE port?
A1: Ensure the PD is PoE-compliant and its connecting port supports the PoE
function.
A2: Ensure the power consumption of the PD doesn’t exceed the maximum
power supply of the PoE injector, otherwise the overload protection of the
PoE injector will be activated. The quality and length of the Ethernet cable
may inuence the reception of the power supply.
Q2. What can I do if my PoE injector doesn’t supply power to
the powered device or the supplied power is unstable?
FAQ
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com to join TP-Link
Community.
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please
contact us.
The plug on the power supply cord is used as the disconnect device, the
socket-outlet shall be easily accessible.
Plug the product into the wall outlets with earthing connection through the power supply
cord.
The PoE ports shall not be used to charge lithium batteries or devices supplied by lithium
batteries.
Please read and follow the above safety information when operating the device. We
cannot guarantee that no accidents or damage will occur due to improper use of the
device. Please use this product with care and operate at your own risk.
Specications
Operating Temperature
POE160S/POE260S:
0 C to 40 C (32 F to 104˚ ˚ ˚ ˚F)
POE170S/POE380S:
0 C to 45 C (32 F to 113˚ ˚ ˚ ˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Storage Humidity 5% to 90% RH non-condensing
Operating Humidity 10% to 90% RH non-condensing
Environmental and Physical Specifications
Interfaces
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE
802.3af, IEEE 802.3at
IEEE 802.3bt (Only for POE170S/POE380S)
IEEE 802.3bz (Only for POE260S/POE380S)
IEEE 802.3an (Only for POE380S)
Standards
POE160S/POE260S: PWR
POE170S/POE380S: PWR, PoE
10Base-T/100Base-TX: UTP category 5 cable or above (max. 100 m)
1000Base-T/2.5GBase-T: UTP category 5e cable or above (max. 100 m)
5GBase-T: UTP category 5e cable or above (max. 100 m)(Only for POE380S)
10GBase-T: UTP category 6a cable or above (max. 90 m)(Only for POE380S)
LED
Cable Type
General Specifications
10Base-T/100Base-TX: UTP category 5 cable or above (maximum
100 m) EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T/2.5GBase-T: UTP category 5e cable or above
(maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100m)
5GBase-T: UTP category 5e cable or above (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100m)
10GBase-T: UTP category 6a cable or above (maximum 90 m)
EIA/TIA-568 100Ω STP (maximum 90m)
Dimensions
(L×W×H) POE160S/POE260S: 125×59.4×36.8 mm
POE170S/POE380S: 154.7×70×42 mm
Wall
Mountable Yes
POE160S/POE260S: 30 W
POE170S: 60 W
POE380S: 90 W
Maximum
Power Supply
POE160S/POE260S: 115.7 mm (Vertical), 37.7 mm (Horizontal)
POE170S/POE380S: 102 mm (Vertical)
Distance Between
Mounting Holes
TP-Link hereby declares that the device is in compliance with the essential
requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU,
2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at
https://www.tp-link.com/en/support/ce.
TP-Link hereby declares that the device is in compliance with the essential
requirements and other relevant provisions of the Electromagnetic Compatibility
Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.
The original UK Declaration of Conformity may be found at
https://www.tp-link.com/support/ukca
