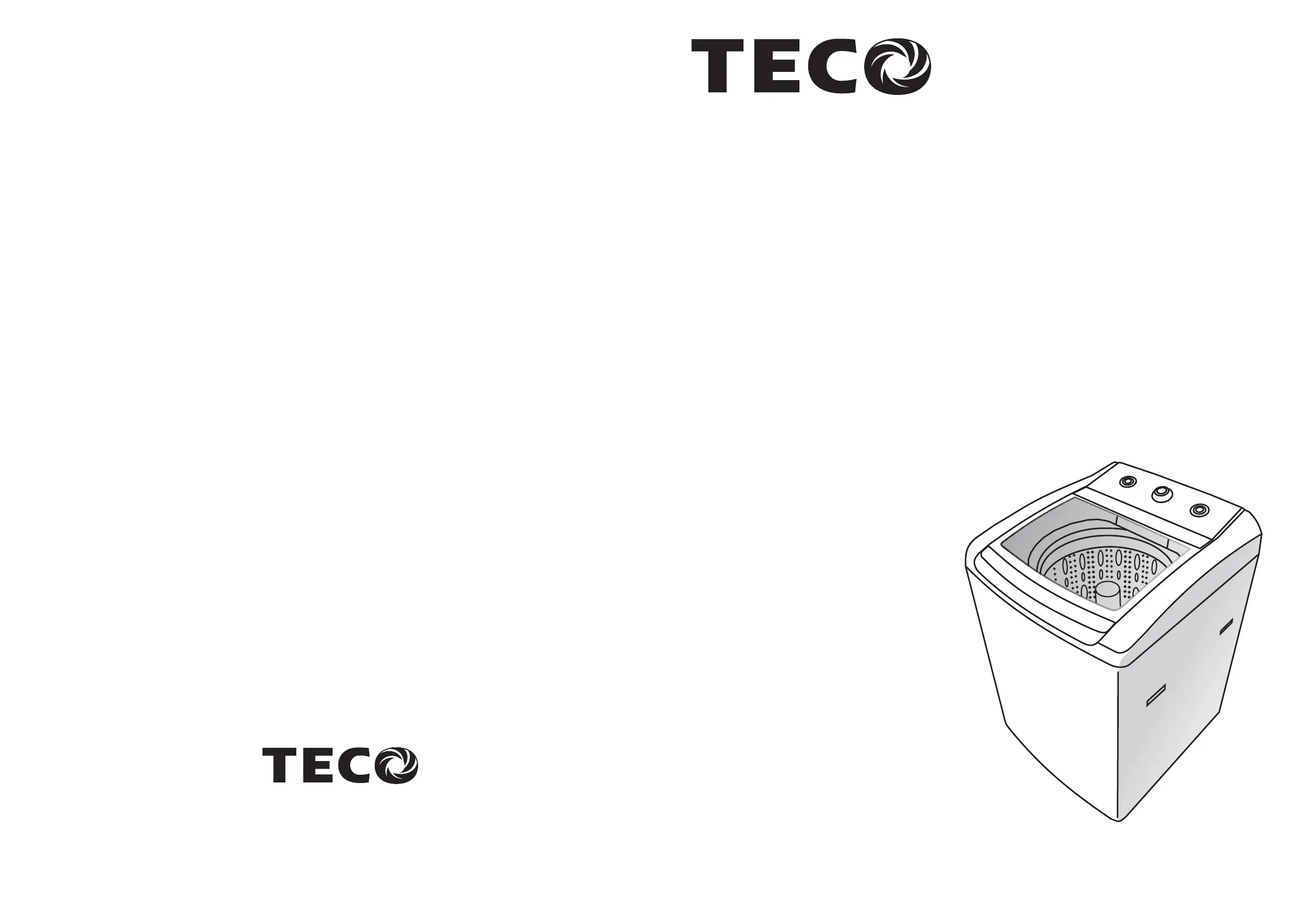

www.teco.com.au

BBE-PV4

10Kg TOP LOAD

CLOTHES WASHER

USER’S MANUAL

Model : TWM100TAB

Engineered To Perform

To ensure proper use and your safety, please read the following user manual completely before operating this

appliance. Please keep this manual in a safe place for future reference.

 Thank you for purchasing our product and thank you for placing your conﬁ dence in us.

 Read this manual carefully before use. Follow instructions and keep the manual for future reference.

 Follow the operating instructions and safety notices in this manual.

 If any trouble arise, do not ﬁ x it yourself or hand it to the after sales service centre which have not

been authorised. Please contact TECO service on 1300 660 037 (9am ~ 4pm AEST Mon - Fri).

WARNING ICON

This symbol indicates information concerning your personal safety

CAUTION ICON

This symbol indicates information on how to avoid damaging the appliance

SAFETY PRECAUTIONS

Keep ventilation openings, in the appliance enclosure or in the built in structure, clear of obstruction.

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

Young children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

qualiﬁ ed persons in order to avoid a hazard.

When disposing of the appliance, do so only at an authorised waste disposal centre.

Don’t store inﬂ ammable materials such as ether, benzene, LP gas and glue etc near the appliance.

Please keep the appliance away from substances which could cause ignition.

Before obtaining access to electrical terminals, all electrical supply circuits must be disconnected.

The clothes washer is designed to operate on a single phase power supply within a voltage range of

220~240V/50Hz.

Don’t splash water on the rear of the appliance, for it may cause malfunction or electric shock.

Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or

switch off the circuit breaker.

Never disassemble any part of the clothes washer.

Never insert your hand and remove items from the washer until the appliance has come to a complete

stop.

Choose a location that is indoors, completely dry and away from damp environments.

Never splash, wet or hose the appliance. It is recommended to use a damp cloth when cleaning the

cabinet.

Do not attempt to wash fabrics that contain latex or rubber material.

Do not place items that have come in contact with any ﬂ ammable materials such as petrol/gasoline,

kerosene, cleaning solvents, vegetable oil, cooking oil or any explosive substances.

Never place heat sources (candle, heater, etc.) on top of or near the washer.

Never pull the power cord from the socket by the cord. Always unplug the washer using the plug.

Safety of children

Packaging (e.g. wraps, polystyrene, etc.) can be dangerous for children. There is a risk of suffocation.

Keep packaging materials away from children. Remember to dispose of old appliances in accordance

with local laws. Pull out the mains plug, cut off the mains cable, break or remove spring or bolt catches

if ﬁ xed and ensure that children cannot lock themselves in the appliance when playing (there is risk of

suffocation) or involve themselves in other dangers, for children cannot recognize the hazard present

in household appliances themselves. Therefore, it is very important for parents to make adequate

supervision and never let children play with the appliance.

WARNING

CAUTION

NOTES:

____________________________________________________________

SPECIFICATIONS

Model TWM100TAB

Rated Motor Input

Power 680W

Classiﬁ cation of use Indoor use only

Rated Total Gross

Volume (L) 10Kg

Voltage (V) 240

Frequency (Hz) 50

Washing Type Agitator

Dimensions

(mm)

Net Weight (Kg)

Height

Width

Depth

1023

686

718

65Kg

IP rating IPX4

Water Pressure

Max. Spin Speed

0.03MPa - 0.8MPa

650 RPM

NOTE: This product is subject to continuous improvement, speciﬁ cations are

subject to change without prior notice.

This product was tested in accordance with AS/NZS 2040.2 and AS/NZS 6400

at washing program: Soiled wash program and water level 8, which is suitable

for a normally soiled load.

TABLE OF CONTENTS

Safety Precautions

Table Of Contents

Identifying Washer Parts

Quick Start Guide

Installation

Pre Wash Checklist

Control Panel

Control Panel - Wash Programs

Control Panel - Program Guide

Cleaning & Maintenance

Troubleshooting

Repairs, Service & Warranty

Speciﬁ cations

4 - 5

6 - 7

8 - 9

14 - 15

................
