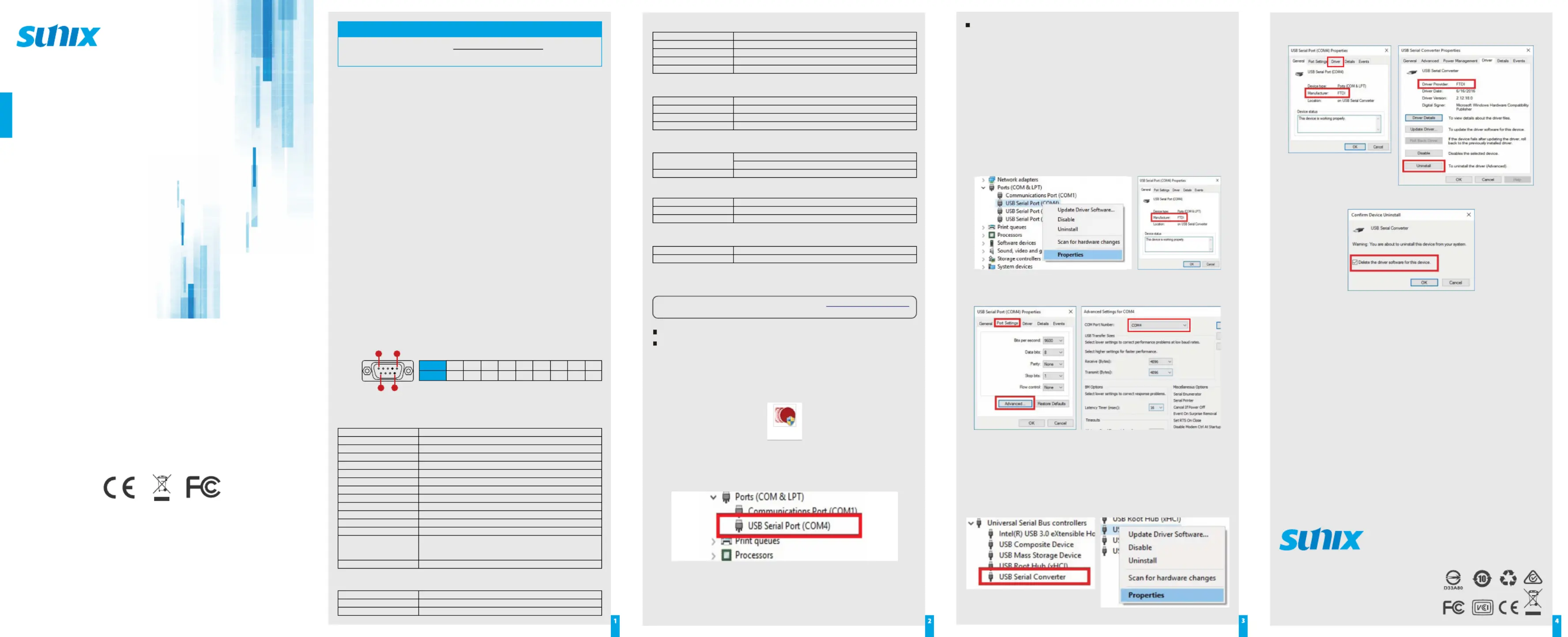

USB to RS-232 Adapter
Quick Installation Guide
w w w . s u ni x . c o m
First Edition
• Expands one independent RS-232 serial port through USB interface.
• Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
• No IRQ, DMA, I/O address resource required.
• Supports USB2.0 and USB1.1 compatible.
• Each serial port provides transmission rate up to 115.2Kbps.
• Built-in ± 15KV ESD protection for all serial signals.
• Compact Size and low power consumption.
• Supports both USB bus power mode without additional external power.
• Certied by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows and Linux.
Features
SUNIX ComHub UTS series transform your Universal Serial Bus (USB) port into asynchronous RS-232
serial ports for communication with serial devices. The UTS1009DF adapter is compatible with both
USB 2.0 and 1.1 specications and provides serial ports with transfer speed up to 115.2Kbps. It
provides a quick, simple and cost-effective way to bring the advantages of data accessibility and
mobile solution for kinds of commercial and industrial automation applications.
Introduction
After installing USB to Serial Adapter successfully, you can modify the setting for each port in
Device Manager.
Port Setting
Uninstalling Driver
Please Check if the following items are present and in good condition upon opening your
package. Contact your vendor if any item is damaged or missing.
1. UTS1009DF - 1 port USB-to-RS-232 Adapter, Cable 350mm
2. Quick Installation Guide
Package Checklist
Please visit SUNIX website http://www.sunix.com by searching
keyword “UTS1009DF” for detail manual and driver update.
Driver & Manual Download :
Specification
PIN
RS-232
DCD RxD TxD DTR GND DSR RTS CTS
1 2 3 4 5 6 7 8 9
RI
Pin Assignment
COM port pin assignments for USB to Serial Adapter
DB9M:
6
1 5
9
Power
Power Source USB Bus Power +5VDC (±5%)
Standby Power Consumption
<100mA / 5VDC
Working Power Consumption
<150mA / 5VDC
Operation Environment
Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
Function
Model 1-port USB to RS-232 Adapter
Mode of Operation HandShaking
Bus Transceivers RS-232 Full-Duplex
Driver per Line RS-232 1 Driver
Receivers per Line RS-232 1 Receiver
Dimension
Molding Dimension 15 x 45 x 33 mm
Cable Length 350mm
Driver Support
Microsoft Windows XP / 7 / 8.x / 10 (X86/X64)
Microsoft Embedded CE4.2 / 5.2 / 6.0 / 7.0 / 2013
Microsoft Server 2008R2 / 2012R2 (X64)
Linux Linux 2.6.x or later
Regulatory Approvals
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
FCC Part 15 Class B, RoHS
Hardware EMC
Microsoft WHQL Window XP / 7 / 8.x / 10Software Driver
(1) Please insert the CD driver into your CD/DVD ROM or you can download the latest driver
from SUNIX ofcial website (http://www.sunix.com) by searching“UTS1009DF”.
(2) Please check the individual folder as the following location from your CD/DVD.
Linux
Supported Linux 2.4 or later, and Ubuntu 11.10, kernel 3.0.0-19
: \ USB \ USB to IO \ Linux \
NOTE: Please visit chipset vender ~ FTDI web site ( )http://www.ftdichip.com/
to get the latest driver.
Driver Installation/Verify
Microsoft Windows: XP / 7 / 8.x / 10 (X86/X64)
Microsoft Server: 2008R2 / 2012R2 (X64)
In order to ensure proper operation of your USB to serial adapter,
please follow the instructions below:
(1) Please insert the CD driver into your CD/DVD ROM or you can download the latest driver
from SUNIX ofcial website (http://www.sunix.com) by searching“UTS1009DF”.
(2) Click the Setup.exe from your CD/DVD device
(3) Follow the onscreen installation step.
(4) After nishing installation, please connect the USB Serial Adapter to your PC.
(5) Please check to see if each is installed properly in Device Manager.
: \ USB \ USB to IO \ Setup.exe
Start > Controller Panel > System > Device Manager
The number of COM ports will depend on what products you bought
(1) Right click your mouse on the COM port, and select “Properties”.
Please make sure Maunfacturer is FTDI.
(4) Select “ ” to nish the uninstallation.Delete the driver software for this device
(1) You can go to the Device Manager and right click your mouse on the COM port,
and select “Properties”.
(4) When serial device requires setting to a specic COM number, comrm the port
number match the seetings required for your serial device.
(2) Select “Port Setting” page to modify COM port setting.
(3) Select “ ” icon, you can modify COM port number and FIFO.Advanced
CDM21218_
Setup.exe
(2) Please make sure the Manufacturer is FTDI, and select “Driver”.
(3) Please select “Uninstall” in the Driver setting.
Troubleshooting
Q 1. The USB to Serial Adapter will NOT communicate with my serial device.
Ans: It may cause by following issue:
a. Please verify that the USB to Serial Adapter is installed correctly.
b. Conrm that the port settings match the settings required for your serial device.
c. If the serial device requires software, make sure it’s installed properly.
d.
Make sure the number of ports is matching the number of USB to Serial Adapter COM port.
e. USB to Serial Adapter does NOT support serial mouse.
f. Please download the latest driver to support your new serial product.
Q 2.
Why is the OS loading sometimes around 45% when using USB to Serial Adapter under Windows XP?
Ans:
This problem is a common characteristic that appears when using USB devices under Windows XP.
Q 3. Why the COM port number will different under XP?
Ans: The COM port number is assigned by which USB slot is used to connect to the computer.
If changing USB slot, the port number will change.
Made in China
771-UTS1009DF-S01
E-mail for technical support: info@sunix.com
Website fo r produ ct info rm ation: w w w.su nix.com
Te l : +886-2-8913-1987
Fax: +886-2-8913-1986
Regulatory Compliance
FCC Class B Declaration
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense. Modications
not authorized by the manufacturer may void users authority to operate this device.
CE
This equipment meets the requirements of EC Electromagnetic Compatibility Directive (2004/108/EC and 2014/30/EC)
WEEE Information
For EU (European Union) member users: According to the WEEE (Waste electrical and electronic equipment)
Directive, do not dispose of this product as household waste or commercial waste. Waste electrical and electronic
equipment should be appropriately collected and recycled as required by practices established for your country.
For information on recycling of this product, please contact your local authorities, your household waste disposal
service or the shop where you purchased the product.
Contact Information
Customer satisfaction is our number one concern, and to ensure that customers receive the full benet of our
products, SUNIX services has been set up to provide technical support, driver updates, product information, and
user’s manual updates.
Copyright: Copyright© 2014 SUNIX Co., Ltd. All Rights Reserved. No part of this publication may be reproduced,
transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means,
photocopying, manual, or otherwise, without prior written permission from SUNIX Co., Ltd. Disclaimer: SUNIX Co.,
Ltd. Shall not be liable for any incidental or consequential damages resulting from the performance or use of this
equipment. SUNIX Co., Ltd. makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is given as to the
correctness of this content. In the interest of continued product improvement, this company reserves the right to
revise the manual or include change in the specications of the product described within it at any time without
notice and without obligation to notify any person of such revision or changes. The information contained in this
manual is provided for general use by the customers. SUNIX is a registered trademark of SUNIX Co., Trademarks:
Ltd. Other registered marks used herein are for identication purposes only and may be trademarks of their
respective owners.
Serial Communication
Interface RS-232
IC FTDI FT232RL
Controller 16C550 Compatible UART
BUS Universal Serial Bus (USB)
Number of Ports 1-port RS-232
IRQ & IO Assigned by System
FIFO 256 Byte receive buffer and 128 Byte transmit buffer
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Baud rate 50~115.2Kbps
Data bit 5, 6, 7, 8
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection
±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
Connector DB9 Male with Screw Nut
(FTDI Solution)
