Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: January 25, 2019 12:48 PM

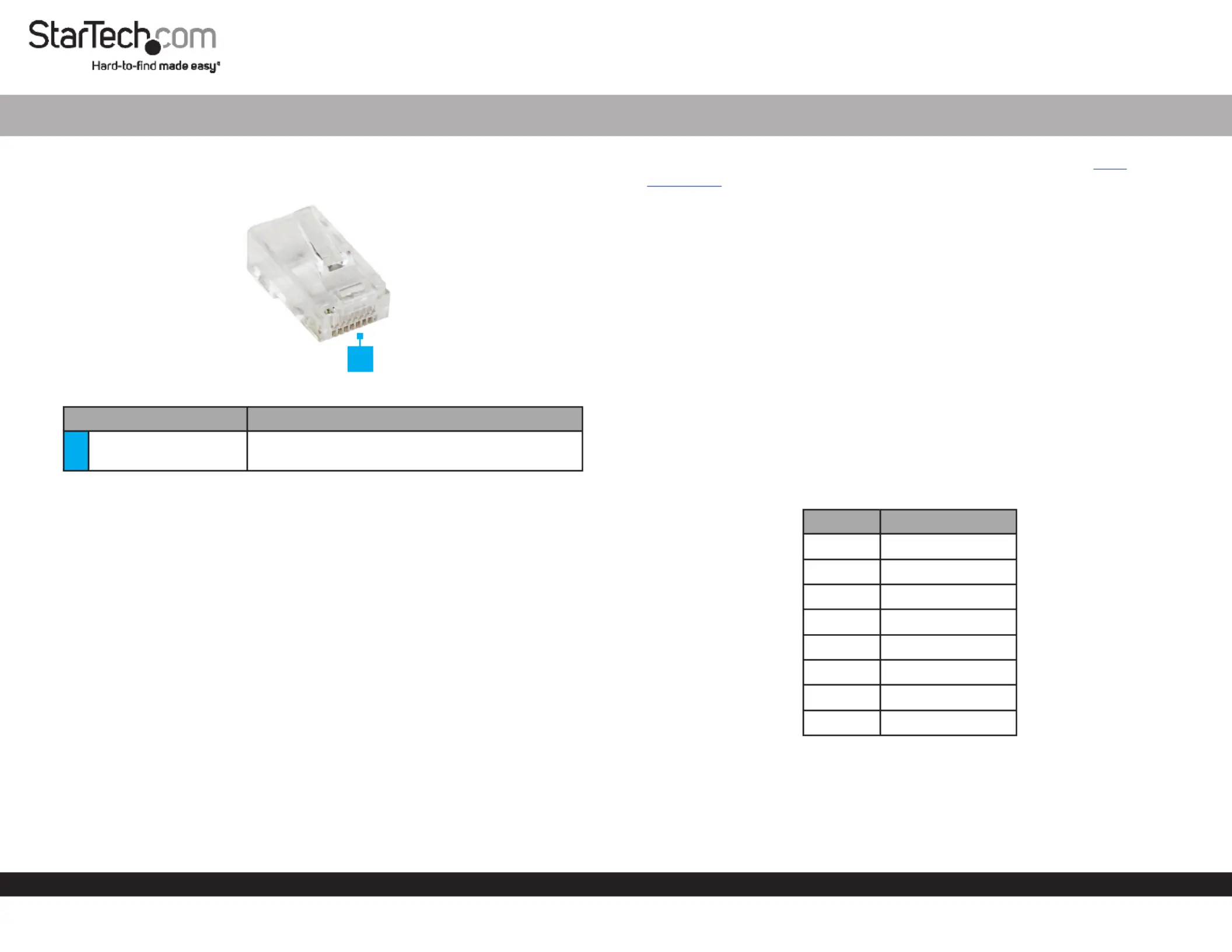

Product Diagram (CRJ4550PK)
Connector Function
1Pins x 8 • Used to connect the eight wires within the
Ethernet cable to the .Modular Connector
Requirements
• Unshielded Twisted Pair Patch Cable (UTC) x 1
• Modular Connectors x 2
• Crimping Tool x 1
• Cable Tester x 1
• Wire Cutter x 1
Installation
Notes: Wire Cutter’s are very sharp and should be used with extreme care.
Wiring should be completed by a certied professional as per the local safety and
building code guidelines.
1. Carefully using a strip the jacket o of the 1.5” from the end Wire Cutter UTC Cable,
of the cable exposing the four pairs of twisted wires.
2. Spread the four pairs of twisted wires apart.
Note: CAT5e cables have a pull sting that will need to be removed.
CAT6 Cables have a spine that will need to be removed.
3. Untwist the four pairs of wires, creating eight separate wires.
Cat5e RJ45 Modular Plug Connector - 50 Pkg
1
4. Arrange the eight wires using either the T568A or T568B pattern. See Wire
Orientation for more information.
5. Using the , cut the eight wires 0.5” from the end of the wires, leaving a Wire Cutters
clean straight cut at the end of the wires.
6. Carefully insert the wires in the . Ensure that each of the wires Modular Connector
passes through the guides that are inside of the .Modular Connector
7. Push the into the slot in the and squeeze down Modular Connector Crimping Tool
on the handle to secure the wires in the .Modular Connector
8. Repeat steps 1 - 7 on the other end of the .UTC Cable
9. Using the on both ends of the to test each of the pins in the Cable Tester UTC Cable
Modular Connector.
Wire Orientation
T568A Standard:
Note: Start from the left of the and work towards the right (Pin Modular Connector
1 - 8).
Pin Wire
Pin 1 • White/Green
Pin 2 • Green
Pin 3 • White/Orange
Pin 4 • Blue
Pin 5 • White/Blue
Pin 6 • Orange
Pin 7 • White/Brown
Pin 8 • Brown
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a lifetime warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
FR: fr.startech.com
DE: de.startech.com
ES: es.startech.com
NL: nl.startech.com
IT: it.startech.com
JP: jp.startech.com
StarTech.com Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
2500 Creekside
Parkwy
Lockbourne, Ohio
43137
U.S.A.
T568B Standard:
Note: T568B Standard is the mostly commonly used method for Ethernet cables.
Pin Wire
Pin 1 • White/Orange
Pin 2 • Orange
Pin 3 • White/Green
Pin 4 • Blue
Pin 5 • White/Blue
Pin 6 • Green
Pin 7 • White/Brown
Pin 8 • Brown
